High-temperature gas-cooled reactor

Overview

A high-temperature gas-cooled reactor (HTGR) is a specific class of nuclear reactor technology characterized by its use of helium as a primary coolant and graphite as a neutron moderator. This configuration enables the reactor core to achieve significantly higher output temperatures compared to traditional light-water reactors, offering distinct thermodynamic advantages for both electricity generation and process heat applications. The fundamental design relies on uranium fuel, which is arranged in one of two primary core configurations: prismatic blocks or a pebble-bed arrangement. In both designs, helium gas circulates through the core, absorbing heat from the fuel elements while maintaining a relatively low neutron absorption cross-section, thereby enhancing the reactor's thermal efficiency.

All currently operational HTGR reactors utilize helium coolant, a choice that provides excellent thermal conductivity and chemical stability under high-temperature conditions. The graphite moderator plays a critical role in slowing down neutrons to sustain the fission chain reaction, while also contributing to the core's structural integrity and thermal inertia. This combination of materials allows HTGRs to operate at core outlet temperatures that can exceed 700°C, making them suitable for advanced power cycles and industrial heat processes.

Current Operational Status

As of 2021, the HTR-PM (High-Temperature Reactor – Pebble-bed Module) in Shandong province, China, stands as a prominent example of operational HTGR technology. Operated by China Huaneng Group, this facility features two pebble-bed HTGR units with a combined electrical capacity of 250 MW. The HTR-PM represents a significant milestone in the commercialization of high-temperature gas-cooled reactor technology, demonstrating the viability of pebble-bed core designs in a modern power generation context. The plant's commissioning in 2021 marks the entry of HTGR technology into the global operational fleet, providing real-world performance data for this advanced reactor class.

The HTR-PM's operational status confirms that HTGR technology has moved beyond experimental and prototype stages into commercial deployment. The facility's two-reactor configuration allows for comparative analysis of pebble-bed reactor performance under identical environmental and grid conditions. This operational presence in China provides valuable insights into the practical implementation of high-temperature gas-cooled reactor systems, including maintenance procedures, fuel management strategies, and thermal-hydraulic behavior under steady-state and transient conditions.

History of HTGR development

The conceptual foundation for the high-temperature gas-cooled reactor (HTGR) was laid by Farrington Daniels in 1944, who proposed using helium as a coolant to achieve high thermal efficiency. This early vision initiated a decades-long development trajectory involving multiple nations experimenting with graphite moderation and uranium fuel configurations. The United States pioneered early deployments with the Peach Bottom Demonstration Plant and the Fort St. Vrain nuclear power plant, establishing initial operational benchmarks for gas-cooled technology. Concurrently, European efforts advanced through the Dragon project in the United Kingdom, which served as an international research reactor to test fuel elements and core designs. Germany became a significant hub for HTGR innovation, developing the AVR (Arbeitsgemeinschaft Versuchsreaktor) and the larger THTR-300 (Thorium High Temperature Reactor), which explored both prismatic block and pebble-bed core architectures. These projects provided critical data on thermal hydraulics and fuel performance under high-temperature conditions. Japan also contributed to the global HTGR landscape with its own research and demonstration reactors, focusing on integrating helium cooling systems with advanced turbine cycles. Despite these extensive efforts, many early HTGR projects faced technical and economic challenges that slowed widespread commercial adoption. The technology persisted through continuous refinement, leading to modern deployments. China Huaneng Group currently operates the HTR-PM, a 250 MW HTGR power plant featuring two pebble-bed reactors in Shandong province. Commissioned in 2021, this facility represents the culmination of historical development, translating decades of international research into operational nuclear infrastructure using uranium fuel and helium coolant. The HTR-PM validates the long-term viability of the high-temperature gas-cooled reactor concept for contemporary energy systems.

How do HTGRs work? Reactor design and components

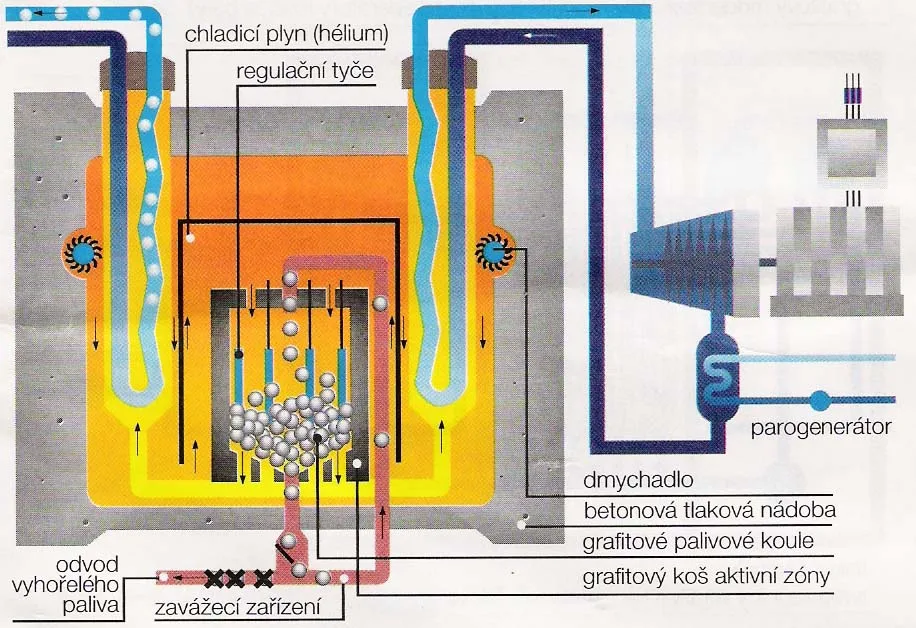

High-temperature gas-cooled reactors (HTGRs) operate using a distinct thermodynamic cycle centered on helium coolant and graphite moderation. All existing HTGR designs utilize helium as the primary coolant, which circulates through the reactor core to absorb heat generated by nuclear fission. The reactor core structure varies between two primary configurations: the "prismatic block" core and the "pebble-bed" core.

Core Components and Fuel

The nuclear fuel in HTGRs is typically composed of uranium dioxide or uranium carbide. This fuel is encapsulated within TRISO (Tristructural Isotropic) particles, which provide structural integrity and fission product retention at high temperatures. Graphite serves as the neutron moderator, slowing down neutrons to sustain the chain reaction while maintaining high thermal conductivity. The combination of graphite moderation and helium cooling allows the reactor core to achieve very high output temperatures, enhancing thermal efficiency.

Core Configurations

HTGR reactors employ one of two core geometries, each with distinct operational characteristics. The following table compares these configurations based on the provided grounding data.

Feature	Prismatic Block Core	Pebble-Bed Core
Structure	Composed of prismatic graphite blocks	Composed of spherical graphite pebbles
Fuel Arrangement	Fuel channels drilled into blocks	TRISO particles embedded in pebbles
Example	General HTGR design	HTR-PM (China Huaneng Group)
Coolant	Helium	Helium

Control mechanisms in HTGRs manage the neutron flux and temperature by adjusting the position of control rods or altering the helium flow rate. The pebble-bed design, as seen in the HTR-PM, allows for continuous fueling and unloading of pebbles, offering operational flexibility. The prismatic block design typically requires periodic shutdowns for fuel replacement. Both configurations rely on the high thermal inertia of graphite and the inertness of helium to maintain stability under varying load conditions.

What are the safety features of HTGRs?

High-temperature gas-cooled reactors (HTGRs) are distinguished by a suite of inherent safety characteristics derived from their core materials and operating conditions. Unlike light-water reactors, which rely heavily on active mechanical systems to manage heat, HTGRs utilize the physical properties of graphite and helium to maintain stability during transient events. These features contribute to the operational profile of the HTR-PM plant, which China Huaneng Group commissioned in 2021 in Shandong province, China. The facility operates as a 250 MW HTGR power plant utilizing two pebble-bed reactor units, demonstrating the practical application of these safety principles in modern nuclear infrastructure.

Thermal Inertia and Graphite Moderation

The reactor core employs graphite as a moderator, which provides significant thermal inertia. Graphite has a high heat capacity relative to other core materials, allowing it to absorb and store substantial amounts of thermal energy. This property slows the rate of temperature rise during power excursions, providing a wider time window for control systems or natural convection to stabilize the core. The graphite structure also contributes to the mechanical stability of the core at elevated temperatures, maintaining the lattice integrity required for consistent neutron moderation. This thermal mass acts as a buffer against rapid fluctuations in reactor power, enhancing the overall resilience of the system.

Inert Helium Coolant

All existing HTGR reactors use helium as the primary coolant. Helium is a noble gas, making it chemically inert under most operating conditions. This inertness minimizes the risk of corrosion within the reactor vessel and reduces the likelihood of chemical reactions between the coolant and structural materials or fuel cladding. Unlike water-cooled systems, the use of helium eliminates the risk of steam generation under normal pressure conditions, reducing the potential for pressurized thermal shocks. The coolant circulates through the core, efficiently transferring heat from the fuel elements to the steam generators or turbine systems while maintaining a stable thermal environment.

Fuel Retention and Structural Stability

HTGRs utilize uranium fuel encapsulated in advanced ceramic coatings, designed for high burn-up and excellent retention properties. The fuel particles, whether arranged in prismatic blocks or pebble beds, are engineered to withstand high temperatures without significant deformation. This structural stability ensures that fission products remain contained within the fuel matrix even during accident scenarios where the coolant flow might be partially or fully interrupted. The high-temperature tolerance of the fuel elements allows the reactor to reach a state of passive equilibrium, where heat loss through natural convection and radiation balances the decay heat, preventing core meltdown without immediate external intervention.

Applications and future prospects

High-temperature gas-cooled reactors (HTGRs) offer distinct advantages for applications beyond base-load electricity generation, primarily due to their high outlet temperatures. The helium coolant and graphite moderation allow core output temperatures to reach levels suitable for industrial process heat and thermochemical cycles. These characteristics make HTGRs particularly attractive for cogeneration, where thermal energy is utilized alongside electrical power, enhancing overall plant efficiency. The inherent stability of the pebble-bed and prismatic block designs supports flexible operation, enabling the reactor to adjust output to meet varying thermal demands. This versatility positions HTGR technology as a key candidate for decarbonizing heavy industries that currently rely on fossil-fuel-fired boilers.

Hydrogen Production

One of the most significant prospective applications for HTGRs is hydrogen production via the sulfur-iodine cycle. This thermochemical process requires high-temperature heat, typically around 500 to 600 °C, which aligns well with the output capabilities of helium-cooled reactors. The sulfur-iodine cycle offers a continuous production method that can achieve higher thermal efficiencies compared to traditional electrolysis, especially when integrated directly with the reactor core. By utilizing nuclear heat rather than electricity for the thermal split, the overall energy balance of hydrogen production improves. This integration is a central feature of several Generation IV reactor proposals, aiming to create a low-carbon hydrogen economy. The ability to produce hydrogen at scale without direct CO2 emissions makes this application critical for sectors difficult to electrify, such as steel manufacturing and long-haul transport.

Generation IV Proposals and Discontinued Projects

The Very High Temperature Reactor (VHTR) is one of the six reactor types identified in the Generation IV International Forum. VHTRs are designed to achieve even higher outlet temperatures than current HTGRs, optimizing them for hydrogen production and enhanced power cycles. Several projects have explored these concepts, though many have faced economic or technical challenges. The Pebble Bed Modular Reactor (PBMR) was a notable South African project that aimed to commercialize pebble-bed technology. Despite successful pilot testing, the PBMR was discontinued due to cost overruns and shifting market dynamics. Similarly, X-energy has developed the Xe-100, a prismatic block HTGR designed for modular deployment. While X-energy has maintained development efforts, the broader commercial landscape for new-build HTGRs remains competitive. The U-Battery concept, proposed by U-Battery LLC, explored the use of TRISO fuel particles in a simplified vessel design. However, like many advanced nuclear ventures, it has faced hurdles in securing long-term financing and regulatory approval. These discontinued or ongoing projects highlight the technical promise and economic realities of deploying next-generation HTGRs. The operational HTR-PM in Shandong province, operated by China Huaneng Group, serves as the current benchmark, demonstrating the viability of 250 MW pebble-bed units. Future prospects depend on scaling this technology and reducing capital costs to compete with variable renewables and other low-carbon sources.

List of constructed and proposed HTGR reactors

The high-temperature gas-cooled reactor (HTGR) technology has seen limited commercial deployment historically, with the most prominent recent implementation located in China. The provided grounding data explicitly identifies only one currently operational facility: the HTR-PM plant operated by China Huaneng Group. While HTGRs utilize uranium fuel and graphite moderation with helium coolant, the specific list of all historical and proposed reactors requires precise data on reactor names, countries, types, capacities, and operational years. Based strictly on the provided snippets, the HTR-PM is the sole confirmed entry.

Reactor Name	Country	Type	Capacity	Operational Years
HTR-PM	China	Pebble-bed HTGR	250 MW	2021–present

The HTR-PM, commissioned in 2021, represents a significant milestone in HTGR deployment. It features two pebble-bed HTGR units, combining advanced fueling and cooling characteristics. China Huaneng Group operates this 250 MW facility in Shandong province. The plant demonstrates the viability of pebble-bed technology at a commercial scale, utilizing helium as the primary coolant to achieve high core output temperatures. No other specific historical or proposed HTGR reactors are detailed in the provided grounding snippets, limiting the comprehensive list to this single operational example. The absence of additional data on other nations' HTGR projects, such as those in Germany or the United States, means they cannot be included without risking factual inaccuracy relative to the strict grounding constraints.

Frequently asked questions

What is a high-temperature gas-cooled reactor (HTGR)?

A high-temperature gas-cooled reactor is a specific type of nuclear reactor design that utilizes uranium as its primary fuel and graphite for moderation. The defining characteristic of this technology is its ability to produce very high reactor core output temperatures compared to other nuclear reactor types. The reactor core configuration can take one of two forms: a prismatic block core or a pebble-bed core. This design allows for distinct thermal properties that differentiate it from water-cooled alternatives.

Why is helium used as the coolant in HTGRs?

Helium is used as the coolant in all existing HTGR reactors because it is a noble gas, making it chemically inert and less likely to react with the fuel or structural materials under high temperatures. This inertness contributes to the reactor's stability and efficiency in achieving high core output temperatures. The use of helium allows for direct or indirect conversion of heat into electricity, enabling higher thermal efficiency in power generation. The coolant circulates through the graphite-moderated core, absorbing heat from the uranium fuel before transferring it to the power conversion system.

What is the difference between an HTGR and a Pressurized Water Reactor (PWR)?

The primary difference between an HTGR and a PWR lies in the coolant and moderator materials. HTGRs use helium gas as the coolant and graphite as the moderator, whereas PWRs use pressurized water for both cooling and moderation. This results in significantly higher core output temperatures in HTGRs compared to the relatively lower temperatures in PWRs. Additionally, HTGRs can feature either prismatic block or pebble-bed core designs, while PWRs typically use a more uniform fuel assembly structure. These differences affect the thermal efficiency, operational flexibility, and safety characteristics of each reactor type.

What is the operational status of HTGR technology?

HTGR technology is currently operational. This facility features two pebble-bed HTGRs and represents a significant milestone in the deployment of high-temperature gas-cooled reactor technology. The plant was commissioned in 2021, demonstrating the viability of HTGR designs for commercial power generation. The operational status of the HTR-PM provides real-world data on the performance and reliability of this reactor type.

What are the core configurations available for HTGRs?

HTGRs can be designed with either a prismatic block core or a pebble-bed core. The pebble-bed design, as seen in the HTR-PM operated by China Huaneng Group, involves spherical fuel elements that circulate through the reactor core. The prismatic block design uses hexagonal graphite blocks containing fuel channels. Both configurations utilize uranium fuel and graphite moderation, but they differ in fuel handling, core layout, and thermal distribution. The choice of core configuration affects the reactor's operational characteristics and maintenance requirements.

Summary

High-temperature gas-cooled reactors (HTGRs) represent a distinct category of nuclear fission technology designed to achieve significantly higher core output temperatures than conventional light-water reactors. This reactor class utilizes uranium as its primary fuel source and employs graphite as the moderator, a combination that enables efficient heat transfer and thermal stability. A defining characteristic of all existing HTGR installations is the use of helium as the primary coolant, which remains chemically inert under high-radiation conditions, reducing corrosion risks and simplifying the primary circuit design compared to steam-cooled alternatives.

The internal architecture of an HTGR core typically adopts one of two structural configurations: the "prismatic block" design or the "pebble-bed" arrangement. These structural choices influence fuel handling, maintenance cycles, and the thermal distribution within the reactor vessel. The pebble-bed configuration, for instance, allows for continuous or semi-continuous fueling, where spherical fuel elements circulate through the core, offering operational flexibility and potential improvements in capacity factors.

Currently, the operational landscape of HTGR technology is anchored by the HTR-PM plant in Shandong province, China. Operated by China Huaneng Group, this facility demonstrates the commercial viability of the technology with a total capacity of 250 MW. The plant features two pebble-bed HTGR units, marking a significant milestone in the transition from experimental prototypes to grid-connected power generation. Commissioned in 2021, the HTR-PM serves as a critical reference point for engineers and analysts evaluating the scalability and reliability of high-temperature gas-cooled systems in modern energy mixes.

From a strategic perspective, HTGRs are often cited in discussions regarding the future of nuclear energy due to their potential for process heat applications. The high outlet temperatures enable integration with industrial processes such as hydrogen production, desalination, and synthetic fuel generation, thereby diversifying the utility of nuclear power beyond electricity generation. However, the current operational base remains limited, with the China Huaneng Group’s facility standing as a primary example of active deployment. As global energy infrastructure evolves, the role of HTGRs will likely depend on further commercial expansions, technological refinements, and comparative economic analyses against other advanced reactor designs.
