Overview
The Helms Pumped Storage Plant is a major hydroelectric facility located in Fresno County, California, situated approximately 50 miles (80 km) east of the city of Fresno within the Sierra National Forest in the Sierra Nevada Mountain Range. The plant utilizes the Helms Creek canyon on the North Fork of the Kings River for off-river water storage, employing the pumped-storage hydroelectric method to generate electricity. Owned and operated by Pacific Gas and Electric Company, the facility plays a significant role in the regional energy infrastructure.
Planning for the Helms Pumped Storage Plant commenced in the early 1970s, with construction officially beginning in June 1977. The plant entered commercial operations on 30 June 1984. It has an installed capacity of 1,212 MW, making it a substantial contributor to the power grid's flexibility and storage capabilities. The facility remains operational, continuing to serve as a key asset for Pacific Gas and Electric Company in managing energy demand and supply through its pumped-storage technology.
History and Development
The development of the Helms Pumped Storage Plant represents a significant engineering undertaking in the Sierra Nevada Mountain Range. The project was conceived during the early 1970s, a period of strategic planning for hydroelectric infrastructure in California. The site was selected for its unique geographical advantages, specifically the Helms Creek canyon on the North Fork of the Kings River. This location provided the necessary topography for off-river water storage, which is critical for the pumped-storage hydroelectric method employed by the facility. The plant is situated approximately 50 miles (80 km) east of Fresno, California, within the boundaries of the Sierra National Forest. This remote location required extensive logistical planning to support the construction efforts and subsequent operational maintenance.
Construction on the Helms Pumped Storage Plant commenced in June 1977. This phase marked the transition from preliminary planning and site preparation to active infrastructure development. The construction period lasted nearly seven years, reflecting the complexity of building a major pumped-storage facility in a mountainous terrain. During this time, engineers and workers developed the necessary water conveyance systems, turbine installations, and electrical infrastructure required to harness the potential energy of the stored water. The project was owned and driven by Pacific Gas and Electric Company, which coordinated the various construction activities to meet the targeted timeline for commercial readiness.
Commercial operations at the Helms Pumped Storage Plant officially began on 30 June 1984. This date marks the formal entry of the facility into the regional power grid, providing a reliable source of electricity generation. The plant was designed with an installed capacity of 1,212 MW, making it a substantial contributor to the energy mix of the area. The transition from construction to commercial operation in 1984 concluded the initial development phase of the project, establishing the plant as a key asset for Pacific Gas and Electric Company. The successful commissioning of the plant validated the early 1970s planning decisions and the execution of the construction schedule that started in 1977.
How does pumped storage hydroelectricity work?
Pumped-storage hydroelectricity operates as a large-scale energy storage system, utilizing water as the primary medium for storing and releasing electrical energy. This technology is critical for grid stability, allowing electricity generated during periods of low demand to be stored and dispatched during peak usage times. The Helms Pumped Storage Plant, commissioned in 1984, exemplifies this method by using Helms Creek canyon on the North Fork of the Kings River for off-river water storage.
Operational Principles and Energy Arbitrage
The core mechanism of pumped storage relies on the conversion of electrical energy into potential energy. During periods of low electrical demand, typically at night or on weekends, excess electricity from the grid is used to drive pump-generators. These devices act as motors, pumping water from a lower reservoir to an upper reservoir. This process effectively "charges" the system, storing energy in the form of elevated water mass.
When electrical demand peaks, the stored water is released from the upper reservoir, flowing back down through turbines to the lower reservoir. As the water descends, it drives the turbines, which spin the generators to produce electricity. This discharge phase converts the potential energy of the water back into electrical energy, feeding power back into the grid when it is most valuable. This cycle of charging and discharging enables energy arbitrage, balancing supply and demand across different timeframes.
Role of Pump-Generators
Central to this system are the pump-generators, which serve a dual role. In pumping mode, they function as electric motors, drawing power from the grid to move water uphill. In generating mode, they operate as synchronous generators, converting the kinetic energy of falling water into electricity. The efficiency of these reversible units is crucial for the economic viability of the plant. The Helms facility, with an installed capacity of 1,212 MW, utilizes this reversible technology to provide significant power output during peak hours.
This operational flexibility allows pumped storage plants to respond quickly to grid fluctuations. Unlike thermal power plants that may take hours to ramp up, pumped storage can transition from pumping to generating in a matter of minutes. This rapid response capability makes it an essential tool for frequency regulation and load following, ensuring that the electrical supply matches real-time demand. The plant's location in the Sierra National Forest provides the necessary topographical gradient to maximize the potential energy stored in the water.
Reservoir Infrastructure and Capacity

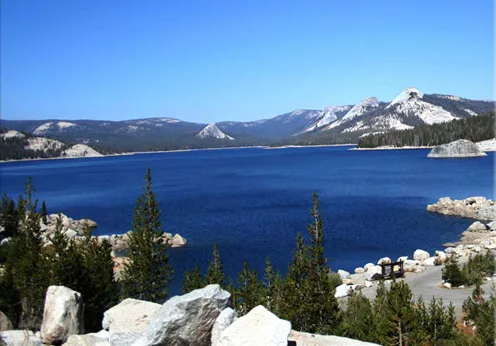

The Helms Pumped Storage Plant relies on a dual-reservoir system to manage water flow and energy generation within the Sierra Nevada Mountain Range. The facility utilizes Helms Creek canyon on the North Fork of the Kings River for off-river water storage, integrating two primary bodies of water: the upper reservoir and the lower reservoir. This configuration allows the plant to pump water to a higher elevation during periods of low electricity demand and release it to generate power during peak hours. The system is owned by Pacific Gas and Electric Company and has been operational since commercial operations began on 30 June 1984. The upper reservoir, known as Courtright Reservoir, serves as the primary storage source for the pumped-storage mechanism. It is located at a higher altitude within the Sierra National Forest, providing the necessary gravitational potential energy for electricity generation. The lower reservoir, Wishon Reservoir, acts as the receiving body for water released from the upper reservoir and the source for water pumped back up during off-peak hours. The interaction between these two reservoirs is critical to the plant's 1,212 MW installed capacity.Reservoir Comparison
| Reservoir | Role in System | Location Context |
|---|---|---|
| Courtright Reservoir | Upper Reservoir | Sierra National Forest, North Fork of the Kings River |
| Wishon Reservoir | Lower Reservoir | Sierra National Forest, North Fork of the Kings River |
Hydraulic and Mechanical Systems
The Helms Pumped Storage Plant utilizes a closed-loop hydroelectric system within the Helms Creek canyon on the North Fork of the Kings River. The facility relies on the topographical gradient of the Sierra National Forest to store potential energy in an upper reservoir and release it through a series of hydraulic conduits to drive the turbine-generators. The plant’s mechanical core consists of three identical units, each rated at 404 MW, contributing to the total installed capacity of 1,212 MW. These units employ Francis pump-turbine-generators, a technology selected for its efficiency in medium-head pumped storage applications. The system operates by pumping water from the lower reservoir to the upper reservoir during periods of low electrical demand and releasing it to generate power during peak demand.
Hydraulic Conduits
Water flows from the upper reservoir through a headrace tunnel, which minimizes friction losses before entering the penstocks. The penstocks are vertical or inclined steel pipes that convey water under high pressure to the turbine runners. After passing through the turbines, the water exits via the draft tubes and merges into the tailrace tunnel, which returns the flow to the lower reservoir or the North Fork of the Kings River. The design of these conduits is critical for maintaining the hydraulic head required to drive the 404 MW Francis turbines efficiently. The plant’s location 50 miles east of Fresno provides the necessary elevation difference for this pumped-storage method. Construction of these underground and surface hydraulic structures began in June 1977, with commercial operations commencing on 30 June 1984.
Component Specifications
| Component | Specification |
|---|---|
| Turbine Type | Francis Pump-Turbine-Generator |
| Number of Units | 3 |
| Capacity per Unit | 404 MW |
| Total Installed Capacity | 1,212 MW |
| Primary Fuel/Source | Water (Off-river storage) |
| Operator | Pacific Gas and Electric Company |
| Commissioning Date | 30 June 1984 |
The mechanical systems are designed for bidirectional operation, functioning as both pumps and turbines. The Francis turbine design allows for high efficiency in both modes, making it suitable for the variable load demands of the Pacific Gas and Electric Company grid. The plant’s operational status remains active, continuing to provide grid stability and energy storage capacity in California’s Sierra Nevada region. No additional technical dimensions such as tunnel diameters or penstock lengths are explicitly detailed in the primary source documentation, focusing instead on the aggregate capacity and operational timeline.
Significance
The Helms Pumped Storage Plant serves as a critical component of the electrical infrastructure in California, providing substantial generation capability through its 1,212 MW installed capacity. Located within the Sierra National Forest, approximately 50 miles (80 km) east of Fresno, the facility leverages the topography of the Sierra Nevada Mountain Range to facilitate efficient energy storage and retrieval. This geographic positioning allows the facility to function as a strategic asset for the regional grid, managed by owner Pacific Gas and Electric Company.
Grid Stabilization and Operational Role
Pumped storage facilities like Helms are essential for stabilizing electrical grids, particularly in regions with variable energy inputs. The plant’s ability to rapidly adjust its output provides crucial flexibility for grid operators. By storing water at higher elevations during periods of lower electricity demand and releasing it to generate power during peak hours, the plant helps balance supply and demand fluctuations. This operational model supports grid reliability by offering quick response times, which is vital for managing sudden changes in load or integrating intermittent renewable energy sources into the broader network.
Commercial operations at the Helms Pumped Storage Plant began on 30 June 1984, following a construction phase that started in June 1977 and planning efforts initiated in the early 1970s. The long lead time reflects the complex engineering required to integrate the facility into the natural landscape of the Sierra Nevada. Since its commissioning, the plant has maintained an operational status, continuing to contribute to the energy mix of California. The facility’s design, which includes the use of the North Fork of the Kings River for water management, underscores the importance of hydrological resources in sustaining long-term energy storage capabilities. As a major generation asset owned by Pacific Gas and Electric Company, Helms remains a key element in the state’s strategy for maintaining grid stability and ensuring consistent power delivery to consumers in the region.
