Generation IV reactor: Design, development, and deployment

Overview

Generation IV reactors represent the next evolution in nuclear reactor design technologies, envisioned as the direct successors to the existing generation III reactor fleets. These advanced systems are not a single unified technology but rather a collection of six specific reactor types selected by the Generation IV International Forum (GIF). The GIF serves as the primary international organization coordinating the global development and standardization of these next-generation nuclear power solutions. The overarching objective of the Generation IV initiative is to deliver significant improvements across four key performance metrics: safety, sustainability, efficiency, and cost-effectiveness compared to previous generations of nuclear power plants.

Selected Reactor Technologies

The Generation IV International Forum specifically identified six distinct reactor technologies as the primary candidates for this new generation. While the provided grounding confirms the selection of these six designs, it establishes the framework for their development rather than detailing every technical specification for each individual type. These designs are intended to address the limitations of earlier nuclear technologies by incorporating advanced materials, improved thermal cycles, and enhanced fuel utilization strategies. The selection process was driven by the need to create a diverse portfolio of nuclear options capable of adapting to various energy market demands and geographic conditions.

Performance Goals

The core goals of Generation IV reactors focus on enhanced safety profiles, greater sustainability, and improved operational efficiency. Safety improvements are achieved through both active and passive safety systems, reducing the reliance on external power and human intervention during accident scenarios. Sustainability is addressed through better fuel utilization, reduced radioactive waste volumes, and the potential for extended fuel cycles, primarily utilizing uranium as the primary fuel source. Efficiency gains are targeted through higher operating temperatures, which allow for better thermal-to-electric conversion rates and the potential for process heat applications in industries such as hydrogen production and desalination.

According to the World Nuclear Association, some of these Generation IV designs were suggested to potentially enter commercial operation before 2030. This timeline reflects the accelerated development efforts undertaken by the GIF and various national and international consortia. The operational status of these projects is currently under construction, with the first commercial units commissioned in 2023. This marks a significant milestone in the transition from theoretical design to practical implementation of next-generation nuclear technology. The successful deployment of these reactors aims to provide a low-carbon energy source that complements variable renewable energy sources and enhances the overall resilience of the global energy infrastructure.

History and the Generation IV International Forum

The conceptual framework for Generation IV nuclear reactors emerged from the need for a coordinated international approach to next-generation nuclear energy systems. The Generation IV International Forum (GIF) was established in 2000 to serve as the primary coordinating body for the development and deployment of these advanced reactor designs. This initiative brought together a consortium of member countries committed to advancing nuclear technology beyond the capabilities of Generation III reactors. The GIF’s formation marked a strategic shift toward collaborative research, aiming to standardize development efforts and share technological risks among participating nations.

Development Phases

The GIF structured the advancement of Generation IV technologies into distinct developmental phases to manage technical and economic uncertainties. The initial phase, known as the Viability Phase, focused on assessing the technical feasibility and potential advantages of the six selected reactor types. This stage involved detailed engineering analyses and preliminary design work to determine which technologies offered the most promising improvements in safety, sustainability, efficiency, and cost-effectiveness.

Following the Viability Phase, the development process moved into the Performance Phase. During this period, the focus shifted to optimizing reactor designs and validating performance characteristics through scaled prototypes and advanced modeling. The goal was to refine the technologies to meet the stringent targets set by the GIF, ensuring that each design could deliver on its promised benefits. This phase required extensive collaboration among member countries to share data and validate findings.

The final stage is the Demonstration Phase, where selected reactor designs are built and operated at a commercial scale to prove their viability in real-world conditions. This phase is critical for attracting investment and securing regulatory approval for widespread deployment. The World Nuclear Association suggested in 2015 that some Generation IV reactors might enter commercial operation before 2030, highlighting the accelerated timeline for these advanced systems. The Demonstration Phase continues to be a key focus for the GIF, with ongoing efforts to transition from prototype to full-scale commercial units.

The coordinated efforts of the GIF have been instrumental in shaping the future of nuclear energy. By providing a structured framework for development, the forum has enabled member countries to leverage shared expertise and resources. This collaborative approach has accelerated the progress of Generation IV technologies, bringing them closer to commercial reality. The ongoing work of the GIF remains vital for ensuring that these advanced reactors meet the evolving energy needs of the global community.

What are the main types of Generation IV reactors?

The Generation IV International Forum (GIF) identified six specific reactor technologies as candidates for this generation, targeting enhanced safety, sustainability, efficiency, and cost-effectiveness (per GIF documentation). These designs represent the envisioned successors to Generation III reactors. The six types are the Very High Temperature Reactor (VHTR), Molten Salt Reactor (MSR), Supercritical Water Reactor (SCWR), Gas-cooled Fast Reactor (GFR), Sodium-cooled Fast Reactor (SFR), and Lead-cooled Fast Reactor (LFR).

Reactor Type	Coolant	Key Characteristics
Very High Temperature Reactor (VHTR)	Helium	Targets high thermal efficiency and process heat applications.
Molten Salt Reactor (MSR)	Molten Salt	Fuel dissolved in the coolant, allowing for online reprocessing.
Supercritical Water Reactor (SCWR)	Supercritical Water	Combines PWR and SCWR steam cycle efficiency.
Gas-cooled Fast Reactor (GFR)	Helium	Fast neutron spectrum with gas cooling.
Sodium-cooled Fast Reactor (SFR)	Liquid Sodium	High thermal conductivity, fast neutron spectrum.
Lead-cooled Fast Reactor (LFR)	Liquid Lead or Lead-Bismuth	Inert coolant, high neutron economy.

These technologies aim to improve upon previous generations in multiple dimensions. The GIF coordinates international development efforts for these designs. Current operational status for the generation as a whole is under construction, with initial commissions noted from 2023. Uranium remains the primary fuel source for these concepts.

How do thermal and fast reactors differ in design?

The six Generation IV technologies selected by the Generation IV International Forum (GIF) are broadly categorized by their neutron energy spectra, which dictates core design, fuel utilization, and waste profiles (per GIF framework). Reactors operate either in a thermal spectrum, where neutrons are slowed by a moderator, or a fast spectrum, where neutrons retain high kinetic energy. This fundamental distinction drives the engineering differences between designs like the Very High Temperature Reactor (VHTR) and the Molten Salt Reactor (MSR) compared to the Sodium-cooled Fast Reactor (SFR) and Gas-cooled Fast Reactor (GFR).

Thermal and Epithermal Spectra

Thermal reactors rely on a moderator to slow down fission neutrons, increasing the probability of capture by fuel nuclei. The VHTR utilizes helium gas as a coolant and graphite as a moderator, achieving high thermal efficiency. The MSR, while often classified as thermal or epithermal, uses a liquid fuel mixture, typically uranium and plutonium fluorides dissolved in a molten salt carrier. This design allows for online refueling and distinct waste management strategies, targeting improved sustainability as defined by the GIF (per World Nuclear Association 2015 outlook).

Fast Neutron Spectra

Fast reactors, such as the SFR and GFR, minimize neutron moderation to maintain high neutron velocities. The SFR uses liquid sodium as a coolant, which is relatively transparent to neutrons, allowing for a compact core and efficient breeding of plutonium-239 from uranium-238. The GFR employs helium gas, offering high outlet temperatures for combined-cycle power generation. These designs target enhanced fuel efficiency and the transmutation of long-lived actinides, addressing the sustainability goals of Generation IV concepts. The GIF coordinates the development of these six specific candidates to ensure they meet targets for safety, cost, and sustainability before potential commercial operation before 2030.

Current projects and global deployment

The deployment of Generation IV reactors remains largely in the demonstration and early commercial phases, with several national programs advancing distinct technologies. The Generation IV International Forum (GIF) coordinates these efforts, focusing on six selected designs that prioritize safety, sustainability, efficiency, and cost-effectiveness (World Nuclear Association, 2015). While some models are projected to enter commercial operation before 2030, current projects vary significantly in their maturity levels.

Key International Demonstration Projects

China has made significant strides with the HTR-PM (High-Temperature Gas-cooled Reactor with Modular design), a project that highlights the potential of modular high-temperature reactors. In India, the Prototype Fast Breeder Reactor (PFBR) represents a critical step toward closing the nuclear fuel cycle using fast neutron technology. Russia continues to advance its BN series of sodium-cooled fast reactors, leveraging decades of operational experience to enhance fuel utilization and waste management. Meanwhile, the MYRRHA project in Belgium serves as a multi-purpose research and demonstration facility, integrating a fast neutron spectrum reactor with a high-intensity accelerator-driven system.

Project	Country	Technology Type	Status
HTR-PM	China	High-Temperature Gas-cooled Reactor	Demonstration
PFBR	India	Fast Breeder Reactor	Demonstration
BN Series	Russia	Sodium-cooled Fast Reactor	Operational/Expansion
MYRRHA	Belgium	Accelerator-Driven System	Construction

These projects illustrate the diverse technical approaches being tested globally. The focus on fast reactors, such as the PFBR and BN series, aims to improve uranium utilization and reduce long-lived actinides in nuclear waste. Modular designs like the HTR-PM offer flexibility in deployment and enhanced passive safety features. The MYRRHA project uniquely combines reactor and accelerator technologies to explore the potential of thorium fuel cycles and transmutation of minor actinides. As these demonstration units progress, they provide critical operational data that will inform the broader commercial rollout of Generation IV technologies.

Safety, waste, and efficiency advantages

Generation IV reactor designs are engineered to address four primary objectives: improved safety, enhanced sustainability, higher efficiency, and reduced cost (per Generation IV International Forum criteria). These technologies represent a significant evolution from Generation III reactors, targeting specific operational and environmental advantages that define their role in future energy infrastructure.

Passive Safety Features

A core design principle for Generation IV reactors is the enhancement of passive safety mechanisms. Unlike earlier generations that often relied on active mechanical systems and external power sources to maintain stability, Generation IV designs prioritize inherent physical properties to manage reactor conditions. This approach aims to reduce the likelihood of accidents and mitigate their consequences, ensuring that the reactor can reach a safe state with minimal operator intervention or external energy input. The designs target improved safety as a primary metric, distinguishing them from predecessors.

Waste Management and Sustainability

Sustainability is a critical focus for these advanced nuclear technologies. Generation IV reactors are designed to significantly reduce the longevity and volume of nuclear waste compared to traditional designs. By optimizing fuel cycles and utilizing advanced fuel types, these reactors aim to minimize the radiotoxicity period of spent fuel, addressing long-term storage challenges. The primary fuel source remains uranium, but the efficiency of its utilization is markedly improved, contributing to a more sustainable nuclear energy profile.

Efficiency and Hydrogen Production

Generation IV reactors offer higher thermal efficiency, leading to greater energy yield per unit of fuel. This increased efficiency not only optimizes electricity generation but also enables the effective production of hydrogen. The high-temperature output of certain Generation IV designs makes them particularly suitable for thermochemical hydrogen production, providing a low-carbon energy carrier for various industrial applications. The World Nuclear Association suggested in 2015 that some of these technologies might enter commercial operation before 2030, highlighting the potential for near-term deployment of these efficiency gains.

Operational Status

As of the latest data, Generation IV reactors are primarily under construction, with initial commissions recorded in 2023. This operational status reflects the transitional phase from design and prototyping to commercial viability. The Generation IV International Forum continues to coordinate the development of these six selected reactor technologies, ensuring that the promised safety, sustainability, and efficiency advantages are realized in practical applications.

Challenges and material science

The transition from Generation III to Generation IV nuclear reactors introduces distinct material science and operational challenges that differ significantly from traditional light water reactor (LWR) paradigms. The Generation IV International Forum (GIF) selected six candidate technologies targeting improved safety, sustainability, efficiency, and cost, yet each design class faces unique physical and metallurgical hurdles that must be resolved before widespread commercial deployment, potentially before 2030 according to the World Nuclear Association.

Sodium Reactivity and Thermal-Hydraulic Complexity

Sodium-cooled fast reactors (SFRs) utilize liquid sodium as a primary coolant due to its excellent thermal conductivity and low neutron absorption cross-section. However, sodium exhibits significant chemical reactivity, particularly when exposed to air or water. The reaction 2Na+H2O→2NaOH+H2 generates hydrogen gas and substantial heat, creating a fire and explosion risk during leakage events in the primary loop. This necessitates complex inert gas blanketing systems and rigorous double-containment strategies to mitigate the risk of sodium-water reactions in steam generators. Furthermore, the relatively low density and viscosity of liquid sodium influence pump head requirements and natural circulation driving forces, demanding precise thermal-hydraulic modeling to ensure passive safety during transients.

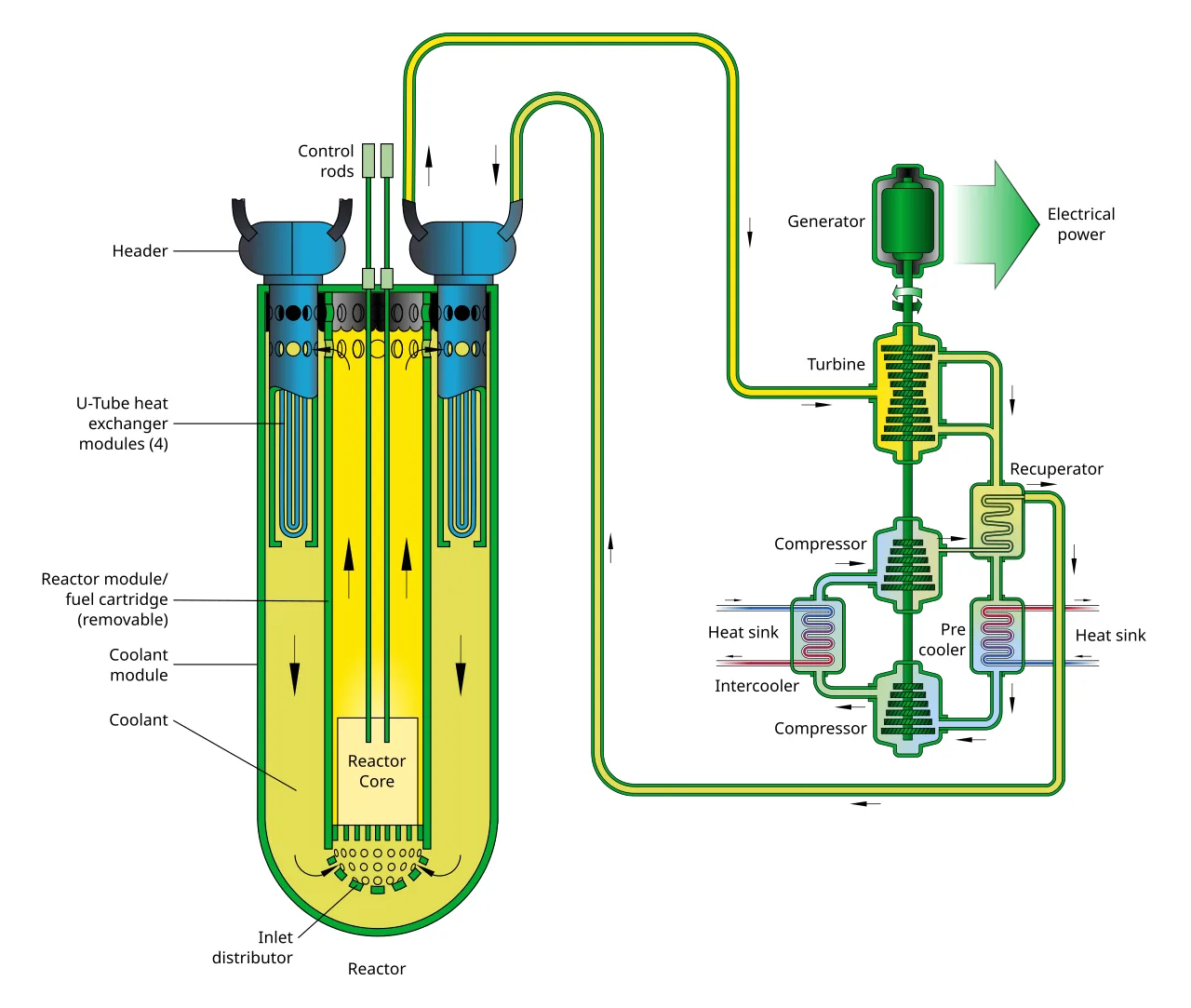

Lead Viscosity and Corrosion Dynamics

Lead-cooled fast reactors (LFRs) and lead-bismuth eutectic (LBE) systems offer higher boiling points and lower neutron moderation compared to sodium. However, lead’s high viscosity at operating temperatures results in higher pumping power requirements and more complex natural circulation dynamics. The primary material challenge in LFRs is corrosion, driven by the oxygen potential of the liquid metal. If the dissolved oxygen concentration is too low, lead dissolves structural ferritic-martensitic steels; if too high, it forms oxide scales that can detach and cause flow blockages. Maintaining a precise oxygen potential, often expressed as [O]eq, is critical for the longevity of the core internals and heat exchangers.

High-Entropy Alloys and Radiation Resistance

To address the harsh radiation environments of Generation IV designs, particularly in Very High Temperature Reactors (VHTRs) and Molten Salt Reactors (MSRs), material scientists are investigating high-entropy alloys (HEAs). Unlike traditional alloys dominated by a single principal element, HEAs consist of five or more elements in near-equimolar ratios, resulting in a single-phase solid solution with high configurational entropy. This structure enhances radiation resistance by facilitating rapid defect annihilation and reducing lattice swelling under neutron flux. The complex crystal lattice of HEAs can trap point defects more effectively than conventional austenitic steels, potentially extending the service life of core components in high-flux, high-temperature environments.

Why it matters

Generation IV reactor technologies represent a critical evolution in nuclear energy infrastructure, envisioned as the successors to Generation III designs. These systems are not merely incremental upgrades; they address fundamental challenges in the global energy transition by targeting improved safety, sustainability, efficiency, and cost-effectiveness. The strategic importance of these reactors lies in their ability to provide flexible, low-carbon energy solutions that extend beyond traditional baseload electricity generation.

Global Energy Transition and Commercial Viability

The integration of Generation IV reactors into the global energy mix is pivotal for decarbonization efforts. The World Nuclear Association suggested in 2015 that some of these advanced designs might enter commercial operation before 2030, marking a significant milestone for the sector. This timeline positions Generation IV technology as a viable near-to-mid-term solution for energy security. By improving efficiency and reducing costs, these reactors aim to compete more effectively with other variable renewable sources and fossil fuels, providing a stable foundation for energy grids undergoing rapid transformation.

Closing the Fuel Cycle and Sustainability

A primary objective of Generation IV designs is enhanced sustainability, particularly through the closing of the nuclear fuel cycle. Unlike earlier generations that often treated spent fuel as linear waste, Generation IV reactors are designed to maximize the utilization of uranium resources. This approach reduces the volume of high-level waste and extends the lifespan of global uranium reserves. By reprocessing and recycling fuel, these systems minimize environmental impact and enhance the long-term economic viability of nuclear power, aligning with broader sustainability goals in energy infrastructure.

Process Heat and Industrial Applications

Beyond electricity generation, Generation IV reactors offer significant value through the provision of process heat for various industries. This capability allows for the decarbonization of sectors such as steel production, chemical manufacturing, and desalination. By delivering high-temperature heat, these reactors can replace fossil-fuel-fired boilers and furnaces, thereby reducing industrial carbon footprints. This diversification of output enhances the flexibility of nuclear energy, making it a multifaceted tool in the broader energy transition strategy, supporting both power grids and industrial heat demands with a single, efficient energy source.
