Overview

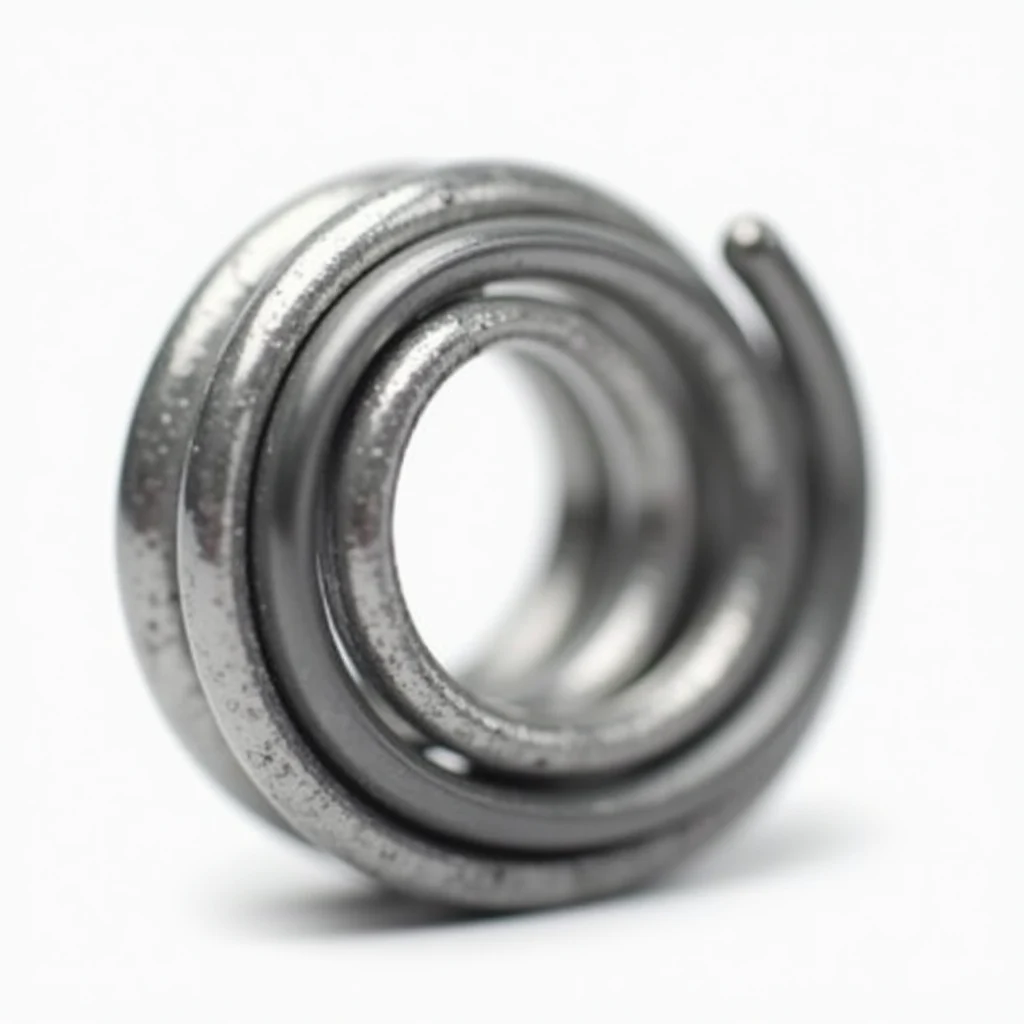

A garter spring is a specialized mechanical component defined as a coiled steel spring that is connected at each end to create a continuous circular shape. This structural configuration distinguishes it from standard helical springs, allowing it to function effectively in radial applications within energy infrastructure and mechanical systems. The primary function of a garter spring is to exert consistent radial force, either inward or outward, depending on its specific design and application requirements. These components are critical in maintaining seals and connections in environments where rotational movement and pressure differentials are common.
Functional Classification and Force Direction
Garter springs are categorized based on the direction of the radial force they exert. Compression garter springs are designed to exert outward radial forces, pushing against the inner surface of a housing or seal. This outward pressure is essential in applications such as oil seals and shaft seals, where maintaining a tight interface between rotating and stationary parts is necessary to prevent leakage and contamination. Conversely, extension garter springs exert inward radial forces, pulling toward the center of the circular form. This inward tension is utilized in belt-driven motors and electrical connectors, where securing components together or maintaining contact pressure is required. The choice between compression and extension types depends on the specific mechanical demands of the energy infrastructure component in which the spring is installed.
Material Composition and Manufacturing
The manufacturing process for garter springs is similar to the creation of regular coiled springs, with the key addition of joining the ends together to form a closed loop. This joining process ensures structural integrity and consistent force distribution around the circumference. Like most other springs used in industrial applications, garter springs are typically manufactured with either carbon steel or stainless steel wire. The selection of material depends on the operating environment, including factors such as temperature, corrosion resistance, and required elasticity. Carbon steel offers high strength and cost-effectiveness, while stainless steel provides enhanced durability in corrosive conditions common in energy infrastructure settings.
What are the main types of garter springs?
Garter springs are fundamentally categorized by their mechanical behavior, specifically the direction of the radial force they exert on the mating component. The two primary types are compression garter springs and extension garter springs. This classification is not merely nominal but dictates the spring's application, installation method, and the resulting stress distribution on the shaft or housing. Understanding the distinction between these two types is critical for selecting the correct component for oil seals, shaft seals, belt-driven motors, and electrical connectors.
Compression Garter Springs
Compression garter springs are designed to exert an outward radial force. In these assemblies, the spring is typically installed such that it pushes against the inner diameter of a housing or the outer diameter of a shaft, depending on the specific seal configuration. The primary function is to maintain constant contact pressure between the sealing lip and the rotating or stationary surface. This outward force compensates for wear and thermal expansion, ensuring a tight seal over time. The manufacturing process involves coiling steel wire and joining the ends to form a circular shape, similar to regular coiled springs but with the critical addition of the end-joining mechanism. These springs are typically manufactured with either carbon steel or stainless steel wire, chosen for their elasticity and resistance to corrosion in various operating environments.
Extension Garter Springs
In contrast, extension garter springs exert an inward radial force. These springs are often used in applications where the spring needs to pull the sealing element toward the center of the shaft. This inward force can be advantageous in specific mechanical setups, such as certain types of electrical connectors or specialized shaft seals where space constraints or load distribution requirements favor an inward pull. The mechanical behavior of extension springs differs from compression springs in how the load is applied and how the spring deforms under stress. The joining of the ends is crucial in extension garter springs to ensure that the inward force is evenly distributed around the circumference, preventing uneven wear on the sealing surfaces.
Mechanical Behavior and Material Efficiency
The choice between compression and extension garter springs involves considerations of mechanical behavior and material efficiency. Compression springs generally offer a more straightforward installation and are widely used in standard oil seal applications. The outward radial force helps to maintain the seal's integrity under varying temperatures and pressures. Extension springs, while less common, provide unique advantages in specific mechanical configurations. The material efficiency of garter springs is influenced by the type of steel used, with carbon steel offering high strength and stainless steel providing enhanced corrosion resistance. The manufacturing process, which includes coiling and joining the ends, must be precise to ensure that the spring performs reliably over its operational lifespan. The radial force exerted by the spring is a function of the spring's stiffness, the deflection, and the geometry of the coil. For a garter spring, the radial force Fr can be approximated by the formula Fr=k⋅δ, where k is the spring constant and δ is the radial deflection. This relationship highlights the importance of selecting the appropriate spring constant for the desired sealing pressure.
Manufacturing process and techniques
Garter spring manufacturing follows the fundamental principles of helical spring production, distinguished primarily by the critical end-joining phase that transforms a linear coil into a continuous circular band. The process begins with the selection of wire material, typically carbon steel or stainless steel, chosen for its elastic modulus and fatigue resistance. This wire is fed through a coiling machine where it is wrapped around a mandrel to achieve the desired diameter and pitch. Unlike standard compression or extension springs, the geometry of a garter spring requires precise control over the coil diameter to ensure uniform radial force distribution once the ends are joined.
End-Joining Methods
The defining characteristic of a garter spring is the connection of its two terminal ends. The method chosen depends on the required load, space constraints, and manufacturing precision. Three primary joining techniques are employed in the industry, each offering distinct mechanical advantages.
| Joining Method | Description | Key Characteristics |
|---|---|---|
| Interlocking | The ends are hooked together, often in a J-hook or loop configuration. | Simple geometry; allows for slight flexibility at the joint; common in lighter loads. |
| Connector | A separate metal piece, such as a U-bolt or clip, fastens the two ends. | Modular; allows for easy replacement of the spring or the connector; useful for maintenance. |
| Nib Joint | Small tabs (nibs) are formed on the ends and welded or crimped together. | Provides a low-profile joint; high strength; often used in tight radial spaces. |
Heat Treating and Finishing
After coiling and joining, the spring undergoes heat treatment to relieve internal stresses induced during the forming process. This step stabilizes the dimensions and enhances the material's yield strength. For carbon steel springs, tempering is commonly used to reduce brittleness, while stainless steel may undergo solution annealing to restore corrosion resistance.
The final stage involves surface finishing to improve fatigue life and environmental resistance. Shot peening is a widely used technique where the spring surface is bombarded with small spherical media, inducing compressive residual stresses that help counteract the tensile stresses experienced during operation. Additionally, coatings such as zinc plating, phosphating, or polymer finishes may be applied to protect against corrosion, particularly in oil seal and shaft seal applications where exposure to lubricants and moisture is constant. These finishing steps ensure the garter spring maintains its radial force output over extended operational lifespans.
Applications in energy systems
Garter springs are critical components in energy infrastructure, providing essential radial force in sealing and mechanical systems. These coiled steel springs, connected at each end to form a circular shape, are used in oil seals, shaft seals, belt-driven motors, and electrical connectors. Their ability to maintain consistent pressure makes them vital for handling the dynamic conditions found in energy production and transmission systems.
Sealing Systems in Energy Equipment
In oil seals and shaft seals, garter springs exert outward radial forces to maintain contact between sealing surfaces. This is particularly important in rotating equipment such as turbines, pumps, and compressors used in power generation. The springs compensate for wear and thermal expansion, ensuring a reliable seal under varying operating conditions. Compression garter springs are typically used in these applications, where maintaining outward pressure is crucial for preventing fluid leakage.
The performance of these seals depends on the spring's ability to handle pressure, temperature, and viscosity changes. In high-temperature environments, such as those found in steam turbines or gas-fired power plants, the garter spring must maintain its elasticity and radial force despite thermal expansion of surrounding components. The choice between carbon steel and stainless steel wire affects the spring's performance under these conditions, with stainless steel often preferred for its corrosion resistance in humid or chemically aggressive environments.
Electrical Connectors in Power Systems
Garter springs also play a role in electrical connectors used throughout energy infrastructure. In these applications, the springs provide consistent contact pressure between conductive surfaces, ensuring reliable electrical connections. This is particularly important in high-voltage systems where intermittent contact can lead to arcing, heat generation, and potential failure.
Extension garter springs, which exert inward radial forces, may be used in certain connector designs where the spring needs to pull components together rather than push them apart. The manufacturing process for these springs is similar to regular coiled springs, with the addition of joining the ends together to create the circular configuration. This construction allows for uniform force distribution around the circumference of the connector.
Material Selection and Performance
The material choice depends on the specific requirements of the application, including operating temperature, corrosion environment, and required force. Carbon steel offers good strength and cost-effectiveness, while stainless steel provides superior corrosion resistance for demanding environments.
This relationship helps engineers select appropriate spring specifications for specific energy system applications, ensuring reliable performance under varying operating conditions.
How do garter springs differ from standard coil springs?
Garter springs differ fundamentally from standard coil springs in their geometric configuration and the resulting direction of force application. While a standard coil spring is typically a linear helix that exerts axial force—pushing or pulling along its central longitudinal axis—a garter spring is a coiled steel spring connected at each end to create a circular shape. This closed-loop geometry transforms the mechanical behavior of the spring, shifting the primary load vector from axial to radial.
Radial Force Vectors
In a standard compression or extension coil spring, the force is directed parallel to the spring axis. For example, a compression spring shortens under load, exerting force inward along the axis. In contrast, garter springs are specifically engineered to exert radial forces perpendicular to the central axis of the circle they form. This radial orientation is critical for applications such as oil seals, shaft seals, belt-driven motors, and electrical connectors, where uniform pressure around a circumference is required rather than linear displacement.
Manufacturing and Material Similarities
Despite the geometric and functional differences, the manufacturing process for garter springs is similar to the creation of regular coiled springs. The primary distinction in production is the addition of joining the ends together to form the continuous loop. The choice of material depends on the environmental conditions and the magnitude of the radial force required. Carbon steel offers high tensile strength for general-purpose applications, while stainless steel provides enhanced corrosion resistance for environments where oil or moisture is prevalent. The joining process must ensure that the connection point does not create a significant stress concentration that would compromise the uniformity of the radial force distribution.
The unique ability of garter springs to maintain consistent radial pressure makes them indispensable in sealing applications. In a shaft seal, for instance, the outward radial force of a compression garter spring ensures that the seal lip remains in constant contact with the rotating shaft, preventing leakage. This functionality is distinct from the linear deflection seen in standard coil springs, highlighting the specialized role of garter springs in mechanical engineering.
