Overview
Forth Banks Power Station was a coal-fired power station located in North East England, specifically within the city centre of Newcastle upon Tyne. The facility was situated on Forth Banks, a street positioned to the rear of Newcastle Central station. As a decommissioned energy infrastructure asset, it holds a distinct place in the history of electrical generation, having been established in 1890 by the Newcastle and District Electric Lighting Company. The plant is recognized as one of the first municipal power stations in the United Kingdom, marking a significant early step in the transition from private to public utility management in the region. Its operational history began when it was put up in a disused factory building, a pragmatic choice that reflected the rapid industrial expansion of Newcastle during the late Victorian era. The use of an existing structure allowed for a swift commissioning process, enabling the Newcastle and District Electric Lighting Company to begin supplying power to the growing urban population of Newcastle upon Tyne. This early adoption of municipal ownership and modern generation technology set a precedent for subsequent power station developments across the United Kingdom. The station's location on Forth Banks placed it in close proximity to the city's main railway hub, facilitating the transport of coal and other essential supplies needed for continuous operation. The integration of the power station into the urban fabric of Newcastle upon Tyne demonstrated the increasing importance of electricity in daily life and industrial processes. As one of the pioneering facilities of its kind, Forth Banks Power Station contributed to the foundational infrastructure that supported the city's growth and economic vitality. The decommissioned status of the plant reflects the natural lifecycle of early power generation facilities, many of which were eventually replaced by larger, more efficient stations as technology advanced. However, its legacy remains significant due to its innovative use of turbo alternators, which distinguished it from many of its contemporaries. This technological advancement allowed for more efficient conversion of mechanical energy into electrical energy, improving the overall reliability of the power supply. The Newcastle and District Electric Lighting Company's decision to invest in such advanced equipment underscored their commitment to providing a competitive and reliable service to the residents and businesses of Newcastle upon Tyne. The historical context of the station's construction in 1890 places it at a critical juncture in the development of the electrical grid in the United Kingdom, a period characterized by rapid experimentation and innovation. The facility's role as a municipal power station also highlighted the growing influence of local government in managing essential public services, a trend that would continue to shape the energy sector in the decades that followed. The physical presence of the station on Forth Banks served as a visible symbol of this progress, standing as a testament to the engineering achievements of the time. Although the plant is no longer operational, its contribution to the early electrification of Newcastle upon Tyne remains an important chapter in the city's industrial heritage. The site's location near Newcastle Central station also facilitated the movement of workers and materials, further integrating the power station into the daily rhythm of the city. The use of coal as the primary fuel source was typical for power stations of this era, reflecting the abundance of coal reserves in North East England and the established infrastructure for coal mining and transportation. The decommissioning of Forth Banks Power Station marked the end of an era for this particular facility, but its influence on the development of the regional power grid endured. The legacy of the Newcastle and District Electric Lighting Company and their pioneering efforts at Forth Banks continues to be studied by historians and energy researchers interested in the evolution of municipal utilities. The station's early adoption of turbo alternators remains a key technical milestone, illustrating the rapid pace of technological change in the late 19th century. This innovation helped to establish Newcastle upon Tyne as a forward-thinking city in the realm of energy infrastructure. The historical significance of Forth Banks Power Station extends beyond its immediate operational success, serving as a model for other municipalities looking to modernize their power supply. The facility's integration into the urban landscape of Newcastle upon Tyne also reflects the broader trend of industrialization that transformed many British cities during the 19th and early 20th centuries. The decommissioned status of the plant does not diminish its importance; rather, it highlights the dynamic nature of energy infrastructure, which must continually evolve to meet changing demands and technological possibilities. The Newcastle and District Electric Lighting Company's investment in Forth Banks demonstrated a strategic vision that helped to shape the future of electricity supply in North East England. The station's location on Forth Banks, near Newcastle Central station, provided logistical advantages that supported its efficient operation for many years. The use of a disused factory building for the initial construction was a cost-effective solution that allowed for a quick start to operations. This approach was common in the early days of power generation, where speed to market was often as important as long-term capacity. The legacy of Forth Banks Power Station is preserved in historical records and local memory, serving as a reminder of the early efforts to bring electricity to the masses. The station's role as one of the first municipal power stations in the United Kingdom underscores the importance of public ownership in the early development of the energy sector. The technological advancements introduced at Forth Banks, particularly the use of turbo alternators, had a lasting impact on the design and operation of subsequent power stations. The Newcastle and District Electric Lighting Company's pioneering work at this site helped to lay the groundwork for the modern electrical grid in the United Kingdom. The decommissioning of the plant marks the end of its active service, but its historical and technical significance remains relevant to the study of energy infrastructure. The location of the station in Newcastle upon Tyne, a major city in North East England, placed it at the heart of one of the country's most important industrial regions. The use of coal as the primary fuel source reflected the economic realities of the time, with coal being the dominant energy carrier for both heat and power. The facility's operation contributed to the local economy by providing jobs and supporting the growth of related industries. The historical context of the station's construction in 1890 places it within a period of rapid industrial expansion and technological innovation. The Newcastle and District Electric Lighting Company's decision to build a municipal power station was a bold move that helped to define the role of local government in the energy sector. The legacy of Forth Banks Power Station continues to influence the understanding of early electrical generation in the United Kingdom. The station's use of turbo alternators was a significant technical achievement that improved the efficiency and reliability of power supply. The decommissioned status of the plant reflects the natural evolution of energy infrastructure, as older facilities are replaced by newer, more efficient technologies. The historical importance of Forth Banks Power Station is recognized by energy historians and local residents alike, who view it as a key part of Newcastle upon Tyne's industrial heritage. The station's location on Forth Banks, near Newcastle Central station, provided a strategic advantage for the transport of coal and other supplies. The use of a disused factory building for the initial construction was a practical solution that allowed for a rapid commissioning process. The Newcastle and District Electric Lighting Company's investment in Forth Banks demonstrated a commitment to modernizing the power supply in Newcastle upon Tyne.
Why it matters
The Forth Banks Power Station holds a distinct place in energy infrastructure history as the first power station in the world to utilize turbo alternators. This technological milestone marked a significant departure from earlier direct-coupled engine-generator sets, introducing the steam turbine as a primary driver for electrical generation. The adoption of this technology at Forth Banks demonstrated the viability of turbine-driven generation for municipal grids, influencing subsequent power station designs across the United Kingdom and beyond. Operated by the Newcastle and District Electric Lighting Company, the facility represented a shift toward localized, municipal control over energy production, moving away from purely private or industrial generation models.
Role of Sir Charles Algernon Parsons
The integration of turbo alternators at Forth Banks is closely associated with the work of Sir Charles Algernon Parsons, a key figure in the development of the steam turbine. Parsons’ innovations in turbine technology provided the mechanical efficiency necessary to make turbo alternators a practical choice for power generation. The use of his technology at Forth Banks in 1890 highlighted the advantages of turbine-driven systems, including higher rotational speeds and improved efficiency compared to traditional reciprocating engines. This application at Forth Banks served as a real-world demonstration of Parsons’ engineering advancements, helping to establish the steam turbine as a standard component in power station design. The station’s early adoption of this technology contributed to the broader acceptance of turbo alternators in the energy sector, paving the way for more efficient and scalable electricity generation.
Impact on Municipal Energy Supply
As one of the first municipal power stations in the United Kingdom, Forth Banks played a role in shaping the structure of local energy markets. The operation by the Newcastle and District Electric Lighting Company illustrated how municipalities could manage their own electricity infrastructure, providing a model for other cities seeking to establish public power supplies. This municipal approach allowed for greater control over pricing, service quality, and expansion plans, benefiting local consumers and businesses. The success of Forth Banks encouraged other regions to adopt similar municipal models, contributing to the growth of public electricity networks in the late 19th and early 20th centuries. The station’s legacy as an early municipal facility highlights the importance of localized energy management in the development of modern power systems.
History
The development of the Forth Banks Power Station was driven by the formation of the Newcastle and District Electric Lighting Company (DisCo). This entity was established in 1889 to consolidate and expand the electrical infrastructure in the region. The DisCo sought a strategic location for its new facility, ultimately selecting a site in the city centre of Newcastle upon Tyne. This location was situated on Forth Banks, a street positioned to the rear of Newcastle Central station, providing convenient access for coal delivery and distribution to the growing urban population.
The physical site for the power station was acquired from Hawthorn Leslie and Company. Hawthorn Leslie was a prominent engineering firm in the area, and the acquisition allowed the DisCo to repurpose an existing structure rather than building entirely from scratch. The chosen building was a disused factory, which offered immediate shelter and structural integrity for the new electrical machinery. This decision reflected the pragmatic approach of early municipal power stations, which often utilized industrial real estate to accelerate commissioning times and reduce initial capital expenditure.
Construction and installation of the equipment took place rapidly following the acquisition. The power station was officially put up in the disused factory building in 1890. This rapid deployment was significant for the region's electrification efforts. The commissioning of Forth Banks in 1890 marked a milestone in energy infrastructure history. It is notable as the first power station in the world to use turbo alternators. This technological choice distinguished it from earlier installations that relied primarily on belt-driven generators. Additionally, Forth Banks is recognized as one of the first municipal power stations in the United Kingdom, highlighting the role of local governance in the early adoption of electric lighting and power distribution.
Design and specification
Forth Banks Power Station was engineered as a pioneering facility in early electrical generation, distinguished by its adoption of turbo alternators rather than the direct-curve engines common at the time. The plant was housed within a disused factory building in the city centre of Newcastle upon Tyne, specifically on Forth Banks, a street located to the rear of Newcastle Central station. This location choice reflected the municipal nature of the project, driven by the Newcastle and District Electric Lighting Company (DisCo). The station is historically significant as the first power station in the world to utilize turbo alternators, marking a key technological shift in the United Kingdom's energy infrastructure.
Initial Technical Specifications

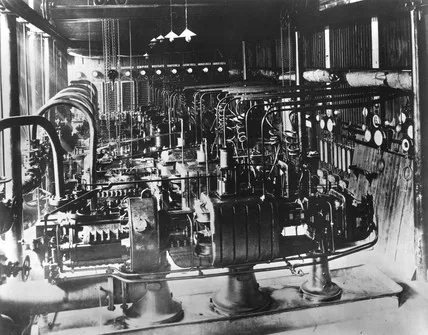

The initial installation in 1890 featured specific technical parameters that defined its operational capacity. The core generating equipment consisted of 75 kW turbo alternators. These units represented a significant departure from earlier designs, offering improved efficiency and power density. The steam supply for these alternators was provided by Lancashire boilers, a standard but robust design for the era. The steam pressure within the system was maintained at 140 lb, ensuring consistent thermal input to the turbines. The electrical output was characterized by a voltage of 1000 V and a frequency of 80 cycles. These specifications were critical for the distribution network of the Newcastle and District Electric Lighting Company, allowing for effective power delivery to the growing municipal grid. The combination of 75 kW capacity, 140 lb steam pressure, and 80-cycle frequency at 1000 V defined the technical profile of the station during its initial commissioning phase.
| Parameter | Specification |
|---|---|
| Generator Type | Turbo alternators |
| Capacity per Unit | 75 kW |
| Boiler Type | Lancashire boilers |
| Steam Pressure | 140 lb |
| Electrical Voltage | 1000 V |
| Frequency | 80 cycles |
How did the condensing system work?
The operational efficiency of the Forth Banks Power Station was significantly enhanced by the introduction of a sophisticated condensing system in 1892. This installation represented a critical engineering advancement for the Newcastle and District Electric Lighting Company, allowing the plant to maximize the output of its pioneering turbo alternators. The core of this system was a large condenser designed to convert exhaust steam back into water, thereby creating a vacuum that pulled more steam through the turbine blades. The construction of the condenser utilized specific materials chosen for their durability and thermal properties. It featured a framework of wrought iron pipes that housed numerous brass tubes. These brass tubes served as the primary heat exchange medium, allowing cooling water to flow through them while steam condensed on the exterior surfaces. The total cooling surface area provided by these brass tubes was a key metric in determining the condenser’s capacity to handle the steam load generated by the growing electrical demand of Newcastle upon Tyne.
Mechanical Operation and Pumping Engine
The effectiveness of the condensing system depended heavily on the mechanical components responsible for maintaining the vacuum and circulating the cooling water. Central to this operation was a tandem compound pumping engine. This engine was selected for its ability to deliver consistent power at relatively low rotational speeds, which was ideal for the steady-state operation of a municipal power station. The tandem compound pumping engine operated at a speed of 60 RPM. This specific rotational speed allowed for smooth, rhythmic movement of the pistons, reducing mechanical stress on the connecting rods and bearings. The engine drove the necessary pumps that circulated cooling water through the brass tubes of the condenser. By maintaining a steady flow of cooling water, the engine ensured that the steam could condense efficiently, preventing back-pressure on the turbo alternators. The integration of this 60 RPM engine with the wrought iron and brass condenser assembly created a cohesive system that improved the overall thermal efficiency of the Forth Banks Power Station. This technological configuration supported the station’s status as one of the first municipal power stations in the United Kingdom, demonstrating the practical application of compound engineering principles in early electric power generation. The system’s reliability was crucial for the Newcastle and District Electric Lighting Company as it expanded its network to serve the city centre and surrounding areas.
What changes occurred during operations?
The operational history of Forth Banks Power Station is defined by its role as a technological pioneer, specifically regarding the introduction of turbo alternators to municipal power generation. The facility was established in 1890 by the Newcastle and District Electric Lighting Company, which converted a disused factory building into the site's initial infrastructure. This early configuration marked the beginning of a rapid evolution in generating capacity as the demand for electricity in Newcastle upon Tyne grew.
Capacity Evolution and Technological Upgrades
From its inception in 1890 through 1907, the power station underwent significant expansions to increase its output. The initial installations were supplemented by the introduction of larger generating sets to meet the growing load. Specifically, the station incorporated 400 kW sets into its lineup, representing a substantial increase in individual unit output compared to earlier dynamo configurations. As the grid requirements intensified, even larger 1000 kW sets were installed, further diversifying the station's generating portfolio and enhancing its efficiency.
These incremental upgrades culminated in a final configuration that defined the station's mature operational phase. By the end of this expansion period, the Forth Banks Power Station achieved a total installed capacity of 2400 kW. This aggregate output was supported by a robust steam generation system comprising eight Lancashire boilers. The use of Lancashire boilers provided the necessary steam pressure and volume to drive the turbo alternators, ensuring reliable power delivery to the municipal network.
The progression from the initial 1890 setup to the 2400 kW capacity by 1907 illustrates the rapid scaling of early electric lighting infrastructure. The Newcastle and District Electric Lighting Company's investment in turbo alternator technology at Forth Banks set a precedent for other municipal stations in the United Kingdom, demonstrating the viability of high-capacity steam-driven generation in an urban centre. The station's location on Forth Banks, adjacent to Newcastle Central station, facilitated the efficient distribution of power to the city's core.
Operations
The operational logistics of the Forth Banks Power Station were defined by its strategic placement within the urban fabric of Newcastle upon Tyne. This proximity to the railway infrastructure was critical for the continuous supply of coal, the primary fuel source for the plant. Coal deliveries arrived via rail directly from Newcastle Central Station, allowing for efficient unloading and transport to the boiler houses. The integration of the power station with the existing railway network minimized the distance fuel had to travel, reducing handling costs and ensuring a steady feed for the generating units. This rail-based supply chain was typical for early municipal power stations, which relied heavily on the expanding railway systems of the late 19th century to move bulk commodities into city centres. The Newcastle and District Electric Lighting Company, the operator of the station, leveraged this logistical advantage to maintain consistent power output for the growing municipal demand. The use of coal as the primary fuel required a robust and reliable delivery mechanism, which the rail connection provided. The station’s location allowed for direct access to the tracks, facilitating the movement of coal wagons close to the plant’s intake points. This logistical setup was essential for the station’s role as one of the first municipal power stations in the United Kingdom, ensuring that the city’s electric lighting and early power needs were met with minimal interruption. The efficiency of the coal delivery system contributed to the station’s operational success during its early years of service. The reliance on rail transport also meant that the power station was somewhat dependent on the broader railway network’s performance, but the direct connection to Newcastle Central Station mitigated many potential delays. The operational model established at Forth Banks set a precedent for future power stations in the region, highlighting the importance of integrating energy infrastructure with existing transport networks. The coal-fired nature of the plant required constant attention to fuel quality and quantity, both of which were managed through the rail supply chain. The Newcastle and District Electric Lighting Company’s decision to locate the station near the railway station was a strategic move that optimized the logistics of coal delivery. This approach ensured that the plant could maintain a steady operation, supporting the early adoption of electric lighting in Newcastle upon Tyne. The operational framework of Forth Banks demonstrated the practical application of rail logistics in energy production, a model that would be replicated in other urban power stations across the United Kingdom. The station’s ability to efficiently manage coal deliveries via rail was a key factor in its status as a pioneering facility in the history of municipal power generation. The integration of rail transport and power production at Forth Banks remains a notable example of early 20th-century energy infrastructure planning. The operational details of coal delivery highlight the importance of location in the success of early power stations, with Forth Banks serving as a prime example of effective logistical integration. The station’s operations were closely tied to the railway network, ensuring that the coal supply remained consistent and reliable for the generation of electricity. This logistical efficiency was crucial for the station’s role in providing power to Newcastle upon Tyne, supporting the city’s growth and development during the late 19th and early 20th centuries. The operational model of Forth Banks continues to be studied as an example of early energy infrastructure logistics, demonstrating the importance of strategic location and transport integration in power station design. The coal delivery system at Forth Banks was a critical component of the station’s operations, ensuring that the plant could meet the growing demand for electricity in Newcastle upon Tyne. The use of rail transport for coal deliveries was a practical solution that maximized efficiency and minimized costs, contributing to the station’s overall success. The operational logistics of Forth Banks provide valuable insights into the early development of municipal power stations and the role of transport networks in energy production. The station’s reliance on coal and rail transport highlights the interdependence of different infrastructure systems in the early days of electricity generation. The operational framework of Forth Banks remains a significant case study in the history of energy infrastructure, illustrating the importance of logistical planning in the success of early power stations. The station’s operations were characterized by efficient coal delivery via rail, ensuring a steady supply of fuel for the generation of electricity. This logistical approach was essential for the station’s role as a pioneering municipal power station, supporting the electrification of Newcastle upon Tyne. The operational details of Forth Banks continue to inform our understanding of early energy infrastructure and the importance of strategic location in power station design. The station’s operations were closely linked to the railway network, ensuring that coal deliveries were timely and efficient. This integration of transport and energy infrastructure was a key factor in the success of Forth Banks, allowing it to meet the growing demand for electricity in Newcastle upon Tyne. The operational model of Forth Banks remains a notable example of early 20th-century energy infrastructure planning, highlighting the importance of logistical efficiency in power station operations.
Closure and present site use
Forth Banks Power Station ceased operations in 1907, marking the end of its relatively brief but historically significant tenure as a pioneering energy facility in Newcastle upon Tyne. The decision to decommission the plant was driven by a combination of infrastructural decay and technological obsolescence. The original structure, which had been adapted from a disused factory building, suffered from dilapidation over time, becoming increasingly inadequate for the growing demands of the municipal electric lighting network. More critically, the station’s reliance on single-phase alternating current (AC) limited its efficiency and expandability compared to emerging multi-phase systems and direct current alternatives that were gaining traction across the United Kingdom. These technical constraints, coupled with the physical deterioration of the site, rendered the station less viable for continued large-scale power generation.
Following the closure of the power station, the site on Forth Banks underwent significant redevelopment, reflecting the evolving urban landscape of Newcastle’s city centre. The location, situated to the rear of Newcastle Central station, remained a prominent feature of the area. In the decades after the plant’s decommissioning, the site was repurposed for various commercial and infrastructural uses. One notable development was the establishment of a Chinese restaurant on the premises, illustrating the adaptive reuse of the former industrial space for local commerce. This transformation highlighted the shifting economic and cultural dynamics of the neighbourhood, as the area transitioned from heavy industrial utility to mixed commercial activity.
Perhaps the most significant infrastructural change to the site occurred with the construction of the Queen Elizabeth II Metro Bridge. This major transport link, part of the Tyne and Wear Metro system, spans the River Tyne and connects Newcastle upon Tyne with Gateshead. The bridge’s construction involved substantial engineering works in the immediate vicinity of the former power station, further altering the physical character of the Forth Banks area. The integration of the Metro Bridge into the local infrastructure underscored the site’s continued importance in the urban fabric of North East England, transitioning from a hub of early electrical innovation to a key node in the region’s public transport network. These developments collectively demonstrate the dynamic history of the site, from its role in the dawn of municipal power generation to its modern function within Newcastle’s transport and commercial landscape.
