Overview

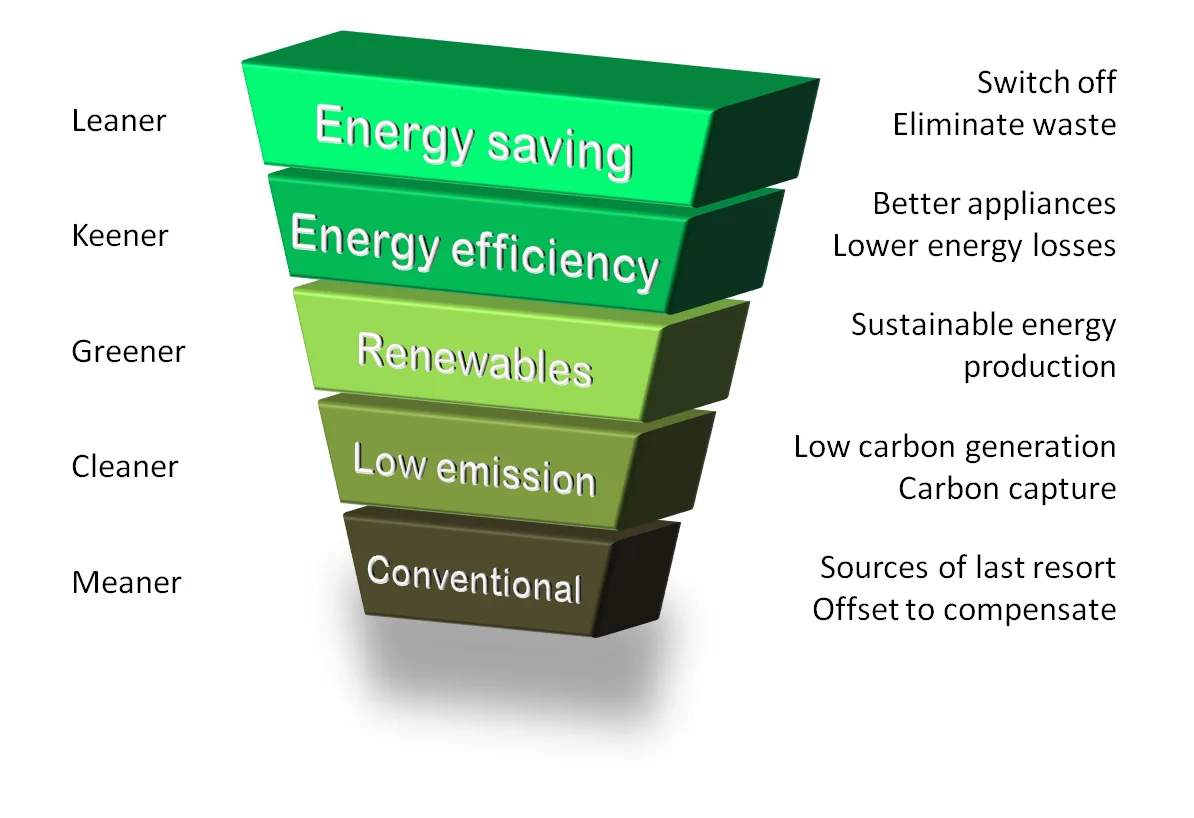

The Energy Hierarchy is a conceptual classification scheme designed to prioritize energy options to facilitate progress toward a more sustainable global energy system. Developed by Philip Wolfe and commissioned in 2005, this framework provides a structured approach for energy planners, policymakers, and engineers to evaluate and select energy sources based on their long-term sustainability rather than immediate economic or technological convenience. The concept operates as a decision-making tool that ranks energy options in a specific sequence, ensuring that the most sustainable resources are utilized first before moving down the hierarchy to less ideal alternatives.
Parallel to the Waste Hierarchy
The structure of the Energy Hierarchy is explicitly modeled after the well-established waste hierarchy used in environmental management and resource conservation. Just as the waste hierarchy prioritizes actions such as reduction, reuse, and recycling to minimize resource depletion and environmental impact, the Energy Hierarchy adopts a parallel sequence for energy sourcing. This analogy helps stakeholders understand the relative "cost" of different energy options in terms of environmental burden and resource longevity. By mirroring the logic of waste minimization, the framework emphasizes that the best energy source is the one that depletes resources the slowest and generates the least amount of waste.
Core Sustainability Criteria
The classification scheme is built upon three fundamental criteria that define an ideal sustainable energy source. First, the resource must have an indefinite life, meaning it is renewable or abundant enough to meet human needs without significant depletion over relevant timeframes. Second, the energy generation process should produce no harmful by-products, minimizing pollution, greenhouse gas emissions, and waste that requires long-term management. Third, the source must be capable of meeting reasonable human demands, ensuring that the energy supply is reliable and sufficient to support societal functions. These criteria work together to create a robust metric for evaluating the true sustainability of any given energy option within the hierarchy.
History and origins
The Energy Hierarchy was formally proposed in 2005 by Philip Wolfe, who served as the Director General of the Renewable Energy Association at the time. This conceptual framework was developed to provide a structured method for classifying energy options, with the primary goal of assisting progress toward a more sustainable energy system. The approach draws a direct parallel to the waste hierarchy, a well-established model used for minimizing resource depletion in material management. By adopting a similar sequential logic, the Energy Hierarchy aims to prioritize energy strategies in a way that maximizes efficiency and sustainability outcomes.
In its initial formulation, the Energy Hierarchy consisted of a three-level structure. This foundational model was designed to guide decision-makers in evaluating energy sources and usage patterns based on their relative sustainability impacts. The simplicity of the three-tier system allowed for clear communication and practical application in early energy planning discussions. The framework emphasized the importance of not just generating energy, but also considering how energy is consumed and conserved within the broader system.
The concept gained significant traction following its endorsement in the Sustainable Energy Manifesto in 2006. This endorsement helped to solidify the Energy Hierarchy as a recognized tool in the field of sustainable energy planning. The manifesto provided a platform for the hierarchy to be widely discussed and adopted by various stakeholders in the energy sector. The alignment with the Sustainable Energy Manifesto highlighted the growing recognition of the need for structured approaches to energy classification and prioritization.
The development of the Energy Hierarchy represents an important step in the evolution of energy policy and planning. By providing a clear framework for evaluating energy options, it has helped to guide investments and policy decisions toward more sustainable outcomes. The influence of Philip Wolfe and the Renewable Energy Association in proposing this framework has had a lasting impact on how energy sustainability is assessed and implemented in various contexts.
How does the energy hierarchy prioritize conservation?
The Energy Hierarchy establishes energy conservation as the paramount priority, positioning it above efficiency and renewable generation. This approach mirrors the waste hierarchy’s principle of “reduce” preceding “reuse” and “recycle,” aiming to minimize resource depletion by addressing demand before supply. The primary objective is to eliminate unnecessary energy waste across residential, commercial, and industrial sectors. This involves practical measures such as switching off unused lights, optimizing appliance usage, and reducing unnecessary travel journeys. By targeting these behavioral and operational adjustments, the hierarchy seeks to lower the overall energy baseline, thereby reducing the strain on generation infrastructure.
Building Envelope and Thermal Efficiency
A critical component of energy conservation within the hierarchy is the improvement of building insulation and air-tightness. Enhancing the thermal performance of the building envelope directly reduces heat loss during colder periods and heat gain during warmer seasons. This reduces the demand for active heating and cooling systems, which are often the largest energy consumers in buildings. Improved insulation materials and reduced air leakage contribute to a more stable indoor temperature, decreasing the need for mechanical intervention.
The relationship between heat loss and the building envelope can be expressed through the fundamental heat transfer equation:
Q = U × A × ΔT
In this formula, Q represents the rate of heat loss (in Watts), U is the thermal transmittance or U-value of the building component (in W/m²·K), A is the surface area (in m²), and ΔT is the temperature difference between the interior and exterior environments (in K). By reducing the U-value through better insulation or minimizing the effective area A through design, the total heat loss Q is directly reduced. This mathematical relationship underscores the importance of material selection and construction quality in achieving significant energy savings. The hierarchy emphasizes that reducing Q through conservation is more effective than generating additional energy to offset the loss.
By prioritizing these conservation measures, the Energy Hierarchy ensures that the most sustainable energy option is the energy that is never used. This foundational step supports the broader goal of transitioning to a more sustainable energy system by reducing the total volume of energy required from primary sources.
What is the role of energy efficiency in the hierarchy?
Energy efficiency occupies the second tier of the Energy Hierarchy, serving as the primary mechanism for minimizing resource depletion after energy conservation. This level prioritizes the optimization of both production and consumption processes to ensure that every unit of energy extracted or generated yields maximum utility. The approach mirrors the waste hierarchy’s emphasis on minimization, applying parallel logic to thermal and electrical systems to reduce overall demand on primary energy sources.
Production Efficiency
At the production stage, efficiency focuses on reducing losses during energy conversion, particularly in thermal power stations. Converting primary fuels into electricity inherently involves thermodynamic losses, often expelled as waste heat. Global average efficiency for thermal power generation was recorded at approximately 33% in 2009, indicating that nearly two-thirds of the primary energy input was lost during the conversion process. Improving this metric involves upgrading turbine technologies, implementing combined heat and power (CHP) systems, and optimizing boiler operations to capture more usable energy from the same fuel input.
Consumption Efficiency
On the consumption side, efficiency measures target the end-use devices and systems that deliver energy services. This includes improving the fuel economy of internal combustion engines in transportation, which directly reduces the amount of gasoline or diesel required per kilometer traveled. In the built environment, lighting represents a significant opportunity for efficiency gains. Replacing traditional incandescent bulbs with Light Emitting Diode (LED) technology dramatically reduces electrical demand for the same luminous output, as LEDs convert a higher proportion of electricity into light rather than waste heat. These improvements in conversion efficiency at the point of use reduce the total energy throughput required by the system.
| Efficiency Metric | Context | Typical Value / Comparison |
|---|---|---|
| Global Thermal Power Efficiency | Production (2009) | ~33% average |
| Incandescent Lighting | Consumption | Low luminous efficacy |
| LED Lighting | Consumption | High luminous efficacy |
| Internal Combustion Engine | Transportation | Variable fuel economy |
The mathematical basis for these improvements relies on the ratio of useful output to total input. Efficiency (η) is defined as η=PinPout, where Pout is the useful power delivered and Pin is the total power consumed. Maximizing this ratio across both production and consumption stages reduces the overall strain on the energy system, supporting the broader goals of the Energy Hierarchy.
How are sustainable energy sources classified?
The third tier of the Energy Hierarchy focuses on sustainable production, representing a critical step in the transition toward a low-carbon energy system. This level distinguishes between elemental renewable sources and bio-energy, recognizing that while both are renewable, their environmental impacts and carbon dynamics differ significantly. Elemental renewables include sunlight, wind, waves, tides, rainfall, and geothermal energy. These sources are considered "elemental" because they rely on natural, continuous flows of energy that are not directly dependent on biological carbon cycles. In contrast, bio-energy encompasses biomass, biofuels, and biomethane, which derive energy from organic matter. The distinction is crucial for understanding the carbon neutrality of these sources and their role in a sustainable energy mix.
Elemental Renewables
Elemental renewable energy sources are characterized by their direct conversion of natural phenomena into usable energy. Sunlight is harnessed through photovoltaic cells or concentrated solar power systems, converting solar radiation into electricity or heat. Wind energy is captured by turbines that convert kinetic energy from air movement into mechanical and then electrical energy. Wave and tidal energy systems exploit the mechanical energy of ocean movements, with wave energy converters capturing the up-and-down motion of waves and tidal turbines utilizing the flow of tidal currents. Rainfall contributes to hydroelectric power, where the potential energy of elevated water is converted into kinetic energy as it flows through turbines. Geothermal energy taps into the Earth's internal heat, using steam or hot water from underground reservoirs to drive turbines. These sources are considered highly sustainable because they have minimal direct emissions during operation and rely on abundant, naturally replenishing resources.
Bio-Energy and Carbon Neutrality
Bio-energy sources, including biomass, biofuels, and biomethane, are derived from organic materials such as plants, agricultural residues, and animal waste. The carbon neutrality of bio-energy is a key concept in the Energy Hierarchy. When biomass is burned or converted into energy, it releases carbon dioxide (CO2) that was recently absorbed from the atmosphere by the plants during photosynthesis. This creates a relatively short carbon cycle compared to fossil fuels, where carbon stored for millions of years is released. The carbon neutrality of bio-energy can be expressed conceptually as:
Carbon Neutrality=CO2 Absorbed≈CO2 EmittedHowever, the true carbon footprint of bio-energy depends on various factors, including the type of biomass, land-use changes, and the efficiency of conversion processes. For instance, if forests are cleared to make room for bio-energy crops, the initial carbon debt can be significant. Therefore, sustainable management of bio-energy sources is essential to ensure that the carbon benefits are realized. Biofuels, such as biodiesel and ethanol, and biomethane, produced from anaerobic digestion of organic matter, offer versatile options for transport and heating sectors, complementing the more intermittent nature of elemental renewables.
What distinguishes low-impact from high-impact energy production?
The energy hierarchy positions low-impact and high-impact energy production at the lower tiers of priority, reflecting their greater environmental burdens compared to efficiency and renewables. This distinction is critical for understanding the residual role of conventional sources in a transitioning energy system. The framework does not eliminate these sources but mandates that their deployment is justified only when higher-tier options are insufficient, and that their negative externalities are actively managed.
Low-Impact Energy Production
The fourth priority in the hierarchy encompasses low-impact energy sources. This tier includes nuclear energy and fossil fuels equipped with carbon capture and storage (CCS) technologies. Nuclear energy is classified here because, while it generates low-carbon electricity, it introduces distinct environmental and resource challenges, primarily related to radioactive waste management and resource extraction. Similarly, fossil fuels with CCS are considered low-impact relative to their unabated counterparts because the technology significantly reduces greenhouse gas emissions, thereby mitigating climate change impacts. However, these sources are not deemed as sustainable as renewables or efficiency measures, hence their lower position in the hierarchy. The classification acknowledges that these technologies play a crucial role in decarbonization but require careful management to minimize their overall footprint.
High-Impact Energy Production
The fifth and final priority consists of high-impact energy sources. This category is dominated by unabated fossil fuels, such as coal, oil, and natural gas, which are burned without significant carbon mitigation. These sources are characterized by high greenhouse gas emissions, air pollution, and resource depletion. They are considered the least sustainable option and are intended to be the last resort in energy planning. The hierarchy explicitly places unabated fossil fuels at the bottom to signal that their continued use should be minimized through strategic interventions. This includes fuel switching, where energy systems transition from higher-carbon fuels (like coal) to lower-carbon alternatives (like natural gas) as an intermediate step. Additionally, emissions offsetting strategies may be employed to compensate for the residual carbon footprint of high-impact sources, although this is generally seen as a supplementary measure rather than a primary solution. The goal is to systematically reduce reliance on these high-impact sources as higher-tier options become more viable and cost-effective.
Worked examples
The Energy Hierarchy is applied by evaluating energy options against prioritized criteria, typically starting with efficiency, then fuel type, and finally carbon intensity. This section provides worked examples of this application.
Lighting Upgrade: Incandescent to LED
Consider a household replacing a 60 W incandescent bulb with a 10 W LED bulb providing equivalent luminous flux. The first step in the hierarchy is to maximize efficiency. The efficiency improvement is calculated as the reduction in energy input for the same output. The energy saved per hour is 50 Wh. Over a typical lifespan of 2,000 hours, the total energy saved is 100 kWh. This represents a significant efficiency gain, placing LED lighting high in the hierarchy due to reduced primary energy demand.
Vehicle Fuel Economy Improvement
For a vehicle traveling 15,000 km annually, improving fuel economy from 8 L/100 km to 6 L/100 km demonstrates the efficiency tier. The annual fuel consumption drops from 1,200 L to 900 L, saving 300 L of fuel per year. If the fuel is gasoline with a carbon intensity of approximately 2.3 kg CO2/L, this results in a reduction of 690 kg of CO2 emissions annually. This example highlights how efficiency improvements directly reduce resource depletion and emissions.
Fuel Switching: Coal to Gas
Switching a power plant from coal to natural gas illustrates the fuel type tier. Assume a 500 MW plant operating at 80% capacity factor. Coal has a higher carbon intensity than gas. By switching to gas, the carbon emissions per unit of electricity generated decrease significantly. This move prioritizes a cleaner fossil fuel, aligning with the hierarchy’s goal of minimizing environmental impact while maintaining operational flexibility.
Applications in policy and planning
The Energy Hierarchy serves as a strategic framework for governments and planning agencies aiming to transition towards more sustainable energy systems. By prioritizing energy options in a specific sequence, similar to the waste hierarchy, policymakers can systematically guide infrastructure development and encourage energy saving. This approach helps minimize resource depletion by ensuring that the most efficient and sustainable options are considered first. The hierarchy provides a clear roadmap for decision-makers, allowing them to evaluate energy projects based on their position within the prioritized sequence. This structured method supports the integration of diverse energy sources while maintaining a focus on sustainability and efficiency.
Policy Integration and Infrastructure Development
Governments utilize the Energy Hierarchy to shape energy policy and infrastructure planning. The framework encourages the prioritization of energy saving measures, which are often the most cost-effective and least resource-intensive options. By placing energy saving at the top of the hierarchy, policymakers can incentivize efficiency improvements in buildings, industries, and transportation. This top-down approach ensures that energy demand is managed before new supply is added, reducing the overall strain on energy systems. The hierarchy also guides the selection of energy sources, promoting those that offer greater sustainability benefits. This helps in creating a balanced energy mix that supports long-term environmental and economic goals.
Encouraging Sustainable Energy Systems
The Energy Hierarchy assists agencies in encouraging the adoption of sustainable energy systems. By following the parallel sequence of the hierarchy, planners can prioritize renewable energy sources and low-carbon technologies. This approach helps in reducing reliance on fossil fuels and minimizing the environmental impact of energy production. The framework supports the development of infrastructure that aligns with sustainability objectives, such as grid modernization and the integration of distributed energy resources. Additionally, the hierarchy provides a common language for stakeholders, facilitating collaboration and consensus-building in energy planning processes. This collaborative approach is essential for implementing complex energy transitions and achieving broader sustainability targets.
Minimizing Resource Depletion
A key objective of the Energy Hierarchy is to minimize resource depletion. By prioritizing energy saving and efficient use, the framework reduces the overall demand for energy resources. This helps in preserving finite resources and reducing the environmental footprint of energy extraction and production. The hierarchy also encourages the use of renewable energy sources, which are inherently more sustainable than non-renewable alternatives. This shift towards renewables supports the long-term viability of energy systems and reduces the risk of resource scarcity. By following the hierarchy, governments and agencies can make informed decisions that balance energy needs with environmental stewardship. This balanced approach is crucial for achieving a more sustainable energy future.
