Overview
EnergyBus is an interface standard designed for the charging of electric bicycles and pedelecs across Europe. The system provides a unified technical solution for light electric vehicle power supply, addressing the fragmentation often found in portable battery charging infrastructure. The EnergyBus Association operates the standard, which has been in operational status since its commissioning in 2011. This standardization effort facilitates interoperability between various manufacturers of e-bikes, pedelecs, and their respective charging units, creating a cohesive ecosystem for users in the German market and broader European regions.
Technical Specifications
The EnergyBus connector is characterized by its circular shape, a design choice that distinguishes it from other charging interfaces such as USB or proprietary plug systems. This circular form factor is specified for charging light electric vehicles at a power output of up to 1.5 kilowatts. The electrical architecture of the standard relies on direct current (DC) power delivery, operating within a voltage range of 12 to 48 volts. This voltage flexibility is a core feature of the EnergyBus specification, allowing the system to accommodate a wide variety of battery chemistries and capacities commonly found in two-wheeled electric transport.
The design principle of EnergyBus ensures that any compliant battery charger can charge any rechargeable battery within the defined parameters. This universal compatibility reduces the need for multiple adapters or proprietary charging cables for end-users. The standard is strictly defined for light electric vehicles, ensuring that the electrical load and connector durability are optimized for the typical usage patterns of e-bikes and pedelecs rather than heavier electric mobility solutions.
Operational Context
Commissioned in 2011, the EnergyBus standard has established itself as a recognized solution for electric bicycle charging infrastructure. The EnergyBus Association continues to oversee the implementation and maintenance of the standard, ensuring that new products and charging stations adhere to the specified technical requirements. The operational status of EnergyBus reflects its active role in the European energy infrastructure for light mobility, providing a reliable and standardized method for delivering electrical energy to rechargeable batteries. This standardization supports the growing adoption of electric bicycles and pedelecs by simplifying the charging process for consumers and infrastructure providers alike.
How does the EnergyBus connector work?
The EnergyBus standard defines a unified physical and electrical interface for charging electric bicycles and pedelecs across Europe. The system is engineered to support light electric vehicles with a maximum power rating of 1.5 kilowatts (per EnergyBus Association specifications). By standardizing the connector, the protocol ensures that any compatible battery charger can charge any rechargeable battery within the defined voltage range, eliminating proprietary locking mechanisms common in earlier e-mobility solutions.
Physical Interface and Electrical Specifications

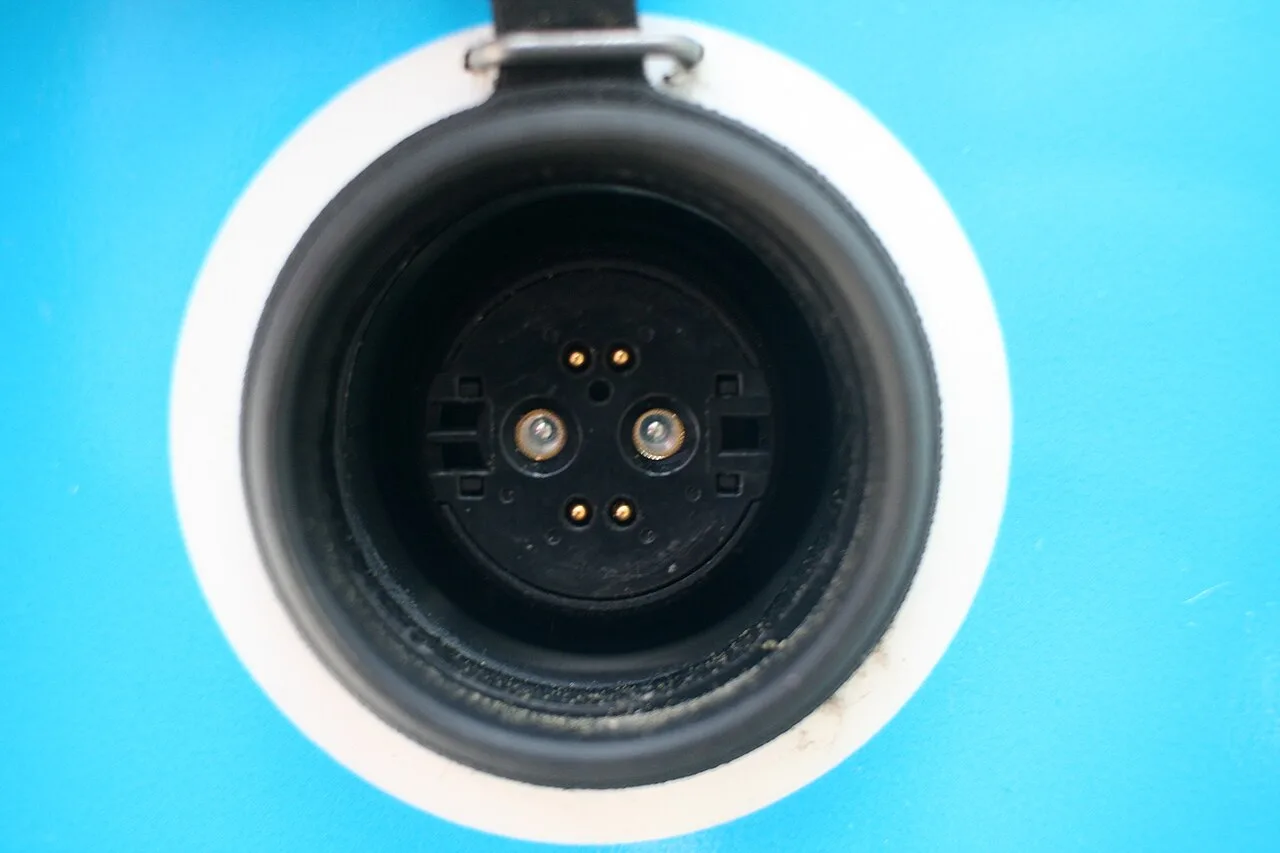

The physical connector utilizes a circular design manufactured by Rosenberger, featuring a 6-pin configuration. This mechanical interface is robust enough for outdoor use while maintaining precise electrical contact. This wide voltage tolerance accommodates various battery chemistries and states of charge, ensuring efficient power transfer without requiring complex on-board conversion for basic charging scenarios.
| Pin Function | Specification |
|---|---|
| Power Delivery | 12–48 V DC |
| Data Transmission | CAN bus (CANopen CiA-454) |
| Connector Type | Circular (Rosenberger) |
| Pin Count | 6 pins |
| Max Power | 1.5 kW |
Data Communication and Safety Mechanisms
Beyond simple power delivery, the EnergyBus connector integrates a data communication channel using the CAN bus protocol, specifically adhering to the CANopen CiA-454 standard. This allows the charger and the battery management system to exchange real-time data regarding voltage, current, temperature, and state of charge. This communication enables intelligent charging profiles, optimizing battery life and charging speed.
Safety is enhanced through delayed power energization. Upon connection, the CAN bus communication initiates before full power is applied. This handshake verifies compatibility and checks for faults, reducing the risk of electrical arcing and short circuits. The system ensures that power is only delivered when the data link confirms a stable connection, protecting both the user and the electronic components of the e-bike or pedelec.
What are the benefits of EnergyBus interchangeability?
The EnergyBus standard addresses a fundamental fragmentation issue in the light electric vehicle sector by establishing a universal interface for charging electric bicycles and pedelecs. By specifying a circular connector designed for power delivery up to 1.5 kilowatts, the standard enables a level of interchangeability that was previously rare in the e-bike market. This interoperability allows end-users to charge any rechargeable battery using any compatible charger, provided the power supply operates within the 12–48 volts direct current (DC) range. This flexibility is particularly valuable for riders who may own multiple bikes or wish to use a single charging unit for different battery packs, reducing the need for proprietary charging solutions.
Cross-Manufacturer Compatibility and Design Simplification
For manufacturers and system integrators, the EnergyBus specification reduces design complexity by standardizing the physical and electrical interface. Instead of developing unique charging ports for each battery model, manufacturers can adopt the circular connector, ensuring that their products are compatible with a broader ecosystem of chargers. This standardization mirrors the success of the USB-A connector in consumer electronics, where a single port type became ubiquitous across devices, simplifying both production and user experience. By adopting a common standard, manufacturers can focus on battery chemistry and capacity improvements rather than proprietary charging hardware, potentially accelerating innovation in battery technology.
The ease of battery upgrades is another significant benefit. With a standardized connector, users can more easily swap out battery packs or upgrade to newer models without being locked into a specific brand’s charging infrastructure. This flexibility can extend the lifecycle of both the battery and the charger, reducing electronic waste and offering consumers more choices when upgrading their equipment. The standard’s support for a wide voltage range (12–48 V DC) further enhances this flexibility, allowing for compatibility with various battery configurations and charger designs.
Comparison to Other Connectors
When compared to other common connectors, such as the Type 2 connector used in electric cars, the EnergyBus connector is optimized for the specific needs of light electric vehicles. The Type 2 connector is designed for higher power levels and alternating current (AC) delivery, making it less suitable for the lower voltage and direct current (DC) requirements of e-bike batteries. In contrast, the EnergyBus connector’s circular shape and DC specification are tailored for the compact and efficient charging needs of e-bikes and pedelecs. Similarly, while the USB-A connector is widely used for low-power devices, it often requires additional adapters or higher power variants (such as USB-C) to handle the 1.5 kilowatt capacity that EnergyBus supports natively. This makes EnergyBus a more specialized and efficient solution for the e-bike market.
Overall, the EnergyBus standard promotes a more cohesive and user-friendly charging ecosystem for light electric vehicles. By focusing on interchangeability, reduced design complexity, and compatibility with existing technologies, it offers clear benefits for end-users, manufacturers, and system integrators alike. This approach not only enhances the convenience of e-bike ownership but also supports the broader adoption of light electric vehicles across Europe.
History and development of the EnergyBus standard
Discussions regarding a unified charging interface for light electric vehicles began around the year 2000. Early conceptual work focused on serial hybrid light electric vehicles, aiming to standardize power delivery for emerging two-wheeled electric transport. This foundational period established the technical requirements for a connector capable of handling direct current (DC) power efficiently.
The EnergyBus Association, based in Germany, was formed to drive the standardization process. Key figures in the development included Andreas Fuchs, Mo-Hua Yang, and Hannes Neupert. These individuals contributed to defining the technical specifications that would become the EnergyBus standard. Their work ensured that the connector would be compatible with a wide range of battery chargers and rechargeable batteries.
Version 1.0 of the EnergyBus standard was released in late 2011. This release marked the official commissioning of the standard. The specification defined a circular connector designed for charging electric bicycles and pedelecs within Europe. The standard specified charging capabilities for light electric vehicles at up to 1.5 kilowatts. Electric power is provided at 12–48 volts direct current (DC). This voltage range allows any battery charger to charge any rechargeable battery within the system.
Following the release of version 1.0, plans were made for version 2.0. This subsequent version was planned for release in 2014. The development of version 2.0 aimed to refine and expand upon the initial specifications. The EnergyBus Association continued to oversee the implementation and adoption of the standard across European markets. The operational status of the EnergyBus standard remains active, supporting the growing infrastructure for electric bicycle and pedelec charging.
Applications in electric bicycles and public infrastructure
EnergyBus connectors are primarily utilized for charging electric bicycles and pedelecs across Europe. The connector features a circular shape and is specified for charging light electric vehicles at up to 1.5 kilowatts. Electric power is provided at 12–48 volts direct current (DC), allowing any battery charger to charge any rechargeable battery (per EnergyBus technical specifications). This standardization facilitates interoperability between various electric two-wheeler models and charging infrastructure.
Electric Bicycle Implementations
Several notable electric bicycle and pedal-assisted bicycle models have adopted the EnergyBus standard. The TourDeSuisse Impulse is one such implementation, utilizing the connector for its charging system. The gobaX G1 also incorporates EnergyBus technology, enabling standardized charging for this electric bicycle model. Additionally, the Copenhagen Wheel, an electric conversion wheel for bicycles, uses the EnergyBus connector for power input and battery charging. These implementations demonstrate the connector's versatility across different types of electric two-wheeled vehicles.
Public Infrastructure and Regional Deployments
Beyond individual bicycle models, EnergyBus has been deployed in public charging infrastructure. The Tegernsee region features public charge stations that utilize the EnergyBus standard, providing charging access for electric bicycles and pedelecs in this area. These public stations support the growing network of light electric vehicle users in the region.
The Fraunhofer Institute has also explored EnergyBus applications in island power systems. In Egypt, the institute utilized EnergyBus technology as part of an island power system, demonstrating the connector's potential for broader energy infrastructure applications beyond simple bicycle charging. This deployment highlights the adaptability of the 12–48 volts DC power delivery system for various light electric vehicle charging needs in different geographic contexts.
Who are the members and partners of the EnergyBus Association?
The EnergyBus Association functions as the governing body for the standardization of electric bicycle and pedelec charging infrastructure across Europe. Established to coordinate the adoption of the circular connector specification, the association relies on a structured membership model designed to integrate manufacturers, operators, and technology providers. The organizational framework is divided into three primary tiers: Associate, Adopter, and Community members. This stratification allows for differentiated levels of influence and commitment, ensuring that both large industrial players and smaller stakeholders contribute to the evolution of the 1.5 kilowatt charging standard.
Key Industry Members
The association’s membership roster includes several major entities from the automotive, electronics, and transportation sectors. Bosch is a prominent member, leveraging its extensive presence in the power tools and mobility markets to promote the EnergyBus connector. Panasonic and Sanyo, both significant players in battery technology and consumer electronics, are also listed as key members. Their involvement is critical for ensuring that the 12–48 volts direct current (DC) specification is compatible with a wide range of rechargeable batteries used in light electric vehicles. VARTA, a well-known battery manufacturer, is another core member, contributing expertise in energy storage solutions that align with the EnergyBus power delivery requirements.
Deutsche Bahn, the national German railway company, is included among the key members. Its participation highlights the potential for integrating EnergyBus charging stations into public transport hubs and urban mobility networks. Philips, a global leader in health technology and lighting, is also a member, suggesting a broader application of the standard in smart city and residential charging environments. These members collectively drive the adoption of the connector, ensuring that the infrastructure supports the growing market for electric bicycles and pedelecs.
Partner Organizations
In addition to its core members, the EnergyBus Association collaborates with several partner organizations to enhance the standard’s reach and technical robustness. CiA (CAN in Automation) is a key partner, providing expertise in communication protocols that facilitate seamless data exchange between the charger and the vehicle’s battery management system. Opi2020 is another partner organization, contributing to the operational and interoperability aspects of the EnergyBus ecosystem. EnergyBus GmbH serves as a strategic partner, likely handling the commercialization and licensing of the standard. These partnerships ensure that the EnergyBus connector remains a viable and competitive solution in the European market for light electric vehicle charging.
What components are available for EnergyBus systems?
The EnergyBus ecosystem relies on a modular architecture designed to standardize charging for light electric vehicles. The core specification defines a circular connector capable of delivering up to 1.5 kilowatts of power. This system operates on a direct current (DC) voltage range of 12 to 48 volts. This voltage flexibility ensures that any standard battery charger can interface with any rechargeable battery within the network. The design prioritizes interoperability across different manufacturers and vehicle types.
Power Conversion and Electronics
Effective power management is critical for the EnergyBus standard. Several key manufacturers provide essential conversion hardware. Kaco is a notable provider of power converters for the system. Pironex also supplies conversion units that facilitate the transfer of energy between the grid and the vehicle battery. Mobipus contributes additional converter technology to the component lineup. These devices ensure that the DC power is regulated correctly for various battery chemistries and charging speeds.
Batteries and Motors
Energy storage solutions are a primary component of the ecosystem. HighTech Energy produces batteries specifically designed for EnergyBus compatibility. These batteries leverage the standard 12–48 volt DC input to maximize charging efficiency. On the propulsion side, Acron manufactures motors that integrate with the EnergyBus power delivery system. These motors are engineered to work in tandem with the standardized power input, providing consistent performance for electric bicycles and pedelecs.
Peripheral Devices and Software
The system extends beyond core power components to include peripheral devices. Phillips provides bike lights that are compatible with the EnergyBus electrical architecture. These lighting solutions draw power directly from the standardized bus, simplifying the wiring for manufacturers. Panasonic Industries offers power conversion adaptors that enhance the versatility of the charging infrastructure. These adaptors allow for seamless integration with existing power sources. Software management is handled by Electragil. Their software solutions provide the necessary control logic for monitoring and managing the charging process across the network.
