Overview

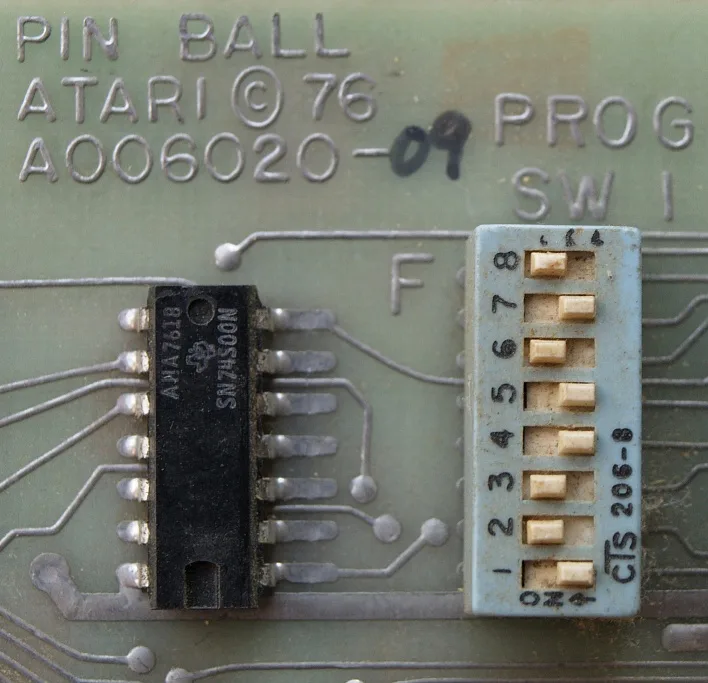

A DIP switch is a manual electric switch packaged with others in a group within a standard dual in-line package (DIP). The term may refer to each individual switch or to the unit as a whole. This type of switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations. The DIP switch was commissioned in 1970 and remains operational.

Technical Characteristics

The dual in-line package format allows for compact integration into electronic assemblies. Each switch in the group operates independently, enabling precise configuration of device parameters. The standardization of the DIP format facilitates compatibility across various electronic systems and manufacturers.

Functional Advantages

DIP switches offer several advantages over alternative configuration methods such as jumper blocks. The grouped packaging reduces board space requirements while maintaining accessibility for manual adjustment. Individual switches within the DIP unit provide clear visual indication of configuration states, simplifying troubleshooting and setup procedures. The mechanical design supports reliable operation in various environmental conditions commonly encountered in electronic device applications.

History

The development of the dual in-line package (DIP) switch represents a pivotal moment in the miniaturization of manual electrical controls for printed circuit boards. Before the widespread adoption of this form factor, electronic devices often required bulky toggle switches or potentiometers that occupied significant board real estate. The DIP switch addressed this by integrating multiple independent switches into a single, standardized housing that could be easily soldered onto a PCB, much like integrated circuits. This innovation allowed engineers to customize the behavior of electronic devices for specific situations without altering the core circuit design.

Early Patents and the 1970 Commissioning

The conceptualization and initial patenting of the DIP switch occurred in the late 1960s and early 1970s. A foundational milestone was reached in 1970, when Pierre Schwab secured US patent 3621157. This patent laid the groundwork for the mechanical and electrical architecture of the switch, defining how individual rocker or slide mechanisms could be aligned within a rectangular plastic housing with dual rows of pins. Schwab’s design emphasized the importance of standardization, ensuring that the switches could be mass-produced and easily integrated into the growing ecosystem of through-hole electronic components. This period marked the transition of the DIP switch from a prototype component to a commercially viable product, aligning with the broader electronics industry's shift toward compact, modular designs.

Refinements and the 1975 Lockard Patent

As the technology matured, further refinements were introduced to enhance reliability and usability. In 1975, Joseph Lockard filed US patent 4012608, which contributed to the evolution of the DIP switch mechanism. Lockard’s work focused on improving the tactile feedback and electrical contact stability of the individual switches within the array. These enhancements were critical for applications where precise manual configuration was required, such as in early computer memory modules, audio equipment, and industrial control panels. The 1975 patent helped solidify the DIP switch as a robust solution for user-accessible settings, ensuring that the switches could withstand repeated actuation while maintaining consistent electrical performance. This period of innovation established the DIP switch as a standard component in electronic engineering, a status it has maintained for decades.

What are the main types of DIP switches?

DIP switches are available in several mechanical configurations, each suited to different spatial and ergonomic constraints on a printed circuit board. The slide switch is the most common type, featuring a small lever that moves laterally to change the state of the contact. This design is compact and ideal for dense PCB layouts where vertical clearance is limited. The rocker switch resembles the push-button style found on power outlets, offering a larger actuation surface that is easier to manipulate with a finger or a small tool. This type is often used in consumer electronics where user accessibility is prioritized over extreme miniaturization.

Other variants include the piano key switch, which consists of a long, narrow lever that spans multiple switch units, allowing for simultaneous actuation of several bits with a single motion. This is particularly useful for setting multiple parameters at once in industrial control panels. The rotary DIP switch uses a rotating knob to select among multiple states, providing a more intuitive interface for settings that require more than two positions, such as channel selection or mode configuration.

Binary vs. Tri-State Configurations

DIP switches are primarily categorized by their state configuration: binary or tri-state. A binary switch has two stable positions, typically labeled as "On" (1) and "Off" (0). This is the standard configuration for most digital logic applications, where each switch represents a single bit of data. The total number of unique combinations for n binary switches is calculated as 2n. For example, a standard 8-position binary DIP switch provides 28 = 256 unique settings.

Tri-state switches offer three positions: "On" (1), "Off" (0), and a middle state, often labeled as "Auto" or "2". This third state can be used to enable a default behavior, select a third option, or indicate a floating input in digital circuits. The number of unique combinations for n tri-state switches is 3n. An 8-position tri-state DIP switch thus offers 38 = 6,561 unique configurations, providing significantly more flexibility for complex device customization.

Configuration Type States per Switch Formula for n Switches Combinations for 8 Switches
Binary 2 (On/Off) 2n 256
Tri-State 3 (On/Off/Middle) 3n 6,561

The choice between binary and tri-state configurations depends on the complexity of the settings required by the electronic device. Binary switches are simpler and more cost-effective for basic parameter selection, while tri-state switches are preferred when additional flexibility or default behaviors are needed. Both types are designed to integrate seamlessly with other electronic components on a printed circuit board, ensuring reliable and customizable device operation.

How do DIP switches work in circuit design?

DIP switches operate as manual single-pole, single-throw (SPST) mechanical contacts that bridge two adjacent pins on a printed circuit board (PCB). Each switch within the dual in-line package (DIP) connects a specific pin pair when toggled to the "ON" position, effectively creating a closed circuit path for that individual bit of configuration data. The physical mechanism relies on a small metal leaf spring or slider that makes or breaks contact between the two pins, providing a reliable low-resistance connection or a high-impedance open state depending on the toggle position.

Interface Circuitry and Signal Conditioning

In digital logic design, the raw mechanical contact of a DIP switch is rarely connected directly to a microcontroller pin. Instead, interface circuitry is employed to define the logic level. Pull-up or pull-down resistors are commonly used to establish a default state. For example, with a pull-up resistor connected to Vcc, the pin reads a logic HIGH when the switch is open and is pulled to logic LOW (GND) when the switch closes. This prevents the input pin from floating, which could cause erratic behavior. The voltage at the input pin, V_in, can be modeled using a simple voltage divider if the switch resistance (R_sw) and pull-up resistance (R_pull) are considered: V_in = V_cc * (R_sw / (R_pull + R_sw)).

Firmware and Decode Logic

Microcontrollers read the state of these pins via parallel input ports or individual GPIO lines. Firmware interprets the binary pattern of the switches to configure device behavior, such as setting baud rates, selecting memory maps, or defining hardware addresses. In more complex systems, decode logic circuits, such as 3-to-8 line decoders, can translate the binary switch settings into a single active output line. This allows a small number of switches to control a larger number of configuration options. The firmware typically samples the switch states during the initialization phase, often incorporating debouncing algorithms to account for mechanical contact bounce, ensuring a stable reading before applying the configuration.

Alternative Form Factors

While DIP switches are standard for through-hole mounting, surface-mount technology (SMT) has led to the development of surface-mount DIP switches, which occupy less board space and facilitate automated assembly. Additionally, Single In-line Package (SIP) switches offer a linear arrangement of switches on a single row of pins, useful for compact layouts where the width of a standard DIP package is a constraint. These variations maintain the fundamental SPST operation but adapt the physical footprint to different PCB design requirements.

Applications in consumer and industrial electronics

DIP switches have been integral to electronic configuration since their introduction in 1970 (per grounding data). In early computing, they were critical for managing Interrupt Request (IRQ) lines in the Industry Standard Architecture (ISA) bus. System administrators used these switches on expansion cards to assign unique IRQ numbers, preventing conflicts between components like sound cards, serial ports, and hard drives. This manual configuration allowed for hardware-level customization without relying on complex software drivers.

Consumer electronics also relied heavily on DIP switches. Early video cards used them to set resolution, color depth, and memory size. Arcade game manufacturers employed DIP switches to adjust difficulty levels, coin acceptance rates, and bonus stages. Garage door openers utilized these switches to set the rolling code frequency, ensuring that each opener matched its corresponding receiver. These applications demonstrated the versatility of DIP switches in tailoring device behavior to specific user needs.

In modern industrial equipment, DIP switches remain popular for their reliability and simplicity. They provide a robust method for configuring factory settings, selecting operating modes, and addressing devices on a bus. Unlike software configurations, DIP switch settings are retained even after a power cycle, making them ideal for environments with frequent power fluctuations. Industrial controllers, programmable logic controllers (PLCs), and sensor arrays often feature DIP switches for quick, tool-free adjustments.

The enduring appeal of DIP switches in industry stems from their mechanical durability and ease of use. They do not require external power to maintain their state, unlike EEPROM or flash memory. This characteristic makes them suitable for harsh environments where electronic components might degrade. Additionally, DIP switches offer a visual indication of the current configuration, allowing technicians to verify settings at a glance. This transparency reduces the likelihood of configuration errors during maintenance and troubleshooting.

While software-based configuration methods have gained prominence, DIP switches continue to serve niche applications where simplicity and reliability are paramount. They are often used in conjunction with software, providing a hardware override or a default configuration. This hybrid approach leverages the strengths of both methods, ensuring that devices can be easily configured in diverse operational contexts. The continued use of DIP switches highlights their role as a fundamental component in electronic design, bridging the gap between hardware and software configuration.

Why are DIP switches still relevant?

While the ubiquity of DIP switches in consumer electronics has waned with the advent of software-defined configuration, their relevance in industrial and niche applications remains robust. The primary advantage of a DIP switch lies in its mechanical simplicity and visual immediacy. Unlike software settings that require powering on the device, navigating menus, and saving to non-volatile memory, a DIP switch configuration is visible at a glance and persists without power. This "power-independent" nature is critical in environments where display screens may fail or where rapid, tool-based adjustments are needed by technicians.

Industrial and Embedded Systems

In industrial control systems, DIP switches are often used to set hardware addresses, baud rates, or input/output configurations for peripheral devices. For example, in a rack of identical I/O modules, each module might use a 4-pin DIP switch to set its unique address on a bus, such as I2C or SPI. This hardware-level configuration ensures that the device is recognized correctly by the master controller even before software initialization completes. The reliability of a mechanical contact is often preferred over software flags in harsh environments where voltage spikes or memory corruption could alter software settings.

Consumer Niche: Ceiling Fans and Lighting

A prominent consumer use case for DIP switches is found in remote-controlled ceiling fans and lighting systems. Many modern fans use a small circuit board with a 4- or 8-pin DIP switch to set the "dip code" or frequency address. This allows multiple fans in the same room or house to be paired with specific remote controls. For instance, if two fans are installed in a living room, one might be set to DIP code 1-2-3-4 and the other to 5-6-7-8. The remote control is then adjusted to match these settings. This hardware-based pairing avoids the need for complex Bluetooth or Wi-Fi pairing procedures, offering a simple, reliable solution for users who may not want to deal with app-based configuration.

Advantages Over Software Configuration

The decision to use a DIP switch over software configuration often comes down to cost, reliability, and user experience. DIP switches are inexpensive and require minimal circuitry, making them ideal for cost-sensitive designs. They also provide a tactile feedback that software sliders or buttons may lack. In situations where power is intermittent or where the device needs to be configured before the main power is applied, DIP switches offer a straightforward solution. The visual nature of the switches allows for quick verification of settings, reducing the likelihood of configuration errors. While software configuration offers greater flexibility, the simplicity and reliability of DIP switches ensure their continued use in specific, well-defined applications.

Worked examples

The primary function of a DIP switch is to provide manual configuration options for electronic devices. Because each individual switch within the package represents a binary state—typically ON (logic 1) or OFF (logic 0)—the total number of unique configurations is determined by the number of switches. The total combinations are calculated using the formula 2n, where n is the number of switches.

Calculating Configuration Combinations

Consider a standard 7-position DIP switch. The total number of unique settings is 27. This equals 128 distinct combinations. If one position is reserved for a default state or disabled, the device offers 127 user-selectable options.

For an 8-position DIP switch, the calculation is 28, which equals 256 combinations. This specific count is significant in digital electronics because it matches the number of unique values representable by a single byte (8 bits). This allows an 8-switch DIP array to directly set any byte value from 0 to 255.

Binary Interpretation and ASCII Mapping

DIP switches are often used to input binary data directly into a microcontroller or register. Each switch corresponds to a bit position, with weights typically assigned from least significant bit (LSB) to most significant bit (MSB).

To set a DIP switch array to represent the ASCII character A, one must know its binary equivalent. The ASCII code for uppercase A is 65 in decimal. Converting 65 to binary yields 01000001.

In an 8-switch DIP package, this configuration requires:

This manual setting allows engineers to hard-code initial parameters, such as device addresses or baud rates, without requiring software re-flashing. The physical nature of the DIP switch ensures the configuration persists even when power is removed, distinguishing it from software-based configuration methods.
