Current limiting reactor: Principles, construction, and grid applications

Overview

In electrical engineering, current limiting reactors are inductive devices employed to manage and reduce short-circuit currents within power systems. These reactors are particularly critical during plant expansions and the addition of new power sources, where the resulting increase in fault currents can exceed the thermal and mechanical withstand capabilities of existing distribution equipment. By introducing controlled inductance into the circuit, these reactors effectively limit the magnitude of short-circuit currents, ensuring that protective devices and conductors can adequately handle the fault levels without requiring a complete overhaul of the infrastructure.

Beyond distribution networks, current limiting reactors play a significant role in high voltage electric power transmission grids. In these systems, they serve a similar purpose by stabilizing the grid and managing fault currents across long transmission lines. This application helps maintain system stability and ensures that the transmission infrastructure can operate reliably under varying load conditions and fault scenarios.

In the context of electric motor control, current limiting reactors are utilized to restrict the starting current, which can be several times the rated full-load current. This reduction in inrush current minimizes voltage dips and mechanical stress on the motor and connected equipment. Additionally, these reactors can be integrated into speed control systems, providing a means to regulate motor speed by adjusting the inductive reactance in the circuit. The fundamental principle relies on the relationship between voltage, current, and inductive reactance, often expressed as V=I×XL, where XL=2πfL.

History and development

The development of the current limiting reactor represents a foundational advancement in electrical engineering, specifically designed to manage short-circuit currents within expanding power systems. These devices were engineered to reduce fault currents to levels that existing distribution equipment could adequately handle, addressing the growing complexity of power source additions and plant expansions. The concept also extended to high voltage electric power transmission grids, where similar current-limiting functions were required, as well as in the control of electric motors to restrict starting current or facilitate speed control systems.

Early Presentation and Patenting

The origins of the current limiting reactance coil can be traced to the early twentieth century, with a significant milestone occurring in 1915. During this year, the concept was formally presented, marking the initial recognition of the need for dedicated inductive elements to manage electrical faults. This presentation laid the groundwork for subsequent technical refinements and commercial applications in the power sector.

Following the 1915 presentation, Vern E. Alden played a pivotal role in formalizing the technology. Alden filed a patent for the current limiting reactor in 1917, capturing the specific design and operational principles of the device. This patent was officially issued in 1923, establishing the legal and technical framework for its widespread adoption. The 1923 issuance date aligns with the broader timeline of the device's operational status, as the technology became commercially viable and integrated into early power networks.

Commercial Assignment and Operator

The original assignee for Vern E. Alden's 1923 patent was the Westinghouse Electric & Manufacturing Company. This assignment underscores the company's early leadership in electrical infrastructure innovation. Westinghouse Electric & Manufacturing Company served as the primary operator and developer of the technology during its formative years, leveraging the patent to integrate current limiting reactors into their distribution and transmission solutions. The company's involvement ensured that the reactor designs were optimized for real-world applications, including motor control and grid stability.

The commissioning of the current limiting reactor technology in 1923 marked the beginning of its operational history. This date signifies the point at which the patented design was fully realized and deployed in electrical systems. The technology has remained operational since its introduction, continuing to serve as a critical component in managing short-circuit currents in both historical and modern power infrastructure. The enduring relevance of the current limiting reactor highlights the effectiveness of the original design principles established by Alden and Westinghouse.

How do current limiting reactors work?

Current limiting reactors function as passive inductive components inserted into electrical circuits to manage fault currents and operational transients. In power systems, they leverage inductive reactance to restrict short-circuit currents, ensuring these surges remain within the interrupting rating of existing switchgear and distribution equipment. This capability is critical when plant expansions or additional power sources increase the potential fault current beyond the thermal and mechanical limits of legacy infrastructure. By introducing impedance, the reactor prevents the need for immediate, costly upgrades to circuit breakers and busbars.

Inductive Reactance and Fault Current Restriction

The fundamental operating principle relies on the relationship between inductance and frequency. During a short-circuit event, the voltage across the reactor increases proportionally to the rate of change of current, effectively slowing the rise of the fault current. This allows protective devices to interrupt the fault more efficiently. In high voltage transmission grids, this mechanism stabilizes the system by limiting the magnitude of currents resulting from sudden load changes or line faults.

Voltage Drop and Motor Control

Balancing voltage drop during normal operation is a key design consideration. While the reactor limits peak currents, it must not cause excessive voltage regulation issues under steady-state conditions. Engineers select inductance values to optimize this trade-off, ensuring that the voltage at the load remains within acceptable tolerances while providing adequate fault current limitation.

In electric motor control, current limiting reactors serve dual purposes. They restrict the high inrush current during motor startup, reducing mechanical stress on the rotor and electrical stress on the supply network. Additionally, they function as part of speed control systems by adjusting the effective voltage applied to the motor terminals through variable inductance. This application protects system components from thermal overload and enhances the longevity of motor windings and insulation.

Construction and design considerations

Current limiting reactors are constructed to manage magnetic flux and thermal dissipation under both steady-state and fault conditions. The core design philosophy prioritizes the prevention of magnetic saturation, which would otherwise reduce the inductive reactance and diminish the current-limiting effect during high-magnitude short circuits.

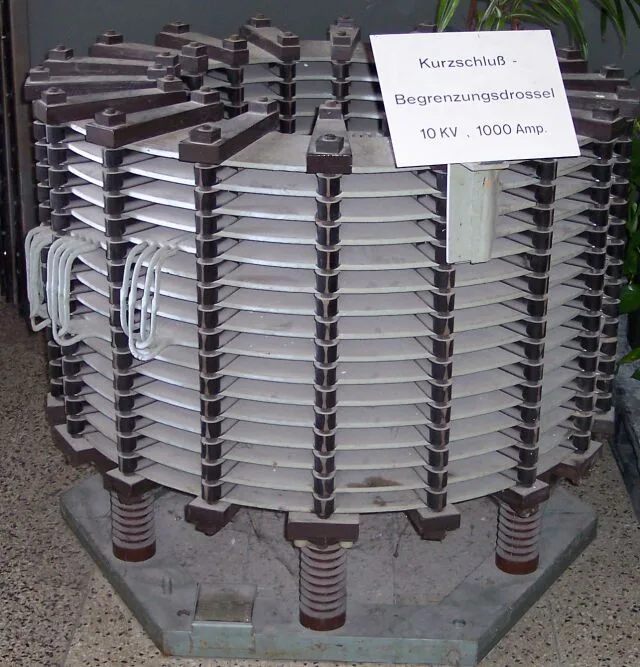

Air-Core Construction

Many current limiting reactors utilize air-core coils. By eliminating ferromagnetic core materials, these designs prevent magnetic saturation regardless of the current magnitude. This ensures that the inductance remains constant even during severe fault conditions, providing predictable impedance. Air-core reactors are commonly employed in medium-voltage distribution systems where space constraints are less critical than performance stability. The absence of iron cores also reduces hysteresis and eddy current losses, enhancing overall efficiency.

Insulation Methods

Insulation strategies vary based on voltage levels. For low and medium voltage applications, air-insulated coils are frequently used. These designs rely on the dielectric strength of the surrounding air, often supplemented by bushings and spacer insulators to maintain clearances. This approach simplifies maintenance and reduces material costs. In contrast, high-voltage transmission grids typically employ oil-immersed coils. The oil serves a dual purpose: it provides superior dielectric insulation to handle higher potential differences and acts as a coolant to dissipate heat generated by the coil's resistance. Oil-immersed reactors are often housed in steel tanks, similar in construction to power transformers, allowing for compact installation in substations.

Magnetic Field Impacts

The magnetic field generated by the reactor coil can induce eddy currents in nearby conductive materials. This effect is particularly significant in air-core reactors where the magnetic flux lines extend further into the surrounding environment. Nearby metal objects, such as steel structures, piping, or even concrete reinforcement bars, can experience heating due to these induced currents. Engineers must account for these impacts during the layout of substations, often positioning reactors away from structural steel or using non-magnetic materials for nearby supports to mitigate thermal stress and energy losses.

What are line reactors and how do they function?

Line reactors are specialized inductive components integrated into electrical systems to manage current flow and enhance power quality. Functioning as inductors wired directly between the power source and the load, these devices leverage the fundamental property of inductance to oppose changes in current. In the context of power transmission and distribution, they serve to reduce short-circuit currents, a critical function as plants expand and additional power sources are introduced. By limiting these surge levels, line reactors ensure that existing distribution equipment can adequately handle the electrical stress without requiring immediate, costly upgrades to breakers and cables.

Electrical Function and Harmonic Filtering

The operation of a line reactor is governed by the relationship between voltage, inductance, and the rate of change of current. The voltage drop across an ideal inductor is expressed as V=Ldtdi, where L represents the inductance in henries. This equation illustrates how the reactor introduces impedance to alternating current, effectively smoothing out rapid fluctuations. In high-voltage transmission grids, this impedance helps stabilize the system by filtering current spikes and reducing harmonic currents that can distort the waveform. Harmonic distortion often arises from non-linear loads, leading to overheating and inefficiency in the broader network.

Protection of Variable-Frequency Drives and Motors

In motor control applications, line reactors play a vital role in protecting variable-frequency drives (VFDs) and electric motors. When a motor starts, it draws a significant inrush current that can strain the power supply and mechanical components. Line reactors restrict this starting current, providing a smoother acceleration profile and reducing thermal stress on the motor windings. Additionally, they are used as part of speed control systems, enhancing the precision of motor operation. By mitigating voltage transients and harmonic distortion, line reactors extend the lifespan of VFDs, which are particularly susceptible to electrical noise from the grid. This protective function is essential in industrial settings where continuous operation and equipment reliability are paramount. Westinghouse Electric & Manufacturing Company has historically been a key operator and developer of such electrical engineering concepts, contributing to the operational standards established since the early 20th century.

Applications in motor control and speed regulation

Current limiting reactors serve a critical function in the control of electric motors, specifically designed to restrict starting current and integrate into speed control systems. When an electric motor starts, it typically draws a surge of current significantly higher than its rated full-load current. This inrush can cause voltage dips across the distribution network and mechanical stress on the motor shaft. By inserting a reactor in series with the motor windings, the impedance of the circuit increases, thereby limiting the magnitude of the starting current to a level that existing distribution equipment can adequately handle.

Starting Current Restriction

In motor starting applications, the reactor acts as a variable or fixed impedance element. During the start-up phase, the reactor limits the current flow, smoothing the acceleration of the motor. This is particularly useful in high-voltage electric power transmission grids and industrial plants where multiple large motors may start simultaneously. Without current limiting, the cumulative effect of these starting currents could exceed the short-circuit capacity of the plant's expansion or the power source additions. The reactor ensures that the voltage drop remains within acceptable limits, preventing the flickering of lights and the tripping of sensitive electronic equipment connected to the same bus.

Speed Control Systems

Beyond starting, current limiting reactors are employed as part of speed control systems for electric motors. In certain motor types, such as wound-rotor induction motors or DC series motors, varying the reactance in the circuit allows for precise regulation of motor speed. By adjusting the effective inductance, the phase relationship between voltage and current can be modified, influencing the torque-speed characteristic of the motor. This method provides a smooth and stepless speed control, which is advantageous in applications requiring gradual acceleration or deceleration. The reactor helps in managing the power factor and reducing harmonic distortion introduced by the motor drive, contributing to the overall stability of the electrical system.

The integration of current limiting reactors in motor control enhances the reliability and efficiency of electrical installations. By mitigating the impact of starting currents and enabling effective speed regulation, these reactors play a vital role in optimizing the performance of electric motors in diverse industrial and commercial settings.

Worked examples

Engineering applications of current limiting reactors require precise calculation of reactance to ensure switchgear ratings are not exceeded during fault conditions. The following examples illustrate the methodology for determining required inductance and selecting appropriate core designs based on system voltage and thermal constraints.

Example 1: Calculating Reactance for Switchgear Protection

Consider a 13.8 kV distribution bus where the existing circuit breakers are rated for a symmetrical short-circuit current of 5,000 A. Due to plant expansion, the available fault current from upstream transformers has increased to 8,000 A. The objective is to limit the fault current to the 5,000 A rating.

The required voltage drop across the reactor during the fault is calculated using Ohm’s Law for AC circuits: Vreactor = Ifault × XL. First, determine the required reactance XL. The voltage across the reactor is the difference between the system voltage and the voltage required to drive the limited current through the upstream impedance. A simplified approach assumes the reactor must drop the excess current. The required reactance XL = Vphase / Ilimited - Xupstream. For a 13.8 kV system, Vphase is approximately 7,967 V. If the upstream reactance is negligible for this illustration, XL ≈ 7,967 V / 5,000 A = 1.59 Ω. The reactor must provide at least 1.59 Ω of inductive reactance at the system frequency to limit the fault current to 5,000 A.

Example 2: Selecting Air-Core vs. Oil-Immersed Designs

Selection between air-core and oil-immersed reactors depends on voltage level and space constraints. For a 132 kV transmission line, the insulation requirements are significant. An air-core reactor for this voltage would require substantial physical spacing between coils to prevent flashover, leading to a large footprint. Conversely, an oil-immersed reactor uses the oil as both a cooling medium and an insulator, allowing for a more compact design. For lower voltage applications, such as 11 kV motor starting, air-core reactors are often preferred due to lower dielectric losses and simpler construction. The decision matrix prioritizes compactness and thermal dissipation for oil-immersed units in high-voltage grids, while favoring cost and simplicity for air-core units in distribution networks.
