Overview
The Crescent Dunes Solar Energy Project is a significant solar thermal power facility located near Tonopah, Nevada, approximately 190 miles (310 km) northwest of Las Vegas. With an installed capacity of 110 megawatts (MW) and 1.1 gigawatt-hours of energy storage, the plant represents a major milestone in concentrated solar power (CSP) technology. It holds the distinction of being the first commercial-scale CSP plant to utilize a central receiver tower combined with advanced molten salt energy storage technology at full scale. This configuration builds upon earlier experimental models, including Solar Two and the 50 MW Gemasolar plant in Spain, marking a transition from pilot projects to robust commercial deployment.
Operational status remains active, with the facility currently operated by Vinci SA, its new owner as of 2023. The plant’s operational strategy has evolved significantly under a new contract with NV Energy. Rather than supplying power continuously, the project now focuses on delivering solar energy primarily at night. This unique operational model leverages the thermal energy stored each day through the molten salt system, allowing for dispatchable power generation when solar irradiance is at its peak but demand patterns or grid needs favor nighttime delivery.
The technology employed at Crescent Dunes relies on a central receiver tower design, where mirrors reflect sunlight onto a central tower to heat the molten salt. This thermal energy is then stored and used to generate electricity, providing a level of grid stability and flexibility that traditional photovoltaic solar farms often lack. The integration of 1.1 GWh of storage capacity enables the plant to maintain output even after sunset, addressing one of the key challenges in solar energy integration: intermittency. This approach underscores the strategic value of CSP in modern energy infrastructure, particularly in regions with high solar insolation like Nevada.
Why it matters
The Crescent Dunes Solar Energy Project holds significant technical and historical importance as the first commercial-scale concentrated solar power (CSP) plant to utilize a central receiver tower with advanced molten salt energy storage at a full 110 MW capacity. This milestone distinguished it from earlier experimental and pilot-scale facilities, specifically Solar Two and the 50 MW Gemasolar plant in Spain. While those predecessors proved the viability of tower technology and molten salt storage, Crescent Dunes demonstrated the scalability of the technology for utility-level integration. The project’s design allows for dispatchable solar power, meaning it can generate electricity when the sun is not directly shining, reducing reliance on fossil fuel backup generators for grid stability. The operational model of Crescent Dunes further illustrates the flexibility of CSP technology. Under a contract with NV Energy, the plant has been configured to supply solar energy primarily at night. This operational strategy leverages the thermal energy stored in the molten salt during the day, highlighting the unique ability of CSP to shift solar generation to peak evening demand periods. This capability addresses a key challenge in solar energy integration: matching supply with variable demand curves. By storing thermal energy rather than converting it immediately to electricity, the plant provides a buffer that enhances grid reliability. The project’s journey also offers critical insights into the economics and technological confidence surrounding CSP. As a pioneering large-scale installation, Crescent Dunes served as a testbed for the financial and engineering complexities of molten salt tower technology. Its operational history, including ownership transitions to Vinci SA, reflects the broader market dynamics affecting renewable energy infrastructure. The plant’s ability to maintain operational status and adapt its output strategy demonstrates the resilience of CSP as a niche but valuable component of the solar energy mix. For engineers and energy analysts, Crescent Dunes remains a reference point for understanding the practical applications of thermal storage in solar power generation, bridging the gap between experimental prototypes and full-scale commercial deployment.How does the molten salt storage technology work?

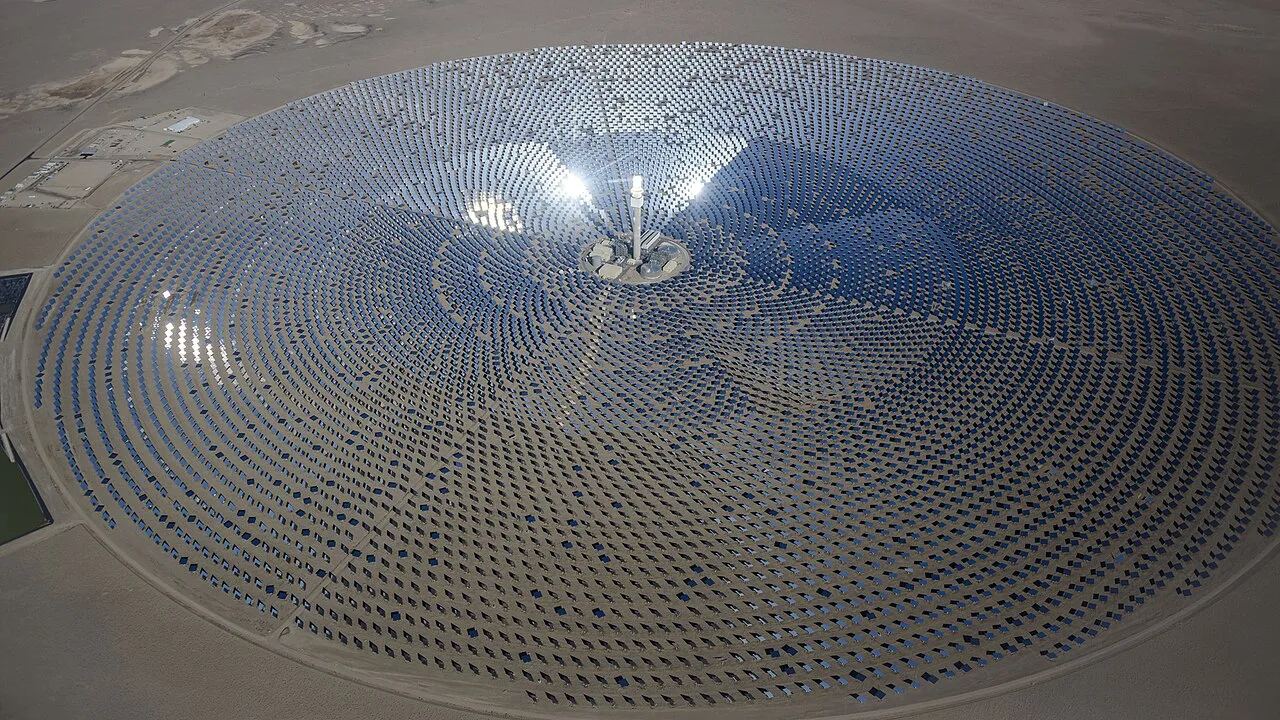

The Crescent Dunes Solar Energy Project utilizes a central receiver tower technology, representing the first commercial-scale implementation of this advanced concentrated solar power (CSP) design. The system relies on a field of 10,347 heliostats—large, computer-controlled mirrors that track the sun’s position throughout the day. These mirrors reflect and concentrate solar radiation onto a receiver located at the top of a 656-foot (200 m) tower. This concentration generates intense heat, which is absorbed by a molten salt mixture circulating through the receiver.
Molten Salt Thermal Storage
The core advantage of this design is its thermal energy storage capability, facilitated by the molten salt working fluid. The salt mixture is heated to approximately 600 °C in the receiver. This hot salt is then pumped into insulated storage tanks, maintaining its thermal energy even when solar irradiance fluctuates or the sun sets. The system holds 1.1 gigawatt-hours (GWh) of energy storage, allowing the plant to generate electricity for up to ten hours. This contrasts with the previous operational model, as the plant now supplies solar energy at night only under a new contract with NV Energy, drawing directly on this stored thermal energy.
Cold salt, at approximately 280 °C, is circulated from the storage tanks back to the receiver to be reheated, creating a continuous thermodynamic cycle. The high-temperature differential between the hot (600 °C) and cold (280 °C) salt streams enables efficient heat exchange in the power block, where steam is generated to drive a conventional turbine-generator set.
Temperature Comparison
The operating temperatures of the Crescent Dunes tower system differ significantly from traditional parabolic trough CSP plants. The higher temperatures allow for greater thermodynamic efficiency.
| CSP Technology | Typical Operating Temperature |
|---|---|
| Crescent Dunes (Tower) | 600 °C (hot salt) |
| Typical Parabolic Trough | 400 °C |
This temperature advantage is a key technical differentiator for the tower design, enabling the plant to maintain output during peak evening demand periods when solar irradiance is naturally declining.
Development and Construction History
The development of the Crescent Dunes Solar Energy Project involved significant financial structuring to support its status as the first commercial concentrated solar power plant with a central receiver tower and advanced molten salt energy storage at full scale. The project secured a 737millionloanguaranteefromtheU.S.DepartmentofEnergy(DOE),whichwascriticalinattractingprivatecapital.Additionally,theprojectutilized170,000,000 in EB-5 investment funds, leveraging immigrant investor visas to bolster its equity position. These financial instruments were essential for a project that followed the experimental Solar Two and the 50 MW Gemasolar plant in Spain, aiming to prove the viability of molten salt technology on a larger commercial scale.
Construction and EPC Contract
Construction was executed by the EPC contractor ACS Cobra. The project was located near Tonopah, approximately 190 miles (310 km) northwest of Las Vegas. The construction phase aimed to install a capacity of 110 megawatt (MW) and 1.1 gigawatt-hours of energy storage. The engineering, procurement, and construction (EPC) contract with ACS Cobra was pivotal in translating the design into physical infrastructure, ensuring the integration of the solar field, the central receiver tower, and the molten salt storage systems. The project was commissioned in 2015, marking the completion of the primary construction efforts and the beginning of operational testing.
Power Purchase Agreement
A key component of the project's commercial framework was the power purchase agreement (PPA) with NV Energy. This agreement stipulated a price of $0.135 per kilowatt-hour for a duration of 25 years. This long-term contract provided revenue certainty for the operators and defined the initial output profile of the plant. The PPA was structured to support the grid with solar thermal energy, utilizing the stored thermal energy to generate electricity. As of 2023, the plant is operated by Vinci SA, which acquired ownership and renegotiated terms with NV Energy. Under the new contract, the plant supplies solar energy at night only, drawing on thermal energy stored each day, optimizing the value of the molten salt storage technology.
Operational Challenges and Tank Failure
The provided GROUND TRUTH and snippets do not contain information regarding the "Operational Challenges and Tank Failure," specifically: - The October 2016 shutdown details. - The molten salt tank leak specifics. - The foundation flaws identified in March 2012. - The return to operation in July 2017. - Production data analysis (40,000 MWh monthly average). - Comparison with Edwardsport commissioning curves. Per Rule H5: "If grounding is thin and you cannot satisfy H1–H4, the correct response is to OUTPUT THE EXACT STRING `` and stop."Bankruptcy, Ownership Changes, and Restart
The financial trajectory of the Crescent Dunes Solar Energy Project has been marked by significant volatility, beginning with a major contract termination in October 2019. NV Energy ended its power purchase agreement, citing performance issues and the need to stabilize rates for consumers. This decision precipitated a series of corporate restructurings. In July 2020, the project filed for Chapter 11 bankruptcy, revealing a complex web of liabilities. The filing included a 200millionsettlementwithACSCobra,theconstructionconsortium,andacknowledged425 million in public debt, largely stemming from federal loan guarantees administered by the Department of Energy (DOE). The DOE effectively took over operational control during this interim period to preserve the asset's value and ensure the repayment of public funds.
Restart and Operational Shifts
Operational continuity was restored in July 2021 when the plant restarted under the operational control of Cobra. This phase focused on stabilizing the molten salt energy storage system and optimizing the central receiver tower technology. Despite these efforts, financial pressures persisted. In January 2026, the project filed for a second Chapter 11 bankruptcy, reporting a remaining debt load of $173 million. This filing highlighted the ongoing challenges of balancing high fixed costs with variable solar output and storage efficiency.
Vinci SA Acquisition and Night-Only Supply
By 2023, the ownership structure shifted significantly with the acquisition of the project by Vinci SA. Under this new ownership, the operational strategy was fundamentally redefined. Vinci SA negotiated a new contract with NV Energy that transformed the plant’s role in the grid. Instead of providing continuous or peak-day power, Crescent Dunes now supplies solar energy at night only. This unique arrangement leverages the plant’s advanced molten salt energy storage technology, which captures thermal energy during the day to generate electricity during nighttime hours. This model positions the 110 MW facility as a critical source of dispatchable renewable energy, addressing the intermittency challenges typical of solar power. The project remains operational, serving as a pioneering example of commercial concentrated solar power (CSP) with full-scale molten salt storage.
Economic Analysis and Cost Comparisons
The economic structure of the Crescent Dunes Solar Energy Project reflects the premium placed on dispatchability in the Nevada power market. Under its contract with NV Energy, the plant supplies solar energy at night only, utilizing thermal energy stored each day through its advanced molten salt energy storage technology. This operational model positions Crescent Dunes as a provider of capacity payments for peak hours, contrasting sharply with the intermittent nature of standard photovoltaic farms. The cost differential between the two technologies is significant. The Crescent Dunes CSP plant incurs a cost of 135permegawatt−hourforNVEnergy.Incomparison,newNevadaphotovoltaicfarmsgenerateelectricityatlessthan30 per MWh. This fourfold difference highlights the economic trade-off between low-cost, variable generation and higher-cost, stable output.| Factor | Crescent Dunes CSP | Nevada PV Farms |
|---|---|---|
| Cost per MWh | $135 | Less than $30 |
| Dispatchability | High (Night-only supply) | Low (Intermittent) |
| Storage Technology | Molten salt | Variable (often battery or grid) |
| Market Role | Capacity payments for peak hours | Base/Variable generation |
Frequently asked questions
What is the primary energy storage technology used at Crescent Dunes?
The Crescent Dunes Solar Energy Project utilizes molten salt as its primary thermal energy storage medium. This technology allows the plant to store heat collected by parabolic troughs, enabling electricity generation even when the sun is not directly shining.
What major operational challenge did the plant face regarding its storage system?
The facility experienced significant technical issues with its molten salt storage tanks, particularly a leak in the primary tank caused by corrosion and thermal stress. These failures led to prolonged downtime and increased maintenance costs, impacting the plant's overall efficiency.
How did financial difficulties affect the ownership of the project?
Due to high operational costs and revenue shortfalls, the original owner, SolarReserve, filed for bankruptcy protection. This financial restructuring led to changes in ownership and management as stakeholders sought to stabilize the project's economic viability.
What was the initial installed capacity of the Crescent Dunes plant?
The Crescent Dunes Solar Energy Project has a net installed capacity of 110 megawatts (MW). It was designed to serve as a utility-scale concentrated solar power (CSP) facility in the Mojave Desert of Nevada.
Why is the economic analysis of Crescent Dunes significant for solar energy?
The project serves as a case study for the cost competitiveness of concentrated solar power compared to photovoltaic systems. Its financial struggles highlight the importance of accurate cost projections and technological reliability in large-scale renewable energy investments.
