Overview
Corium, technically designated as fuel-containing material (FCM) or lava-like fuel-containing material (LFCM), is a complex molten mass formed within the core of a nuclear reactor during a severe meltdown accident. This substance represents the ultimate consequence of core overheating, where the interplay of extreme thermal dynamics and chemical reactions transforms solid reactor components into a viscous, lava-like mixture. The formation of corium is not a singular event but a progressive aggregation of materials that define the severity of the nuclear incident.
The composition of corium is heterogeneous, consisting primarily of nuclear fuel, typically uranium, mixed with fission products released during the decay process. As the temperature rises, structural materials from the affected parts of the reactor, including control rods and the reactor vessel itself, melt and integrate into the mass. The chemical environment plays a critical role in the final consistency of the material. Corium forms through the chemical reaction of these components with air, water, and steam present in the reactor environment. In many scenarios, the interaction with oxygen leads to the oxidation of zirconium cladding and steel structures, further altering the thermal properties of the melt.
A defining characteristic of corium occurs when the reactor vessel is breached. In this stage, the molten mass interacts with the floor of the reactor room, incorporating molten concrete into its composition. This addition of concrete significantly changes the volume and chemical makeup of the fuel-containing material, creating a larger, more complex hazard zone. The resulting LFCM can spread across the reactor cavity, threatening the containment structure and the underlying foundation of the nuclear power plant.
As a primary hazard in nuclear meltdown accidents, corium poses significant challenges to reactor safety and containment. Its high temperature and chemical reactivity mean that it can continue to evolve even after the initial heat source is reduced. The potential for the corium to penetrate the reactor vessel and interact with the concrete floor introduces risks of steam explosions and the release of radioactive isotopes into the containment building. Understanding the behavior, composition, and thermal dynamics of corium is essential for assessing the progression of a nuclear accident and for designing mitigation strategies to prevent the breach of the final containment barriers. The material's lava-like consistency allows it to flow and settle in low-lying areas, potentially creating a stable but highly radioactive mass that requires long-term management.
How is corium formed in a reactor core?
Corium formation is the defining physical process of a nuclear reactor core meltdown, transforming the structured assembly of the reactor core into a heterogeneous, lava-like mixture. This material, technically referred to as fuel-containing material (FCM) or lava-like fuel-containing material (LFCM), results from the intense thermal and chemical interactions that occur when the reactor's primary cooling systems fail. The process begins with the accumulation of decay heat within the nuclear fuel, which, if not adequately removed, drives the temperature of the fuel pellets and their cladding beyond critical thresholds. As the core temperature rises, the structural integrity of the fuel rods is compromised, initiating a cascade of phase changes and chemical reactions that ultimately merge the core components into a single molten mass.
Thermal Dynamics and Decay Heat
The primary driver of corium formation is the persistent generation of decay heat following the fission of uranium atoms. Even after the chain reaction is slowed or stopped, the fission products within the fuel continue to emit significant thermal energy. In a loss-of-coolant accident or a failure of the primary heat exchangers, this heat causes the temperature of the uranium dioxide fuel pellets to rise sharply. As the fuel temperature exceeds the melting point of the uranium dioxide, the solid pellets begin to liquefy. Simultaneously, the zirconium alloy cladding that encases the fuel rods softens and eventually melts, allowing the fuel to interact directly with the surrounding coolant and structural materials. This thermal escalation is critical, as it determines the rate at which the core geometry collapses and the molten material begins to pool at the bottom of the reactor vessel.
Chemical Reactions: Zirconium and Steam
A crucial chemical component of corium formation is the reaction between the zirconium alloy cladding and the steam present in the reactor core. At elevated temperatures, zirconium reacts vigorously with water vapor in an exothermic reaction, producing zirconium dioxide and hydrogen gas. This reaction not only adds significant heat to the core, accelerating the melting process, but also generates large volumes of hydrogen, which can accumulate in the reactor containment building. The chemical interaction between the fuel, the cladding, and the coolant (water or steam) alters the composition of the resulting corium, creating a complex mixture of oxides and metallic elements. These chemical changes are essential to understanding the behavior of corium as it moves through the reactor structure.
Melting of Structural Materials and Concrete
As the molten fuel and cladding materials accumulate, they may breach the reactor pressure vessel, coming into contact with the concrete floor of the reactor room. The intense heat of the corium causes the concrete to melt, adding calcium, silicon, and aluminum oxides to the mixture. This interaction further modifies the chemical composition and physical properties of the corium, making it more fluid and capable of spreading across the reactor cavity. The inclusion of structural materials from the reactor, such as control rods made of hafnium or stainless steel, adds additional metallic components to the lava-like mass. The resulting fuel-containing material is a complex, multi-phase substance that reflects the diverse materials present in the reactor core and its immediate surroundings.
What happens when corium breaches the reactor vessel?
When the molten mixture known as corium accumulates at the bottom of the reactor pressure vessel, the vessel's structural integrity is challenged by extreme thermal and mechanical stresses. The failure of the vessel is a critical phase in a nuclear meltdown, as it allows the fuel-containing material to escape the primary containment and interact with the reactor floor. The ground truth defines corium as a mixture of nuclear fuel, fission products, control rods, structural materials, and reaction products with air, water, and steam. If the vessel is breached, molten concrete from the reactor room floor becomes part of the mixture, forming lava-like fuel-containing material (LFCM).
Mechanisms of Vessel Failure
The reactor vessel can fail through several distinct mechanisms, depending on the thermal gradient, internal pressure, and the composition of the corium pool. One primary mechanism is creep failure. As the corium pool grows, the weight of the molten mass exerts downward stress on the lower head of the vessel. Simultaneously, the intense heat from the corium weakens the steel of the vessel wall. Over time, the combination of high temperature and mechanical stress causes the steel to deform slowly and eventually rupture, a process known as creep. This typically occurs when the corium has spread across the bottom of the vessel, creating a large, relatively thin layer that heats the vessel wall uniformly.
Another critical failure mode is the "heat knife" effect. This occurs when the corium pool is deep and concentrated in the center of the vessel's lower head. The intense heat from the core of the corium melts the vessel wall from the inside out, while the cooler outer layers of the vessel or the surrounding water provide some cooling. This creates a steep thermal gradient, effectively "cutting" through the vessel wall like a hot knife through butter. This mechanism can lead to a rapid breach if the corium remains concentrated rather than spreading out.
High-pressure blowout is a third mechanism. If the primary circuit remains pressurized and the corium pool reaches the bottom of the vessel, the internal pressure can exceed the structural strength of the heated vessel wall. This can cause a sudden, explosive rupture of the vessel, ejecting the corium into the containment building. This scenario is particularly dangerous if the pressure is not relieved by the pressurizer or safety relief valves.
| Failure Mechanism | Description | Key Factors |
|---|---|---|
| Creep Failure | Slow deformation and rupture of the vessel wall due to combined thermal and mechanical stress. | Corium pool weight, vessel wall temperature, duration of heating. |
| Heat Knife Effect | Rapid melting of the vessel wall due to a steep thermal gradient from a concentrated corium pool. | Depth of corium pool, thermal conductivity of vessel wall, cooling conditions. |
| High-Pressure Blowout | Sudden rupture of the vessel due to internal pressure exceeding the strength of the heated wall. | Primary circuit pressure, vessel wall integrity, corium pool location. |
The breach of the reactor vessel marks the transition from an in-vessel melt to an ex-vessel melt. Once the corium escapes the vessel, it interacts with the concrete floor of the reactor room, leading to further chemical reactions and the potential for containment failure. The composition of the LFCM, including molten concrete, is a direct result of this interaction. Understanding these failure mechanisms is essential for designing effective in-vessel and ex-vessel retention strategies to mitigate the consequences of a nuclear meltdown.
How does corium interact with concrete and water?
When the molten core mass, known as corium, breaches the reactor pressure vessel, it initiates a complex phase of accident progression termed Molten Core-Concrete Interactions (MCCI). This stage is critical because the reactor floor, typically composed of reinforced concrete, becomes the primary barrier between the fuel-containing material and the containment structure. The interaction is not merely a thermal melting process but involves significant thermochemical reactions that can destabilize the containment building.
Thermal Decomposition and Gas Production
As the high-temperature corium, often exceeding 1500 °C, contacts the concrete floor, it causes rapid thermal decomposition of the concrete's constituents. The concrete, primarily composed of calcium silicate hydrates, calcium hydroxide, and aggregates, breaks down under intense heat. This decomposition releases significant volumes of gases, most notably hydrogen and carbon monoxide. The production of hydrogen is particularly concerning in nuclear safety analysis, as it can accumulate in the containment building, creating an explosive atmosphere if not adequately vented or oxidized. Carbon monoxide is produced from the reduction of iron oxides in the steel reinforcement bars within the concrete, which react with the carbon dioxide released from the decomposing calcium carbonate in the aggregate.
Steam Explosions and Direct Containment Heating
A major risk associated with MCCI is the potential for a steam explosion. This occurs when the molten corium interacts with water that has accumulated on the reactor floor or within the concrete's pores. The rapid vaporization of water into steam can create a violent pressure wave, potentially fragmenting the corium mass and dispersing radioactive fission products. Another significant phenomenon is Direct Containment Heating (DCH). In DCH, the corium spreads across the containment floor, radiating and convecting heat directly to the containment walls and roof. If the heat flux is sufficient, the containment structure can experience a rapid temperature rise, leading to a pressure increase that may challenge the integrity of the steel or concrete containment vessel, potentially resulting in a breach and the release of radioactivity to the environment. These interactions define the late-phase behavior of a severe nuclear accident, influencing the design of in-vessel and ex-vessel retention strategies in modern reactor designs.

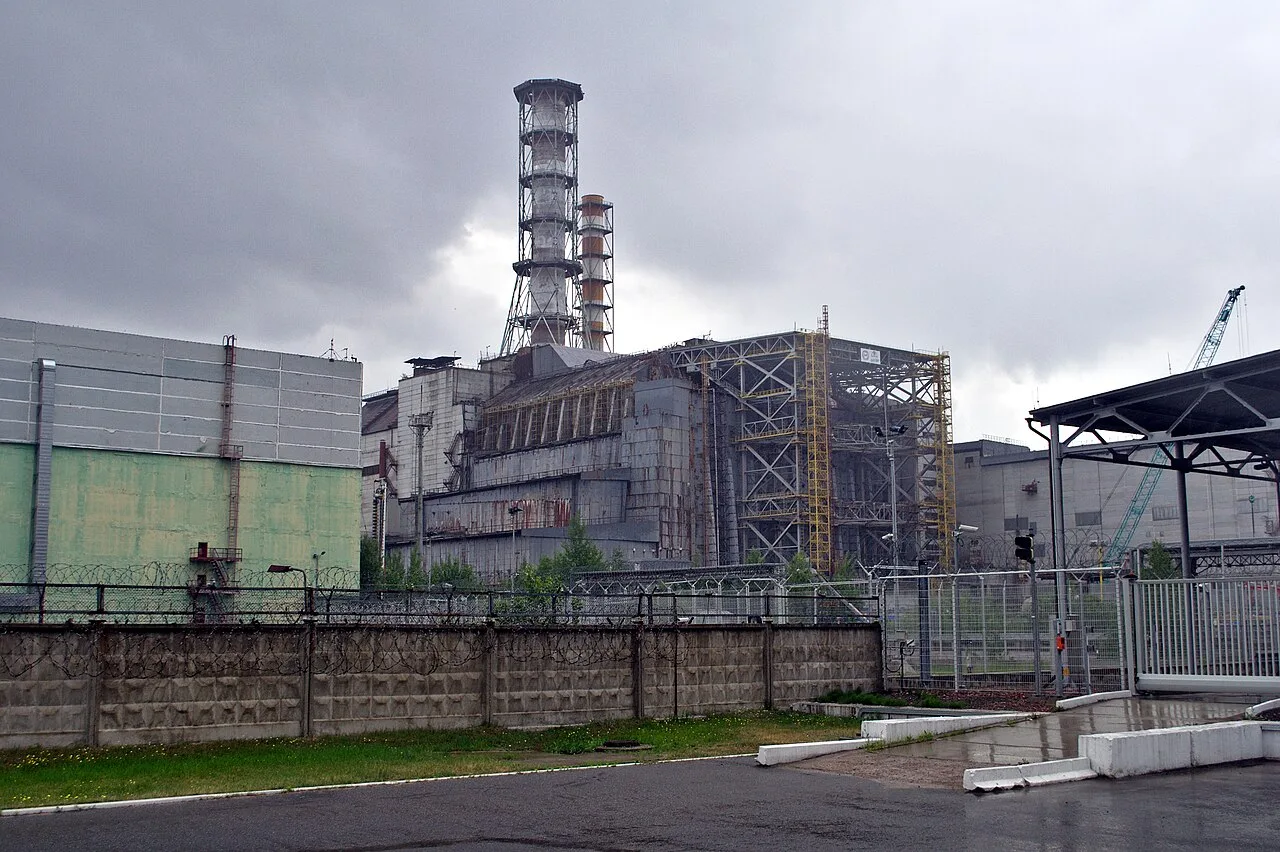

Corium formations in the Chernobyl disaster
The Chernobyl disaster provided the first extensive real-world data on corium formation, revealing complex phase changes and mineralogical evolution. The molten mass, often referred to as lava-like fuel-containing material (LFCM), breached the reactor pressure vessel and flowed into the lower plenum and the turbine hall basement. This movement created distinct zones of solidification, characterized by varying temperatures, chemical compositions, and physical structures. The material did not remain static; it underwent continuous chemical reactions with the surrounding concrete, steel, and air, leading to the formation of unique mineral phases not typically found in standard nuclear fuel cycles.
Phases of Formation and the Elephant's Foot
The formation process occurred in distinct phases as the molten corium descended through the reactor building. The most famous manifestation is the "Elephant's Foot," a column of corium that solidified in the basement of the reactor building. This structure represents the initial, hottest phase of the melt, where temperatures exceeded 2000 °C. The material here is dense and glassy, composed primarily of uranium dioxide, zirconium dioxide, and iron oxides. The high temperature allowed the fuel to remain molten for a longer period, creating a thick, viscous flow that resembled a giant foot, hence the nickname. This phase is critical for understanding the initial heat load and the structural integrity of the reactor floor.
Lava Types and Mineral Composition
As the corium spread further, it cooled and reacted with different materials, resulting in distinct types of lava. Scientists have identified black, brown, and porous lava types. The black lava is typically richer in uranium and zirconium, indicating a higher concentration of original fuel components. The brown lava often contains more structural materials from the reactor vessel and the concrete floor. The porous lava forms when gases are trapped during rapid cooling, creating a sponge-like structure. A key mineral formed during this process is chernobylite, a rare calcium-zirconium-silicate mineral. Chernobylite is significant because it is one of the few minerals that can incorporate large amounts of uranium and zirconium, making it a primary carrier of radioactivity in the long term. The presence of chernobylite indicates high-temperature reactions between the fuel and the concrete aggregates.
Long-Term Degradation Processes
The long-term stability of the corium is a major concern for the containment of radioactivity. Over decades, the corium undergoes slow degradation processes. Water infiltration is a primary driver of change, leading to the hydration of oxides and the formation of new mineral phases. This can cause the corium to expand or crack, potentially releasing trapped gases or fine radioactive dust. The chemical interaction with the surrounding concrete continues, slowly dissolving the interface between the melt and the basement floor. Understanding these degradation processes is essential for planning the future removal or permanent entombment of the Chernobyl corium, as the material's physical and chemical properties will continue to evolve long after the initial accident. The diversity of the lava types and the unique mineralogy, such as chernobylite, mean that a single model of degradation is insufficient; each zone requires specific analysis.
Corium at the Fukushima Daiichi Nuclear Power Plant
The Fukushima Daiichi Nuclear Power Plant experienced a severe corium formation event following the 2011 tsunami-induced meltdown, primarily affecting Units 1, 2, and 3. The accident sequence began when the tsunami disabled the emergency cooling systems, leading to the exposure of the nuclear fuel assemblies. As the zirconium cladding reacted with steam, hydrogen was generated, and temperatures rose significantly. The fuel rods melted, creating a molten mixture of uranium dioxide, zirconium, and structural steel, which is the definition of corium or fuel-containing material (FCM).
Meltdown Progression and Relocation
In Units 1, 2, and 3, the core melt-down process occurred over several days in March 2011. The molten corium initially pooled at the bottom of the reactor pressure vessels (RPVs). As the heat flux exceeded the cooling capacity provided by the feedwater and injected borated water, the lower head of the RPVs breached. The corium then relocated from the reactor core to the primary containment vessel (PCV) floor. This relocation involved the corium interacting with the stainless steel inner vessel and the concrete basemat of the containment structure. The chemical reaction between the molten fuel and the concrete, known as concrete ablation, released additional gases and altered the composition of the lava-like fuel-containing material (LFCM).
Temperature Estimates and Debris State
Estimates of the corium temperature during the peak of the meltdown varied by unit and phase. In Unit 1, the corium temperature is estimated to have reached approximately 2,500 °C to 2,800 °C during the initial melt-through of the reactor vessel. The high temperatures were driven by the decay heat of the fission products and the exothermic oxidation of the zirconium cladding. After relocation to the containment floor, the temperature distribution became more complex due to the cooling effect of the concrete and the injected water. The fuel debris at Fukushima is characterized by a heterogeneous mixture of vitrified fuel, metallic inclusions, and concrete aggregates. The state of the debris ranges from highly porous, sponge-like structures to dense, glassy masses, depending on the local cooling rates and the ratio of fuel to structural materials.
Robotic Extraction Efforts
Recent efforts to extract the fuel debris have relied heavily on robotic systems due to the high radiation levels and the fragile nature of the corium. The extraction process involves cutting the debris into manageable chunks, capturing them in containers, and transporting them to the dry cask storage systems. Robotic arms equipped with diamond wire saws and vacuum systems have been deployed to navigate the complex geometry of the containment vessels. The operation is complicated by the presence of hydrogen gas, which can accumulate in the containment space, and the potential for the debris to collapse during cutting. The success of these robotic interventions is critical for the long-term decommissioning of the Fukushima Daiichi plant, as it allows for the removal of the primary heat source and the reduction of radiation levels in the reactor buildings.
Mitigation strategies and core catchers
Engineering strategies for managing corium focus on containment within the reactor building and the mitigation of chemical reactions between the molten mass and surrounding structures. Because corium is a high-temperature mixture of nuclear fuel, fission products, control rods, and structural materials, its behavior during a meltdown is critical to overall plant safety. Early reactor designs often relied on the reactor vessel's floor and the underlying concrete foundation slab to contain the melt. However, concrete is relatively susceptible to erosion and chemical interaction with the hot corium, which can lead to the release of steam and hydrogen, as well as the potential for a steam explosion if the melt reaches residual water pools.
Core Catchers and Dedicated Spread Areas
Modern reactor designs, such as the European Pressurized Reactor (EPR), incorporate dedicated engineering solutions known as core catchers. A core catcher is a specialized structure located beneath the reactor pressure vessel, designed to receive and retain the molten corium in the event of a vessel breach. The primary function of a core catcher is to spread the corium over a larger surface area, thereby increasing the efficiency of heat removal. By flattening the molten mass, the core catcher facilitates more effective cooling through forced convection or natural circulation of water or air, reducing the likelihood of the corium penetrating the reactor building's foundation.
The design of a core catcher must account for the extreme thermal and mechanical loads imposed by the corium. These structures are typically constructed from materials more resistant to corium erosion than standard concrete. While the specific material composition can vary by design, the goal is to provide a refractory layer that can withstand the high temperatures and chemical aggressiveness of the fuel-containing material. This approach contrasts with earlier designs where the concrete floor itself served as the primary barrier, often resulting in significant concrete ablation and the generation of additional fission products.
Material Resistance and Thermal Management
The interaction between corium and the containment structure is a key factor in mitigation strategies. Materials used in core catchers and lower head regions are selected for their high melting points and chemical stability when exposed to the complex mixture of oxides and metals found in corium. The objective is to minimize the rate of erosion and to manage the heat flux effectively. By providing a robust barrier and an efficient cooling mechanism, these engineering solutions aim to stabilize the corium, preventing further progression of the accident and reducing the radiological release to the environment. The effectiveness of these strategies depends on the precise geometry of the spread area and the reliability of the cooling systems activated during the meltdown sequence.
