Overview

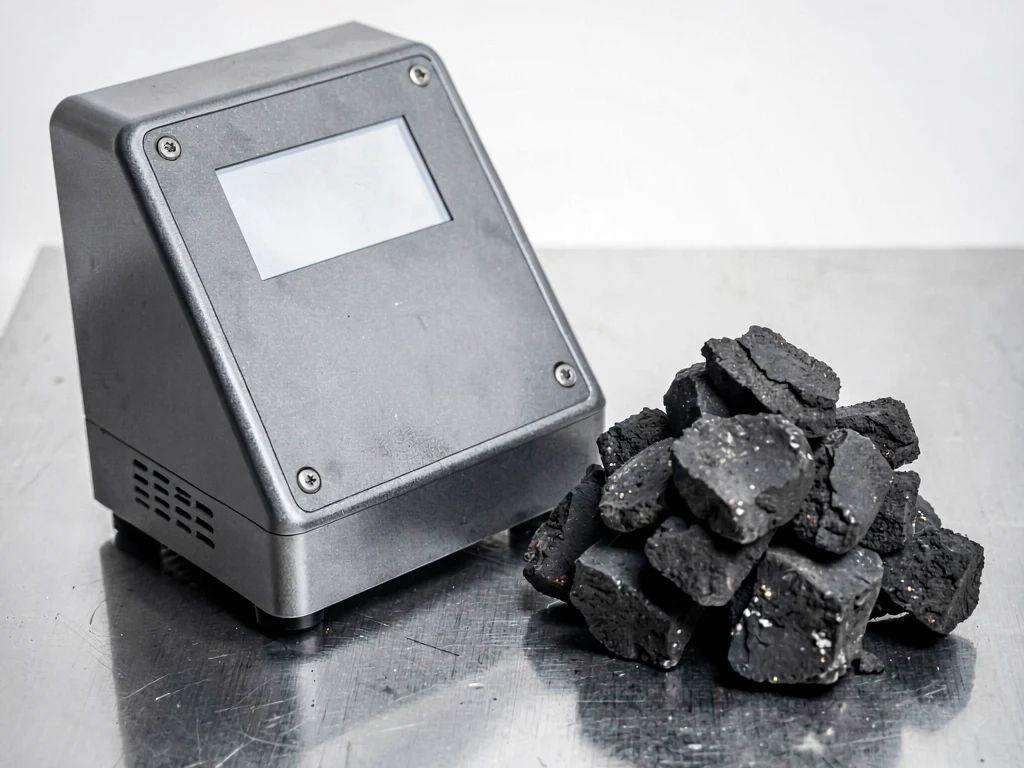

Coal analyzers are specialized bulk material analyzers designed to determine the quality of coal in real time. These instruments are integral components of the energy infrastructure, serving critical roles for coal producers, coal preparation plants, and coal-fired power plants. By providing continuous, on-line measurement of coal characteristics, these analyzers enable operators to optimize combustion efficiency, manage emissions, and ensure consistent fuel input. The operational status of these systems is generally classified as operational, with the technology seeing significant adoption and refinement since its commissioning in 1980. This timeline marks the beginning of widespread integration of real-time analysis into the coal supply chain, transforming how fuel quality is monitored from extraction to combustion.
The primary function of a coal analyzer is to assess key parameters that define coal quality. These parameters typically include moisture content, ash content, volatile matter, and calorific value. In coal-fired power plants, real-time data allows for precise control of the boiler feed rate and air-to-fuel ratio. This precision is essential for maintaining thermal efficiency and minimizing the variability in steam generation. For coal preparation plants, analyzers help in sorting and blending coal to meet specific contractual specifications. Producers use these tools to grade coal immediately after mining, providing immediate feedback on the extraction process and the consistency of the seam.
The technology behind coal analyzers involves various sensing mechanisms to measure physical and chemical properties. Common methods include X-ray fluorescence (XRF) for elemental composition, near-infrared (NIR) spectroscopy for moisture and volatile matter, and gamma-ray attenuation for density and ash content. These sensors work in tandem to provide a comprehensive profile of the coal as it moves along a conveyor belt or through a pipeline. The integration of these sensors into a single unit allows for continuous monitoring, reducing the need for frequent manual sampling and laboratory analysis. This real-time capability is crucial for dynamic adjustments in power generation, where fuel quality can fluctuate significantly.
The adoption of coal analyzers has had a substantial impact on the economics of coal utilization. By enabling precise quality control, these devices help reduce waste and optimize the blending of different coal types. This optimization leads to cost savings in terms of fuel consumption and maintenance. Furthermore, the real-time data provided by coal analyzers supports better decision-making in logistics and inventory management. As the coal industry continues to evolve, the role of these analyzers remains vital for ensuring efficiency and reliability in coal-fired power generation and coal preparation processes.
Why real-time analysis matters
Real-time coal analysis transforms quality control from a reactive administrative task into a dynamic operational lever. Traditional laboratory sampling, while accurate, often introduces a time lag of up to 24 hours between the moment a sample is taken and the final result reaching the control room. By the time the lab confirms the calorific value or ash content, the coal may have already been burned, blended, or stored, making corrective actions somewhat retrospective.
Lab vs. Real-Time Metrics
| Metric | Traditional Lab Sampling | Real-Time Analyzer |
|---|---|---|
| Data Frequency | Every 1–24 hours | Every minute |
| Primary Use | Commercial billing & calibration | Process control & optimization |
| Response Time | Reactive (post-event) | Proactive (in-stream) |
| Key Parameters | Calorific value, moisture, ash | Calorific value, moisture, ash, sulfur |
Coal analyzers provide data every minute, enabling continuous adjustments to the fuel supply chain. This high-frequency data stream allows operators to execute precise process control actions such as sorting, blending, and homogenization. For instance, if the analyzer detects a spike in moisture content, the system can automatically adjust the feed rate or trigger a blending valve to mix the wet coal with a drier batch, maintaining a consistent input for the boiler or preparation plant.
The economic impact of this precision is significant. In coal-fired power plants, maintaining a stable calorific value reduces thermal stress on boiler tubes and optimizes combustion efficiency. The relationship between fuel input and energy output can be monitored continuously, allowing for finer tuning of air-fuel ratios. While specific efficiency gains depend on the plant's configuration, the ability to react to fuel variability in real time reduces the reliance on conservative operational margins, often leading to lower specific coal consumption and reduced emissions per megawatt-hour generated.
In coal preparation plants, real-time analysis is critical for maximizing the yield of clean coal. By continuously monitoring the ash and sulfur content of the feed and product streams, operators can adjust the cut point of the separation process dynamically. This ensures that the final product meets contractual specifications while minimizing the loss of valuable coal to the reject stream. The integration of real-time data into the control loop transforms the analyzer from a simple measuring device into a central component of the plant's operational intelligence.
What are the main types of coal analyzers?
Coal quality assessment relies on several distinct analytical technologies, each targeting specific physical or chemical properties. These systems enable real-time monitoring for producers, preparation plants, and power stations.
Neutron-Based Technologies
Prompt Gamma Neutron Activation Analysis (PGNAA) uses neutron bombardment to excite atomic nuclei, emitting characteristic gamma rays. This method is effective for determining elemental composition. Pulsed Fast Thermal Neutron Activation (PFTNA) refines this by timing neutron pulses to distinguish between fast and thermal neutron interactions, enhancing the precision of hydrogen and carbon detection.
Spectroscopy and Electromagnetic Methods
Laser-Induced Breakdown Spectroscopy (LIBS) employs high-energy laser pulses to create a plasma on the coal surface. The resulting light emission is analyzed to identify elemental concentrations. Microwave moisture meters utilize electromagnetic waves to measure dielectric properties, providing rapid moisture content readings. Magnetic Resonance (MR) technology exploits the spin properties of hydrogen nuclei, offering detailed insights into moisture distribution and volatile matter.
Gamma Attenuation
Gamma Attenuation ash gauges measure the reduction in gamma ray intensity as it passes through coal. The degree of attenuation correlates with the density and ash content of the material.
| Technology | Primary Parameters Measured |
|---|---|
| PGNAA | Elemental composition (e.g., Carbon, Hydrogen, Oxygen) |
| PFTNA | Hydrogen, Carbon, Moisture |
| LIBS | Elemental concentrations (e.g., Ash elements) |
| Microwave | Moisture content |
| Magnetic Resonance | Moisture, Volatile matter |
| Gamma Attenuation | Ash content, Density |
How do elemental and moisture analyzers work?
Coal analyzers utilize advanced spectroscopic techniques to determine elemental composition and moisture content, enabling real-time quality assessment for power generation and preparation plants. The two primary technologies employed are Prompt Gamma Neutron Activation Analysis (PGNAA) and Laser-Induced Breakdown Spectroscopy (LIBS). These methods allow operators to derive critical energy values, such as calorific value and ash content, which directly influence boiler efficiency and fuel pricing.
PGNAA for Elemental Analysis
PGNAA is widely regarded as the gold standard for continuous coal analysis, particularly for determining sulfur and ash content. In this process, a neutron source, often Californium-252 or a compact accelerator, irradiates the moving coal stream. When neutrons interact with the atomic nuclei of elements in the coal, they are captured, causing the nuclei to emit characteristic gamma rays. Each element produces a unique gamma-ray energy signature. For sulfur, the capture of a thermal neutron results in the emission of a gamma ray with an energy of approximately 7.6 MeV. By detecting these specific energy peaks using scintillation detectors, the system can quantify sulfur concentration with high precision. Similarly, hydrogen content is determined by analyzing the gamma rays emitted during neutron capture by hydrogen nuclei, which is crucial for calculating moisture levels.
LIBS for Rapid Spectroscopic Measurement
Laser-Induced Breakdown Spectroscopy (LIBS) offers a complementary approach by using high-intensity laser pulses to ablate a small sample of coal, creating a micro-plasma. As the plasma cools, atoms and ions emit light at wavelengths specific to each element. This emission spectrum is then analyzed by a spectrometer to identify and quantify elements such as carbon, hydrogen, oxygen, nitrogen, and sulfur. LIBS is particularly effective for rapid, non-contact measurement and can provide detailed elemental breakdowns, including trace elements like phosphorus and vanadium, which affect ash fusion temperatures. The technique is valued for its ability to analyze coal directly on the conveyor belt, minimizing sample preparation time and reducing the lag between measurement and operational adjustment.
Moisture Measurement and Energy Value Derivation
Accurate moisture measurement is essential for determining the net calorific value (NCV) of coal. Moisture meters, often integrated with PGNAA or LIBS systems, use microwave or nuclear magnetic resonance (NMR) technologies to measure the hydrogen content in the coal, which correlates directly with moisture levels. The energy value of coal is derived by combining the elemental composition (carbon, hydrogen, sulfur, oxygen, nitrogen) and moisture content. The gross calorific value (GCV) is calculated based on the heat released during combustion, primarily from carbon and hydrogen. The NCV is then obtained by subtracting the latent heat of vaporization of water formed from hydrogen combustion and the moisture present in the coal. This comprehensive analysis allows power plants to optimize combustion efficiency, control emissions, and accurately invoice fuel suppliers based on real-time quality data.
History and global adoption
Coal analyzers emerged as a distinct category of bulk material measurement technology in the early 1980s, fundamentally shifting how coal quality was assessed across the global energy supply chain. Prior to this period, coal quality determination relied heavily on laboratory sampling, which often introduced significant time lags between extraction and final combustion. The introduction of real-time analysis allowed coal producers, preparation plants, and power generation facilities to monitor critical parameters continuously, enhancing operational efficiency and fuel consistency.
US Market Drivers and Regulatory Impact
The United States was a primary driver of early adoption, largely influenced by the regulatory landscape established by the Clean Air Act Amendments of 1977. These amendments imposed stricter emissions standards on coal-fired power plants, creating an urgent need for precise, real-time data on coal composition. Utilities required accurate measurements of sulfur content, ash, and volatile matter to optimize combustion and minimize environmental output. This regulatory pressure accelerated the deployment of analyzer systems in US power stations, establishing a robust domestic market that served as a model for international expansion.
Australian Leadership and Global Expansion
Australia also played a pivotal role in the global adoption of coal analyzer technology. As a major exporter of thermal and coking coal, Australian mines and preparation plants invested heavily in real-time quality control to meet the diverse specifications of international buyers. The integration of analyzers into Australian export pipelines helped standardize quality reporting, reducing disputes and enhancing the competitiveness of Australian coal in global markets. By the mid-2000s, the technology had spread widely across continents, with over 600 units installed globally by 2005, reflecting its critical importance in modern coal logistics and power generation.
Installation and operational configurations
Coal analyzers are deployed in two primary operational configurations: direct mounting around existing conveyor belts and inline analysis of sample streams extracted from the main process. The choice of configuration depends on the required throughput, the physical characteristics of the coal, and the need for minimal disruption to the primary material flow. These systems are designed to determine coal quality in real time, providing critical data for coal producers, coal preparation plants, and coal-fired power plants.
Conveyor Belt Mounting
In the conveyor belt configuration, the analyzer is mounted directly around the existing conveyor belt. This method allows for continuous, non-intrusive measurement of the bulk material as it passes through the sensing zone. The analyzer typically employs a combination of sensors, such as gamma-ray attenuation, neutron moderation, or X-ray fluorescence, to measure key parameters like moisture, ash content, and calorific value. The coal remains in its bulk form, moving at the standard belt speed, which ensures that the sample is representative of the entire stream. This configuration is particularly useful in coal-fired power plants where real-time data is needed to optimize combustion efficiency and in coal preparation plants for grade control.
The installation requires careful alignment to ensure that the coal layer is uniform and that the sensors have a clear line of sight to the material. The analyzer housing is designed to withstand the harsh environment of a coal handling facility, including dust, vibration, and temperature fluctuations. The data from the sensors is processed by a control unit, which calculates the coal quality parameters and displays them on a user interface. The system can also output analog or digital signals to integrate with the plant's distributed control system (DCS).
Sample Stream Analysis
In the sample stream configuration, a representative sample of coal is extracted from the main process stream and fed into the analyzer. This method is often used when the coal needs to be conditioned or when the analyzer requires a more controlled environment for accurate measurement. The sample is typically taken using a rotary cutter or a cross-belt sampler, which extracts a portion of the coal from the main stream. The sample is then conveyed to the analyzer, where it is spread out or formed into a consistent layer for measurement.
This configuration allows for more precise control over the sample presentation, which can improve the accuracy of the measurement. However, it introduces a time lag between the extraction of the sample and the measurement, which can be a factor in fast-changing process conditions. The sample stream analyzer is often used in coal preparation plants where the coal is being sorted or washed, and in coal mines where the coal is being sized and graded. The analyzer can measure parameters such as moisture, ash, sulfur, and volatile matter, providing real-time data for process optimization.
Both configurations are operational and have been in use since the 1980s, with continuous improvements in sensor technology and data processing. The choice between the two depends on the specific requirements of the application, including the desired accuracy, the physical characteristics of the coal, and the available space for installation. The real-time data provided by these analyzers is essential for optimizing the performance of coal-based energy systems and for ensuring consistent product quality in coal preparation.
Applications in coal preparation and power generation
Coal analyzers serve as critical instrumentation in the operational workflows of coal producers, coal preparation plants, and coal-fired power plants. Their primary function is to determine coal quality in real time, enabling immediate adjustments to processing and combustion parameters. This real-time data acquisition is essential for maintaining efficiency and ensuring that the fuel meets specific thermal and physical specifications required by downstream consumers. The integration of these bulk material analyzers allows for continuous monitoring rather than intermittent laboratory sampling, which significantly reduces the lag time between measurement and corrective action.
Optimization in Coal Preparation Plants
In coal preparation plants, analyzers are deployed to optimize the separation processes that distinguish valuable coal from waste rock and impurities. By continuously measuring parameters such as ash content, moisture, and calorific value, operators can adjust the density of the medium in flotation cells or the speed of vibrating screens. This precision minimizes coal loss in the tailings and ensures that the final product meets contractual quality standards. The ability to react to variations in the raw coal feed in real time enhances the overall recovery rate of the preparation process, directly impacting the economic viability of the mining operation.
Process Control in Coal-Fired Power Plants
For coal-fired power plants, consistent fuel quality is vital for stable boiler performance and emissions control. Coal analyzers provide continuous feedback on the incoming coal stream, allowing plant operators to optimize the coal-to-air ratio for combustion. This optimization helps maximize thermal efficiency and minimizes unburned carbon in the ash. Furthermore, real-time analysis aids in the precise control of sulfur and nitrogen emissions, which is increasingly important for meeting environmental regulations. By understanding the exact composition of the coal being burned, power plant engineers can make informed decisions regarding the blending of different coal stocks to achieve a consistent fuel profile, thereby reducing operational volatility and maintenance costs.
Frequently asked questions
What is a coal analyzer and what is its primary function?
A coal analyzer is a specialized bulk material analyzer designed to determine coal quality in real time. These systems are critical infrastructure for coal producers, coal preparation plants, and coal-fired power plants. By providing immediate data on fuel characteristics, they enable operators to optimize combustion efficiency and manage feedstock consistency. The technology has been operational since the 1980s, marking a shift from laboratory-based sampling to continuous on-line monitoring.
How do coal analyzers measure coal quality accurately?
Accuracy in coal analysis relies on continuous sampling and advanced sensor technology. Systems typically use methods such as Nuclear Magnetic Resonance (NMR) or Near-Infrared (NIR) spectroscopy to measure parameters like moisture, ash, volatile matter, and calorific value. The real-time nature of these measurements allows for rapid adjustments in the boiler feed rate or the blend ratio in preparation plants. This reduces the lag time associated with traditional laboratory results, which can take several hours to days.
What are the main differences between NMR and NIR coal analyzer technologies?
NMR and NIR are the two dominant technologies for on-line coal analysis. NMR analyzers use magnetic fields to excite hydrogen atoms in the coal, providing high accuracy for moisture and volatile content. They are often considered the gold standard for detailed proximate analysis. NIR analyzers use light absorption in the near-infrared spectrum to determine chemical composition. NIR systems are generally faster and require less maintenance, making them suitable for high-throughput conveyor belts. The choice between NMR and NIR depends on the specific parameters required and the operating environment.
What are the installation requirements for a coal analyzer?
Installing a coal analyzer requires careful consideration of the conveyor belt or hopper where the coal flows. The system needs a stable mounting structure to ensure consistent sample presentation to the sensors. For NMR systems, magnetic shielding may be necessary to minimize interference from surrounding equipment. Proper calibration is essential and often involves taking reference samples from the belt to correlate with the analyzer's readings. The installation must also account for environmental factors such as dust, vibration, and temperature fluctuations.
Why are coal analyzers important for coal-fired power plants?
Coal-fired power plants rely on consistent fuel quality to maintain thermal efficiency and control emissions. Variations in coal composition can affect the steam generation process and the performance of boiler tubes. By using a coal analyzer, plant operators can adjust the air-to-fuel ratio and the feed rate in real time. This leads to optimized combustion, reduced fuel costs, and better control of pollutants such as sulfur dioxide and nitrogen oxides. The data from these analyzers also supports predictive maintenance and operational reporting.
Summary
Coal analyzers are specialized bulk material measurement systems designed to evaluate the quality of coal in real-time environments. These instruments are critical components in the operational workflows of coal producers, coal preparation plants, and coal-fired power stations. By providing continuous data on coal characteristics, these analyzers enable operators to make informed decisions regarding blending, combustion efficiency, and overall plant performance. The technology has been in active use since its commissioning in 1980, marking it as a mature and established solution within the energy infrastructure sector. Currently, the operational status of coal analyzers remains active, indicating their enduring relevance in modern coal handling and power generation processes.
The primary function of a coal analyzer is to determine coal quality parameters without the need for extensive laboratory testing. This real-time capability allows for immediate adjustments in the coal supply chain. For coal producers, accurate analysis ensures that the product meets contractual specifications. In coal preparation plants, analyzers help optimize the washing and sorting processes to maximize the value of the raw material. For coal-fired power plants, precise knowledge of coal quality is essential for maintaining optimal boiler performance and minimizing emissions. The ability to monitor coal quality continuously reduces the lag time between sampling and result availability, which was a significant limitation in traditional analysis methods.
The technology behind coal analyzers involves various measurement techniques to assess different properties of the coal. These may include moisture content, ash content, sulfur levels, and calorific value. The integration of these analyzers into the broader infrastructure of coal operations has contributed to increased efficiency and cost-effectiveness. Since their introduction in 1980, coal analyzers have evolved to become more accurate and reliable, adapting to the changing needs of the coal industry. Their continued operational status underscores their importance in maintaining the quality control standards required in coal-based energy production.
In summary, coal analyzers serve as vital tools for ensuring the quality of coal throughout its lifecycle from mine to power plant. Commissioned in 1980, these devices have proven to be indispensable for real-time quality determination. They support the operational efficiency of coal producers, preparation plants, and power stations by providing immediate and accurate data. The technology remains operational and continues to play a key role in the coal industry, facilitating better resource management and energy production. As coal remains a significant source of global energy, the role of coal analyzers in maintaining quality and efficiency is likely to persist.
