Civaux Nuclear Power Plant

Overview

The Civaux Nuclear Power Plant is a significant operational nuclear energy facility situated in the commune of Civaux, within the Vienne department of France. The plant is strategically located at the edge of the Vienne River, positioned geographically between the towns of Confolens and Chauvigny. This placement provides essential access to water resources required for cooling and operational processes, while maintaining a proximity of 44 km south-east of Poitiers, a major urban center in the region. The facility serves as a key component of the French national grid, contributing substantially to the country’s nuclear power generation capacity.

The plant is operated by Électricité de France (EDF), the primary electricity utility company in France. Under EDF’s management, the Civaux Nuclear Power Plant has been in continuous operation since its commissioning in 1997. The facility features a total installed capacity of 2990 MW, making it one of the more substantial nuclear sites in the French nuclear fleet. This capacity is derived from the plant’s reactor units, which utilize uranium as the primary fuel source for energy production. The operational status of the plant remains active, indicating its ongoing role in the energy infrastructure of the region and the broader national supply network.

The location in Civaux places the plant within a specific hydrological and administrative context. The Vienne River, which borders the site, is a critical geographical feature for the plant’s thermal regulation and water intake systems. The proximity to Poitiers facilitates logistical and workforce access, while the position between Confolens and Chauvigny defines its local regional integration. The plant’s establishment in 1997 marked a significant addition to the French nuclear landscape, expanding the operational footprint of Électricité de France in the western part of the country. The 2990 MW capacity reflects the scale of the investment and the technological standards applied during its construction and subsequent operation.

Location and Infrastructure

The Civaux Nuclear Power Plant is situated within the commune of Civaux in the department of Vienne, France. The facility is positioned at the edge of the Vienne River, a strategic location that provides essential water resources for the plant's thermal regulation and cooling processes. This geographic placement is central to the operational efficiency of the nuclear power station, leveraging the natural flow and volume of the river to support its energy generation capabilities.

Geographic Context and Proximity

The plant's location offers clear logistical and geographic references relative to nearby towns and regional centers. It is located between the towns of Confolens and Chauvigny, serving as a key infrastructure node in this stretch of the Vienne valley. The site is approximately 44 km south-east of Poitiers, the prefecture of the Vienne department, which provides a major urban and transport hub for the region. These distances highlight the plant's integration into the local landscape while maintaining a defined separation from larger population centers.

Cooling Infrastructure

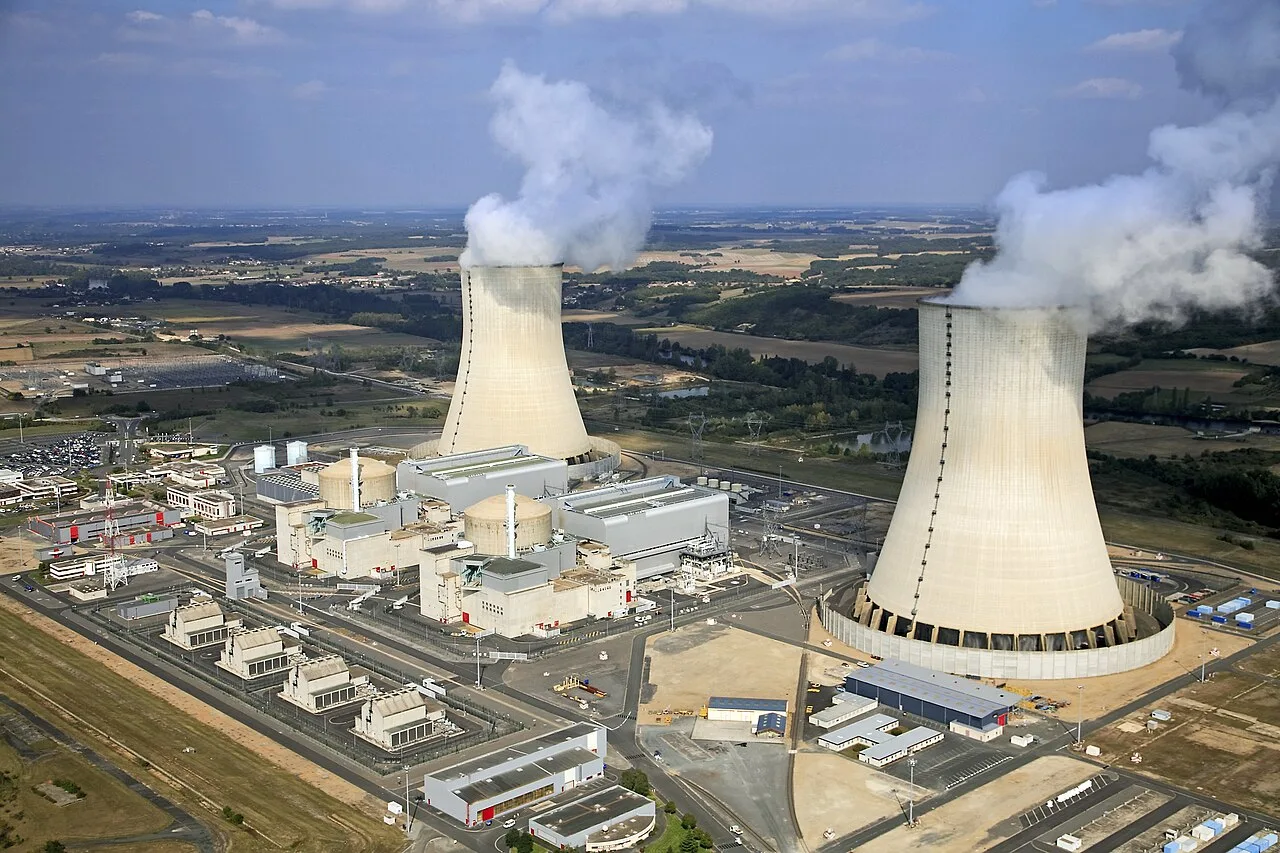

A prominent feature of the Civaux Nuclear Power Plant's infrastructure is its cooling system, which includes two large cooling towers. These structures stand at a height of 178 metres, making them significant landmarks in the local skyline. The cooling towers are essential for dissipating the heat generated by the nuclear reactors, ensuring that the temperature of the water returned to the Vienne River remains within ecological and operational parameters. The design and scale of these towers reflect the plant's capacity to manage thermal output efficiently, supporting its status as a major operational facility with a total capacity of 2990 MW. The integration of these cooling structures with the riverfront location underscores the engineering considerations required for large-scale nuclear power generation in this region.

Reactor Design and Technical Specifications

The Civaux Nuclear Power Plant utilizes the N4 reactor design, a technology developed by Électricité de France (EDF) that served as a direct precursor to the European Pressurized Reactor (EPR). The N4 stage represented a significant evolution in French nuclear engineering, incorporating enhanced safety systems and standardized components to improve operational efficiency and maintainability. This design philosophy laid the groundwork for the subsequent EPR generation, integrating lessons learned from earlier PWR models such as the N1, N2, and N3 series. The plant operates using uranium as its primary fuel source, consistent with standard pressurized water reactor (PWR) configurations.

Power Output and Upgrades

Each of the two reactor units at Civaux was initially rated with a net power output of 1450 MWe. In 2010, EDF implemented an uprating program that increased the net capacity of each unit to 1500 MWe. This enhancement contributed to the plant's total installed capacity of 2990 MW, reflecting the combined output of both units after the upgrade. The uprating involved modifications to the turbine halls and electrical systems to accommodate the increased thermal input and mechanical stress, ensuring long-term operational stability. The 2010 upgrade demonstrated the flexibility of the N4 design, allowing for capacity increases without a complete overhaul of the core reactor vessel.

The N4 design features a reinforced concrete containment building and a double-loop steam generator system, which distinguishes it from earlier single-loop or triple-loop configurations. These technical specifications were chosen to optimize the balance between construction cost and operational performance. The plant's location in the commune of Civaux, near the Vienne River, provides the necessary cooling water supply for the condensers, a critical factor in the thermal efficiency of the PWR cycle. The technical architecture of Civaux reflects EDF's strategy of standardizing components across multiple sites to streamline maintenance and supply chain logistics.

History and Development

The Civaux Nuclear Power Plant is situated in the commune of Civaux in the Vienne department of France. The facility is located at the edge of the Vienne River, positioned geographically between the towns of Confolens and Chauvigny. It stands approximately 44 km south-east of the city of Poitiers. The plant operates as a significant energy infrastructure asset in the region, utilizing uranium as its primary fuel source. The operator of the facility is Électricité de France. The plant is currently in operational status. The total installed capacity of the plant is 2990 MW. The plant was commissioned in 1997. An inception date of 2002 is also noted in the structured data for the entity.

Construction and Commissioning

The development of the Civaux Nuclear Power Plant involved a construction phase that culminated in its service entry. The plant was commissioned in 1997. This date marks the official start of operations for the facility. The commissioning process is a critical stage in the lifecycle of a nuclear power plant, involving the integration of reactor units, turbine halls, and auxiliary systems. The plant's location along the Vienne River provides a source of cooling water, which is essential for the thermodynamic cycle of the nuclear reactors. The proximity to Poitiers places the plant within the broader regional grid infrastructure of western France. The operator, Électricité de France, manages the ongoing operations and maintenance of the plant. The plant's capacity of 2990 MW contributes to the regional and national electricity supply. The use of uranium as fuel is standard for nuclear power generation, involving the fission process to produce heat, which is then converted into electricity. The plant's operational status remains active, indicating continued service to the energy grid.

Operational History

Following its commissioning in 1997, the Civaux Nuclear Power Plant has maintained its operational role. The inception date of 2002 may refer to a specific milestone in the plant's operational history or a structural change in its management or expansion. The plant continues to be operated by Électricité de France. The facility's location in the Vienne department places it within a region with significant agricultural and industrial activity. The plant's output of 2990 MW is a substantial contribution to the local energy mix. The Vienne River serves as a key geographic feature for the plant's cooling systems. The distance of 44 km from Poitiers provides a balance between proximity to urban centers and the need for a safety buffer zone. The plant's development reflects the broader trends in French nuclear energy infrastructure, which has relied heavily on nuclear power for electricity generation. The operator ensures that the plant meets the technical and safety standards required for nuclear facilities in France. The plant's continued operation underscores its importance to the regional energy supply. The use of uranium fuel is managed through a supply chain that ensures a steady input for the reactor cores. The plant's status as operational indicates that it is actively producing electricity. The commissioning in 1997 marked the transition from construction to active service. The inception date of 2002 adds another temporal marker to the plant's history. The plant's location between Confolens and Chauvigny places it in a specific geographic context within the Vienne department. The facility's design and operation are tailored to the local environmental and grid conditions. The operator, Électricité de France, plays a central role in the plant's management. The plant's capacity of 2990 MW is a key metric for its output. The plant's operational status is a reflection of its technical and economic viability. The Vienne River's role in cooling is a critical aspect of the plant's engineering. The plant's contribution to the energy grid is significant. The commissioning date of 1997 is a fixed point in the plant's timeline. The inception date of 2002 provides additional context. The plant's location in France places it within the European energy market. The operator's role is ongoing. The plant's fuel source is uranium. The plant's capacity is 2990 MW. The plant is operational. The plant was commissioned in 1997. The plant has an inception date of 2002.

Operational Incidents and Safety Record

The operational history of the Civaux Nuclear Power Plant includes several notable safety events and structural assessments. In 1998, a significant pipe leak occurred at the facility, which was classified as an INES level 2 incident. This event highlighted early operational challenges during the plant's initial years following its 1997 commissioning. The leak required specific containment measures and contributed to the refinement of monitoring protocols for the primary circuit systems.

Structural Integrity Assessments

Structural integrity concerns emerged in subsequent years. In 2001, cracks were identified in the containment building, an event classified as an INES level 1 incident. These findings prompted detailed inspections of the concrete structures to ensure the long-term hermetic seal required for effective radiation containment. The identification of these cracks led to targeted repair works and enhanced non-destructive testing procedures for the reactor vessels and surrounding infrastructure.

A more recent safety assessment in 2018 focused on the plant's earthquake resistance. Defects were identified in the seismic qualification of certain components, requiring upgrades to meet updated regulatory standards for nuclear safety in the region. These modifications were implemented to ensure the plant could withstand projected seismic activity levels, maintaining the robustness of the safety systems against ground motion.

Between 2021 and 2023, the plant faced challenges related to stress corrosion cracking. These cracks were detected in critical piping systems, necessitating rigorous inspection schedules and preventive maintenance. The discovery of stress corrosion cracks is a common challenge for aging nuclear fleets, particularly in high-temperature water environments. The operator, Électricité de France, implemented specific mitigation strategies to manage the progression of these defects and ensure the continued safe operation of the two 1490 MW units.

Security and External Threats

The security architecture of the Civaux Nuclear Power Plant, operated by Électricité de France, was significantly influenced by external geopolitical threats shortly after its commissioning in 1997. One of the most notable security events involving the facility occurred in 1998, during the height of the 1998 FIFA World Cup held in France. Intelligence services identified a specific terror plot targeting the Civaux site, orchestrated by the Armed Islamic Group (Groupe Islamique Armé, or GIA). This incident highlighted the vulnerability of critical energy infrastructure to asymmetric warfare and aerial threats, prompting a re-evaluation of perimeter defenses and air defense protocols for French nuclear sites.

The 1998 GIA Terror Plot

The Armed Islamic Group, a prominent militant organization active in Algeria and France during the late 1990s, devised a scenario involving the hijacking of a commercial aeroplane to strike the Civaux Nuclear Power Plant. The plan relied on the convergence of two factors: the high volume of air traffic during the World Cup and the potential for a surprise aerial assault on the reactor buildings. According to intelligence reports from the period, the GIA intended to exploit the distraction of the global sporting event to execute a high-impact strike. The target selection was strategic, aiming to maximize radiation release and psychological impact on the French population and international visitors.

The specific threat involved directing a hijacked aircraft into one of the reactor units. At the time, Civaux was operational with two pressurized water reactor (PWR) units, each contributing to the plant's total capacity of 2990 MW. A direct hit on the containment structure could have compromised the primary cooling systems, potentially leading to a localized release of radioactive isotopes. French intelligence agencies, including the Direction de la Sécurité Intérieure (DSI), monitored communications and financial flows of the GIA to disrupt the plot. The success of the intelligence operation prevented the execution of the attack, but the incident remained a case study in nuclear security planning.

Security Implications and Infrastructure Resilience

The 1998 plot underscored the need for robust air defense systems at nuclear facilities, particularly those located near major population centers like Poitiers, which is situated 44 km north-west of Civaux. While the plant is located in the commune of Civaux in the Vienne department, its proximity to the Vienne River and major transport corridors made it accessible to ground and aerial threats. Following the GIA plot, Électricité de France and the French nuclear regulator (Autorité de Sûreté Nucléaire, ASN) reviewed the external event analysis for Civaux. This included assessing the probability of a "large aeroplane" impact, a criterion that would later be formalized in post-Fukushima safety reviews.

The security measures at Civaux were enhanced to address such external threats. These measures included the installation of radar systems, the deployment of rapid response security teams, and coordination with the French Air Force for potential interception scenarios. The plant's location at the edge of the Vienne River provided a natural barrier on one side, but the open terrain on the other required extensive fencing and surveillance. The 1998 incident also led to greater integration between national intelligence services and nuclear operators, ensuring that geopolitical developments in North Africa, the GIA's primary base of operations, were directly factored into the security posture of French nuclear assets.

The threat of aerial attacks remained a concern in subsequent years, influencing the design of new reactor units and the retrofitting of existing ones. The Civaux plant, with its two operational units, served as a model for implementing these enhanced security protocols. The incident also highlighted the importance of public communication during a potential nuclear crisis, ensuring that the local population and regional authorities were prepared for various emergency scenarios. The successful thwarting of the 1998 GIA plot is cited in security analyses as a key example of effective intelligence-led security management in the nuclear sector.

Why it matters

The Civaux Nuclear Power Plant holds a distinct position in the evolution of French nuclear energy infrastructure, primarily recognized for its role as a technical precursor to the European Pressurized Reactor (EPR). As an operational facility commissioned in 1997, Civaux represents a critical transitional phase in the design philosophy of Électricité de France (EDF). The plant’s construction and early operational data provided invaluable insights that directly informed the development of the EPR, which was designed to offer enhanced safety margins and increased thermal efficiency compared to the preceding generations of French pressurized water reactors. By serving as a testing ground for certain design features and operational protocols, Civaux helped validate the engineering assumptions that would later define the EPR series, thereby influencing the broader trajectory of European nuclear expansion.

Technical Significance and Fleet Integration

Within the French nuclear fleet, Civaux contributes significantly to the national energy mix with a total installed capacity of 2990 MW. This output is generated using uranium as the primary fuel source, consistent with the standard operational parameters of French pressurized water reactor technology. The plant’s integration into the national grid underscores its importance in maintaining baseline power stability, particularly during periods of high demand. The operational status of Civaux, which has remained active since its 1997 commissioning, demonstrates the long-term reliability of the reactor designs that preceded the EPR. The facility’s performance data has been utilized by EDF to refine maintenance schedules and operational efficiencies across similar units, reinforcing its value as a reference point for fleet management strategies.

Cooling Tower Infrastructure

A notable engineering feature of the Civaux site is the record height of its cooling towers among EDF plants. The cooling infrastructure is critical for managing the thermal output of the two reactor units, ensuring efficient heat dissipation into the atmosphere. The location of the plant at the edge of the Vienne River, situated between Confolens and Chauvigny, provides a strategic advantage for water intake and cooling processes. The Vienne River serves as a key water body for the plant’s operations, supporting the thermodynamic cycles necessary for continuous power generation. The design of the cooling towers reflects the specific geographical and climatic conditions of the Vienne department, optimizing performance while minimizing environmental impact. This infrastructure highlights the careful consideration of site-specific factors in the planning and construction of major nuclear facilities in France.

Regional and Strategic Context

Located 44 km south-east of Poitiers, Civaux plays a vital role in the regional energy landscape of western France. The plant’s presence in the commune of Civaux has contributed to local economic development and employment, while also integrating into the broader energy infrastructure of the Nouvelle-Aquitaine region. The strategic positioning of the facility allows for efficient transmission of electricity to major consumption centers, including the city of Poitiers and surrounding urban areas. As an operational asset of Électricité de France, Civaux continues to serve as a cornerstone of the national energy strategy, providing a stable and low-carbon power source. The plant’s ongoing operation reflects the enduring importance of nuclear energy in France’s efforts to balance energy security, economic competitiveness, and environmental sustainability.

How does Civaux compare to other French nuclear plants?

Civaux Nuclear Power Plant operates as a distinct entity within the broader Électricité de France (EDF) fleet, primarily due to its specific reactor technology and generation capacity. The plant is equipped with two pressurized water reactor (PWR) units, classified as N4 reactors. This N4 designation represents a specific evolutionary step in French nuclear engineering, differing from the earlier P1, P2, and P3 series that constitute the majority of the French nuclear baseline. The N4 design incorporates updated safety systems and structural reinforcements compared to its predecessors, reflecting the technological maturation of the French nuclear program during the 1990s when Civaux was commissioned in 1997.

Capacity and Fleet Positioning

With a total installed capacity of 2990 MW, Civaux contributes significantly to the national grid output. This capacity is derived from its two main units, which are among the larger standard PWR units in the EDF portfolio. When compared to the newer EPR (European Pressurized Reactor) models, such as those at Flamanville or Olkiluoto, Civaux’s N4 reactors are technically distinct. The EPR design represents the next generation of French nuclear technology, featuring higher thermal output and enhanced passive safety features. Civaux, however, remains a robust example of the mature N4 generation, offering a balance of proven operational history and substantial power output. Its operational status is currently listed as operational, indicating continuous contribution to France's uranium-based energy mix.

Cooling Infrastructure and Geographic Context

The plant's location in the commune of Civaux in the Vienne department places it at the edge of the Vienne River. This geographic positioning is critical for its cooling infrastructure. The Vienne River serves as the primary heat sink for the plant's thermal output, a common feature for French nuclear sites situated away from the coast. While specific cooling tower heights are not detailed in the primary operational data, the reliance on the Vienne River distinguishes Civaux from coastal plants that utilize direct seawater cooling. The plant is situated approximately 44 km south-east of Poitiers, between Confolens and Chauvigny. This inland location requires careful management of water flow and temperature to maintain efficient thermodynamic cycles, a key operational consideration for river-cooled nuclear facilities within the EDF network.
