Name: Catawba Nuclear Station: Design, MOX Fuel Testing, and Operational History
Address: US

Overview

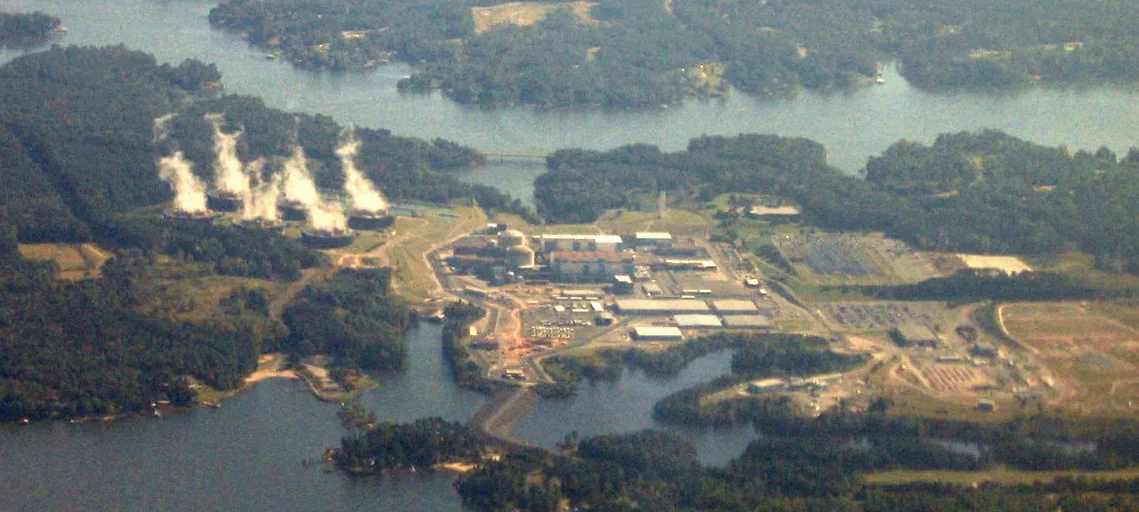

The Catawba Nuclear Station is an operational nuclear power plant situated in York, South Carolina, United States. The facility occupies a 391-acre (158 ha) peninsula known as the "Concord Peninsula," which extends into Lake Wylie. The station is operated by Duke Energy and utilizes uranium as its primary fuel source. It features a pair of Westinghouse four-loop pressurized water reactors. The plant has a total installed capacity of 2410.2 MW and was commissioned in 1985.

Plant Design and Safety Systems

Catawba Nuclear Station employs two Westinghouse four-loop pressurized water reactors (PWRs) as its core generating technology. This design utilizes uranium fuel to drive the thermodynamic cycle, consistent with the station's primary fuel source classification. The four-loop configuration refers to the arrangement of primary coolant loops that transfer heat from the reactor core to the steam generators. As a PWR, the system maintains high pressure in the primary circuit to prevent the water from boiling, distinguishing it from boiling water reactor designs. The station's total installed capacity is 2410.2 MW, distributed across these two reactor units (per Ground Truth data).

Ice Condenser Passive Heat Sink

A defining safety feature of Catawba is its unique ice condenser passive heat sink system. This system was implemented to enhance redundancy in heat removal from the reactor containment building. In the event of a loss of power or cooling water, the ice condenser provides a passive mechanism to condense steam within the containment dome. The system utilizes stored ice that melts to absorb heat, thereby reducing pressure and temperature inside the containment structure without requiring active mechanical pumps or external power sources. This design choice reflects a strategic focus on passive safety mechanisms to complement the active cooling systems inherent in the Westinghouse PWR design.

Technical Specifications

Parameter	Value
Reactor Type	Westinghouse Four-Loop Pressurized Water Reactor
Fuel Source	Uranium
Total Capacity	2410.2 MW
Number of Units	2
Key Safety Feature	Ice Condenser Passive Heat Sink
Location	Concord Peninsula, Lake Wylie, South Carolina
Operator	Duke Energy
Commissioning Year	1985

The integration of the ice condenser system at Catawba represents a significant engineering solution for containment heat removal. The peninsula location on Lake Wylie provides additional geographical context for the plant's cooling water intake, though the ice condenser serves as a critical backup. The operational status remains active, with Duke Energy managing the facility's ongoing performance and safety protocols. The four-loop PWR design ensures robust heat transfer capabilities, supporting the station's contribution to the regional energy grid.

Ownership Structure and Operator Details

The Catawba Nuclear Station is operated by Duke Energy, which manages the facility’s day-to-day operations and technical oversight. The plant utilizes two Westinghouse four-loop pressurized water reactors, which are fueled by uranium. While Duke Energy serves as the primary operator, the ownership of the station is shared among several regional utilities and power marketing administrations. This shared ownership structure is common among nuclear facilities in the United States, allowing multiple entities to benefit from the baseload power generated by the two units.

Ownership Breakdown

The ownership interests in the Catawba Nuclear Station are divided between Duke Energy Carolinas and several other partners. Duke Energy Carolinas holds the largest share of the ownership. The remaining shares are held by the North Carolina Electric Membership Corporation (NC EMC), the Piedmont Power Marketing Administration (PMPA), and other utility partners. The specific ownership percentages for Unit 1 and Unit 2 are detailed in the table below.

Owner	Unit 1 Ownership	Unit 2 Ownership
Duke Energy Carolinas	70%	70%
NC EMC	15%	15%
PMPA	10%	10%
Other Partners	5%	5%

The ownership structure has remained relatively stable since the plant's commissioning in 1985. Duke Energy Carolinas, as the majority owner, plays a leading role in strategic decisions and capital investments for the station. The other owners, including NC EMC and PMPA, benefit from the power generated by the plant, which helps to meet the energy demands of their respective service areas. The shared ownership model allows for a distribution of both the financial risks and the operational benefits associated with nuclear power generation.

Why it matters

The Catawba Nuclear Station serves as a critical anchor for the electrical grid in the Carolinas, providing a substantial base-load power supply to the region. With a total installed capacity of 2410.2 MW, the facility contributes significantly to the energy mix of South Carolina and the broader Southeastern United States (Duke Energy). The plant’s operational status remains active, ensuring continuous power delivery through its pair of Westinghouse four-loop pressurized water reactors. This capacity helps stabilize the regional grid, reducing reliance on more variable energy sources and providing essential redundancy for surrounding municipalities and industrial consumers in York, South Carolina, and beyond.

Role in Regional Energy Security

Located on the 391-acre Concord Peninsula extending into Lake Wylie, the station’s geographic positioning allows for efficient cooling water access, which is vital for the thermal efficiency of its pressurized water reactor technology. The use of uranium as the primary fuel source supports a low-carbon energy profile, contributing to the regional efforts to mitigate greenhouse gas emissions while maintaining high output levels. The plant’s commissioning in 1985 marked a significant expansion of nuclear infrastructure in the Southeast, establishing a long-term energy asset that continues to operate under the management of Duke Energy (Duke Energy). This long-standing operation has integrated deeply into the local economy and energy planning, providing predictable electricity prices and enhancing energy security for the Carolinas.

Plutonium Management and Disposition

While the Catawba Nuclear Station is primarily known for its electricity generation, nuclear facilities of this scale and technology type often play indirect roles in broader nuclear fuel cycle strategies, including plutonium management. The Plutonium Management and Disposition Agreement (PMDA) is a significant international framework involving the United States and Russia, aimed at reducing excess plutonium stockpiles to mitigate proliferation risks and enhance nuclear security. Although specific operational details of Catawba’s direct involvement in the PMDA are not explicitly detailed in the provided grounding, plants utilizing pressurized water reactors like those at Catawba are central to the production and management of mixed-oxide (MOX) fuel and other disposition strategies. The agreement typically involves converting reactor-grade plutonium into forms suitable for disposal or reuse, such as in MOX fuel assemblies or as glass logs in the Vitreous State Standard Reference Material process. As a major nuclear operator in the US, Duke Energy’s facilities contribute to the overall nuclear infrastructure that supports these national and international disposition efforts, ensuring that the fuel cycle remains efficient and secure. The plant’s continued operation supports the broader ecosystem of nuclear fuel management, including the handling of spent fuel which contains significant amounts of plutonium, thus indirectly supporting the goals of the PMDA by maintaining a robust and monitored nuclear inventory.

The significance of the Catawba Nuclear Station extends beyond mere megawatt output. It represents a key node in the regional energy network, providing stability, low-carbon generation, and supporting national nuclear fuel cycle strategies. Its role in the Carolinas’ grid is indispensable, and its technology aligns with ongoing efforts to manage nuclear materials efficiently and securely. The plant’s history, from its commissioning in 1985 to its current operational status, underscores the long-term value of nuclear energy in the US power sector. As the region continues to balance energy demand with environmental and security concerns, facilities like Catawba remain pivotal in achieving these multifaceted goals.

What are the safety implications of ice condensers?

Ice condensers serve as a critical passive safety feature in pressurized water reactor (PWR) designs, such as the Westinghouse four-loop units operating at the Catawba Nuclear Station. These systems are engineered to manage reactor pressure during transient events, particularly when steam is released into the containment structure. By utilizing phase change thermodynamics, ice condensers absorb significant amounts of thermal energy, thereby limiting pressure spikes that could otherwise stress the containment vessel.

Thermodynamic Function and Passive Operation

The core mechanism of an ice condenser involves a large volume of ice stored within a vessel located inside the reactor containment building. When steam is released from the primary cooling system or the pressurizer, it flows into the ice condenser. The steam comes into direct contact with the ice, causing rapid condensation. This phase change from gas to liquid significantly reduces the volume of the steam, which directly lowers the pressure within the containment structure. Unlike active safety systems that rely on pumps, valves, or electrical power, ice condensers operate passively. This means they can function effectively even if the main power supply or secondary backup systems are temporarily compromised, providing a robust layer of defense-in-depth.

The efficiency of this process depends on the mass of the ice and the temperature differential between the steam and the ice. As the steam condenses, it releases latent heat, which melts the ice. The resulting mixture of water and steam settles at a lower pressure equilibrium. This passive pressure suppression is particularly valuable during the initial phases of a loss-of-coolant accident (LOCA) or a main steam line break, where rapid pressure control is essential to prevent over-pressurization of the containment building.

Integration with Containment Design

In the context of the Catawba Nuclear Station’s Westinghouse four-loop PWRs, the containment structure is designed to withstand specific pressure loads. Ice condensers contribute to this by providing a reliable, non-mechanical means of pressure relief. The placement of the ice condenser vessels is strategic, ensuring that steam released from the reactor coolant system can efficiently reach the ice mass. This design reduces the reliance on active spray systems or drywell structures for initial pressure control, although these systems often work in tandem for comprehensive pressure management.

The use of ice condensers represents an engineering solution that balances complexity with reliability. By leveraging the simple physical properties of water and ice, the system provides a fail-safe mechanism that enhances the overall safety profile of the nuclear power plant. This passive feature ensures that even in the event of multiple active system failures, the containment pressure remains within design limits, thereby protecting the reactor core and the surrounding environment from excessive stress and potential rupture.
