Overview

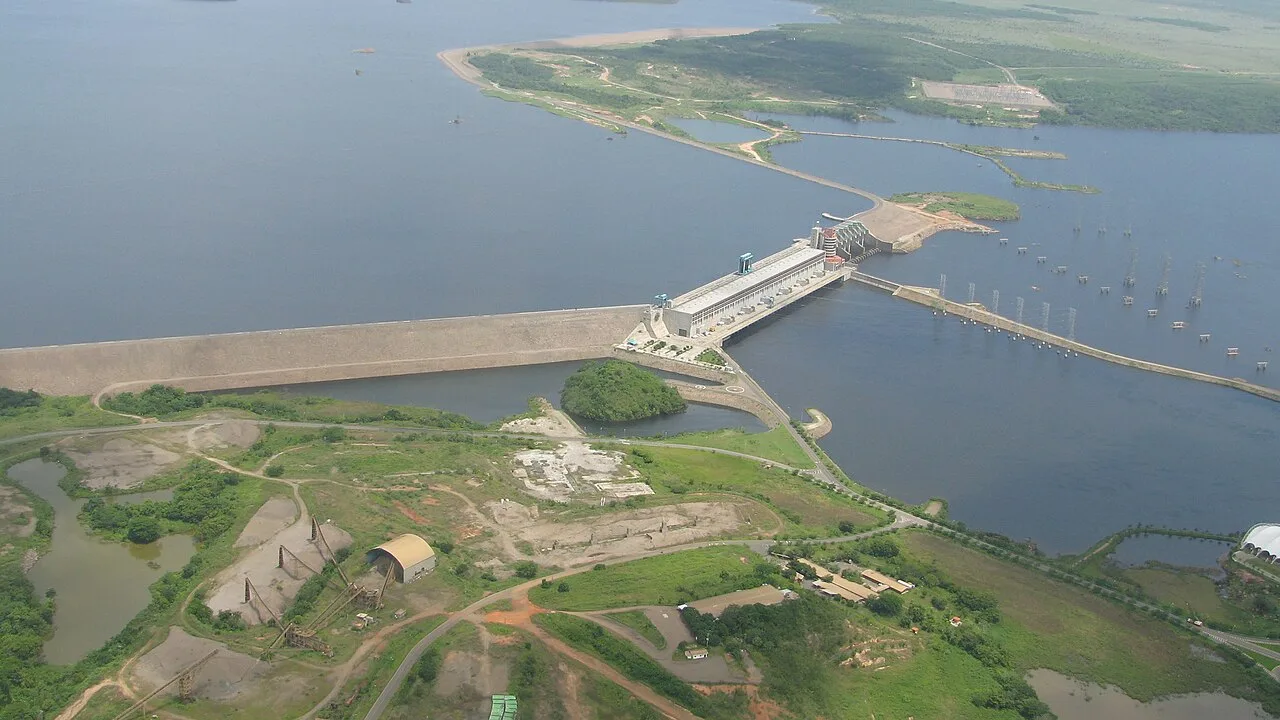

The Caruachi Dam is a major concrete gravity dam situated on the Caroní River in Bolívar state, Venezuela. It serves as the central infrastructure for a conventional hydroelectric power facility with an installed capacity of 2,160 megawatts (VE). The project is operated by EDELCA (Empresa Eléctrica del Lago de Caroní) and has been in operational status since its commissioning in 2006. This facility represents a critical component of Venezuela's national energy matrix, leveraging the significant hydraulic potential of the Guayana Highlands region to generate substantial electrical output for domestic consumption and industrial use.
The dam is strategically located within the Lower Caroní River hydroelectric development corridor. It is positioned approximately 59 kilometers downstream from the Guri Dam, which is part of the Central Hidroeléctrica Simón Bolívar complex. This proximity allows for coordinated water flow management and power generation optimization between the two major installations. Additionally, the Caruachi Dam lies approximately 35 kilometers from the confluence of the Caroní and Orinoco rivers, a junction located near the urban center of Ciudad Guayana. This geographic positioning facilitates efficient transmission of generated power to the industrial zones of the Guayana region, which includes major aluminum smelting and steel production facilities.
As a concrete gravity structure, the Caruachi Dam relies on its massive weight to resist the horizontal force of the retained water, a design choice suited to the geological characteristics of the Caroní River basin. The facility contributes significantly to the stability of the Venezuelan electrical grid, particularly in the eastern and central regions. The integration of the Caruachi plant into the broader Lower Caroní River system enhances the overall resilience of the country's hydroelectric infrastructure, providing a reliable source of renewable energy that complements other major dams in the national network. The operational data and structural specifications are maintained by the operator, EDELCA, ensuring continuous monitoring and performance optimization of the 2,160 MW capacity.
History and Development
The Caruachi Dam project represents a significant expansion of Venezuela's hydroelectric infrastructure in the Bolivar state, situated on the Caroní River. The initiative was formally initiated in 1997, marking the beginning of a complex international engineering effort to harness the river's flow downstream from the larger Guri Dam. The project was designed to integrate with the existing Central Hidroeléctrica Simón Bolívar system, enhancing the regional grid's capacity and reliability.
International Consortium and Ownership Transfers
The development of the facility relied on a strategic consortium comprising Kvaerner, GE Energy, and Elin Transformatoren GmbH. This partnership brought together specialized expertise in civil engineering, turbine technology, and electrical transformation. The corporate structure of the project evolved significantly during the construction phase, reflecting broader trends in the global energy equipment market.
In 1999, GE Energy acquired Kvaerner's hydroelectric business, consolidating a major portion of the project's engineering and manufacturing capabilities under a single corporate umbrella. This acquisition streamlined the supply chain and technical oversight for the dam's mechanical and electrical systems. The project continued through the early 2000s, navigating the logistical challenges of constructing a concrete gravity dam in the Venezuelan interior.
Further restructuring occurred in 2005, when the hydroelectric assets were transferred to Andritz Hydro. This transition ensured that the final stages of construction and commissioning were managed by a specialized hydroelectric division with extensive global experience. The operational status of the plant was confirmed as operational, with the facility reaching commercial operation in 2006. The successful commissioning of the 2,160 MW capacity plant marked the culmination of nearly a decade of development, solidifying EDELCA's role as the primary operator of this critical energy asset in the Caroní River basin.
Engineering and Construction
The Caruachi Dam is a concrete gravity structure built across the Caroní River in Bolivar state, Venezuela. This design choice defines the primary engineering characteristics of the facility, which supports a conventional hydroelectric power generation system. It is also situated approximately 35 kilometres from the confluence of the Caroní and Orinoco rivers at Ciudad Guayana. The strategic positioning within this river system allows for efficient water flow management and power generation integration with the broader regional grid.
Electro-Mechanical and Control Systems
The construction and equipment procurement for the Caruachi facility involved significant international contracts to ensure technological reliability and operational efficiency. ABB was awarded the contract for the power transmission system, a critical component for moving the generated electricity from the powerhouse to the national grid. This system is essential for maintaining voltage stability and minimizing transmission losses over the distance to major consumption centers. Additionally, Alstom Power was selected to provide the distributed control system for the plant. This advanced control infrastructure allows for real-time monitoring and automated management of the turbine generators, ensuring optimal performance and rapid response to load changes. The integration of these specific electro-mechanical and control technologies reflects the modern engineering standards applied to the project during its development phase.
Powerhouse Integration
A key aspect of the Caruachi project was the physical and functional integration of the powerhouse with the main dam structure. This integration ensures that the water flow from the reservoir is efficiently directed to the turbines, maximizing the conversion of potential energy into electrical power. The conventional hydroelectric setup relies on this seamless connection between the civil engineering of the gravity dam and the mechanical systems of the generators. The facility operates with a total installed capacity of 2,160 megawatts, a figure achieved through the coordinated operation of its turbine units within the integrated powerhouse. The operational status of the plant, commissioned in 2006, confirms the successful implementation of these engineering solutions. The operator, EDELCA, manages the facility, leveraging the robust design and advanced control systems to maintain consistent power output in the Venezuelan energy mix.
Technical Specifications
It forms the core of a conventional hydroelectric power facility with an installed capacity of 2160 MW. The dam is located approximately 59 kilometres downstream from the Guri Dam and about 35 kilometres from the confluence of the Caroní and Orinoco rivers near Ciudad Guayana.
Dam and Reservoir Parameters
| Parameter | Value |
|---|---|
| Dam Type | Concrete gravity |
| Height | 55 m |
| Length | 360 m |
| Reservoir Area | 238 sq km |
| Spillway Capacity | 30,000 m³/s |
The structure’s design includes a spillway capable of handling a flow rate of 30,000 m³/s, ensuring effective water management for the 238 sq km reservoir (user input). The dam’s 55 m height and 360 m length provide the necessary head and storage volume to support the downstream powerhouse operations (user input).
Powerhouse and Turbine Units
The hydroelectric station is operated by EDELCA and has been operational since its commissioning in 2006 (Wikipedia; user input). The facility’s generating capacity is delivered through 12 Kaplan turbine-generator units. Each unit has an individual capacity of 180 MW, contributing to the plant’s total installed capacity of 2160 MW (user input). The turbine-generator sets were supplied by GE, a major manufacturer in the hydroelectric equipment sector (user input). The Kaplan turbine design is well-suited for the variable flow conditions typical of the Caroní River, allowing for efficient energy conversion across a range of water heads (user input). The powerhouse dimensions are configured to accommodate these 12 units, optimizing maintenance access and electrical transmission output (user input).
How does the Caruachi Dam fit into Venezuela's energy grid?
The Caruachi Dam is a critical node in Venezuela's national energy infrastructure, specifically within the Lower Caroní River hydroelectric development. It operates as part of the Central Hidroeléctrica Simón Bolívar complex, working in tandem with the Guri Dam, Macagua, and Tocoma facilities to stabilize power supply for the industrial heartland of the country. This geographic positioning allows for a cascading hydroelectric effect, optimizing water flow management across multiple turbine units.
Electricity generated by the 2,160 MW capacity facility is integrated into the national transmission network through a dedicated 400 kV substation. Four primary transmission lines extend from this substation, carrying high-voltage power toward key load centers. This infrastructure ensures that the energy produced at Caruachi can efficiently reach the Guayana Region, which hosts significant aluminum smelting and steel industries, as well as residential areas in Ciudad Guayana. The 400 kV voltage level is standard for long-distance transmission in Venezuela, minimizing losses over the distance between the dam and the industrial consumers.
Role in the Lower Caroní System
Caruachi is not an isolated asset but a key component of the Lower Caroní River project. Alongside Guri, Macagua, and Tocoma, it forms a strategic cluster that enhances the reliability of Venezuela's hydroelectric output. The Guri Dam, being the largest in the region, provides the primary storage and head, while Caruachi and the others contribute additional capacity and flexibility. This integrated approach allows operators, including EDELCA, to balance load distribution and manage seasonal variations in water flow more effectively. The operational status of Caruachi, commissioned in 2006, adds modern capacity to the system, complementing the older Guri units and ensuring a more resilient power grid for the Bolivar state and beyond.
The coordination between these dams is vital for national energy security. By sharing the water resource of the Caroní River, the system can maximize energy extraction during peak flow periods and conserve water during drier months. This strategic integration reduces the dependency on thermal power plants, which are often used as backups during hydrological fluctuations. The 2,160 MW capacity of Caruachi represents a significant portion of the total output from the Lower Caroní complex, making it indispensable for maintaining grid stability in eastern Venezuela.
Why it matters
The Caruachi Dam represents a critical node in Venezuela's national energy infrastructure, serving as the second major hydroelectric facility on the Caroní River. With an installed capacity of 2,160 megawatts, the plant significantly bolsters the output of the Central Hidroeléctrica Simón Bolívar system, which is operated by EDELCA. Its strategic location, approximately 59 kilometres downstream from the Guri Dam, allows for optimized water flow management and power generation across the Lower Caroní River basin. This positioning is vital for maintaining grid stability in the Bolivar state and the broader Venezuelan electrical network.
Economic and Energy Impact
The operational significance of the Caruachi Dam extends beyond raw megawatt output. EDELCA has highlighted that the development of the Lower Caroní River hydroelectric system yields substantial economic benefits by reducing the nation's reliance on thermal power generation. According to claims by the operator, the integrated development saves the equivalent of 750,000 barrels of oil per day. This figure represents a significant increase from the previous estimate of 300,000 barrels saved daily, underscoring the dam's role in preserving Venezuela's primary export commodity for industrial use.
This reduction in oil consumption is crucial for a country where energy production and oil extraction are deeply intertwined. By leveraging the consistent flow of the Caroní River, which meets the Orinoco River near Ciudad Guayana, the Caruachi facility helps mitigate the volatility associated with thermal power plants. The dam's concrete gravity structure ensures reliable power delivery, supporting both domestic consumption and industrial operations in the region. As a key component of the Central Hidroeléctrica Simón Bolívar, the Caruachi Dam reinforces the resilience of Venezuela's hydroelectric infrastructure, providing a stable base load that complements the larger Guri complex.
