Overview

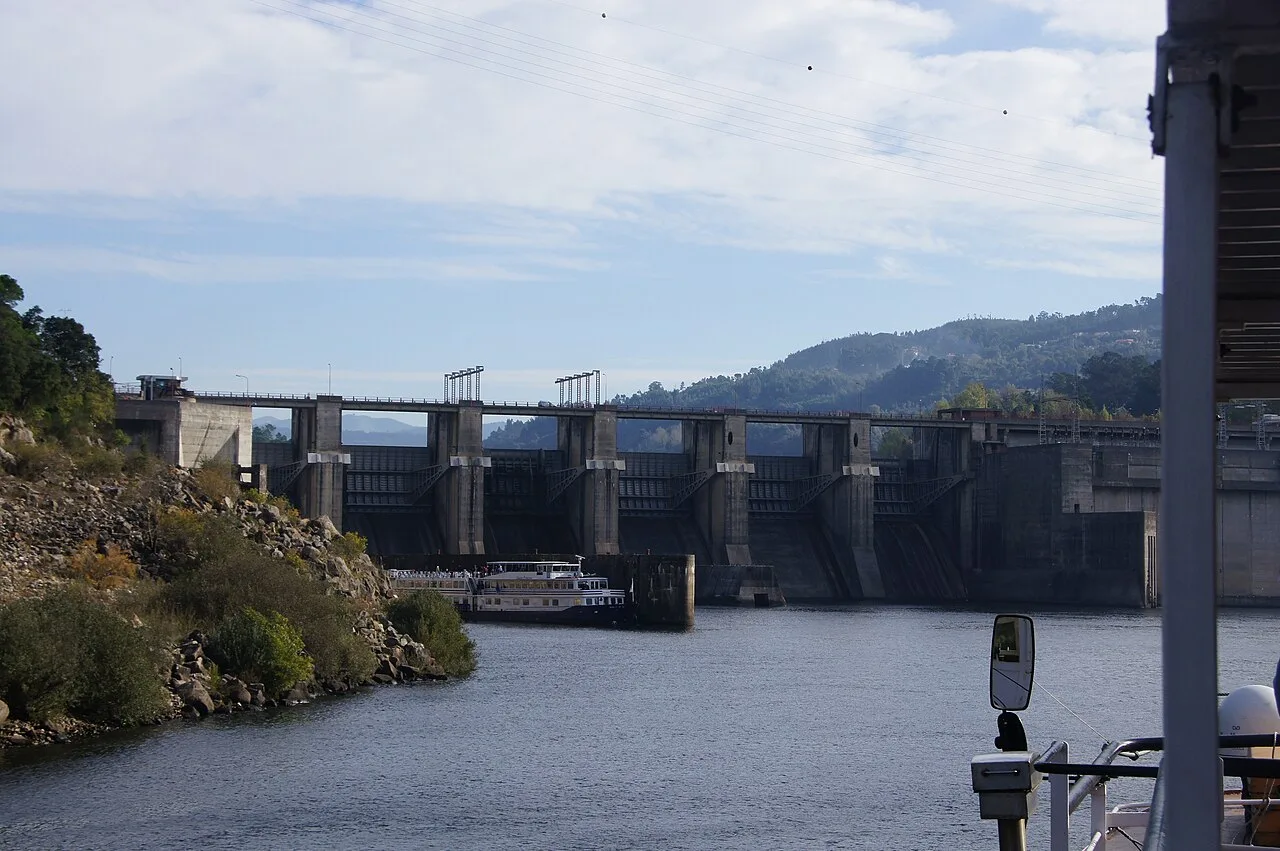

Carrapatelo Dam is a major concrete gravity dam situated on the Douro River in Portugal. The structure is strategically located where the river forms the borderline between the districts of Porto and Viseu. It spans the municipalities of Marco de Canaveses, within the Porto District, and Cinfães, in the Viseu District. The facility is operated by Energias de Portugal and has been operational since its commissioning in 1971. With an installed capacity of 201 MW, the dam serves as a significant source of hydroelectric power in the region.
Hydroelectric Generation and Infrastructure
The primary function of the Carrapatelo Dam is hydroelectric generation. The facility utilizes the water flow of the Douro River to produce electricity, contributing to the national grid through its 201 MW capacity. The dam is constructed as a concrete gravity structure, a design choice that relies on the weight of the concrete to resist the horizontal force of the water. This engineering approach is typical for major dams in the region, providing stability and longevity for the hydroelectric operations managed by Energias de Portugal.
Navigation and Dual Role
In addition to its energy production capabilities, the Carrapatelo Dam plays a crucial role in river navigation. The structure includes a navigation lock system that facilitates the passage of vessels along the Douro River. This dual functionality enhances the economic utility of the river, allowing for both power generation and transport logistics. The navigation lock helps to manage the water levels and flow, ensuring that boats can traverse the dam efficiently. This integration of energy and transport infrastructure is a key feature of the Carrapatelo project, supporting the broader economic activities in the Porto and Viseu districts.
Geographical and Administrative Context
The dam's location on the border between Porto and Viseu districts highlights its regional significance. It connects the municipalities of Marco de Canaveses and Cinfães, fostering cross-district infrastructure development. The Douro River, known for its steep gradient and scenic valleys, is harnessed by the dam to optimize water usage for energy and navigation. The operational status of the dam remains active, continuing to serve the energy and transport needs of the area since 1971. The facility's presence underscores the importance of the Douro River as a vital resource for Portugal's hydroelectric and logistical networks.
History and Construction
The construction of the Carrapatelo Dam represents a significant engineering effort on the Douro River, establishing a concrete gravity structure that defines the borderline between the districts of Porto and Viseu. The project was initiated in 1964, marking the beginning of extensive civil works in the municipalities of Marco de Canaveses and Cinfães. This location was strategically chosen to harness the hydraulic potential of the Douro, which flows through the heart of northern Portugal.
The dam's construction spanned nearly a decade, concluding in 1972. The structure is classified as a concrete gravity dam, a design choice that utilizes the weight of the concrete to resist the horizontal force of the water. This type of construction is typical for large-scale hydroelectric projects in the region, providing stability and longevity for the reservoir management and power generation facilities.
Operational Entry and Commissioning
While the overall dam structure was completed in 1972, the hydroelectric power plant began its operational entry slightly earlier. The first units of the power plant were commissioned in 1971, allowing for an early start to electricity generation. The remaining units followed in 1972, coinciding with the finalization of the main dam works. This staggered commissioning allowed Energias de Portugal, the operator of the facility, to integrate the generated power into the national grid progressively.
The plant has maintained an operational status since its initial commissioning. With a total installed capacity of 201 MW, the Carrapatelo Hydroelectric Power Plant contributes to the energy mix of Portugal, utilizing the water resource of the Douro River. The facility continues to function as a key component of the region's hydroelectric infrastructure, managed by Energias de Portugal. The dam not only serves an energy purpose but also influences the local geography and water management between the Porto and Viseu districts.
Hydroelectric Power Generation
The Carrapatelo hydroelectric power plant is a run-of-the-river facility integrated into the concrete gravity dam structure on the Douro River. The installation has a total installed capacity of 201 MW and has been operational since its commissioning in 1971. The plant is owned by the Companhia Portuguesa de Produção de Energia (CPPE) and is operated by Energias de Portugal (EDP), which manages the day-to-day generation activities and grid integration for the site.
Technical Specifications
The power generation system utilizes Kaplan turbines, a type of propeller turbine with adjustable blades, which are particularly well-suited for the variable flow conditions of the Douro River. These turbines drive electrical generators to convert hydraulic energy into electricity. The plant's design allows for efficient energy extraction across a range of water levels, characteristic of run-of-the-river schemes that do not rely on massive reservoir storage compared to other hydro projects.
| Parameter | Value |
|---|---|
| Entity Type | Hydroelectric Power Plant |
| Primary Source | Water (Douro River) |
| Installed Capacity | 201 MW |
| Commissioning Year | 1971 |
| Operator | Energias de Portugal (EDP) |
| Owner | Companhia Portuguesa de Produção de Energia (CPPE) |
| Turbine Type | Kaplan |
| Operational Status | Operational |
The integration of the dam and the power house allows for a controlled release of water, maintaining a steady head for the Kaplan units. This configuration supports the regional grid stability in the Porto and Viseu districts, contributing to Portugal's renewable energy mix. The operational management by EDP ensures that the plant adheres to modern efficiency standards while leveraging the historical infrastructure established in the early 1970s.
Significance
Carrapatelo Dam serves as a critical node in the hydroelectric infrastructure of Portugal, functioning as a major contributor to the national energy mix through its 201 MW installed capacity. As an operational facility commissioned in 1971, the dam leverages the significant hydraulic head of the Douro River, one of the most important waterways for power generation in the Iberian Peninsula. The structure is a concrete gravity dam, a design choice that provides stability and efficiency in harnessing the river's flow for electricity production. The plant is operated by Energias de Portugal, a leading energy company that manages the facility to ensure consistent power output for the regional grid. The strategic location of the dam, situated where the Douro forms the borderline between the districts of Porto and Viseu, allows for effective water management across two key administrative regions. This positioning is vital for balancing energy production with other riverine uses, including agriculture and municipal supply in the municipalities of Marco de Canaveses and Cinfães.
Contribution to Douro River Hydroelectric Potential
The Douro River is renowned for its steep gradient and substantial flow, making it ideal for hydroelectric development. Carrapatelo Dam plays a significant role in this system, contributing to the cascading series of reservoirs that regulate the river's discharge. The 201 MW capacity represents a substantial share of the hydroelectric potential in the middle Douro region, providing both base load and peaking power depending on seasonal water availability. The dam's operation helps to stabilize the river flow, which is crucial for downstream hydropower plants and for mitigating flood risks in the valley. The concrete gravity design ensures durability and efficient energy conversion, allowing the plant to maintain high operational reliability since its inception. The integration of Carrapatelo into the broader Douro hydroelectric scheme enhances the overall efficiency of the energy infrastructure, enabling better coordination of water releases and power generation across multiple facilities.
Impact on Navigation and Regional Infrastructure
Beyond electricity generation, Carrapatelo Dam significantly enhances the navigability of the Douro River. The reservoir created by the dam helps to maintain a consistent water level, which is essential for commercial and recreational boat traffic. This improvement in navigation supports the regional economy by facilitating the transport of goods, particularly wine from the famous Douro Valley vineyards, to the port of Porto. The dam's location between the districts of Porto and Viseu makes it a key landmark for river traffic, connecting the inland regions with the coastal capital. The operational status of the dam ensures that these navigational benefits are sustained, contributing to the economic vitality of the municipalities of Marco de Canaveses and Cinfães. The synergy between hydroelectric power and river navigation exemplifies the multi-functional use of the Douro River, with Carrapatelo Dam serving as a pivotal element in this integrated infrastructure system.
