Overview

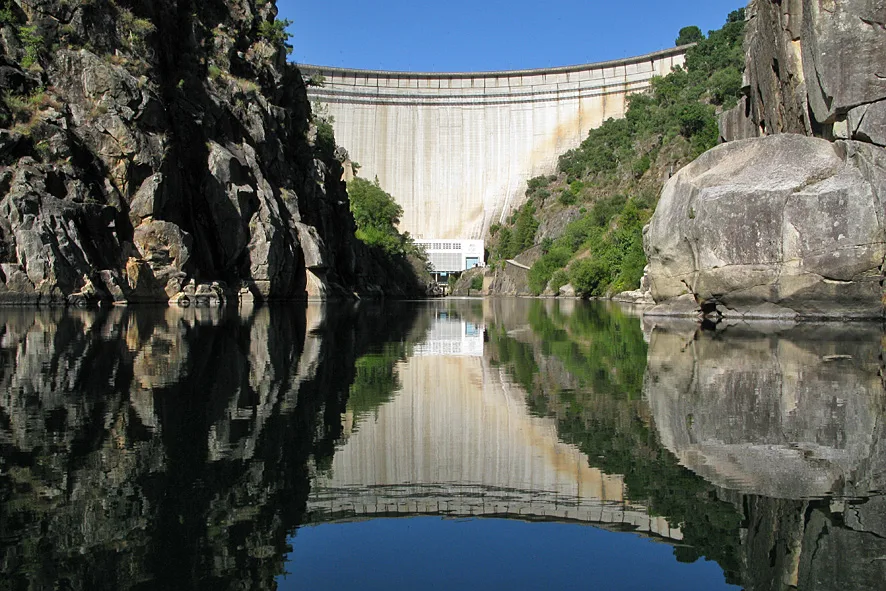

Cabril Dam is a concrete double curvature arch dam situated on the Zêzere River in Portugal. The structure is located within the municipality of Sertã, in the Castelo Branco District. The dam's position on the Zêzere River is geographically significant, as the river forms the border line between the districts of Castelo Branco and Leiria. As a key component of the region's hydroelectric infrastructure, the facility plays a central role in harnessing the water resources of the Zêzere River for energy production and regional management.
The hydroelectric powerplant associated with the dam has an installed capacity of 97 MW. The facility is operated by Energias de Portugal. The plant was commissioned in 1954, establishing it as a long-standing operational asset within the Portuguese energy grid. The operational status of the Cabril Dam remains active, contributing to the hydroelectric output of the country. The concrete double curvature arch design is a specific engineering choice for the site, allowing the structure to effectively manage the hydraulic pressure of the Zêzere River.
The location in Sertã places the dam within the Castelo Branco District, although the river boundary extends into the Leiria District. This cross-district positioning is a defining geographic feature of the Cabril Dam site. The facility represents a significant investment in the hydroelectric infrastructure of central Portugal. The 97 MW capacity provides a substantial contribution to the local and national energy mix, leveraging the consistent flow of the Zêzere River. Energias de Portugal continues to manage the operations of the plant, ensuring its ongoing contribution to the energy sector.
The construction and commissioning of the Cabril Dam in 1954 marked an important development in the hydroelectric history of the Zêzere River. The concrete arch design has proven durable, supporting decades of operational activity. The dam's role extends beyond energy generation, influencing the water management dynamics between the Castelo Branco and Leiria districts. The facility remains a critical node in the regional energy infrastructure, with its 97 MW output serving as a reliable source of hydroelectric power. The ongoing operations by Energias de Portugal highlight the sustained importance of the Cabril Dam in the Portuguese energy landscape.
History and Construction
Construction of the Cabril Dam commenced in 1950, marking a significant engineering undertaking on the Zêzere River. The project involved the erection of a concrete double curvature arch dam, a structural choice designed to withstand the hydrostatic pressure of the reservoir while optimizing material usage. The dam is situated in the municipality of Sertã, within the Castelo Branco District, where the Zêzere River delineates the border between the districts of Castelo Branco and Leiria. This strategic location allowed the dam to serve as a critical infrastructure asset for the surrounding regions of central Portugal.
The construction phase concluded in 1954, leading to the official commissioning of the facility. Upon its completion, the hydroelectric power plant was placed under the ownership of the Companhia Portuguesa de Produção de Electricidade (CPPE). The CPPE played a pivotal role in the early development of Portugal’s national grid, utilizing the Cabril Dam to harness the kinetic energy of the Zêzere River for electricity generation. The plant has maintained an operational status since its inception, contributing to the energy mix of the country for several decades.
While the initial ownership rested with the CPPE, the operational landscape of the Cabril Dam has evolved over time. Currently, the facility is operated by Energias de Portugal (EDP), a major energy company in the Iberian Peninsula. The transition of operational control reflects broader trends in the Portuguese energy sector, including consolidation and modernization efforts aimed at maintaining efficiency and output. The dam continues to function as a hydroelectric powerplant, utilizing water as its primary fuel source to generate electricity.
The Cabril Dam remains a functional component of the regional energy infrastructure. Its continued operation since 1954 underscores the durability of the concrete double curvature arch design and the sustained importance of hydroelectric power in Portugal. The facility’s location on the Zêzere River continues to provide a reliable source of renewable energy, supporting the grid stability of the Castelo Branco and Leiria districts. The historical significance of the dam is tied not only to its engineering characteristics but also to its long-standing contribution to the national energy supply.
Dam Structure and Engineering
This structure serves as a critical component of the hydroelectric infrastructure in Portugal, forming the border line between the districts of Castelo Branco and Leiria. Its engineering design utilizes the double curvature arch form, which efficiently transfers the water load to the abutments of the river valley, optimizing material usage and structural stability for the specific topography of the Zêzere River basin.
Technical Specifications
The physical dimensions and hydraulic capacities of the Cabril Dam define its operational capabilities. The dam stands at a height of 132 m, with a crest altitude of 297 m. The length of the dam structure is 290 m. The total volume of concrete used in the construction is 360,000 m³. These specifications reflect the scale of the engineering effort required to harness the Zêzere River for hydroelectric power generation.
| Parameter | Value |
|---|---|
| Height | 132 m |
| Length | 290 m |
| Volume | 360,000 m³ |
| Crest Altitude | 297 m |
| Spillway Discharge | 2,200 m³/s |
| Bottom Outlet Capacity | 200 m³/s |
The hydraulic infrastructure includes a spillway with a discharge capacity of 2,200 m³/s. This capacity allows for the controlled release of water during periods of high inflow, ensuring the stability of the dam and managing the reservoir levels. Additionally, the dam features a bottom outlet with a capacity of 200 m³/s. The bottom outlet facilitates the drainage of the reservoir and the release of water from lower depths, which is important for sediment management and maintaining water quality downstream. These hydraulic features are integral to the operational flexibility of the Cabril hydroelectric powerplant, which has a capacity of 97 MW and is operated by Energias de Portugal.
Reservoir Characteristics
The Cabril Reservoir serves as the primary water storage component of the Cabril Dam hydroelectric complex, situated on the Zêzere River. This body of water is formed by the concrete double curvature arch dam structure, which spans the river where it delineates the administrative boundary between the districts of Castelo Branco and Leiria. The storage capacity and surface area of the reservoir are critical parameters for the operational efficiency of the 97 MW hydroelectric power plant operated by Energias de Portugal.
Storage Capacity and Volume
The total storage capacity of the Cabril Reservoir is 720 million cubic meters. This volume represents the maximum amount of water the reservoir can hold when filled to its design limits. Of this total volume, 615 million cubic meters is classified as active capacity. The active capacity refers to the portion of the reservoir volume that is regularly utilized for power generation and operational flexibility, distinguishing it from the dead storage or inactive volume which may be used for sediment accumulation or emergency storage. The distinction between total and active capacity is essential for managing the hydraulic head and ensuring consistent output from the hydroelectric turbines.
Water Levels and Operational Parameters
The operational management of the Cabril Reservoir relies on specific water level markers. The full reservoir level is established at 294 meters above sea level. This elevation represents the standard maximum operating height of the water surface under normal conditions. During significant inflow events, such as seasonal rains or upstream releases, the water level can rise to a maximum flood level of 296.3 meters. This flood level provides a buffer zone to accommodate peak discharge without overtopping the dam structure, ensuring structural integrity and downstream flow regulation.
At the lower end of the operational spectrum, the minimum operating level of the reservoir is 240 meters. This level marks the lowest point to which the water can be drawn down while maintaining efficient operation of the intake structures and turbines. The difference between the full reservoir level and the minimum operating level defines the variable hydraulic head available for power generation. The reservoir's surface area covers 20.23 square kilometers, providing a substantial catchment surface that influences evaporation rates and the microclimate of the surrounding Sertã municipality. These physical characteristics support the dam's role in regulating the Zêzere River's flow for both energy production and downstream water management.
Hydroelectric Power Plant
The Cabril Dam houses a hydroelectric power plant that serves as the primary energy conversion facility for the reservoir on the Zêzere River. The plant is operated by Energias de Portugal and has been operational since its commissioning in 1954.
Technical Specifications
The power station is designed with a total installed capacity of 97 MW. This capacity is generated by two Francis turbine-generator units. Each unit has an individual capacity of 47 MW, contributing to the plant's overall output. The turbines are engineered to operate at a rotation speed of 214.3 rpm, optimizing efficiency for the specific hydraulic conditions of the Zêzere River.
The hydraulic head for the plant varies significantly depending on the water levels in the reservoir. The head ranges from a minimum of 84.6 m to a maximum of 121.5 m. This variation allows the plant to adapt to seasonal changes in water flow and storage levels. The design flow rate for the turbines is 54 m³/s, which is critical for maintaining optimal performance across different operational scenarios.
| Parameter | Value |
|---|---|
| Total Installed Capacity | 97 MW |
| Number of Turbines | 2 |
| Turbine Type | Francis |
| Capacity per Unit | 47 MW |
| Rotation Speed | 214.3 rpm |
| Hydraulic Head (Min) | 84.6 m |
| Hydraulic Head (Max) | 121.5 m |
| Design Flow Rate | 54 m³/s |
| Average Annual Generation | 304.8 GWh |
| Operator | Energias de Portugal |
| Commissioning Year | 1954 |
The plant achieves an average annual generation of 304.8 GWh, making it a significant contributor to the regional energy mix. The combination of the concrete double curvature arch dam and the efficient Francis turbines allows for consistent power output, leveraging the natural topography of the Zêzere River basin. The operational parameters are tailored to the specific hydrological characteristics of the area, ensuring reliable energy production for the surrounding districts of Castelo Branco and Leiria.
Why it matters
The Cabril Dam holds a distinctive position in Portugal's hydroelectric infrastructure, serving as a critical node within the Zêzere River basin. As an operational facility with a capacity of 97 MW, it contributes significantly to the national energy mix, particularly for the operator Energias de Portugal. Its location on the Zêzere River, which demarcates the border between the districts of Castelo Branco and Leiria, underscores its strategic geographical importance. The dam is situated in the municipality of Sertã, within the Castelo Branco District, anchoring energy production in central Portugal's varied topography.
Engineering Significance
This architectural form allows for efficient load distribution, making it a notable example of mid-20th-century hydroelectric engineering in Portugal. Commissioned in 1954, the dam has maintained operational status for decades, demonstrating the durability and effectiveness of its construction. The double curvature design is particularly suited to the river's valley profile, optimizing water storage and flow regulation for power generation.
Integration with Transport Infrastructure
A unique feature of the Cabril Dam is its integration with the national road network. The Estrada Nacional 2 crosses the dam structure, linking the districts of Castelo Branco and Leiria. This dual-purpose functionality highlights the dam's role not only as an energy producer but also as a vital transport corridor. The crossing facilitates connectivity across the Zêzere River, which forms the boundary between the two districts, thereby enhancing regional accessibility. This integration of energy and transport infrastructure is a testament to the comprehensive planning involved in the dam's development and ongoing operation.
The Cabril Dam's continued operation underscores its enduring value to Portugal's energy security. By leveraging the water resources of the Zêzere River, it provides a renewable energy source that complements other forms of power generation in the country. The dam's engineering design, combined with its strategic location and multifunctional use, makes it a significant asset in the region's infrastructure landscape.
What are the key technical specifications of Cabril Dam?
The structure forms part of the border line between the districts of Castelo Branco and Leiria. The facility operates as a hydroelectric powerplant with a primary fuel source of water. The operational status of the plant is operational. The installed capacity of the Cabril Dam is 97 MW. The dam was commissioned in 1954.
How does the Cabril Dam contribute to regional energy production?
The Cabril Dam serves as a critical node in the Portuguese hydroelectric network, contributing a firm capacity of 97 MW to the national grid (per structured data). As a concrete double curvature arch dam situated on the Zêzere River, its structural design allows for efficient water retention and pressure management, which is essential for consistent energy generation in the region. The facility is located in the municipality of Sertã, where the Zêzere River forms the administrative border between the districts of Castelo Branco and Leiria, strategically positioning it within the central interior of Portugal.
Operational Efficiency and Hydrological Context
The operational efficiency of the Cabril Dam is derived from its integration into the Zêzere hydroelectric scheme, one of the most significant water management systems in Portugal. By harnessing the flow of the Zêzere River, the dam converts potential energy from stored water into electrical power, providing a reliable source of renewable energy. The concrete double curvature arch design is particularly effective in this geographical context, allowing the structure to withstand significant hydraulic pressure while minimizing material usage compared to gravity dams. This engineering choice supports long-term operational stability and maintenance efficiency.
The dam has been in continuous operation since its commissioning in 1954, demonstrating the durability of its construction and the sustained relevance of the Zêzere basin for energy production. Its location on the border between Castelo Branco and Leiria districts facilitates the distribution of generated power to both central and coastal regions, enhancing grid stability. The consistent water flow of the Zêzere River, fed by the Serra da Estrela watershed, ensures that the Cabril Dam can maintain its output even during periods of moderate hydrological variability, making it a valuable asset for base-load and peak-demand management.
Integration into the EDP Network
Operated by Energias de Portugal (EDP), the Cabril Dam is integrated into a broader portfolio of hydroelectric assets that optimize energy production through coordinated reservoir management. EDP utilizes advanced operational strategies to balance water storage and release across multiple dams on the Zêzere River, maximizing the efficiency of each facility. The 97 MW capacity of Cabril contributes to the overall flexibility of the Portuguese energy system, allowing for rapid response to fluctuations in demand and complementing other renewable sources such as wind and solar power. This integration is crucial for maintaining grid frequency and voltage stability, particularly as the share of variable renewables increases in the national mix.
The strategic management of the Cabril Dam by EDP also supports regional economic development in the Sertã municipality and surrounding areas. The reliable energy output provides a steady revenue stream and supports local infrastructure, while the reservoir created by the dam offers additional benefits such as irrigation, flood control, and recreational opportunities. The long-term operational history since 1954 underscores the dam's role as a foundational element of Portugal's energy infrastructure, reflecting the country's early investment in hydroelectric power to diversify its energy sources and reduce dependence on imported fuels.
