Name: Atiamuri Power Station: Hydroelectric Infrastructure on the Waikato River
Address: NZ

Overview

Property	Value
Entity Type	Hydroelectric Power Station
Country	New Zealand
Region	North Island
Water Body	Waikato River
Operator	Mercury Energy
Commissioned	1958
Capacity	84 MW
Status	Operational

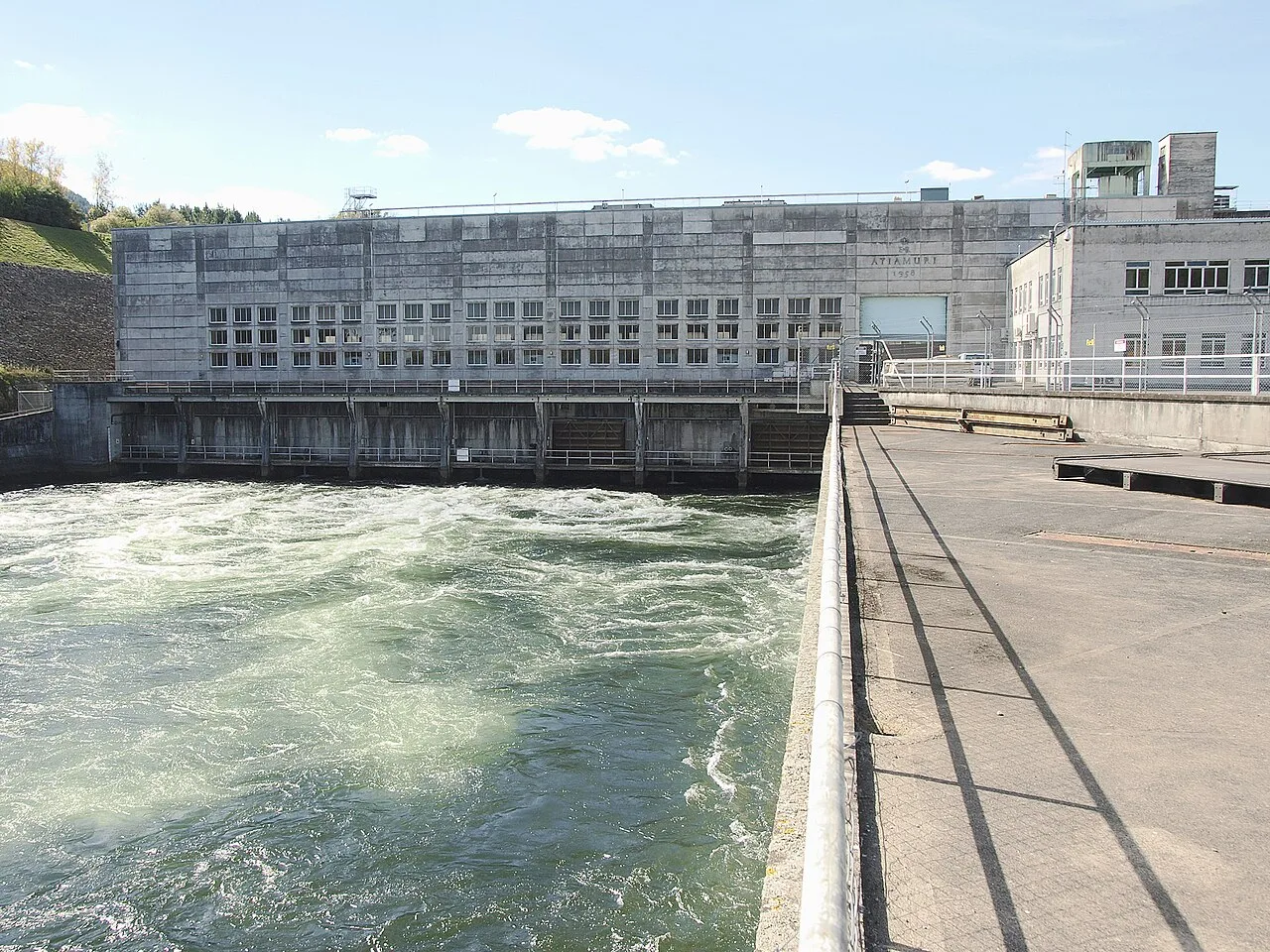

The Ātiamuri Power Station is a hydroelectric power station located on the Waikato River in the North Island of New Zealand. It serves as the third of eight hydroelectric power stations situated along the Waikato River system. The facility is operated by Mercury Energy and has an installed capacity of 84 MW. The station is currently operational and was commissioned in 1958.

It is part of a series of eight hydroelectric power stations that utilize the river's flow for energy generation. The station is visible from State Highway 1, which runs between Taupō and Tokoroa. This location places the facility within a key transportation corridor in the region.

History

Construction of the Ātiamuri Power Station commenced in 1953, marking the beginning of the development of the third hydroelectric facility along the Waikato River system in New Zealand's North Island. The project was engineered by Sir Alexander Gibb & Partners, a prominent firm responsible for designing the infrastructure that would harness the river's flow for electricity generation. This construction phase was a significant undertaking in the mid-20th century energy landscape of the region, integrating the new station into the broader network of eight hydroelectric power stations that would eventually line the Waikato River.

Development of Ātiamuri Village

As part of the comprehensive planning for the power station, a dedicated settlement known as Ātiamuri Village was established to accommodate the workforce and their families. This planned community included the construction of 500 homes, providing essential residential infrastructure to support the ongoing building efforts and subsequent operational staff. The creation of this village was integral to the logistical success of the project, ensuring a stable population base in the area between Taupō and Tokoroa, where the station is prominently visible from State Highway 1.

Commissioning and Early Operations

The Ātiamuri Power Station was initially commissioned in 1958, bringing its first units online and adding to the region's hydroelectric capacity. A second phase of commissioning occurred in 1962, further solidifying the station's role in the national grid. These milestones reflect the staged approach to bringing the facility to full operational status, aligning with the broader timeline of New Zealand's hydroelectric expansion during the mid-20th century. The station has remained operational since its initial launch, continuing to contribute to the energy mix of the North Island.

Dam Structure and Engineering

The Ātiamuri Power Station relies on a dual-dam configuration to regulate flow on the Waikato River. This system comprises a concrete gravity dam and an adjacent earth embankment dam, working in tandem to create the reservoir necessary for the station's hydroelectric generation. The structural design allows for efficient water management, supporting the plant's role as the third of eight stations on the river. The concrete gravity dam serves as the primary spillway and intake structure, while the earth embankment provides additional storage capacity and stability. These components are visible from State Highway 1, highlighting the scale of the engineering works in the North Island landscape.

Dam Specifications

Component	Type	Key Characteristics
Primary Dam	Concrete Gravity	Main intake and spillway structure
Secondary Dam	Earth Embankment	Reservoir expansion and stability
Location	Waikato River	North Island, New Zealand
Operator	Mercury Energy	Operational since 1958

2017 Height Increase Project

In 2017, Mercury Energy undertook a significant engineering project to increase the height of the dam structure. This modification was designed to enhance the reservoir's storage capacity, thereby improving the flexibility of the 84 MW power station. The height increase allowed for greater water retention during peak flow periods, optimizing the generation output. This project reflects the ongoing adaptation of the infrastructure to meet changing energy demands on the Waikato River system. The structural integrity of both the concrete and earth components was carefully assessed and reinforced during this upgrade. The work ensured that the station could maintain its operational status with improved efficiency. This enhancement is a key part of the station's modernization, supporting its continued role in New Zealand's hydroelectric network. The project demonstrates the technical capability to modify existing large-scale civil engineering works without halting generation for extended periods.

How does the Atiamuri Power Station generate electricity?

The Ātiamuri Power Station generates electricity through a classic run-of-the-river hydroelectric process, harnessing the kinetic and potential energy of the Waikato River. As the third facility in the eight-station Waikato River scheme, the station diverts water from the river into a headrace channel and then through a penstock to drive the turbine-generators located in the powerhouse. The conversion of hydraulic energy into mechanical energy, and subsequently into electrical energy, relies on the precise engineering of its four main turbine units.

Turbine Configuration and Mechanics

The core of the generation process involves four Francis turbines. The Francis turbine is a mixed-flow reaction turbine, widely regarded as the most common type of water turbine in hydroelectric power plants. In this configuration, water enters the turbine radially and exits axially, transferring energy to the runner blades. For the Ātiamuri station, these turbines are designed to handle the specific flow rates and head pressures provided by the Waikato River at this particular geographic location. The rotation of the turbine runner is directly coupled to the generator rotor, converting the mechanical torque into rotational motion at a speed optimized for the frequency of the New Zealand electrical grid.

The water delivery system is critical to the efficiency of these turbines. The penstock, a large-diameter pipe or conduit, channels the water from the intake structure to the turbine nozzles. The dimensions of the penstock at Ātiamuri are engineered to minimize friction losses while maintaining sufficient pressure to drive the Francis runners effectively. The water flows through the spiral casing of the turbine, ensuring uniform distribution around the guide vanes before striking the runner. After passing through the runner, the water exits through the draft tube, which helps to recover kinetic energy and maintain the pressure differential necessary for continuous flow.

Generator Output and Grid Integration

Each of the four turbine units is paired with a synchronous generator. The mechanical energy from the spinning turbine shaft rotates the rotor within the generator's stator, inducing an electromotive force through electromagnetic induction. The output of each individual generator unit contributes to the station's total installed capacity of 84 MW. This means that, on average, each of the four units is rated to produce approximately 21 MW, although actual output varies depending on river flow rates, seasonal water levels, and grid demand. The generated electricity is stepped up in voltage by transformers located within or adjacent to the powerhouse before being fed into the transmission network.

The operational flexibility of the Francis turbines allows the station to adjust its output relatively quickly compared to other hydro types, making it valuable for load-following on the North Island grid. The station's location on the Waikato River, visible from State Highway 1 between Taupō and Tokoroa, places it strategically within the broader Waikato hydro scheme. Water released from upstream stations, such as Huntly and Makara, flows through Ātiamuri, maintaining a continuous energy conversion process that has been operational since the station's commissioning in 1958. The entire process is managed by the operator, Mercury Energy, which monitors turbine performance, water flow, and generator output to ensure efficient and reliable power delivery.

Transmission and Grid Integration

The Ātiamuri Power Station is integrated into the New Zealand national grid, serving as a critical node in the Waikato River hydroelectric scheme. The facility connects to the transmission network at 220 kV, facilitating the movement of generated electricity from the North Island's interior to major population and industrial centers. This voltage level is standard for the main trunk lines of the Trans-Tasman and North Island grids, allowing for efficient long-distance power transfer with minimized resistive losses. The station's grid connection ensures that the 84 MW of generated capacity can be dispatched flexibly to meet peak demand periods, particularly during winter months when hydro output is maximized and thermal backup is required.

Specific Transmission Lines

The electrical output from Ātiamuri is routed through specific high-voltage transmission corridors. Key lines associated with the station's integration include the WRK-WKM-A and ATI-TRK-A circuits. These designations refer to the specific overhead line segments that link the Ātiamuri substation to adjacent nodes in the grid topology. The WRK-WKM-A line likely connects to the wider Waikato region network, while the ATI-TRK-A line extends the reach toward the Taupō and Tokoroa areas. These lines are part of the broader Transpower New Zealand infrastructure, which manages the high-voltage transmission network. The reliability of these specific circuits is crucial for the stability of the North Island grid, as they carry the variable output from the hydro station to load centers.

Distribution Areas

Electricity generated at Ātiamuri is distributed to several major regions in the North Island. The primary beneficiaries include Taupō, Hamilton, Auckland, and the Bay of Plenty. Taupō, being geographically close to the station and visible from State Highway 1, receives a significant portion of the local generation. Hamilton, as a major industrial and urban center in the Waikato region, draws on the hydro power for both residential and commercial use. Auckland, the largest metropolitan area in New Zealand, relies on the Waikato River scheme, including Ātiamuri, to supplement its energy mix. The Bay of Plenty region also benefits from the northward flow of power through the transmission network. This distribution pattern highlights the strategic importance of the Waikato River hydroelectric stations in powering the northern half of New Zealand's main island.

Why it matters

Ātiamuri Power Station holds a distinct position within the broader Waikato River hydroelectric cascade, serving as the third facility in a sequence of eight power stations that harness the river's flow in the North Island of New Zealand. Its operational significance is defined not by massive storage capacity, but by its strategic placement and timing role within the network. The station functions as a critical link in the chain, processing water that has already passed through upstream facilities, most notably the Ohakuri Power Station. While Ohakuri provides significant storage capabilities, Ātiamuri operates with relatively small storage compared to its upstream counterpart. This structural characteristic means that Ātiamuri plays a vital role in the immediate timing and regulation of water flow, ensuring efficient energy generation as water moves downstream through the cascade. The station's ability to manage these flows is essential for the overall efficiency of the Waikato River system, allowing for coordinated power generation across the multiple stations.

The visibility of Ātiamuri Power Station further underscores its integration into the regional landscape and infrastructure. The facility is easily seen from State Highway 1, the major arterial road connecting Taupō and Tokoroa. This prominent location makes the power station a recognizable landmark for travelers and residents alike, highlighting the physical presence of energy infrastructure in the North Island. The station's commissioning in 1958 marked a key development in the region's energy history, establishing a long-term operational presence that continues to contribute to New Zealand's hydroelectric output. Operated by Mercury Energy, the plant maintains an operational status that reflects the enduring importance of hydroelectric power in the national grid. The 84 MW capacity of Ātiamuri represents a substantial contribution to the regional energy mix, demonstrating the continued relevance of mid-sized hydroelectric facilities in a system dominated by larger upstream dams.

The relationship between Ātiamuri and the wider Waikato River cascade illustrates the complexity of hydroelectric management in New Zealand. Each station in the sequence plays a specific role, with Ātiamuri's smaller storage capacity requiring precise coordination with upstream and downstream facilities. This coordination ensures that water is used efficiently, maximizing energy production while maintaining the ecological and hydrological balance of the river. The station's position as the third in the cascade places it at a critical juncture, where the cumulative effects of upstream operations begin to significantly impact downstream flow. Understanding the role of Ātiamuri provides insight into the broader dynamics of the Waikato River system, highlighting the interdependence of the eight power stations that define this important energy corridor. The station's continued operation since 1958 testifies to the robustness of its design and the strategic value of its location within the North Island's energy infrastructure.

What distinguishes Atiamuri from other Waikato River stations?

Ātiamuri Power Station holds a distinct structural and operational role within the Waikato River hydroelectric scheme, primarily defined by its position as the third station in the sequence and its unique engineering design. Unlike many other facilities in the network that rely on separate intake structures or distinct dam walls, Ātiamuri is characterized by its combined dam structure. This design integrates the water retention and power generation functions into a single, cohesive engineering solution, allowing for efficient management of water flow from the upstream reservoir. The station draws its primary water supply directly from the Ohakuri reservoir, which serves as the immediate upstream source. This direct intake mechanism is a critical component of the station’s operational profile, enabling it to regulate flow and generate power based on the water levels maintained by the Ohakuri dam. The integration of the dam and the power station at Ātiamuri represents a specific engineering approach within the broader Waikato River system, distinguishing it from stations that may utilize different intake configurations or separate structural elements for water retention and turbine housing.

Position in the Waikato River Scheme

As the third of eight hydroelectric power stations on the Waikato River, Ātiamuri plays a pivotal role in the cascading energy generation process of the North Island. Its location on the Waikato River places it in a strategic position between the upstream Ohakuri station and the downstream stations, contributing to the overall capacity of the river’s hydroelectric network. The station is easily visible from State Highway 1, situated between Taupō and Tokoroa, which highlights its prominent physical presence within the regional landscape. This visibility is not merely geographical but also reflects the station’s significance in the infrastructure of the Waikato River scheme. The sequence of stations along the river allows for a coordinated approach to water management and power generation, with each station contributing to the total output of the network. Ātiamuri’s role as the third station means it receives water that has already passed through the first two stations, influencing its operational dynamics and water flow characteristics. The station’s integration into this sequence underscores the interconnected nature of the Waikato River hydroelectric system, where the performance of one station can impact the efficiency and output of the others.

Engineering and Operational Characteristics

The engineering design of Ātiamuri Power Station is tailored to its specific location and role within the Waikato River scheme. The combined dam structure is a key feature, allowing for efficient water retention and power generation in a single facility. This design choice reflects the engineering priorities of the time, focusing on integrating multiple functions to optimize space and resource utilization. The direct water intake from the Ohakuri reservoir ensures a consistent supply of water for the turbines, which is crucial for maintaining steady power output. The station’s operational status as an active facility, with a capacity of 84 MW, demonstrates the enduring effectiveness of its engineering design. The ability to draw water directly from the upstream reservoir allows for flexible operation, adapting to changes in water levels and demand. The station’s visibility from State Highway 1 also serves as a testament to the scale and prominence of the engineering project, making it a notable landmark in the region. The combination of these features—its position in the river sequence, its direct water intake, and its integrated dam structure—defines Ātiamuri’s unique contribution to the Waikato River hydroelectric network.
