Overview
Capacitors are fundamental components in modern electronic and electrical systems, characterized by their widespread presence across virtually all electrical products. It is rare to find an electrical device that does not incorporate at least one capacitor for a specific functional purpose, highlighting their ubiquity in engineering design. These passive components serve critical roles in signal processing, energy storage, and circuit coupling, making them indispensable in both analog and digital electronics.
Signal Processing and Filtering
One of the primary functions of capacitors is their ability to differentiate between alternating current (AC) and direct current (DC) signals. Capacitors allow AC signals to pass through while effectively blocking DC signals once they are charged. This characteristic is exploited in various applications, particularly in coupling and decoupling circuits. In coupling applications, a capacitor connects one circuit segment to another, allowing the AC component of a signal to pass from one stage to the next while isolating the DC bias levels of each stage. This ensures that the DC operating point of one amplifier stage does not affect the next, enabling stable signal transmission.
Capacitors are also the main components of filters in electrical systems. By combining capacitors with resistors or inductors, engineers can design low-pass, high-pass, band-pass, and band-stop filters. These filters are essential for removing unwanted noise, smoothing power supply voltages, and selecting specific frequency ranges in communication systems. The ability of a capacitor to store and release electrical energy quickly makes it ideal for smoothing out voltage fluctuations in DC power supplies, ensuring a steady output for sensitive electronic components.
Data Storage Applications
Beyond signal processing, capacitors play a crucial role in data storage technologies. In Dynamic Random Access Memory (DRAM) devices, capacitors are used to represent binary information as bits. Each memory cell in a DRAM module consists of a single transistor and a capacitor. The capacitor stores an electrical charge to represent a binary '1' or '0', depending on whether it is charged or discharged. This simple yet effective mechanism allows DRAM to achieve high storage densities, making it a popular choice for main memory in computers and other digital devices. The continuous refreshing of these capacitors ensures that the stored data remains intact, although it requires more power compared to other memory types like SRAM.
The versatility of capacitors extends to numerous other applications, including timing circuits, energy storage in flash photography, and power factor correction in electrical grids. Their ability to store energy in an electric field and release it rapidly makes them suitable for a wide range of tasks, from stabilizing voltage levels in power supplies to tuning radio frequencies in communication devices. As electronic systems continue to evolve, the role of capacitors remains central, adapting to new technologies and requirements while maintaining their fundamental properties of passing AC, blocking DC, and connecting circuit segments.
Energy storage and pulsed power applications

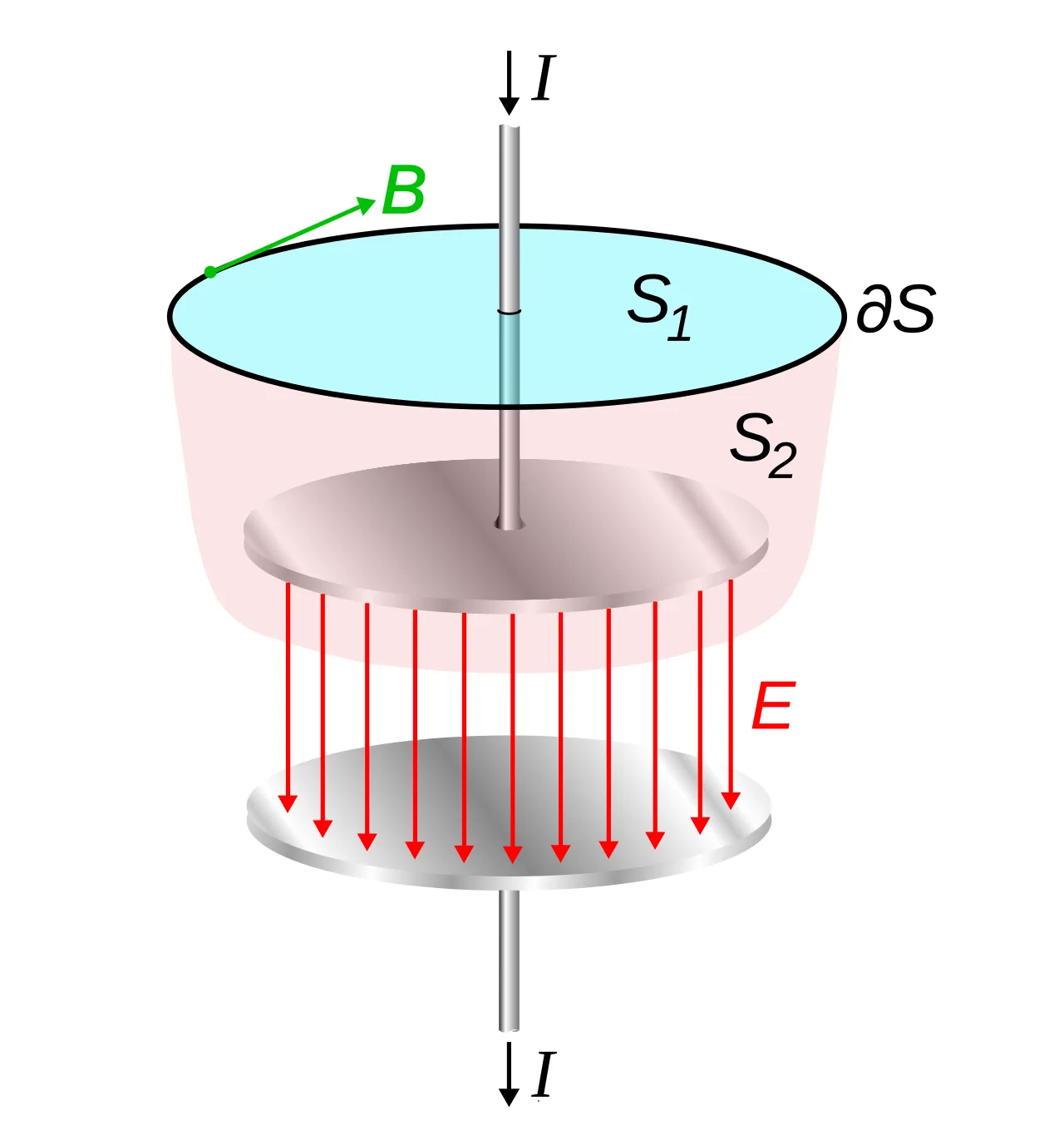

Capacitors serve as critical components in energy storage and pulsed power systems, leveraging their ability to store and dissipate electrical energy rapidly. Unlike batteries, which rely on chemical reactions, capacitors store energy in an electric field, allowing for quick charge and discharge cycles. This characteristic makes them ideal for applications requiring high power density and fast response times. The energy E stored in a capacitor is given by the formula E=21CV2, where C is the capacitance and V is the voltage across the plates.
Automotive and Uninterruptible Power Supplies
In car audio systems, capacitors are used to smooth out voltage fluctuations from the alternator, ensuring stable power delivery to speakers during high-demand moments. Similarly, in Uninterruptible Power Supplies (UPS), capacitors provide short-term power backup, bridging the gap between power failure and the activation of a generator or battery. These applications benefit from the capacitor's ability to pass AC signals while blocking DC, maintaining signal integrity and power stability.
High-Power Pulsed Applications
Capacitors are essential in high-power pulsed applications, such as Marx generators, fusion research, and nuclear weapons detonators. In a Marx generator, multiple capacitors are charged in parallel and discharged in series, creating a high-voltage pulse. This principle is also applied in fusion research, where capacitors store energy to create intense magnetic fields or drive plasma compression. In nuclear weapons, capacitors provide the precise, high-energy pulse needed to trigger detonators, ensuring synchronized explosion of the fuel.
Energy Density Comparison
| Component | Energy Density (Wh/kg) | Power Density (W/kg) |
|---|---|---|
| Supercapacitor | 5–10 | 10,000–100,000 |
| Lithium-ion Battery | 150–200 | 250–340 |
| Electrolytic Capacitor | 0.5–1 | 1,000–5,000 |
The table above compares the energy and power densities of different energy storage components. Supercapacitors offer higher power density, making them suitable for rapid energy release, while lithium-ion batteries provide greater energy density for longer-duration storage. Electrolytic capacitors, though lower in energy density, are valued for their compact size and reliability in various electronic systems.
Power conditioning and factor correction
Capacitors are fundamental components in power conditioning, serving to stabilize voltage levels and optimize energy transfer efficiency within electrical systems. In direct current (DC) power supplies, reservoir capacitors are employed to smooth the output of rectifiers. When alternating current (AC) is converted to DC, the resulting waveform often contains ripples. A reservoir capacitor charges during the peak voltage cycles and discharges during the troughs, thereby reducing voltage fluctuation and providing a more stable DC output for sensitive electronic loads. This smoothing action is critical in ensuring that downstream components receive consistent power, minimizing noise and improving overall system reliability.
In addition to smoothing, capacitors facilitate voltage conversion through charge pumps. These circuits use capacitors as energy storage elements to step up, step down, or invert DC voltage levels without the need for inductors or transformers. By switching capacitors between series and parallel configurations, charge pumps can achieve efficient voltage transformation, making them ideal for compact electronic devices where space and weight are constrained.
Power factor correction is another critical application of capacitors in electrical engineering. In alternating current systems, particularly three-phase networks, the phase difference between voltage and current can lead to a lagging power factor, often caused by inductive loads such as motors and transformers. Capacitors are connected in parallel with these loads to provide leading reactive power, which counteracts the lagging reactive power. This correction improves the power factor, reducing the apparent power drawn from the source and enhancing the efficiency of the transmission and distribution systems.
In high-voltage direct current (HVDC) transmission systems, capacitors play a vital role in filtering harmonic distortions and stabilizing the voltage. HVDC systems convert AC to DC for long-distance transmission and then back to AC at the receiving end. During this conversion, harmonics are introduced into the system. Capacitor banks are used in filter circuits to attenuate these harmonics, ensuring that the power quality remains high. Additionally, capacitors help in maintaining voltage stability during transient events, such as faults or sudden load changes, thereby enhancing the reliability of the HVDC link.
| Capacitor Type | Application in Power Conditioning |
|---|---|
| Electrolytic Capacitor | Reservoir capacitor for smoothing rectifier outputs |
| Ceramic Capacitor | Charge pumps for voltage conversion |
| Film Capacitor | Power factor correction in three-phase systems |
| Electrolytic Capacitor | Harmonic filtering in HVDC transmission |
Signal processing, filtering, and coupling
Capacitors are fundamental components in signal processing, primarily because they allow alternating current (AC) signals to pass while blocking direct current (DC) when charged. This characteristic makes them essential for coupling, where a capacitor connects one circuit segment to another, enabling signal transfer while isolating DC bias levels. In electronic systems, capacitors are so ubiquitous that it is rare for an electrical product to function without at least one serving a specific purpose, often related to signal integrity or power stability.
Filtering and Noise Suppression
The main components of filters are capacitors, which are critical for shaping signal frequencies. In low-pass and high-pass filters, capacitors work in conjunction with resistors or inductors to attenuate specific frequency ranges. For instance, a capacitor in series with a signal path forms a high-pass filter, blocking low-frequency DC components while allowing higher-frequency AC signals to pass. Conversely, a capacitor placed in parallel with the signal path creates a low-pass filter, shunting high-frequency noise to ground. These filtering capabilities are vital in power supplies and analog signal chains to ensure clean signal transmission.
Decoupling and Bypassing
In digital and mixed-signal circuits, capacitors are used for decoupling and bypassing to suppress noise and stabilize voltage levels. Decoupling capacitors are placed near the power pins of integrated circuits to provide a local reservoir of charge, reducing voltage fluctuations caused by rapid current demands. Bypass capacitors, often of smaller capacitance, are used to shunt high-frequency noise directly to ground, preventing it from interfering with sensitive components. These applications are crucial for maintaining signal integrity in complex electronic systems, where noise can lead to errors or instability.
Memory and Tuned Circuits
Beyond signal processing, capacitors play a key role in data storage and radio frequency applications. Dynamic Random Access Memory (DRAM) devices use capacitors to represent binary information as bits, storing charge to indicate a '1' or '0'. In radio receivers, capacitors are used in tuned circuits, often paired with inductors to select specific frequencies from a broad spectrum. Additionally, snubbers and grading capacitors are employed to suppress voltage spikes and distribute voltage evenly across components, enhancing the reliability of electrical systems. These diverse applications underscore the capacitor's versatility in modern electronics.
What are the safety hazards associated with capacitors?
Capacitors store electrical energy in an electric field, posing significant safety hazards if not handled correctly. The primary risk is electric shock from residual charge. Even after the power source is removed, a capacitor can retain a voltage high enough to deliver a painful or fatal shock. This is particularly dangerous in high-voltage DC links and analog audio circuits. This energy is released rapidly during a short circuit, creating heat and potential arcs.
Dielectric Absorption and Residual Charge
Dielectric absorption, or "soakage," is a phenomenon where a capacitor retains charge even after being discharged. The dielectric material absorbs some of the electric field, slowly releasing it back into the plates. This can cause a voltage to reappear across the terminals hours or days after initial discharge. This effect is prominent in electrolytic and ceramic capacitors. Engineers must account for this in high-precision analog circuits and safety discharge paths. Failure to consider dielectric absorption can lead to unexpected voltage spikes, damaging sensitive downstream components or shocking technicians who believe the component is fully discharged.
Historical Leakage and Oil-Filled Capacitors
Pre-1975 oil-filled capacitors present specific environmental and electrical hazards. These units often used Polychlorinated Biphenyls (PCBs) as the dielectric fluid. PCBs are semi-conductive and can leak through gaskets or cracks in the casing. This leakage creates conductive paths on Printed Circuit Boards (PCBs), leading to "creepage" currents and intermittent short circuits. PCBs are also toxic, posing a health risk if inhaled or absorbed through the skin during maintenance. The oil can also dry out, causing the capacitor to bulge or vent, potentially spraying hot dielectric fluid onto surrounding components. Modern mitigation involves sealing improvements and the gradual replacement of PCB-filled units with polymer or film alternatives.
Catastrophic Failures
Capacitors can fail catastrophically, resulting in thermal runaway, venting, or explosion. Electrolytic capacitors are prone to drying out over time, increasing Equivalent Series Resistance (ESR). High ESR leads to heat generation, which accelerates drying, creating a positive feedback loop. If the pressure relief vent fails, the capacitor can burst, spraying electrolyte and metal fragments. In high-voltage applications, dielectric breakdown can cause an arc flash, generating intense heat and light. This can ignite nearby flammable materials or shatter the capacitor case. Proper derating of voltage and temperature, along with adequate ventilation, reduces the likelihood of such failures.
Mitigation Strategies
Several strategies mitigate capacitor-related hazards. Discharge resistors are commonly used to bleed off residual charge. These resistors are placed in parallel with the capacitor, slowly draining the stored energy when power is removed. The time constant τ=RC determines the discharge speed. For high-voltage circuits, pre-charging resistors limit the in-rush current when the capacitor is first connected to the source, preventing fuse blowing or contactor welding. Snubber circuits, consisting of a resistor and capacitor in series, are used to suppress voltage spikes across inductive loads, protecting switches and transistors. Proper labeling, insulation, and regular inspection of capacitors are essential for long-term safety in electrical systems.
Sensing mechanisms and motor applications
Capacitors function as fundamental sensing elements in electronic systems by converting physical changes into measurable electrical signals. Variations in humidity, fuel levels, pressure, acceleration, and touch alter the dielectric properties or plate geometry of a capacitor, thereby changing its capacitance. This change is detected by circuitry to provide real-time data on the physical state of the environment or device. Such sensing mechanisms are ubiquitous in modern instrumentation and consumer electronics.
Capacitive Sensing Mechanisms
In humidity sensing, the dielectric material between capacitor plates absorbs moisture, changing its permittivity and thus the capacitance. Fuel level sensors utilize a vertical capacitor where the fuel acts as a dielectric; as the level rises, the effective dielectric constant increases, providing a linear measurement of volume. Pressure sensors often employ a diaphragm as one of the capacitor plates; when pressure is applied, the diaphragm deflects, changing the distance between plates and altering capacitance according to the relationship C=dεA, where ε is permittivity, A is area, and d is distance.
Acceleration sensors, commonly found in accelerometers, use a proof mass attached to a flexible structure. When acceleration occurs, the mass moves, changing the gap between capacitor plates. Touchscreens rely on the human body's capacitance; when a finger approaches or touches the screen, it alters the local electric field, changing the capacitance at that specific coordinate. These mechanisms allow for precise, non-contact or low-contact detection of physical interactions.
Motor Applications
Capacitors are critical in single-phase induction motors, which require a phase shift to create a rotating magnetic field for starting and running. In capacitor-start motors, a capacitor is placed in series with the auxiliary winding to provide a high starting torque. Once the motor reaches a certain speed, a centrifugal switch disconnects the capacitor. This configuration is common in appliances requiring high initial load, such as compressors and blowers.
Capacitor-run motors, also known as permanent-split-capacitor (PSC) motors, keep the capacitor in the circuit during operation. This provides smoother operation, higher efficiency, and better power factor compared to capacitor-start motors. These motors are widely used in fans, pumps, and conveyor systems where continuous, quiet operation is essential. The capacitor ensures that the current in the auxiliary winding leads the main winding current, creating the necessary phase difference for continuous rotation.
Worked examples: Capacitor selection for power rails
Selecting capacitors for power rail filtering requires balancing capacitance value, equivalent series resistance (ESR), and voltage derating to ensure stability and longevity. Engineers typically compare aluminum electrolytic, solid tantalum, and wet tantalum capacitors based on the specific noise profile and space constraints of the circuit.
Example 1: Voltage Derating for Aluminum Electrolytics
Consider a 12 V power rail requiring an aluminum electrolytic capacitor. Standard practice dictates derating the capacitor’s rated voltage to at least 1.5 times the nominal rail voltage to account for ripple and temperature coefficients. For a 12 V rail, the minimum rated voltage is calculated as 12 V × 1.5 = 18 V. Therefore, a 20 V or 25 V rated capacitor is selected. Using a 16 V capacitor would result in excessive stress, potentially reducing lifespan due to increased leakage current and heat generation.
Example 2: ESR Comparison: Solid vs. Wet Tantalum
For a 5 V rail with high-frequency noise, compare a solid tantalum and a wet tantalum capacitor. Solid tantalum capacitors offer lower ESR, making them ideal for high-frequency filtering. However, they are more susceptible to surge currents. Wet tantalum capacitors have higher ESR but better surge current handling. If the circuit has significant inrush current, a wet tantalum capacitor might be preferred despite its larger footprint. If space is constrained and surge currents are managed by a series resistor, the solid tantalum capacitor’s lower ESR provides superior high-frequency filtering performance.
Example 3: Capacitance Selection for Ripple Current
A 3.3 V rail requires filtering with a maximum ripple voltage of 100 mV at a switching frequency of 1 MHz. The required capacitance can be estimated using the formula C = I_ripple / (2 × π × f × V_ripple). Assuming a ripple current of 100 mA, the calculation is C = 0.1 A / (2 × π × 1,000,000 Hz × 0.1 V) ≈ 159 nF. A 220 nF ceramic capacitor would be selected to provide margin. If using an electrolytic capacitor, its higher ESR would require a larger capacitance value to achieve the same ripple reduction, illustrating the trade-off between component type and size.
