Overview
The Andasol solar power station represents a significant milestone in European renewable energy infrastructure as the continent's first commercial concentrated solar power (CSP) plant to utilize parabolic trough technology. Located in the province of Granada within the Andalusia region of Spain, the facility is situated near the town of Guadix. The name "Andasol" is a portmanteau derived from "Andalusia" and "Sol" (Spanish for sun), reflecting its geographic and technological identity. The plant is operated by Grupo ACS and has been in operational status since its commissioning in 2008. With an installed capacity of 149.7 MW, Andasol serves as a key reference project for solar thermal energy generation in Europe.
Unlike photovoltaic (PV) systems that convert sunlight directly into electricity, Andasol employs parabolic trough collectors to focus solar radiation onto a receiver tube containing a heat transfer fluid. This thermal energy is then used to generate steam, which drives a conventional steam turbine connected to an electrical generator. A defining feature of the Andasol plant is its integration of molten salt thermal energy storage. This technology allows the facility to continue generating electricity even when direct sunlight is intermittent or absent, such as during cloud cover or shortly after sunset. The molten salt acts as a thermal battery, storing excess heat collected during peak solar hours to maintain turbine operation during periods of lower irradiance.
The deployment of parabolic trough technology at Andasol marked a shift toward more dispatchable solar power in the European grid. By decoupling electricity generation from immediate solar availability, the plant enhances grid stability and provides a more predictable output compared to early solar PV installations. The 149.7 MW capacity places Andasol among the larger solar thermal facilities in the region, contributing significantly to Andalusia's renewable energy mix. The success of this project has influenced subsequent CSP developments across Spain and Europe, demonstrating the viability of molten salt storage as a method for extending the operational window of solar power stations.
How does the parabolic trough technology work?
The Andasol solar power station utilizes concentrated solar power (CSP) technology, specifically parabolic troughs, to generate electricity. This system distinguishes itself from photovoltaic farms by using thermal energy storage, allowing for power generation even when solar irradiance fluctuates or diminishes. The plant is recognized as Europe's first commercial facility to employ this specific parabolic trough configuration.
Parabolic Trough Collectors
The core of the technology involves long, curved mirrors arranged in parallel rows. These parabolic reflectors focus sunlight onto a receiver tube positioned along the focal line of the curve. The receiver contains a heat transfer fluid that absorbs the concentrated solar radiation. As the fluid heats up, it circulates through the system to transfer thermal energy to the storage medium. This mechanical concentration of solar energy allows for higher operating temperatures compared to standard photovoltaic cells.
Molten Salt Thermal Storage
A critical component of the Andasol design is the use of molten salt as both a heat transfer and storage medium. The salt mixture consists of 60% sodium nitrate and 40% potassium nitrate. This eutectic mixture remains liquid over a wide temperature range, making it ideal for storing thermal energy. The heated salt is pumped into insulated storage tanks, retaining heat for several hours. This enables the plant to continue generating electricity irrespective of whether the sun is shining, providing a degree of dispatchability rare among solar technologies.
Technical Specifications
| Parameter | Value |
|---|---|
| Technology Type | Concentrated Solar Power (Parabolic Trough) |
| Installed Capacity | 149.7 MW (per grounding data); cited as 150 MW in general references |
| Heat Transfer Fluid | Molten Salt (60% Sodium Nitrate, 40% Potassium Nitrate) |
| Location | Near Guadix, Andalusia, Spain |
| Commissioning Year | 2008 |
| Operator | Grupo ACS |
The integration of these systems allows for efficient energy conversion. The thermal energy stored in the molten salt drives a steam turbine connected to a generator, producing electricity. This process decouples power generation from immediate solar input, enhancing grid stability. The specific composition of the salt mixture ensures optimal thermal conductivity and stability at operating temperatures, which are critical for the longevity and efficiency of the CSP plant.
Development history and ownership
The Andasol solar power station represents Europe's first commercial concentrated solar power (CSP) plant utilizing parabolic trough technology. Located near Guadix in Andalusia, Spain, the facility's name is a portmanteau of "Andalusia" and "Sol" (sun). The project was developed by Solar Millennium, a German renewable energy company, which spearheaded the initial construction phases. The plant employs molten salt tanks for thermal energy storage, allowing electricity generation to continue irrespective of solar irradiance levels.
Construction Phases
The development of the Andasol complex occurred in three distinct phases. Andasol-1 was the first unit to be commissioned, with operations beginning in 2008. This initial phase established the technical viability of large-scale parabolic trough CSP in the European market. The project utilized technology supplied by MAN Ferrostaal, a major engineering firm involved in the design and construction of the solar field and power block. Andasol-2 and Andasol-3 followed in subsequent years, expanding the total installed capacity of the site. The cumulative capacity of the three units reaches approximately 150 MW, with the specific operational capacity recorded at 149.7 MW.
Ownership and Operation
The operational management of the Andasol solar power station is handled by Grupo ACS, a leading Spanish infrastructure and construction group. ACS Cobra, a subsidiary of Grupo ACS, played a significant role in the engineering, procurement, and construction (EPC) of the facilities. Over time, the ownership structure of the Andasol assets evolved through strategic investments. Antin Infrastructure Partners, a European infrastructure investment manager, acquired a stake in the project, bringing financial stability and long-term investment horizons to the operation. Additionally, Cubico Sustainable Investments became involved in the ownership structure, highlighting the growing interest of sustainable investment funds in established CSP assets. These ownership changes reflect the maturation of the CSP sector in Europe, transitioning from initial development by specialized solar companies to broader infrastructure investment portfolios.
What are the economic and policy factors?
The development of the Andasol solar power station was heavily influenced by the economic framework established by Spanish energy policy, specifically the introduction of feed-in tariffs designed to incentivize concentrated solar power (CSP) adoption. The project required a total construction cost of €900 million, a significant capital expenditure for a 150 MW facility. This investment was justified by the financial stability offered by the Spanish government’s renewable energy subsidy scheme, which guaranteed a fixed price for electricity generated and fed into the grid.
A critical component of the economic model was the feed-in tariff rate, which was set at €0.271 per kilowatt-hour (kWh). This rate allowed the operator, Grupo ACS, to predict revenue streams over the life of the plant, mitigating the risk associated with the technology’s initial commercial deployment. The tariff structure was designed to account for the high levelized cost of energy (LCOE) typical of early CSP projects, particularly those utilizing parabolic trough technology and molten salt thermal energy storage.
Financial Structure and Subsidy Disputes
The reliance on government subsidies exposed the project to policy volatility. Changes in Spanish renewable energy policy led to significant disputes, culminating in an International Centre for Settlement of Investment Disputes (ICSID) ruling regarding the adequacy of the subsidies. The ICSID case highlighted the tension between the need for stable long-term returns for investors and the fiscal pressures on the national grid operator. The ruling had broader implications for the renewable energy sector in Spain, affecting investor confidence in future CSP and photovoltaic projects.
| Financial Metric | Value | Notes |
|---|---|---|
| Total Construction Cost | €900 million | Capital expenditure for the 150 MW plant |
| Feed-in Tariff Rate | €0.271/kWh | Guaranteed price for electricity generated |
| Dispute Mechanism | ICSID Ruling | International Centre for Settlement of Investment Disputes |
The economic viability of Andasol depended on the interplay between these fixed costs and the variable revenue from the feed-in tariff. The ICSID ruling served as a precedent for how international investment law could be applied to domestic energy policy changes, influencing the financial modeling of subsequent solar thermal projects in Europe. The case underscored the importance of regulatory stability in attracting foreign direct investment in the energy infrastructure sector.
Site selection and environmental context

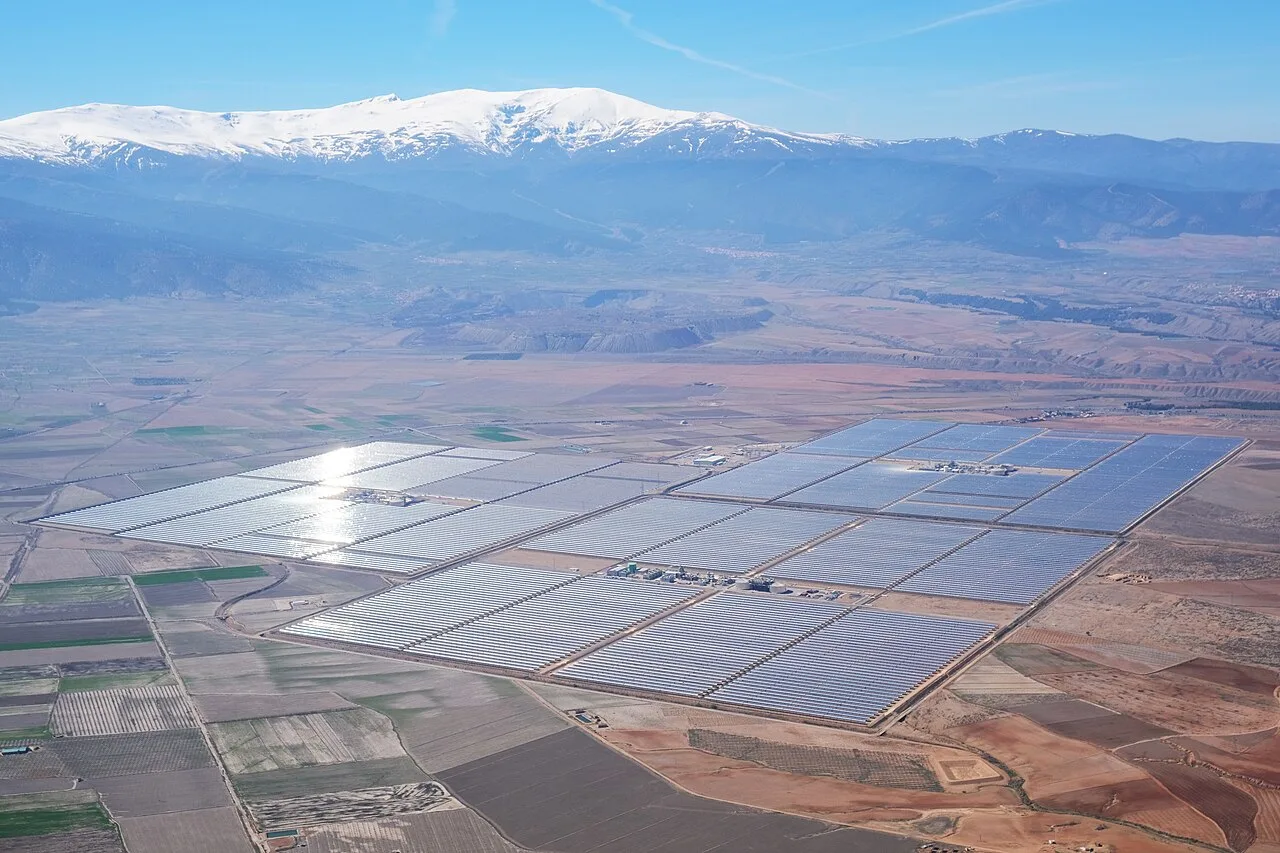

The Andasol solar power station is situated near Guadix in the Andalusia region of Spain, a location chosen for its exceptional solar resource potential. The plant’s name is a portmanteau of “Andalusia” and “Sol” (sun), reflecting its geographical and functional identity. The site benefits from a high direct normal irradiance, with annual direct insolation reaching approximately 2200 kWh/m². This high level of solar flux is critical for concentrated solar power (CSP) systems, which rely on focused sunlight to heat a working fluid. The altitude of the site, approximately 1100 m above sea level, further enhances solar intensity by reducing atmospheric attenuation of solar radiation.
Thermal Energy Storage and Cooling
The parabolic trough collectors focus sunlight onto receiver tubes containing the heat transfer fluid, which then heats the molten salt stored in large insulated tanks. This stored thermal energy can be used to produce steam and drive turbines during peak demand or at night.
The cooling system is a significant operational consideration for the Andasol plant. As a concentrated solar power facility, it requires a substantial amount of water for condensing the steam in the turbine cycle. The plant consumes approximately 870,000 cubic meters of water per year for cooling purposes. This water demand is a key environmental factor in the arid Andalusian landscape, where water resources can be relatively scarce. The choice of cooling technology and the resulting water footprint are critical aspects of the plant’s environmental impact assessment.
The combination of high solar insolation, strategic altitude, and advanced thermal storage technology makes the Andasol site a model for CSP development in Europe. The plant’s operational success demonstrates the viability of parabolic trough technology in regions with high direct solar radiation, while also highlighting the importance of water management in solar thermal power generation.
Why it matters
Its commissioning in 2008 marked a critical transition for Concentrated Solar Power (CSP) in Europe, moving the technology from experimental pilot projects to a viable, utility-scale generation asset. The facility’s location near Guadix in Andalusia, Spain, provided the necessary solar irradiance to validate the parabolic trough design for large-scale electricity production, establishing a benchmark for subsequent CSP developments across the Iberian Peninsula and beyond.
Molten Salt Thermal Energy Storage
Unlike photovoltaic (PV) systems that typically require battery arrays or grid inertia to maintain output, Andasol uses tanks of molten salt to store thermal energy. This allows the plant to continue generating electricity irrespective of whether the sun is shining, thereby enhancing the dispatchability of solar power. The use of molten salt enables the plant to smooth out intermittency, providing a more stable power output to the grid compared to non-stored CSP or standard PV installations.
Operational Viability and Capacity
With a capacity of 149.7 MW, Andasol demonstrated that CSP plants could achieve significant scale while maintaining operational reliability. Operated by Grupo ACS, the plant’s success helped justify further investments in the CSP sector in Europe during the late 2000s and early 2010s. The plant’s name, a portmanteau of Andalusia and Sol, reflects its regional identity, but its technical legacy lies in proving that thermal storage could make solar power a competitive baseload or intermediate load source. This operational model has influenced the design of later CSP projects, emphasizing the value of thermal inertia in solar generation.
