Overview

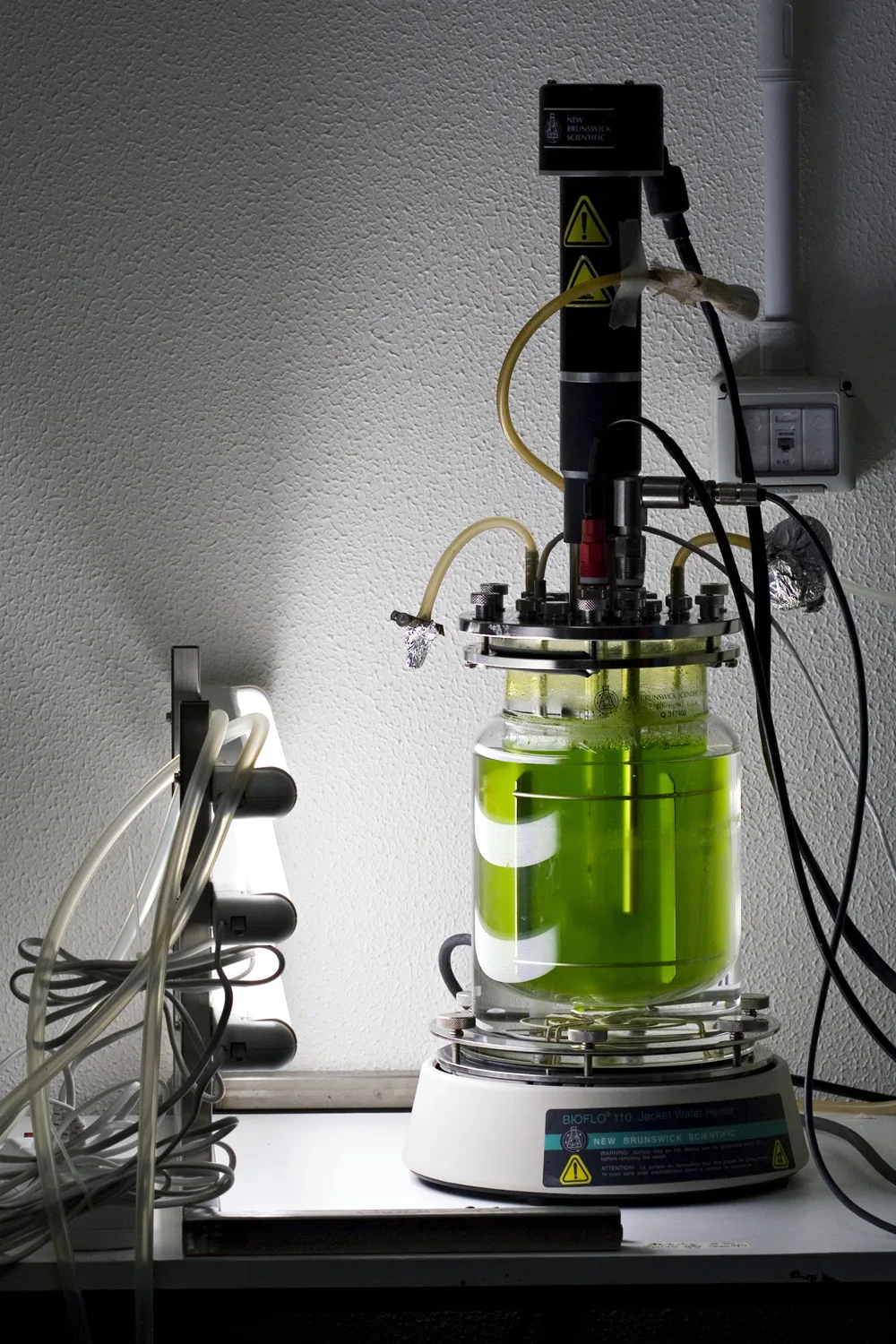

An algae bioreactor is a specialized system used for cultivating micro or macroalgae. These systems are operational and utilize biomass as the primary fuel or source material. Algae bioreactors serve multiple functions, including biomass production, wastewater treatment, CO2 fixation, and aquarium or pond filtration in the form of an algae scrubber. The technology is fundamentally based on the photosynthetic reaction, which is performed by chlorophyll-containing algae using dissolved carbon dioxide and sunlight.
Design Categories
Algae bioreactors vary widely in design and fall broadly into two categories: open reactors and enclosed reactors. Open reactors are exposed to the atmosphere, allowing for direct interaction with environmental conditions. Enclosed reactors, also commonly called photobioreactors, are isolated to varying extents from the atmosphere, providing more controlled environments for algae growth. The bioreactor must be made out of transparent material to allow sunlight penetration, which is essential for the photosynthetic process.
Photosynthetic Principles
The core mechanism of an algae bioreactor relies on the photosynthetic reaction. Algae use chlorophyll to convert dissolved carbon dioxide and sunlight into energy. The carbon dioxide is dispersed into the reactor fluid to make it accessible to the algae. This process is fundamental to the operation of the bioreactor, enabling the cultivation of algae for various purposes. The transparent material of the bioreactor ensures that sunlight reaches the algae, facilitating efficient photosynthesis.
Primary Purposes
Algae bioreactors are used for several key purposes. They can produce fuels such as biodiesel and bioethanol, contributing to renewable energy production. Additionally, they generate animal feed, providing a sustainable source of nutrition for livestock. Algae bioreactors also play a role in reducing pollutants such as NOx and CO2 in the flue gases of power plants, thereby improving air quality. These applications highlight the versatility and importance of algae bioreactors in various industries.
History of algae cultivation
The conceptual foundation of algae bioreactors lies in the fundamental principles of photosynthesis. This biological process involves chlorophyll-containing algae utilizing dissolved carbon dioxide and sunlight to generate biomass. The chemical basis for this reaction is often represented by the general equation: 6CO₂ + 6H₂O + light energy → C₆H₁₂O₆ + 6O₂. Early scientific inquiry into these mechanisms began in the late 19th century. Martinus Beijerinck conducted pioneering experiments in 1890, establishing early understandings of algal cultivation dynamics. These initial studies laid the groundwork for viewing algae not merely as aquatic flora but as efficient biological converters of solar energy and carbon sources.
Early Industrial Applications and Wartime Cultivation
Practical application of algae cultivation accelerated significantly during the 20th century. During World War II, Germany utilized open pond systems to cultivate algae for industrial purposes. These early open reactors were exposed directly to the atmosphere, representing the first major category of bioreactor design. The German efforts demonstrated the viability of large-scale biomass production using relatively simple infrastructure. This period marked a transition from laboratory-scale observation to semi-industrial cultivation, proving that algae could be harvested in significant quantities under controlled environmental conditions.
Post-War Research and Institutional Development
Following the war, research into algae bioreactors continued to evolve. In 1957, the Carnegie Institution conducted significant research that further advanced the understanding of algal productivity and system design. This era saw the beginning of more structured investigations into the efficiency of different reactor types. While open reactors remained common, the limitations of atmospheric exposure began to drive interest in enclosed systems, later termed photobioreactors. These enclosed designs offered greater isolation from the atmosphere, allowing for more precise control over environmental variables such as temperature, light intensity, and gas exchange. The progression from Beijerinck’s initial experiments to mid-20th-century institutional research established the technical lineage of modern algae bioreactor technology.
How do algae bioreactors work?
Algae bioreactors operate fundamentally on the principle of photosynthesis, a metabolic process performed by chlorophyll-containing micro or macroalgae. This biological mechanism converts dissolved carbon dioxide and sunlight into biomass, serving as the core engine for cultivation purposes such as biomass production, wastewater treatment, and CO2 fixation. The system requires the dispersion of carbon dioxide into the reactor fluid to ensure accessibility to the algae, while the bioreactor structure itself must be constructed from transparent material to allow light penetration. This transparency is critical for the photosynthetic reaction, enabling the algae to harness solar energy efficiently within the enclosed or open environment.
Photosynthetic Mechanism and CO2 Fixation
The central biochemical process involves the algae utilizing chlorophyll to capture light energy. This energy drives the conversion of carbon dioxide and water into organic compounds, primarily carbohydrates, and oxygen. In the context of power plants, this mechanism is leveraged to reduce pollutants such as NOx and CO2 in flue gases. The carbon dioxide is actively dispersed into the reactor fluid, increasing its solubility and availability for the algae. This process not only facilitates biomass growth but also serves as a natural carbon capture method, fixing atmospheric or flue gas CO2 into solid organic matter. The efficiency of this fixation depends on the continuous supply of dissolved CO2 and the optimal exposure to sunlight through the transparent bioreactor walls.
Environmental Factors and Reactor Design
Effective operation of algae bioreactors depends on several environmental factors, including pH, temperature, and light intensity. These variables directly influence the metabolic rate of the algae and the overall yield of biomass. Algae bioreactors vary widely in design, falling broadly into two categories: open reactors and enclosed reactors. Open reactors are exposed to the atmosphere, allowing for natural gas exchange and temperature regulation, while enclosed reactors, also commonly called photobioreactors, are isolated to varying extents from the atmosphere. This isolation allows for more precise control over environmental conditions, such as maintaining optimal pH levels and protecting the algae from external contaminants. The choice between open and enclosed systems depends on the specific cultivation goals, whether for fuel production like biodiesel and bioethanol, animal feed generation, or aquarium and pond filtration in the form of an algae scrubber. Each design offers distinct advantages in managing light intensity and temperature, which are critical for sustaining high rates of photosynthesis and biomass accumulation.
What are the main types of algae bioreactors?
Open vs. Enclosed Systems
Algae bioreactors are fundamentally categorized into open and enclosed systems, each designed to optimize the photosynthetic reaction performed by chlorophyll-containing algae. This process utilizes dissolved carbon dioxide and sunlight to cultivate micro or macroalgae for biomass production, wastewater treatment, or CO2 fixation. The choice between system types depends on the required isolation from the atmosphere and the specific end-use, such as producing fuels like biodiesel and bioethanol or generating animal feed.
Open Reactors
Open reactors are exposed directly to the atmosphere. These systems, which include simple ponds and raceway ponds, are often utilized for large-scale biomass production, such as in seaweed cultivators. Because they are open to the environment, they are generally simpler in design but offer less control over external variables compared to enclosed systems.
Enclosed Photobioreactors
Enclosed reactors, commonly referred to as photobioreactors, are isolated to varying extents from the atmosphere. This category includes designs such as flat plate, tubular, and bubble column reactors. These systems are critical for applications requiring higher purity, such as aquarium or pond filtration in the form of an algae scrubber, or for reducing pollutants like NOx and CO2 in the flue gases of power plants. The bioreactor must be constructed from transparent material to allow sunlight penetration. Carbon dioxide is dispersed into the reactor fluid to ensure accessibility for the algae.
| Feature | Open Reactors | Enclosed Photobioreactors |
|---|---|---|
| Atmospheric Exposure | Exposed to atmosphere | Isolated to varying extents |
| Common Designs | Simple ponds, raceway ponds | Flat plate, tubular, bubble column |
| Material Requirement | Varies | Transparent material |
| Primary Uses | Biomass production, seaweed cultivation | Fuel production, wastewater treatment, CO2 fixation, algae scrubbers |
Applications in energy and industry
Algae bioreactors serve critical functions in the energy sector and industrial processing by leveraging the photosynthetic capabilities of micro and macroalgae. A primary application is the production of renewable biofuels, specifically biodiesel and bioethanol. These fuels are derived from the biomass generated within the reactor, offering a sustainable alternative to fossil fuels. The process relies on the fundamental photosynthetic reaction performed by chlorophyll-containing algae, which utilize dissolved carbon dioxide and sunlight to generate organic matter. This biological conversion process can be represented by the general photosynthetic equation:
6CO2+6H2O+light→C6H12O6+6O2The bioreactor must be constructed from transparent material to maximize light penetration, ensuring efficient photosynthesis and subsequent biomass accumulation for fuel extraction.
Carbon Dioxide Fixation in Power Plants
In the power generation industry, algae bioreactors are employed to reduce pollutants in flue gases. Specifically, they target nitrogen oxides (NOx) and carbon dioxide (CO2). The carbon dioxide is dispersed into the reactor fluid, making it accessible to the algae for fixation. This process not only mitigates greenhouse gas emissions but also enhances the growth rate of the algae, thereby increasing biomass yield. The integration of algae bioreactors into power plant infrastructure provides a dual benefit: waste gas treatment and simultaneous biomass production for energy or feed.
Wastewater Treatment and Filtration
Beyond energy production, algae bioreactors are utilized for wastewater treatment and filtration systems. They function as algae scrubbers in aquariums and ponds, removing excess nutrients and improving water quality. In industrial settings, the cultivation of algae helps in the bioremediation of wastewater by absorbing dissolved organic and inorganic compounds. This application supports sustainable water management while providing additional biomass that can be further processed for energy or industrial use. The versatility of algae bioreactors allows them to adapt to various environmental conditions, making them a valuable tool in both open and enclosed reactor designs.
Microgeneration and architectural integration
The integration of algae bioreactors into architectural structures represents a significant application of biomass cultivation for microgeneration and building efficiency. This approach leverages the photosynthetic reaction, where chlorophyll-containing algae use dissolved carbon dioxide and sunlight to produce biomass, effectively turning building facades into living energy systems. By enclosing reactors or using open designs exposed to the atmosphere, architects can harness algae for biodiesel production, bioethanol generation, and flue gas purification, reducing pollutants such as NOx and CO2.
The BIQ House in Germany
A prominent case study is the BIQ House in Germany, completed in 2013. This structure utilizes enclosed photobioreactors integrated into the building’s facade. The transparent material of the bioreactor allows sunlight to penetrate, facilitating the photosynthetic process while providing dynamic shading and thermal insulation. The system captures CO2 and converts it into biomass, which can be harvested for biofuel. This integration demonstrates how algae bioreactors can contribute to a building's energy balance and reduce its carbon footprint.
Green Power House in Montana
Another notable example is the Green Power House in Montana. This project explores the use of algae bioreactors for microgeneration and wastewater treatment. The bioreactors are designed to cultivate algae that can be used for animal feed or biofuel production. The system also helps in filtering water and reducing pollutants, showcasing the versatility of algae bioreactors in different environmental contexts.
Challenges: Durability and Maintenance
Despite their potential, algae bioreactors face several challenges, particularly regarding durability and maintenance costs. The transparent materials used in enclosed reactors must withstand environmental stresses, including UV radiation and temperature fluctuations. Maintenance is required to prevent contamination and ensure optimal algae growth. These factors can increase the operational costs of integrating algae bioreactors into architectural designs.
In summary, while algae bioreactors offer promising solutions for microgeneration and architectural integration, their widespread adoption depends on overcoming technical and economic hurdles. The BIQ House and Green Power House provide valuable insights into the practical applications and challenges of this innovative technology.
Economic and environmental significance
Algae bioreactors offer distinct economic and environmental advantages over traditional agricultural biomass production. The fundamental driver of this potential is the high photosynthetic efficiency of chlorophyll-containing algae, which utilize dissolved carbon dioxide and sunlight to generate biomass. This biological process allows for rapid growth rates that often surpass those of terrestrial crops, enabling higher yields per unit of land or water. The economic significance is further enhanced by the versatility of the resulting biomass, which can be processed into various high-value products.
Biomass Production and Fuel Potential
The primary economic output of algae cultivation is biomass, which serves as a feedstock for several industries. Algae bioreactors are specifically utilized to produce fuels such as biodiesel and bioethanol. These biofuels represent a renewable alternative to fossil fuels, contributing to energy security and diversification. Additionally, the biomass can be converted into animal feed, providing a sustainable protein source for the agricultural sector. The ability to generate multiple revenue streams from a single biological process improves the overall economic viability of algae bioreactor systems.
Environmental Impact and Emission Credits
From an environmental perspective, algae bioreactors play a crucial role in carbon dioxide fixation and wastewater treatment. The bioreactor design facilitates the dispersion of carbon dioxide into the reactor fluid, making it accessible to the algae for photosynthesis. This process effectively reduces pollutants such as NOx and CO2 in the flue gases of power plants, offering a mechanism for emission credits in carbon trading markets. The enclosed nature of photobioreactors allows for better control over the atmospheric exchange, enhancing the efficiency of CO2 capture compared to open systems. Furthermore, the use of algae for wastewater treatment and aquarium or pond filtration helps in reducing nutrient loads and improving water quality.
Food and Pharmaceutical Applications
Beyond energy and environmental applications, algae bioreactors support the production of food and pharmaceutical products. The controlled environment of enclosed reactors ensures a higher purity of the algae, which is essential for pharmaceutical and nutraceutical uses. Algae are rich in proteins, lipids, and bioactive compounds, making them valuable ingredients in health supplements and functional foods. The scalability of bioreactor technology allows for the consistent production of these high-value compounds, meeting the growing demand in the global market. The transparent material of the bioreactor is critical for maximizing light penetration, which directly influences the metabolic pathways responsible for producing these beneficial compounds.
