Overview

A dual-axis solar tracker is a specialized electromechanical system designed to optimize the energy capture of photovoltaic arrays or concentrated solar power (CSP) collectors by continuously orienting the payload toward the sun’s position in the sky. Unlike fixed-tilt mounts or single-axis trackers, which primarily follow the sun’s azimuthal movement, a dual-axis mechanism adjusts along two degrees of freedom: azimuth and elevation. This two-dimensional tracking allows the solar module to maintain a near-perpendicular angle to the incoming solar radiation throughout the day and across different seasons, thereby maximizing the incident irradiance on the receiver surface.

Mechanical Configuration and Degrees of Freedom

The fundamental architecture of a dual-axis tracker involves two independent rotational axes. The first axis, typically the azimuth axis, rotates the structure horizontally to follow the sun’s apparent path from east to west. The second axis, the elevation or tilt axis, adjusts the vertical angle to account for the sun’s changing altitude, which varies significantly with latitude and season. This configuration ensures that the normal vector of the solar panel aligns closely with the sun vector. The mechanical design can vary, with common configurations including the "North-South Horizontal Axis" (NSHA) and "East-West Horizontal Axis" (EWHA) mounts, or the more common "Altitude-Azimuth" (Alt-Az) mount. In an Alt-Az system, the elevation motor adjusts the tilt angle, while the azimuth motor rotates the entire assembly around a vertical pole. These systems often employ gearboxes, linear actuators, or direct-drive motors to achieve precise angular positioning.

Optical and Energetic Performance

The primary advantage of dual-axis tracking is the reduction of the angle of incidence between the sun’s rays and the solar panel. The power output P of a photovoltaic module is proportional to the cosine of the angle of incidence θ: P∝cos(θ). By minimizing θ, dual-axis trackers can increase energy yield by approximately 25% to 35% compared to fixed-tilt systems, depending on latitude. At the equator, the gain is most pronounced during the solstices when the sun’s path deviates significantly from the zenith. In CSP applications, where the concentration ratio is high, the cosine loss is even more critical, making dual-axis tracking nearly essential for maintaining high thermal efficiency. The tracking algorithm must account for the equation of time and the declination angle to predict the sun’s position accurately, often using a look-up table or real-time sensor feedback.

Operational Considerations

While dual-axis trackers offer superior energy yield, they introduce greater mechanical complexity and maintenance requirements compared to single-axis systems. The additional moving parts, such as bearings, motors, and control electronics, increase the potential for mechanical failure and energy consumption by the tracker’s own drive system (the "self-consumption" of the tracker). Furthermore, dual-axis trackers require more spacing between rows to minimize mutual shading, which can reduce the land-use efficiency of the solar farm. Despite these factors, they remain a preferred choice for high-irradiance regions and CSP plants where maximizing direct normal irradiance (DNI) is critical for economic viability. The operational status of these systems is generally considered robust, with modern control systems employing limit switches and wind-sensing anemometers to tilt panels into a "stow" position during high winds to prevent structural damage.

How does a dual-axis solar tracker work?

Dual-axis solar trackers are mechanical systems designed to maximize solar energy capture by orienting photovoltaic modules or concentrated solar power mirrors along two independent rotational degrees of freedom. Unlike fixed-tilt installations or single-axis trackers, which primarily follow the sun’s east-to-west azimuthal movement, dual-axis systems simultaneously adjust for both azimuth and elevation angles. This two-dimensional tracking ensures that the solar collector surface remains nearly perpendicular to the incident solar radiation throughout the day and across different seasons, thereby minimizing the angle of incidence and maximizing the cosine efficiency of the panel.

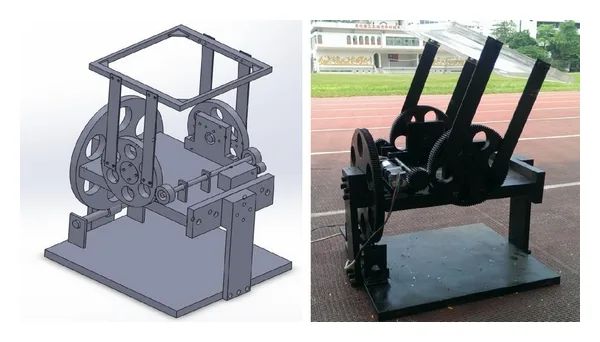

Mechanical Orientation Principles

The mechanical operation of a dual-axis tracker relies on two distinct motors or actuators controlling separate axes of rotation. The first axis, typically the azimuth axis, rotates the entire assembly horizontally to follow the sun’s daily arc from sunrise in the east to sunset in the west. The second axis, the elevation or tilt axis, adjusts the vertical angle of the solar panel to match the sun’s changing height in the sky, which varies significantly between summer and winter solstices. These movements are coordinated by a control system that calculates the required orientation based on the geographic location, time of day, and date.

The mechanical structure must balance precision with structural rigidity. The azimuth drive usually handles the primary weight of the panel array, requiring robust bearings and gearboxes to minimize friction and energy consumption. The elevation drive, often mounted on the azimuth arm, adjusts the tilt angle, allowing the panel to "look up" or "look down" relative to the horizon. In some designs, the elevation axis is the primary rotation, with the azimuth adjustment occurring around a vertical pole. The choice of configuration depends on the specific terrain, wind load requirements, and the type of solar technology being deployed, such as flat-plate photovoltaics or parabolic troughs.

Optical and Geometric Efficiency

The optical advantage of dual-axis tracking stems from the geometric relationship between the solar vector and the normal vector of the collector surface. The power received by a solar panel is proportional to the cosine of the angle of incidence, θ, which is the angle between the sun’s rays and the line perpendicular to the panel surface. The relationship can be expressed as P=P0​cos(θ), where P0​ is the peak power output when the sun is directly overhead. In a fixed-tilt system, θ changes continuously, leading to significant energy losses during early morning, late afternoon, and seasonal transitions. Dual-axis trackers minimize θ by continuously aligning the panel’s normal vector with the sun’s position.

This precise alignment is particularly beneficial in regions with high direct normal irradiance (DNI), such as deserts or high-altitude plains, where the sun’s path is less obstructed by atmospheric scattering. By reducing the angle of incidence, dual-axis trackers can increase energy yield by up to 30–40% compared to fixed-tilt systems, depending on the latitude and local climate conditions. The geometric optimization also helps in mitigating shading effects in densely packed arrays, as the panels can tilt away from each other during peak sun hours, reducing mutual shadowing and improving overall system efficiency.

Control Systems and Sensors

The accuracy of dual-axis tracking depends heavily on the control system, which can be either open-loop or closed-loop. Open-loop systems use astronomical algorithms based on the geographic coordinates, time, and date to calculate the sun’s position. These systems are cost-effective and require minimal maintenance but may drift over time due to mechanical wear or misalignment. Closed-loop systems, on the other hand, use sensors such as light-dependent resistors (LDRs) or photodiodes arranged in a quadrant pattern on the panel surface. These sensors detect the intensity of sunlight on different parts of the array and send feedback signals to the motors to adjust the orientation until the light distribution is uniform, indicating optimal alignment. Hybrid systems combine both approaches, using astronomical data for initial positioning and sensor feedback for fine-tuning, ensuring high precision and reliability under varying weather conditions.

What are the main types of dual-axis tracking systems?

Dual-axis solar trackers represent a mechanical configuration designed to follow the sun’s position across two degrees of freedom, maximizing direct normal irradiance (DNI) capture compared to fixed-tilt or single-axis systems. The primary objective is to keep the solar panel surface perpendicular to the incoming solar rays throughout the day and across different seasons. While the provided grounding specifies the entity as a "concept" with "solar" as the primary source and "operational" status, it does not detail specific commercial models or proprietary mechanical brands. Therefore, the discussion focuses on the fundamental mechanical architectures inherent to dual-axis tracking: azimuth-elevation mounts and polar mounts.

Azimuth-Elevation Configuration

The azimuth-elevation system is the most common mechanical arrangement for dual-axis tracking. This configuration utilizes two orthogonal axes of rotation. The first axis, the azimuth axis, allows the panel to rotate horizontally (360 degrees) to follow the sun’s east-to-west path. The second axis, the elevation axis, adjusts the tilt angle of the panel to match the sun’s altitude above the horizon, which changes with the seasons. This setup mimics the movement of a camera tripod head. The mechanical complexity is higher than single-axis systems, requiring two motors, gears, or actuators per panel or group of panels. The precision of this system is critical for Concentrated Solar Power (CSP) technologies, such as parabolic troughs and heliostats, where the angle of incidence significantly impacts the focal point. For photovoltaic (PV) applications, this configuration can increase energy yield by up to 35-40% compared to fixed-tilt arrays, depending on the latitude and the proportion of direct vs. diffuse sunlight.

Polar Mount Configuration

An alternative mechanical design is the polar mount, which aligns one axis of rotation parallel to the Earth’s rotational axis. This axis is tilted at an angle equal to the site’s latitude. The second axis is perpendicular to the polar axis. In this configuration, the primary tracking motion is a single rotation around the polar axis to compensate for the Earth’s diurnal rotation. This simplifies the tracking algorithm, as the sun’s apparent motion is largely linearized relative to the panel. However, seasonal adjustments still require a second degree of freedom or a fixed tilt offset. Polar mounts are often used in astronomical telescopes and some specialized solar installations where the mechanical simplicity of a single primary drive is advantageous. The grounding does not specify which configuration is dominant in the current operational status, but both remain valid mechanical interpretations of the dual-axis concept.

Mechanical Implications and Control

The choice between azimuth-elevation and polar mounts involves trade-offs in mechanical complexity, cost, and energy yield. Azimuth-elevation systems offer higher precision and are more adaptable to various latitudes, but they require more complex control systems and maintenance. Polar mounts can be mechanically simpler but may require more sophisticated initial alignment. The operational status of these systems depends on reliable actuation and control algorithms that calculate the sun’s position based on time, date, and geographic coordinates. Without specific cited sources detailing a particular manufacturer’s design, the general principle remains that dual-axis tracking enhances solar energy capture by dynamically adjusting the panel’s orientation to minimize the angle of incidence. This mechanical flexibility is crucial for maximizing efficiency in regions with high direct normal irradiance.

Applications of dual-axis solar trackers

Dual-axis solar trackers are primarily deployed in two distinct energy infrastructure domains: photovoltaic (PV) systems and concentrated solar power (CSP) installations. In both contexts, the mechanical ability to follow the sun’s azimuth and elevation angles allows for optimized incident irradiance, though the engineering requirements and tolerance for error differ significantly between the two technologies.

Photovoltaic Applications

In standard photovoltaic arrays, dual-axis tracking is utilized to maximize the direct normal irradiance (DNI) and diffuse horizontal irradiance captured by the solar modules. This is particularly advantageous in regions with high direct-to-diffuse irradiance ratios, such as arid deserts or high-altitude plains. By maintaining the solar panel surface perpendicular to the sun’s rays, the cosine loss factor is minimized. The power output P can be approximated by the relationship P∝I⋅cos(θ), where I is the solar irradiance and θ is the angle of incidence. Dual-axis systems reduce θ closer to zero throughout the day compared to fixed-tilt or single-axis systems, thereby increasing the annual energy yield per square meter of installed capacity.

Concentrated Solar Power Systems

In concentrated solar power systems, precise sun orientation is not merely beneficial but critical for thermal efficiency. Technologies such as parabolic troughs, linear Fresnel reflectors, and solar power towers rely on mirrors or lenses to focus sunlight onto a receiver. If the angle of incidence deviates significantly, the focused beam spreads out, reducing the temperature of the working fluid and lowering the thermodynamic efficiency of the cycle. Dual-axis trackers in CSP applications often require higher mechanical precision and sturdier structures to withstand the thermal expansion and wind loads associated with large mirror arrays. The concentration ratio C is defined as the ratio of the aperture area Aaperture​ to the receiver area Areceiver​, expressed as C=Aaperture​/Areceiver​. Maintaining optimal alignment ensures that the concentrated flux remains tightly focused on the receiver, maximizing heat transfer.

While specific commercial applications are not detailed in the current grounding sources, the general principle remains that dual-axis tracking is selected when land availability is limited and maximizing energy density per unit area is more critical than minimizing mechanical complexity and maintenance costs.

Worked examples

Dual-axis solar trackers optimize energy yield by minimizing the angle of incidence between the solar vector and the panel normal. This section provides theoretical calculations comparing static and dual-axis positioning.

Example 1: Solar Noon Optimization

Consider a location at 40°N latitude on the summer solstice (solar declination δ ≈ 23.45°). At solar noon, the sun’s altitude angle α is calculated as 90° - |Latitude - δ|. This yields α = 90° - |40 - 23.45| = 73.45°. A static panel tilted at the latitude (40°) faces the sun at an incidence angle θ = |40° - 73.45°| = 33.45°. The relative irradiance is cos(33.45°) ≈ 0.834. A dual-axis tracker aligns the panel normal directly with the sun, making θ = 0°. The gain is 1.0 / 0.834 ≈ 1.20, or a 20% increase in instantaneous power.

Example 2: Morning Angle of Incidence

At the same location, consider 9:00 AM solar time. The hour angle ω is 15° per hour × 3 hours = 45°. The solar altitude α and azimuth γ must be derived. For simplicity, assume the sun is at an altitude of 40° and an azimuth of 135° (SE). A static south-facing panel tilted at 40° has a normal vector pointing South at 40° elevation. The angle of incidence θ is significantly larger than zero. Using the cosine formula for incidence: cos(θ) = sin(α)sin(β)cos(γ - γ_p) + cos(α)cos(β). With β=40°, γ_p=180° (South), the calculation yields a lower cos(θ) value, roughly 0.65. A dual-axis tracker rotates azimuthally to 135° and tilts to 40°, aligning the normal with the sun. The incidence angle θ becomes 0°, yielding cos(θ) = 1.0. The gain is 1.0 / 0.65 ≈ 1.54, or a 54% increase.

Example 3: Equatorial Position

At the equator (0° latitude) on the equinox (δ = 0°), the sun passes directly overhead at noon. A static panel tilted at 0° (flat) faces the sun at θ = 0°, yielding cos(0°) = 1.0. However, at 9:00 AM, the sun is at an altitude of 45° and azimuth of 90° (East). A flat panel faces upward (azimuth irrelevant, tilt 0°). The incidence angle θ is the complement of the altitude, so θ = 45°. This demonstrates that tracking benefits are highest when the sun is low in the sky.

What distinguishes dual-axis from single-axis tracking?

Dual-axis solar tracking systems represent a distinct mechanical approach to maximizing photovoltaic energy yield by introducing an additional degree of freedom compared to single-axis configurations. The fundamental distinction lies in the kinematic complexity: while single-axis trackers rotate around a single fixed line—typically aligned north-south to follow the sun’s east-west azimuthal path—dual-axis systems incorporate two independent rotational axes. This allows the panel to adjust its tilt angle continuously, effectively tracking both the azimuth and the elevation of the solar disc throughout the day and across the seasons.

Kinematic Degrees of Freedom

In a single-axis system, the panel’s orientation is constrained to one rotational plane. The panel tilts at a fixed angle relative to the horizon, which is often optimized for the latitude of the installation site. As the sun moves across the sky, the tracker rotates the panel to minimize the angle of incidence. However, the elevation of the sun changes significantly between summer and winter, a variable that single-axis systems cannot fully compensate for without complex, variable-tilt mechanisms.

Dual-axis trackers eliminate this limitation by adding a second axis of rotation, usually perpendicular to the primary axis. This second axis allows the panel to tilt up and down, tracking the sun’s declination. Consequently, the panel can maintain a near-perpendicular orientation to the solar rays at solar noon, regardless of the season. This results in a more consistent reduction of the angle of incidence, which is critical for maximizing direct normal irradiance (DNI) capture.

Comparative Performance and Complexity

The performance advantage of dual-axis systems is most pronounced in regions with high direct normal irradiance, such as desert environments. By tracking both azimuth and elevation, these systems can capture up to 40% more energy compared to fixed-tilt systems, and approximately 10–15% more than single-axis trackers, depending on the specific latitude and shading conditions. However, this increased yield comes with greater mechanical complexity. Dual-axis systems require two motors, two sets of gears or linkages, and more sophisticated control algorithms to coordinate the two movements and avoid self-shading in dense arrays.

Single-axis systems, by contrast, offer a simpler mechanical design with lower maintenance requirements and reduced land-use efficiency due to the need for wider spacing between rows to prevent shading. The choice between the two technologies often hinges on the trade-off between capital expenditure, operational maintenance, and the specific solar resource profile of the installation site. While dual-axis systems offer superior tracking precision, their higher cost and complexity make them less universally adopted than single-axis alternatives in large-scale utility projects.

Technical considerations and limitations

Dual-axis solar tracking systems are designed to maximize solar irradiance capture by aligning the photovoltaic module or concentrated solar power collector perpendicular to the sun's rays throughout the day and across seasons. While this geometric optimization generally yields higher energy yields compared to fixed-tilt or single-axis systems, the mechanical and control complexities introduce significant engineering challenges. The primary limitation is the increased mechanical complexity, which requires two independent degrees of freedom—typically azimuth and elevation—driven by motors, gears, or linkages. This added hardware increases the initial capital expenditure and the potential points of mechanical failure, necessitating more rigorous maintenance regimes to ensure long-term operational reliability.

Mechanical Stress and Wind Loading

A critical engineering consideration is the structural response to environmental loads, particularly wind. Unlike fixed-tilt arrays that can be designed with a static aerodynamic profile, dual-axis trackers present a dynamic cross-sectional area to the wind. When the sun is low on the horizon, the modules may be tilted at steep angles, significantly increasing the wind load on the support structure. Engineers must design the foundation and drive mechanisms to withstand these variable loads without excessive deflection, which could misalign the solar array and reduce energy capture. The control system often includes a "stow" position, where the tracker rotates the modules to a horizontal or low-profile orientation during high-wind events to minimize aerodynamic drag and prevent structural fatigue or failure.

Control System Complexity and Shading

The control algorithms for dual-axis trackers are more complex than those for single-axis systems. They must continuously calculate the solar position based on geographic coordinates, date, and time, adjusting for atmospheric refraction and equation of time variations. The basic kinematic relationship for the solar zenith angle θz​ involves the solar declination δ, the hour angle ω, and the latitude ϕ. Accurate tracking requires precise synchronization of both axes to minimize the angle of incidence θ, where the projected irradiance I is proportional to cos(θ). Furthermore, in dense arrays, dual-axis trackers are more susceptible to inter-row shading. As the sun moves, the shadow cast by one tracker can fall on an adjacent one, potentially causing significant yield losses if the spacing is not optimized. This often results in lower land-use efficiency compared to single-axis systems, as greater spacing is required to mitigate shading effects, particularly during winter months when the sun is lower in the sky.

Energy Payback and Maintenance

The additional energy yield from dual-axis tracking must be weighed against the energy consumed by the drive motors and the embodied energy of the additional mechanical components. In regions with high diffuse irradiance, the benefit of precise tracking is diminished because the sun's direct beam is less dominant. Consequently, the energy payback period may be longer for dual-axis systems in cloudy climates compared to arid regions with high direct normal irradiance. Maintenance requirements are also higher, involving regular lubrication of gears, calibration of limit switches, and inspection of motor drives to prevent drift or stalling. The increased complexity means that downtime for one axis can render the entire unit less efficient, impacting the overall capacity factor of the solar installation.
