Circulating fluidized bed reactor

Overview

A circulating fluidized bed (CFB) reactor is an advanced combustion technology designed primarily for the efficient and clean burning of solid fuels, with coal being the primary fuel source. Unlike conventional pulverized coal boilers, CFB systems operate by suspending bed material—typically sand or limestone—in an upward-flowing stream of air or gas. This suspension creates a fluid-like state that enhances heat and mass transfer, allowing for highly uniform temperature distribution and efficient fuel combustion. The technology is particularly valued for its fuel flexibility, enabling the use of lower-grade coals and various biomass blends without extensive preprocessing.

Operating Principles

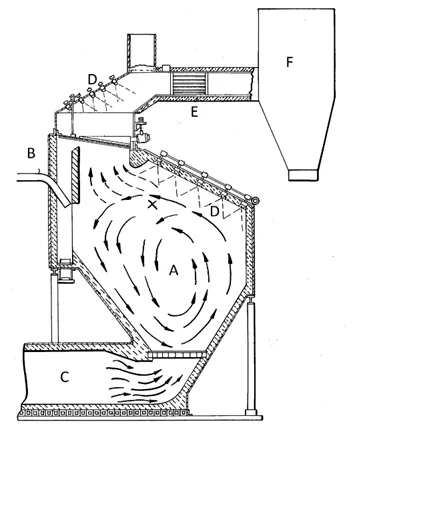

The core mechanism of a CFB reactor relies on the interplay between gas velocity and particle density. As air is forced through the bed material at velocities higher than the minimum fluidization velocity, the solid particles become entrained and circulate continuously. This circulation is maintained by a cyclone separator located above the main combustion chamber, which captures the finer particles and returns them to the bed, while excess gas exits toward the heat exchangers. The high turbulence within the bed ensures intense mixing of fuel, air, and bed material, leading to rapid combustion rates and stable operation even with fluctuating fuel qualities.

Key Advantages

One of the most significant benefits of CFB technology is its ability to control emissions at the source. The inclusion of limestone in the bed material allows for in-sulfur capture during combustion, significantly reducing sulfur dioxide emissions without the need for extensive flue gas desulfurization systems. Additionally, the relatively low operating temperatures, typically between 850°C and 900°C, help minimize the formation of thermal nitrogen oxides, a common pollutant in higher-temperature combustion processes. This makes CFB reactors an attractive option for power generation facilities seeking to balance efficiency with environmental performance.

The technology also supports efficient heat recovery. The high heat transfer coefficients in the fluidized bed allow for the integration of membrane wall heat exchangers, which can be strategically placed within the combustion zone or in the external loop. This flexibility enables the generation of steam at various pressure and temperature levels, optimizing the overall thermal efficiency of the power plant. As coal remains a dominant source of global energy, CFB reactors offer a viable pathway to enhance the environmental profile of coal-fired power generation.

Computational Particle Fluid Dynamic Simulation

Computational Particle Fluid Dynamics (CPFD) provides a granular framework for analyzing the complex multiphase flow within circulating fluidized bed (CFB) reactors. Unlike Eulerian-Eulerian approaches that treat phases as interpenetrating continua, CPFD resolves individual particle trajectories, capturing discrete particle interactions crucial for coal combustion efficiency and heat transfer dynamics. This method is particularly effective for modeling the dense particulate environment characteristic of CFB systems.

Particle Trajectory and Momentum Balance

The core of CPFD simulation lies in solving the momentum balance equation for each discrete particle. The acceleration of a particle i is determined by the sum of gravitational, drag, collisional, and virtual mass forces. The drag force, often the dominant term in gas-solid flows, is calculated using a drag coefficient that accounts for local voidage and particle Reynolds number. This allows for precise tracking of coal particle residence time, which directly influences burnout rates and overall thermal efficiency.

Interparticle Collisions and Granular Temperature

In the dense bed region, interparticle collisions significantly influence flow structure and heat transfer. CPFD models typically employ a hard-sphere collision model or a soft-sphere spring-dashpot model to resolve these interactions. The concept of granular temperature, defined as the mean square fluctuation of particle velocity, quantifies the kinetic energy of particle motion. This parameter is critical for predicting the expansion of the bed and the distribution of solids circulation rates, ensuring accurate representation of the circulating fluidized bed's hydrodynamics.

Heat Transfer and Combustion Modeling

Accurate prediction of heat transfer in CFB reactors requires coupling the particle dynamics with energy equations. The convective heat transfer coefficient between the gas and particles is derived from the local particle velocity fluctuations and voidage. Combustion modeling in CPFD often utilizes a devolatilization and char oxidation scheme, tracking the mass and temperature of each coal particle. This enables detailed analysis of the combustion zone, predicting temperature profiles and pollutant formation, such as sulfur dioxide and nitrogen oxides, based on the specific coal properties and bed temperature distribution.

Particle Modelling Parameters

Accurate simulation of a circulating fluidized bed reactor relies heavily on the precise definition of particle modelling parameters. These parameters dictate how the coal fuel and bed material interact with the gas phase, directly influencing combustion efficiency and heat transfer rates. The primary variables include particle size distribution, density, and sphericity, which collectively determine the hydrodynamic behavior within the reactor. Engineers must carefully select these values to ensure that the computational fluid dynamics models reflect the actual physical conditions of the bed.

Particle Size and Density

The size of the coal particles is a critical factor in determining the residence time and conversion efficiency. In a circulating fluidized bed reactor, the fuel is typically pulverized to a specific range to optimize burning. The density of the particles affects their terminal velocity and, consequently, their circulation rate. A common parameter is the mean particle diameter, often denoted as dp. The density, ρp, is usually calculated based on the ash content and the volatile matter of the coal. These values are not static; they change as the coal burns and the ash layer forms around the unburned carbon core. Accurate modelling requires updating these parameters dynamically throughout the simulation to capture the transient behavior of the particles.

Sphericity and Shape Factors

Coal particles are rarely perfectly spherical. The sphericity, ψ, is a dimensionless parameter that describes how closely the shape of a particle resembles a perfect sphere. It is defined as the surface area of a sphere with the same volume as the particle, divided by the actual surface area of the particle. For irregular coal particles, sphericity values often range between 0.7 and 0.9. This parameter influences the drag force acting on the particle, which in turn affects the fluidization quality. A lower sphericity generally leads to higher drag, which can enhance mixing but may also increase the elutriation of fine particles. Modelling these shape factors accurately is essential for predicting the gas-solid contact efficiency.

Impact on Simulation Accuracy

The choice of particle modelling parameters has a direct impact on the accuracy of the simulation results. Incorrect assumptions about particle size or density can lead to significant deviations in predicted temperature profiles and species concentrations. For instance, underestimating the particle density can result in an overprediction of the circulation rate, leading to an apparent increase in combustion efficiency that may not be realized in practice. Conversely, overestimating the sphericity can lead to an underprediction of the drag force, affecting the distribution of the gas phase. Therefore, a thorough characterization of the coal and bed material is necessary before initiating the simulation. This characterization often involves experimental measurements of the particle size distribution and density, which are then used to calibrate the model parameters. By carefully selecting and validating these parameters, engineers can achieve a more reliable prediction of the reactor's performance.

Experimental Validation

Experimental validation of computational models for circulating fluidized bed (CFB) reactors is essential for verifying the accuracy of hydrodynamic and thermochemical predictions. Since the primary fuel source is coal, validation focuses heavily on the behavior of coal particles within the dense suspension. Researchers typically employ cold-flow loops and hot-flow pilots to generate empirical data that is compared against numerical simulations, such as Computational Fluid Dynamics (CFD) or Two-Fluid Models (TFM). These experiments provide critical insights into gas-solid flow patterns, which are difficult to capture solely through theoretical derivation.

Hydrodynamic Characterization

Validating the hydrodynamic phase involves measuring voidage profiles, pressure fluctuations, and particle velocity distributions. In experimental setups, instruments such as optical fiber probes, capacitance probes, and Laser Doppler Anemometry (LDA) are used to capture instantaneous voidage and particle velocity. The data is then compared to the Eulerian-Eulerian or Eulerian-Lagrangian model outputs. For instance, the voidage fraction, ϵ, is a key parameter. The experimental voidage profile along the riser height is plotted against the simulated profile to assess the model's ability to predict the dense bottom zone and the dilute top zone. Discrepancies often arise in the transition region, requiring adjustments to the drag force correlations used in the computational model.

Thermochemical and Combustion Validation

For coal-fueled CFB reactors, thermochemical validation is equally critical. This involves measuring temperature distributions, species concentrations (such as O2, CO, CO2, and SO2), and combustion efficiency. Thermocouples and gas sampling ports are strategically placed along the reactor height. The experimental temperature profile is compared with the energy balance equations in the model. The combustion efficiency, η, is calculated using the mass balance of carbon species in the flue gas. High-fidelity models must accurately predict the burnout of coal particles, which depends on the residence time distribution and the local oxygen concentration. Validation often reveals that simple kinetic models may underestimate the combustion rate in the dense bed, necessitating the inclusion of detailed heterogeneous reaction mechanisms.

Statistical Metrics for Model Accuracy

To quantify the agreement between experimental data and computational results, statistical metrics are employed. The Root Mean Square Error (RMSE) and the Coefficient of Determination (R2) are commonly used. The RMSE is calculated as:

RMSE=N1i=1∑N(yi−y^i)2

where yi is the experimental value, y^i is the predicted value, and N is the number of data points. A lower RMSE indicates a better fit. Additionally, the R2 value provides insight into the proportion of the variance in the dependent variable that is predictable from the independent variables. These metrics help researchers refine model parameters, such as the particle-particle collision frequency and the heat transfer coefficient, to achieve higher predictive accuracy for coal combustion in CFB systems.

How does CPFD simulation improve reactor analysis?

Computational Particle Fluid Dynamics (CPFD) simulation offers a distinct advantage in analyzing circulating fluidized bed (CFB) reactors by resolving the complex interactions between discrete solid particles and the continuous gas phase. Unlike traditional Eulerian-Eulerian models that treat both phases as interpenetrating continua, CPFD employs a Lagrangian approach for the particle phase. This method tracks individual particle clusters, or "parcels," allowing for a more granular representation of the hydrodynamics inherent in coal-fueled CFB systems. The ability to resolve particle-level behavior is critical for accurately predicting heat transfer rates, fuel conversion efficiency, and pollutant formation within the reactor.

Resolution of Particle Clustering

In CFB reactors, solid particles rarely behave as a uniform distribution. They tend to form clusters that significantly influence the voidage and local gas velocity. CPFD captures these clustering phenomena by calculating the forces acting on each particle parcel, including drag, gravity, and inter-particle collisions. The drag force, often modeled using empirical correlations, is a primary driver of particle motion. By resolving these forces, CPFD can predict the formation and breakup of clusters, which directly impacts the residence time distribution of the coal particles. This level of detail is essential for optimizing the combustion process, ensuring that the coal remains in the high-temperature zone long enough for complete conversion while minimizing unburned carbon in the fly ash.

Enhanced Heat and Mass Transfer

The heat transfer characteristics of a CFB reactor are heavily dependent on the contact between the hot bed material and the heat exchange surfaces. CPFD simulations provide detailed insights into the convective and radiative heat transfer mechanisms by accounting for the local temperature and velocity fields of both the gas and solid phases. The radiative heat transfer, which becomes significant at the high operating temperatures of coal combustion, can be modeled using the Radiative Transfer Equation (RTE). CPFD's ability to resolve the spatial distribution of particles allows for a more accurate calculation of the optical thickness and emissivity of the bed. This leads to better predictions of the heat flux on the reactor walls and internal heat exchangers, aiding in the design of more efficient thermal recovery systems.

Comparison with Other Simulation Methods

When compared to Computational Fluid Dynamics (CFD) using the Eulerian-Eulerian approach, CPFD often requires less empirical tuning of parameters. In Eulerian-Eulerian models, the interaction between phases is described through closure relations that may vary significantly depending on the flow regime. CPFD, by tracking individual particle parcels, reduces the reliance on these empirical correlations, leading to more robust predictions across different operating conditions. Additionally, CPFD can handle a wide range of particle sizes and densities, which is common in coal combustion where the fuel may consist of a mixture of fine powders and larger lumps. This versatility makes CPFD a powerful tool for analyzing the performance of CFB reactors under various load conditions and fuel characteristics.

The computational cost of CPFD is generally higher than that of Eulerian-Eulerian CFD, but the increased accuracy in capturing particle-level phenomena often justifies the expense. For detailed analysis of specific regions within the reactor, such as the primary combustion zone or the cyclone separators, CPFD provides valuable insights that can guide operational adjustments and design improvements. By leveraging the strengths of CPFD simulation, engineers can optimize the performance of CFB reactors, enhancing their efficiency and reliability in coal-fired power generation.

What distinguishes circulating fluidized bed reactors from other types?

Circulating fluidized bed (CFB) reactors are distinguished from other fluidized bed technologies, such as bubbling fluidized beds (BFB) and circulating spouted beds, by their unique hydrodynamic regime and high solids circulation rates. In a CFB, the bed material is entrained by the upward flow of gas and carried out of the riser, where it is separated in a cyclone and returned to the bed, creating a continuous loop. This contrasts with BFBs, where the solids remain largely within the bed zone, leading to different heat transfer characteristics and fuel residence times.

Hydrodynamics and Solids Circulation

The defining feature of CFB reactors is the high velocity of the fluidizing gas, typically ranging from 4 to 8 m/s, which creates a turbulent flow regime. This high velocity ensures that the solids are continuously circulated, enhancing mixing and heat transfer. The solids circulation rate, denoted as Gs, is a critical parameter that influences the reactor's performance. In contrast, BFBs operate at lower gas velocities, resulting in a more stable bed with less entrainment. The CFB's ability to handle a wide range of particle sizes and maintain a uniform temperature profile is a significant advantage over other fluidized bed types.

Heat Transfer and Temperature Control

CFB reactors exhibit superior heat transfer coefficients compared to BFBs due to the high turbulence and continuous solids circulation. The heat transfer coefficient, h, in a CFB can be significantly higher, allowing for more efficient heat exchange. This is particularly important in coal-fired power generation, where maintaining a uniform temperature is crucial for minimizing sulfur dioxide (SO2) emissions and maximizing combustion efficiency. The temperature in a CFB is typically controlled by adjusting the fuel feed rate and the air-to-fuel ratio, ensuring that the bed temperature remains within the optimal range of 850–900 °C.

Fuel Flexibility and Combustion Efficiency

CFB reactors are known for their fuel flexibility, capable of burning a wide variety of fuels, including coal, biomass, and waste-derived fuels. This flexibility is due to the intense mixing and high residence time of the solids, which ensures that the fuel particles are thoroughly combusted. In contrast, BFBs may struggle with larger fuel particles, leading to incomplete combustion. The CFB's ability to handle a range of fuel sizes and types makes it a versatile option for power generation and industrial heating.

Emissions Control

One of the key advantages of CFB reactors is their inherent ability to control emissions, particularly sulfur dioxide (SO2) and nitrogen oxides (NOx). The addition of limestone or other sorbents directly into the bed allows for in-situ desulfurization, reducing the need for downstream flue gas desulfurization systems. The lower operating temperature of CFBs, compared to pulverized coal boilers, also helps to minimize the formation of thermal NOx. This makes CFB reactors an attractive option for reducing environmental impact in coal-fired power plants.

Comparison with Other Technologies

When compared to other fluidized bed technologies, CFB reactors offer a balance of high heat transfer rates, fuel flexibility, and effective emissions control. While BFBs are simpler in design and may be suitable for smaller-scale applications, CFBs are preferred for larger power plants due to their scalability and efficiency. The continuous solids circulation in CFBs also allows for better control over the combustion process, leading to higher overall efficiency and lower operational costs.
