Overview
Zengwen Dam, also spelled Tsengwen Dam, is a major earthen dam located in Dapu Township, Chiayi County, Taiwan. The structure is situated on the Zengwen River and serves as a critical component of the region's water management and energy infrastructure. It is recognized as the third tallest dam in Taiwan and forms the Zengwen Reservoir, which is the largest reservoir in Taiwan by volume. The dam supports a 50 MW hydroelectric power station, contributing to the local energy mix while primarily functioning as a multi-purpose water resource facility.
Primary Functions and Regional Impact
The primary function of the Zengwen Dam is the storage of water for the irrigation of the Chianan Plain. The Chianan Plain is identified as Taiwan's most productive agricultural region, making the consistent water supply from the reservoir essential for agricultural output. The dam plays a vital role in ensuring water availability for crops across this extensive plain, supporting the agricultural economy of the area.
In addition to irrigation, the dam provides significant flood control along the Zengwen River. The river flows through Tainan City, and the reservoir helps regulate water levels to mitigate flooding risks for downstream communities and infrastructure. The flood control capacity of the Zengwen Reservoir is a key factor in the hydrological management of the Zengwen River basin.
The hydroelectric power station associated with the dam has a capacity of 50 MW. This power generation capability adds an energy dimension to the dam's multi-purpose design. The operator of the facility is the Southern Region Water Resources Office, which manages the operational aspects of the dam and its associated power generation. The dam was commissioned in 1973, marking the beginning of its long-term service in water storage, flood control, and power generation for the region.
History of the Chianan Irrigation Project
The development of the Zengwen Dam is inextricably linked to the broader history of water management on the Chianan Plain, Taiwan’s most productive agricultural region. The need for systematic irrigation in this area dates back to the Japanese occupation in the early 20th century. During this period, significant infrastructure was built to support agricultural output, including the Wushantou Dam, constructed between 1920 and 1930, and the Tungkou Weir. These early structures formed the backbone of the Chianan Irrigation system, providing essential water storage and distribution for the surrounding farmlands.
Limitations of Early Infrastructure
Despite these early achievements, the initial irrigation network faced significant challenges. The system was heavily dependent on seasonal rainfall patterns, which could be erratic, leading to periods of both drought and excess. Additionally, siltation became a persistent problem, gradually reducing the storage capacity and efficiency of the reservoirs. The Tungkou Weir, while effective for diversion, lacked the substantial storage volume needed to buffer against prolonged dry spells or to manage the peak flows during the typhoon season. These limitations highlighted the need for a more robust solution to secure water supplies for the expanding agricultural demands of the Chianan Plain.
The 1939 Proposal
In response to these challenges, a major proposal was put forward in 1939 by Hatta Yoichi. He advocated for the construction of a concrete gravity dam at Lioutengtan. This proposal represented a significant shift in engineering strategy, aiming to create a larger, more reliable water storage facility. Although the Zengwen Dam, as it was eventually built, differs in type (earthen) and location (Dapu Township) from the 1939 concrete gravity proposal, the historical context of the Chianan Irrigation Project underscores the long-standing effort to optimize water resources in the region. The eventual construction of the Zengwen Dam in 1973 fulfilled the vision of a major reservoir to support irrigation and flood control, building upon the foundational work initiated during the Japanese occupation.
Construction and Engineering Design
Construction of the Zengwen Dam began in 1967, marking a significant engineering undertaking in Chiayi County. The project involved complex site preparation and river management strategies to facilitate the erection of the main embankment. Engineers utilized river diversion tunnels to manage the flow of the Zengwen River, allowing for dry working conditions in critical areas. This phase required precise coordination to maintain water supply and flood control capabilities during the build-out.
Embankment and Spillway Engineering
The main structure is an earthen dam constructed using a hydraulic fill method. This technique involved pumping a mixture of water and soil materials into the embankment area, allowing the solids to settle and compact naturally. The resulting structure stands 128 meters in height and spans 400 meters in length at the crest. The base of the dam reaches a thickness of 445 meters, providing stability against the hydrostatic pressure of the Zengwen Reservoir. The total volume of material used in the construction reflects the scale of the hydraulic fill process, creating a robust barrier capable of holding Taiwan's largest reservoir by volume.

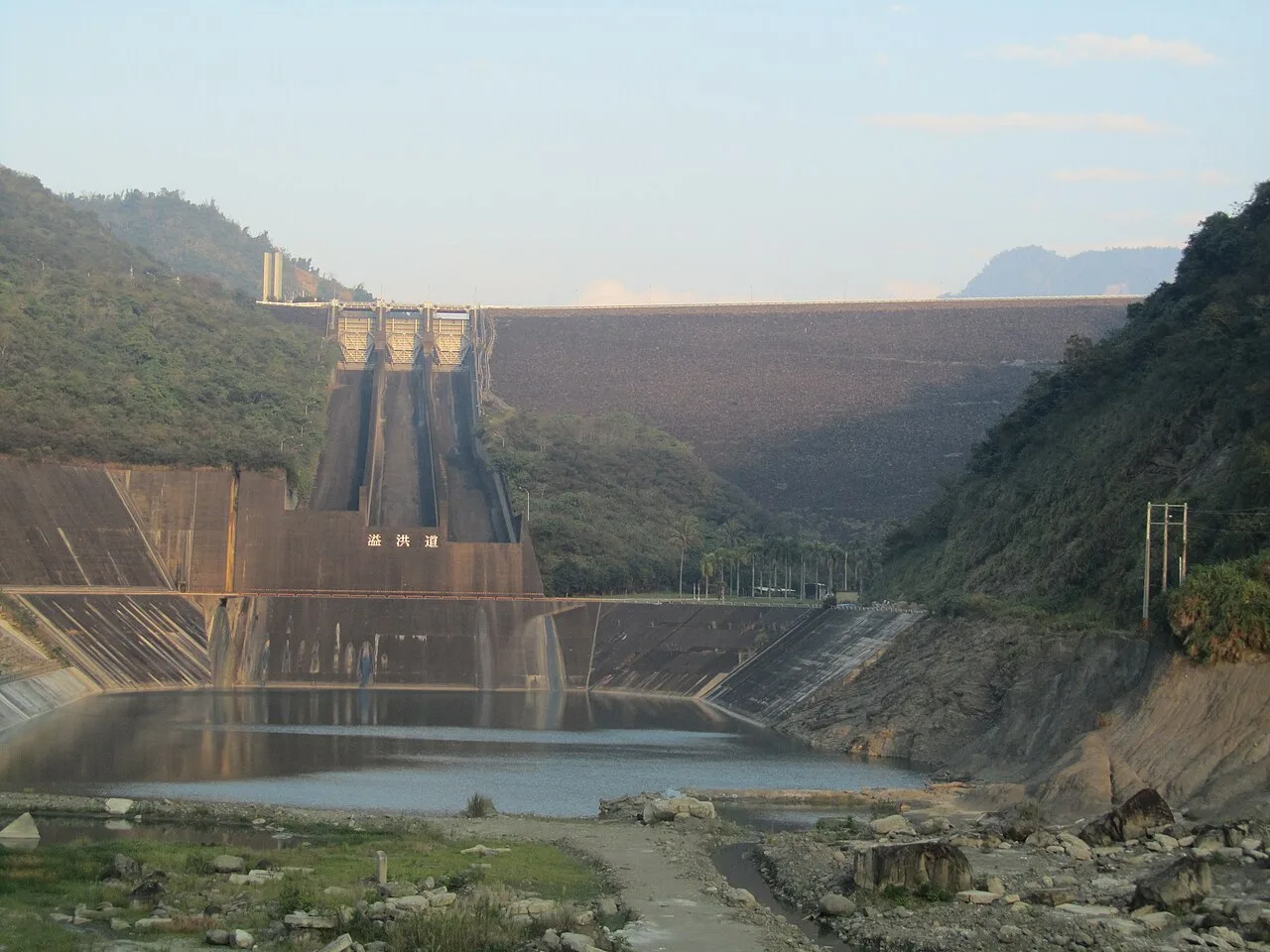

Adjacent to the main embankment, a concrete spillway was constructed to manage excess water flow. The spillway design ensures that floodwaters can be released efficiently, protecting the downstream Chianan Plain and Tainan City from inundation. The integration of the concrete spillway with the earthen embankment required careful attention to foundation stability and material compatibility. This combination of earth-fill and concrete structures is characteristic of major hydroelectric projects in the region, balancing cost-effectiveness with structural integrity.
Project Cost and Completion
The total cost of the Zengwen Dam project was US$97,373,000. This expenditure covered land acquisition, material sourcing, labor, and the installation of the hydroelectric power station components. The dam was completed and commissioned in 1973, bringing the 50 MW hydroelectric power station online. The completion date marked the end of a six-year construction period, during which the Southern Region Water Resources Office oversaw the engineering and operational integration. The finished structure immediately began serving its dual purpose of irrigation support for the Chianan Plain and hydroelectric power generation.
How does the Zengwen Hydroelectric Power Station work?
The Zengwen Hydroelectric Power Station operates as a supplementary energy source for the broader Zengwen Reservoir system. The facility is located in an underground power station on the south bank of the dam. This structural choice allows the power generation infrastructure to remain integrated with the primary water management functions of the reservoir. The station supports a total capacity of 50 MW, which is equivalent to 50,000 kW. This output is generated by a single 50,000 kW generator unit. The engineering design relies on the Tongda tunnel to channel water to the turbines. The excavation volumes required for the underground station and the Tongda tunnel were significant, reflecting the scale of the civil works undertaken during the 1973 commissioning period.
Power Generation vs. Irrigation Priorities
While the Zengwen Dam produces electricity, power generation is incidental to the reservoir's primary mission. The main function of the Zengwen Reservoir is to store water for the irrigation of the Chianan Plain. This plain is Taiwan's most productive agricultural region. The dam also provides essential flood control along the Zengwen River, which flows through Tainan City. The 50 MW hydroelectric output is a byproduct of the water released for agricultural and flood control needs. The operational schedule of the turbines is often dictated by the irrigation demands of the Chianan Plain rather than peak electricity demand. This makes the power station a flexible, though secondary, asset in the region's energy mix.
Proposed Run-of-the-River Facility
In addition to the main underground station, there are plans for a proposed 11,500 kW run-of-the-river facility. This additional capacity aims to capture more energy from the Zengwen River's flow. The run-of-the-river design would further integrate hydroelectric generation into the water management strategy. The operator, the Southern Region Water Resources Office, oversees these developments. The proposed facility represents an effort to maximize the energy potential of the Zengwen River system. It complements the existing 50 MW station by utilizing water that might otherwise flow through the reservoir with less energy extraction. This expansion aligns with the broader goal of enhancing the efficiency of Taiwan's water resources.
Reservoir Operations and Water Management
Zengwen Reservoir is the largest reservoir in Taiwan by volume, with a total storage capacity of 708,000,000 cubic meters. The reservoir is formed by the Zengwen Dam, which is the third tallest dam in the country. Water is stored primarily for the irrigation of the Chianan Plain, which is identified as Taiwan's most productive agricultural region. The hydroelectric power station supported by the dam has an installed capacity of 50 MW, operated by the Southern Region Water Resources Office.
Filling and Early Operations
The dam was commissioned in 1973. The filling process began in the same year, establishing the initial water levels required for agricultural and hydroelectric use. The reservoir's surface area and full water level are key operational parameters, though specific metric values for these parameters are not detailed in the available grounding snippets. The earthen structure of the dam allows for significant water retention, supporting the diverse needs of the surrounding regions.
Operational Balance
Operations at Zengwen Reservoir involve balancing multiple water uses. Irrigation for the Chianan Plain is a primary function, ensuring water supply for crops during dry seasons. Flood control is another critical aspect, particularly during typhoon seasons when the Zengwen River experiences high inflow. The reservoir also supports industrial and drinking water needs, although the specific allocation percentages for these uses are not specified in the grounding data. The 50 MW hydroelectric power station contributes to the regional energy mix, utilizing the stored water for power generation.
Management Structure
The Zengwen Reservoir Management Bureau was established to oversee the reservoir's operations. In 1998, the bureau underwent a merger, although the specific details of the merger and the resulting organizational structure are not provided in the grounding snippets. The Southern Region Water Resources Office currently operates the hydroelectric power station, indicating a continued role in the management of the reservoir's energy output. The operational status of the dam is listed as operational, reflecting its ongoing importance to Taiwan's water and energy infrastructure.
Why it matters: Siltation Challenges and Watershed Restoration
Zengwen Dam is a critical node in Taiwan’s water security architecture, serving as the primary storage facility for the Chianan Plain, the island’s most productive agricultural region. As the largest reservoir in Taiwan by volume, the Zengwen Reservoir provides essential irrigation and flood control along the Zengwen River, which flows through Tainan City. The dam’s strategic importance is underscored by its role in sustaining the 50 MW hydroelectric power station, operated by the Southern Region Water Resources Office since 1973. However, the reservoir’s long-term viability has been threatened by severe siltation, a challenge that has necessitated significant engineering interventions to maintain its storage capacity and functional efficiency.
Siltation and the Impact of Typhoon Morakot
The Zengwen Reservoir has faced acute sedimentation issues, particularly following the arrival of Typhoon Morakot in 2009. This meteorological event exacerbated the accumulation of sediment within the reservoir, significantly reducing its effective storage volume. By 2013, the reservoir’s capacity had declined to 69% of its original volume, highlighting the urgency of watershed management. This reduction in capacity directly impacted the reliability of water supply for the Chianan Plain and the efficiency of the hydroelectric generation, demonstrating the vulnerability of Taiwan’s water infrastructure to climatic and geological factors.
Watershed Restoration and the Sluicing Tunnel
To mitigate the impacts of sedimentation, a comprehensive restoration project was initiated, valued at NT$54 billion. This initiative focused on both upstream watershed management and downstream sediment discharge mechanisms. A key component of this effort is the 1,260-metre sluicing tunnel, which became operational in 2018. The tunnel allows for the controlled release of sediment, reducing the rate of capacity loss and extending the functional lifespan of the reservoir. This engineering solution represents a significant investment in maintaining the dam’s role in regional water security, ensuring continued irrigation support and flood control capabilities for the surrounding areas.
What are the environmental and recreational impacts?
The Zengwen River basin encompasses a 481-square-kilometre catchment area situated within the rugged terrain of the Alishan Range. This watershed is characterized by significant forest coverage and a broad elevation range, which influences both the hydrological dynamics and the ecological composition of the region. The topography plays a critical role in the reservoir's function, as the steep gradients contribute to sediment transport and water retention capacity. The environmental management of this area is essential for maintaining the quality of water stored in the Zengwen Reservoir, which serves as a primary source for the Chianan Plain's irrigation needs.
Siltation and Typhoon Impacts
Siltation remains a persistent environmental challenge for the Zengwen Reservoir. The intense rainfall patterns typical of the region, particularly during the typhoon season, accelerate soil erosion within the catchment area. This leads to a continuous influx of sediment into the reservoir, gradually reducing its effective storage volume over time. The Alishan Range's geology, combined with the high intensity of typhoons, exacerbates this issue, requiring ongoing monitoring and potential sediment management strategies to maintain the reservoir's operational efficiency. The balance between water storage capacity and sediment accumulation is a key factor in the long-term sustainability of the dam's hydrological function.
Recreational Development
Beyond its utility for irrigation and flood control, the Zengwen Reservoir has developed into a significant recreational destination. The Zengwen Reservoir Scenic Area was officially opened to the public in July 1974, shortly after the dam's initial commissioning. This scenic area leverages the natural beauty of the surrounding Alishan Range and the expansive water surface of the reservoir. It provides various recreational opportunities, including boating, hiking, and sightseeing, attracting visitors from across southern Taiwan. The integration of recreational infrastructure with the hydroelectric facility demonstrates a multi-use approach to water resource management, enhancing the economic and social value of the Zengwen Dam project.
