ZETA (fusion reactor): History, Design, and Legacy

Overview

ZETA, the acronym for Zero Energy Thermonuclear Assembly, stands as a pivotal experiment in the early chronology of fusion power research. Constructed at the Atomic Energy Research Establishment in the United Kingdom, this facility represented the largest and most powerful fusion machine globally at the time of its operation (per historical records of the Atomic Energy Research Establishment). The project was formally commissioned in 1957, marking a significant milestone in the quest for controlled thermonuclear energy (per commissioning records). ZETA utilized the pinch plasma confinement technique, a method designed to compress plasma using magnetic fields to achieve the densities and temperatures necessary for fusion reactions. While the primary objective was to generate a substantial number of fusion reactions, the assembly was not designed to produce net energy output, serving instead as a critical proof-of-concept for the viability of magnetic confinement. The historical significance of ZETA extends beyond its technical specifications; it played a crucial role in shaping the early understanding of plasma physics, even as initial claims of success faced subsequent retraction and rigorous scientific scrutiny. This period of discovery and correction provided foundational insights that influenced subsequent fusion reactor designs and theoretical models in the decades that followed. The work conducted at ZETA remains a reference point for understanding the challenges and breakthroughs inherent in early fusion research efforts in the UK.

Conceptual development and confinement challenges

The theoretical foundation for nuclear fusion was established in the 1920s and 1940s, identifying the thermonuclear assembly as a viable energy source. By the mid-20th century, the "pinch" plasma confinement technique emerged as a leading approach to harnessing fusion reactions. This method relies on magnetic fields generated by an electric current passing through the plasma itself, creating a self-consistent magnetic bottle. The Atomic Energy Research Establishment in the United Kingdom adopted this concept for the ZETA project, aiming to produce large numbers of fusion reactions through magnetic confinement.

Pinch Confinement Physics

The pinch effect operates on the principle that a plasma column carrying an axial current generates an azimuthal magnetic field. This field exerts a radial inward force, compressing the plasma to increase its density and temperature. The magnetic pressure PB​ is defined by the equation PB​=2μ0​B2​, where B is the magnetic field strength and μ0​ is the permeability of free space. This pressure must balance the kinetic pressure of the plasma particles to maintain stability.

ZETA was designed as a major experiment to test these principles on a scale larger and more powerful than any preceding fusion machine. The goal was to achieve significant fusion reaction rates, although the device was not sized to produce net energy output. The pinch configuration presented significant stability challenges, as the plasma tended to develop kinks and sausage-like instabilities that disrupted confinement. Despite these physics hurdles, ZETA served as a critical testbed for understanding plasma behavior in magnetic fields, contributing to the early history of fusion power research. The project demonstrated the potential and complexity of using magnetic pinch techniques to contain high-temperature plasma for extended periods.

How does the pinch effect work?

The pinch effect relies on the interaction between a plasma current and its self-generated magnetic field. In a cylindrical plasma column, the current flowing through the ions and electrons creates a circumferential magnetic field. According to the Lorentz force law, this field exerts an inward radial pressure on the plasma, effectively "pinching" it toward the axis. This mechanism was central to the design of ZETA, which utilized this principle to confine the hot hydrogen plasma necessary for thermonuclear reactions.

William Bennett’s theory provided the foundational understanding for this confinement. The equilibrium condition is often described by the relationship where the magnetic pressure balances the plasma kinetic pressure. The magnetic pressure is proportional to B2/2μ0​, while the plasma pressure is nkT. For stable confinement, the magnetic field strength must be sufficient to counteract the thermal expansion of the plasma particles. This theoretical framework allowed engineers to calculate the necessary current densities required to maintain the plasma in a compact volume.

Linear vs. Toroidal Confinement

Early fusion experiments, including ZETA, explored both linear and toroidal geometries to optimize the pinch effect. Linear pinches involve a straight cylindrical plasma column, while toroidal pinches bend this column into a donut shape to create a closed loop. Each configuration presents distinct engineering challenges related to magnetic field uniformity and plasma stability.

Linear pinches suffer from significant end losses, as plasma particles can escape along the open magnetic field lines at either end of the cylinder. Additionally, linear configurations are highly susceptible to magnetohydrodynamic instabilities, such as the sausage and kink modes, which can disrupt the plasma column rapidly. Toroidal configurations attempt to mitigate end losses by closing the field lines, but they introduce complexity in maintaining a uniform magnetic field. The curvature of the torus causes charged particles to drift across field lines, requiring careful engineering of the magnetic field profile to ensure stable confinement. These challenges were critical considerations in the evolution of fusion research following the ZETA experiments.

Early machines and the path to ZETA

The development of ZETA did not occur in a vacuum; it was the culmination of intense international competition in magnetic confinement fusion, particularly within the "pinch" technique. In the early 1950s, researchers in both the United Kingdom and the United States sought to harness the magnetic field to compress plasma, forcing deuterium nuclei to collide and fuse. The fundamental principle relied on the interaction between the plasma current and its self-generated magnetic field, described by the Lorentz force equation F=q(v×B), which squeezes the plasma column radially inward.

UK and US Pinch Experiments

In the United Kingdom, the Atomic Energy Research Establishment (AERE) at Harwell became a hub for pinch research. Scientists such as Douglas Hart and others explored linear pinch devices, where a strong current passed through a plasma column, generating a toroidal magnetic field that compressed the plasma. These early experiments faced significant stability issues, most notably the "sausage" and "kink" instabilities, which disrupted the plasma confinement. Despite these challenges, the UK team recognized the potential for scaling up the device to achieve higher temperatures and densities.

Simultaneously, in the United States, researchers at the General Electric Research Laboratory in Schenectady, New York, were conducting parallel experiments. The US approach also focused on the linear pinch, with teams led by scientists like Lyman Spitzer (who later championed the stellarator) and others investigating the magnetic properties of plasmas. The competition between the UK and US efforts drove rapid advancements in vacuum technology, power supplies, and diagnostic instruments, setting the stage for a definitive large-scale experiment.

Key Scientists and the Decision to Build ZETA

The decision to build ZETA was driven by a group of visionary scientists who believed that scaling up the pinch device could overcome the stability problems observed in smaller experiments. Key figures included Sir George Thomson, who provided strategic leadership at AERE, and John Tuck, who played a crucial role in the theoretical and experimental design of ZETA. Other important contributors included William Ware and Ernst Thonemann, who worked on the plasma diagnostics and magnetic field configurations. Thomson's advocacy for a large, well-funded project was instrumental in securing the resources needed to build ZETA, which was designed to be significantly larger and more powerful than any preceding fusion machine.

The goal of ZETA was to produce a substantial number of fusion reactions, demonstrating the viability of the pinch technique. Although it was not expected to produce net energy, ZETA was intended to provide critical data on plasma behavior at higher temperatures and densities. The design incorporated a toroidal chamber with a major radius of approximately 1.2 meters and a minor radius of 0.3 meters, allowing for a more stable plasma configuration compared to earlier linear devices. The construction of ZETA marked a significant milestone in the early history of fusion power research, setting the stage for future experiments and the eventual development of the tokamak and stellarator concepts.

Construction and design of ZETA

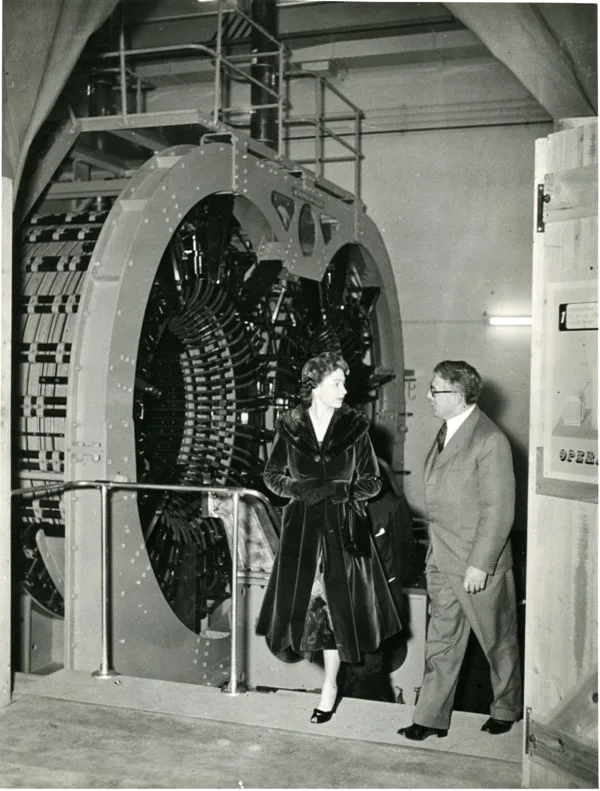

ZETA, the Zero Energy Thermonuclear Assembly, was constructed at the Atomic Energy Research Establishment in the United Kingdom. As a pioneering experiment in fusion power research, the facility utilized the pinch plasma confinement technique. At the time of its commissioning in 1957, ZETA was recognized as the largest and most powerful fusion machine globally. The design objective was to generate a significant number of fusion reactions, though the assembly was not scaled to produce net energy output.

Technical Specifications

The construction of ZETA focused on achieving stable plasma confinement through magnetic fields. The device was engineered to handle substantial electrical power to sustain the pinch effect necessary for thermonuclear assembly. Its dimensions and power supply were optimized for the experimental conditions of mid-20th-century fusion research. The stabilisation features were critical in managing the plasma behavior within the magnetic field.

The pinch technique relies on the magnetic field generated by the current flowing through the plasma itself. This self-generated field compresses the plasma, increasing its density and temperature. ZETA's design incorporated specific stabilisation mechanisms to counteract instabilities inherent in the pinch configuration. These features were essential for maintaining the plasma long enough to observe fusion reactions. The assembly represented a significant step forward in understanding plasma behavior in magnetic fields.

Initial results and the claim of fusion

Built at the Atomic Energy Research Establishment in the United Kingdom, the device utilized the pinch plasma confinement technique.

1957 Experiments and Neutron Bursts

During the initial experimental phase in 1957, researchers observed distinct neutron bursts from the plasma. These bursts suggested that the deuterium fuel was undergoing fusion reactions. Temperature measurements indicated that the plasma reached levels high enough to sustain these reactions, leading to an initial announcement of fusion success. The data pointed to the pinch effect effectively confining the plasma to achieve the necessary conditions for thermonuclear assembly.

The findings from 1957 positioned ZETA as a leading candidate for early fusion energy development. The observed neutron flux and thermal data supported the hypothesis that the pinch technique could stabilize plasma sufficiently for sustained fusion. This period marked a critical juncture in the history of fusion power, demonstrating the potential of magnetic confinement before subsequent analyses refined the understanding of plasma stability and energy output.

Retraction and the discovery of instabilities

The initial announcement of successful fusion in ZETA faced immediate and rigorous scrutiny from the global physics community. Prominent American plasma physicists, including Lyman Spitzer and Stephen Colgate, expressed deep scepticism regarding the magnitude of the neutron flux reported by the UK team. Spitzer, who was developing the stellarator concept, and Colgate, a pioneer in pinch theory, questioned whether the observed neutrons were truly the result of deuterium-deuterium fusion or could be attributed to other secondary effects within the plasma column.

Under this intense external pressure, the research team at the Atomic Energy Research Establishment conducted a series of critical diagnostic experiments. They discovered that the neutron emission was not continuous but occurred in short, intense bursts. This temporal structure suggested that the plasma was not in a steady state, challenging the initial assumption of a stable, uniform confinement field.

The definitive resolution came with the identification of plasma microinstabilities. Researchers found that the pinch configuration was susceptible to the "sausage" and "kink" instabilities. These magnetohydrodynamic (MHD) perturbations caused the plasma column to oscillate and constrict. The rapid compression during these instability cycles generated high-energy ions that collided with the deuterium background, producing the observed neutrons. This finding demonstrated that the neutrons were a byproduct of dynamic plasma turbulence rather than a stable, high-temperature fusion burn.

Consequently, the initial claim of net energy production was retracted. The ZETA experiment did not disprove fusion, but it revealed the critical importance of plasma stability. The discovery of these instabilities shifted the focus of fusion research toward understanding and controlling MHD modes, laying the groundwork for subsequent devices like the Tokamak and the Stellarator. The retraction was a pivotal moment in fusion history, transforming ZETA from a potential breakthrough into a foundational lesson in plasma physics diagnostics.

Legacy: Thomson scattering and tokamaks

The diagnostic innovations developed for ZETA had a lasting impact on plasma physics, particularly the application of Thomson scattering. This technique involves directing a laser beam through the plasma and analyzing the light scattered by free electrons. The frequency shift and intensity of the scattered light provide precise measurements of electron temperature and density, which are critical parameters for characterizing the pinch configuration. ZETA’s engineers utilized this method to validate the plasma conditions within the toroidal magnetic field, establishing a standard diagnostic tool that remains fundamental in fusion research today.

Confirmation of the Tokamak

ZETA played a pivotal role in verifying the early results of the Soviet tokamak experiments. In the early 1950s, the tokamak design emerged from the Kurchatov Institute in the USSR, but Western scientists were initially skeptical of the reported plasma temperatures and confinement times. The Atomic Energy Research Establishment used ZETA’s advanced diagnostic suite, including the Thomson scattering apparatus, to examine tokamak plasmas. These measurements confirmed the high electron temperatures and the effectiveness of the magnetic confinement in the tokamak geometry, helping to shift global fusion research focus from the stellarator and pinch concepts toward the tokamak design.

Impact on Global Fusion Research

The success of ZETA in providing reliable plasma diagnostics and confirming tokamak performance accelerated the international adoption of the tokamak as the leading candidate for fusion power. The data collected at ZETA demonstrated that precise measurement of plasma parameters was essential for optimizing magnetic confinement. This legacy influenced the design of subsequent fusion devices, including the JET (Joint European Torus) and the ITER (International Thermonuclear Experimental Reactor) projects. The establishment of Thomson scattering as a standard diagnostic method allowed researchers to better understand plasma behavior, leading to improvements in confinement time and temperature stability. ZETA’s contributions thus extended beyond its own operational life, shaping the trajectory of fusion energy research for decades.

Reversed field pinch and theoretical advances

The operational history of ZETA was defined by the discovery of "quiescence," a phenomenon where plasma turbulence in the pinch configuration temporarily subsided, leading to a sharp rise in neutron emission. This event, which occurred in 1957, initially suggested that the plasma had reached temperatures sufficient for significant deuterium-deuterium fusion. However, subsequent analysis revealed that the neutron flux was largely attributable to beam-target interactions rather than pure thermal fusion, challenging the initial optimism surrounding the device's performance. The ZETA experiment, while not achieving net energy gain, provided critical empirical data that spurred theoretical refinements in plasma physics, particularly regarding magnetic confinement stability.

Theoretical Foundations and the Reversed Field Pinch

The limitations observed in ZETA and other linear pinch devices led to the development of the Reversed Field Pinch (RFP) concept. Unlike the classical Z-pinch, where the magnetic field lines spiral tightly around the plasma column, the RFP configuration features a magnetic field that reverses direction at the plasma edge. This topology is characterized by a higher plasma beta, defined as the ratio of plasma pressure to magnetic pressure, allowing for more efficient use of the confining magnetic field. The stability of the RFP is largely governed by the interplay between the poloidal and toroidal magnetic field components, often described by the Lundquist number, S=μ0​LvA​/η, which relates the magnetic diffusion time to the Alfvén transit time.

John Bryan Taylor's Plasma Relaxation Theory

A pivotal theoretical advance in understanding the RFP configuration came from John Bryan Taylor, who applied the concept of magnetic relaxation to plasma dynamics. Taylor's theory posited that in a highly conducting plasma, the total magnetic helicity, defined as K=∫A⋅BdV, is approximately conserved during the relaxation process, while the magnetic energy is minimized. This leads to a force-free magnetic field configuration where the current density J is proportional to the magnetic field B, expressed as ∇×B=λB. In the simplest case, λ is a constant throughout the plasma, resulting in a linear relationship between the toroidal and poloidal field components. Taylor's relaxation theory provided a robust framework for predicting the equilibrium state of the RFP, explaining how turbulent plasma could self-organize into a stable, confined state. This theoretical insight was crucial for interpreting the behavior of ZETA and subsequent RFP experiments, bridging the gap between empirical observations and magnetic fluid dynamics.
