Overview

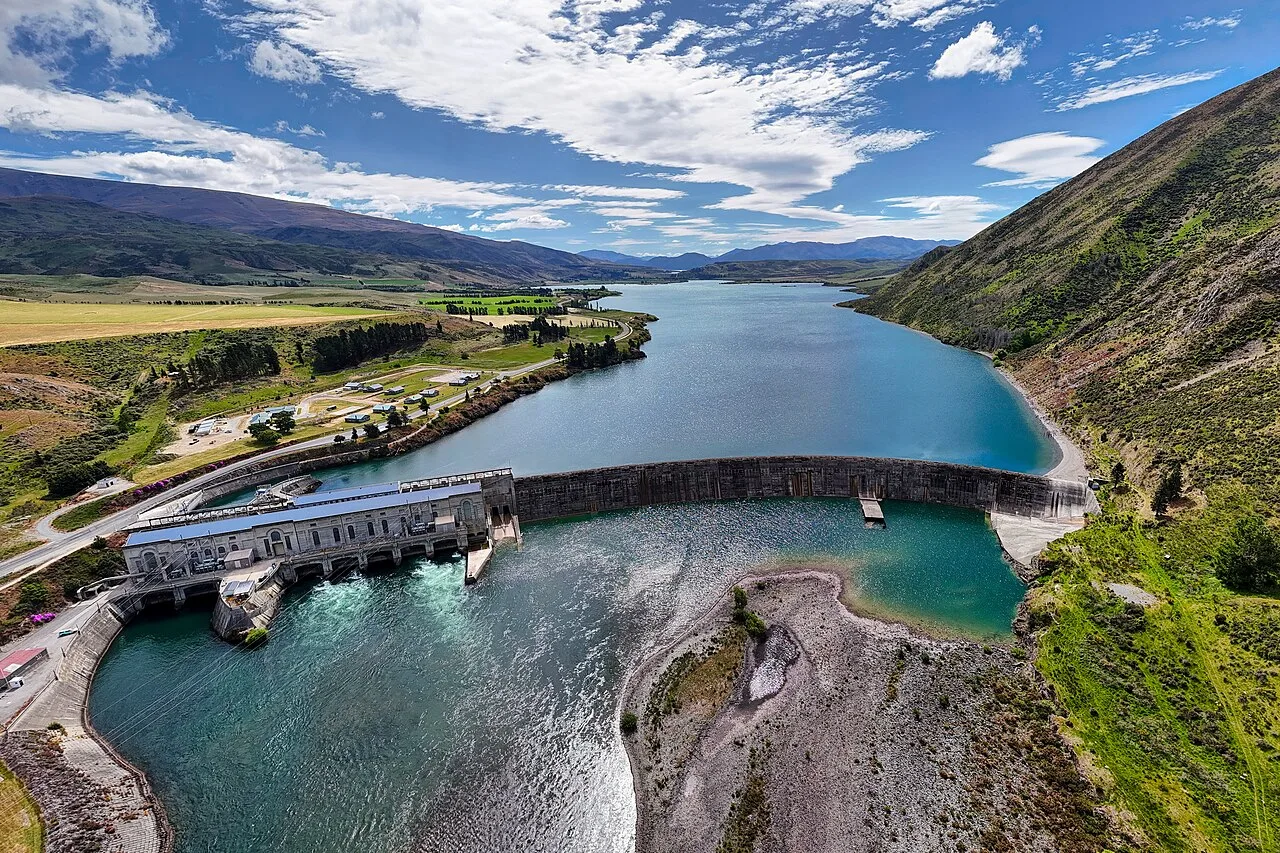

The Waitaki Dam is a hydroelectric power plant located on the Waitaki River in the Canterbury Region of New Zealand. It serves as a foundational component of the broader Waitaki hydroelectric scheme, which comprises eight distinct power stations. As the first of three major dams constructed on the river, the Waitaki Dam established critical engineering precedents for New Zealand's hydropower infrastructure. The facility is currently operational and is operated by Meridian Energy, contributing to the national grid with an installed capacity of 105 MW. The plant utilizes water as its primary energy source, harnessing the flow of the Waitaki River to drive its seven generators. Construction of the dam represents a significant chapter in New Zealand's engineering history. The project was executed between 1928 and 1934. Notably, the construction process was undertaken largely without the use of earthmoving machinery. Over half a million cubic metres of material was excavated, with the work performed almost entirely by pick-and-shovel. This labor-intensive approach highlighted the challenges of early 20th-century infrastructure development in the region. The lessons learned during the construction of the Waitaki Dam directly influenced the subsequent development of the Aviemore Dam and the Benmore Dam. Furthermore, every dam built in New Zealand since the completion of the Waitaki project has benefited from the engineering insights gained during this initial phase. The dam's strategic position on the Waitaki River allows it to play a pivotal role in the regional energy mix. Its commissioning in 1935 marked the beginning of a systematic approach to hydroelectric power generation in the Canterbury Region. The facility continues to operate under the management of Meridian Energy, maintaining its status as a key asset in the country's renewable energy portfolio. The integration of the Waitaki Dam into the larger scheme demonstrates the scalability and adaptability of hydroelectric technology in diverse geographical settings.

Background and Site Selection

The development of the Waitaki hydroelectric scheme was driven by the growing energy demands of New Zealand’s South Island, particularly following the commissioning of the Lake Coleridge power station in 1915. While Lake Coleridge provided a crucial initial source of hydroelectric power, its capacity was increasingly viewed as insufficient for the expanding industrial and urban centers. Engineers and planners identified the need for a more robust and controllable water source to ensure consistent power generation. The Waitaki River emerged as the primary candidate due to its unique hydrological characteristics, specifically the natural flow regulation provided by the alpine lakes of Ohau, Pukaki, and Tekapo. These lakes acted as natural reservoirs, smoothing out seasonal variations in river discharge and offering a more stable head for power generation than many other New Zealand rivers.

Geological Suitability and Site Investigation

Between 1925 and 1928, a rigorous site investigation process was undertaken to identify the optimal location for the dam. Engineers evaluated several potential sites along the river, focusing on geological stability and construction feasibility. The bedrock gorges of the Waitaki River were particularly attractive, offering solid foundations that could support a large masonry structure. However, the selection process was not without its challenges. Early considerations included the Wharekuri and Roseneath sites. These locations were ultimately rejected due to significant geological risks, including the potential for coal leak risks in the surrounding strata, which could compromise the integrity of the dam foundation. The uncertainty associated with these sites led planners to seek a more geologically secure alternative.

Selection of the Awakino Site

The Awakino site was selected as the final location for the dam, balancing geological stability with hydraulic efficiency. This decision was pivotal in the success of the project, as the chosen site allowed for the construction of a gravity dam that could effectively harness the river's flow. The selection process highlighted the importance of detailed geological surveying in early hydroelectric engineering. The decision to build at Awakino also set the stage for the construction methods that would define the project. Notably, the Waitaki Dam was constructed without the extensive use of earthmoving machinery, relying instead on manual labor with pick-and-shovel techniques to excavate over half a million cubic metres of material. This labor-intensive approach was a direct consequence of the site's topography and the technological constraints of the 1930s, distinguishing it from later dams in New Zealand that benefited from the lessons learned during this pioneering construction effort.

Engineering Design and Geological Challenges

The construction of the Waitaki Dam presented significant engineering challenges due to the absence of earthmoving machinery, requiring over half a million cubic metres of material to be excavated almost entirely by pick-and-shovel. These manual methods were necessitated by the complex geological context of the site, which is situated in a fault-angle depression influenced by the Dryburgh Fault. The presence of a gouge zone within the fault line required specific remediation efforts to ensure the structural integrity of the foundation.

Initial Design Flaws and Expert Intervention

The initial design of the dam faced critical scrutiny regarding hydrostatic head pressure and the steepness of the downstream slope, which was set at a ratio of 3:2. In 1930, Professor Per Hornell intervened to address these potential failures. His assessment highlighted the need for structural modifications to mitigate the risks associated with the geological conditions and the hydraulic loads. The intervention was pivotal in preventing early structural compromise.

Structural Modifications

Following Professor Hornell’s recommendations, several key modifications were implemented. The base of the dam was widened to distribute the load more effectively across the foundation. Additionally, a gallery was added to facilitate drainage, helping to manage the hydrostatic pressure within the structure. Concrete cut-offs were also installed to create a more impermeable barrier against water seepage through the foundation rock. These changes were critical in adapting the design to the specific challenges posed by the Waitaki River’s geology.

Later Upgrades

The dam underwent further upgrades in the 1960s and again in 2016 to address uplift forces. These later modifications reflected the evolving understanding of hydrostatic pressures and the long-term performance of the concrete structure. The lessons learned from the initial construction and subsequent modifications of the Waitaki Dam influenced the development of later dams in New Zealand, including the Aviemore and Benmore Dams, contributing to the broader success of the Waitaki hydroelectric scheme.

Construction Methods and Labor

Manual Excavation and Lack of Machinery

The construction of the Waitaki Dam was characterized by the extensive use of manual labor rather than mechanized earthmoving. The project was executed without the aid of significant earthmoving machinery, relying instead on traditional pick-and-shovel techniques. This method required the excavation of over half a million cubic metres of material, a massive undertaking given the limited technological resources available at the time. The reliance on manual labor defined the pace and nature of the construction process, distinguishing it from later hydroelectric projects in New Zealand. The lessons learned from this labor-intensive approach significantly influenced subsequent dam constructions, including the Aviemore and Benmore Dams, which benefited from the operational insights gained during the Waitaki project.

Workforce Fluctuations and Infrastructure

The workforce required to execute this manual excavation was substantial but subject to significant fluctuations due to the economic conditions of the era. The Great Depression had a direct impact on the number of workers employed at the site. The workforce size varied considerably, ranging from a high of 1230 workers to a low of 500 workers during different phases of the construction period. To accommodate this variable population, extensive camp infrastructure was developed. A village was established at Lake Waitaki to house the laborers, with capacity for up to 2000 people. This infrastructure was essential for supporting the large number of workers needed to maintain progress despite the economic challenges. A railway extension from Kurow was also implemented to facilitate the transport of materials and workers to the construction site, further supporting the logistical needs of the project.

Safety Records and Labor Conditions

The manual nature of the work and the scale of the excavation contributed to notable safety challenges during the construction period. The safety record reflects the hazards associated with large-scale manual labor in the 1930s. There were 9 deaths recorded during the construction process. In addition to the fatalities, the injury rate was significant, with 540 injuries reported within a single year of construction. These figures highlight the physical demands and risks faced by the workers who relied on pick-and-shovel methods to move vast quantities of earth and rock. The safety data provides insight into the working conditions and the human cost of the project, which was the first of three dams built on the Waitaki River. The operational status of the dam remains active, with Meridian Energy currently operating the facility, which has a capacity of 105 MW. The construction methods and labor conditions of the 1930s laid the foundation for the long-term operation of this key component of the Waitaki hydroelectric scheme.

Completion and Commissioning

The construction of the Waitaki Dam was a significant engineering feat, particularly notable for the relative scarcity of mechanical earthmoving machinery used during its development. Over half a million cubic metres of material was excavated, with almost entirely manual labor utilizing pick-and-shovel methods to shape the site. This labor-intensive approach set the stage for the subsequent development of the Aviemore Dam and the Benmore Dam, establishing a foundational learning curve for New Zealand’s hydroelectric infrastructure. Every dam built in New Zealand since the Waitaki has benefited from the lessons learned during this initial construction phase.

Official Opening and Early Operations

The official opening of the Waitaki Dam took place on 27 October 1934. The ceremony was presided over by Governor-General Lord Bledisloe, marking a pivotal moment for the Waitaki hydroelectric scheme. This event celebrated the completion of the first of three major dams constructed on the Waitaki River in the Canterbury Region of New Zealand. The dam serves as a critical component of the broader hydroelectric network, utilizing water as its primary fuel source.

Following the official inauguration, the facility transitioned into full operational status. Full power delivery commenced on 1 January 1935. At the time of commissioning, the initial capacity of the station was 30 MW, generated by two primary generators. This initial output provided a substantial boost to the regional energy grid, establishing the Waitaki Dam as a key player in New Zealand's early hydroelectric expansion.

The Waitaki Dam remains operational today, continuing its role within the Waitaki hydroelectric scheme. It is currently operated by Meridian Energy, which manages the facility alongside other assets in the region. The dam's enduring operation highlights the durability of the initial construction methods and the strategic importance of the Waitaki River for energy production in the Canterbury Region.

Operational History and Upgrades

Following its initial commissioning in 1935, the Waitaki Dam underwent significant capacity expansions to meet growing regional energy demands. Between 1940 and 1949, three additional generators were installed, significantly boosting the station's output. This was followed by the addition of two more units between 1952 and 1954, bringing the total installed capacity to 105 MW (per Meridian Energy operational data). These expansions required substantial structural modifications to the powerhouse, which was extended from an original length of 109 m to 152 m to accommodate the new turbine-generator sets.

Recent Refurbishment and Maintenance

Meridian Energy initiated a major refurbishment program starting in 2013 to ensure the long-term reliability of the aging infrastructure. Key works included the installation of new drainage holes to manage water ingress and the structural strengthening of the powerhouse roof. A significant milestone in this phase was the recommissioning of Unit 3, which had been temporarily taken out of service to facilitate these upgrades. These interventions were critical in maintaining the dam's operational status and efficiency within the broader Waitaki hydroelectric scheme.

Future Upgrade Plans

While specific details of future capital expenditures are subject to Meridian Energy's long-term asset management strategies, the dam continues to benefit from the lessons learned during its initial construction and subsequent expansions. As one of the oldest operational hydroelectric stations in New Zealand, ongoing monitoring and targeted upgrades remain essential to integrate the Waitaki Dam's output effectively with the rest of the national grid. The station remains a foundational component of the Canterbury Region's renewable energy portfolio.

Why it matters

The Waitaki Dam holds a dual legacy in New Zealand’s history, serving as both a foundational piece of national energy infrastructure and a critical catalyst for the country’s social welfare system. As the first of three major dams constructed on the Waitaki River in the Canterbury Region, its engineering approach set a precedent for future hydroelectric developments. The dam was built without the use of earthmoving machinery, relying instead on labor-intensive methods where over half a million cubic metres of material was excavated almost entirely by pick-and-shovel. This rigorous construction process provided essential lessons that benefited every dam built in New Zealand since, including the subsequent development of the Aviemore and Benmore Dams. The technical insights gained from the Waitaki project fundamentally shaped the engineering standards and operational strategies of the broader Waitaki hydroelectric scheme, which now comprises eight power stations.

Engineering Precedent

The operational status of the Waitaki Dam, commissioned in 1935, marks the beginning of a systematic approach to hydroelectric power generation in New Zealand. With a capacity of 105 MW, the plant is operated by Meridian Energy and continues to function as a key component of the nation’s renewable energy mix. The decision to construct the dam using manual excavation techniques was not merely a logistical necessity but a strategic choice that allowed for detailed observation of geological and structural behaviors under load. These observations were systematically recorded and applied to later projects, reducing costs and improving efficiency across the sector. The success of the Waitaki Dam demonstrated the viability of large-scale hydroelectric projects in the Canterbury Region, encouraging further investment in the Waitaki River basin.

Social Welfare Catalyst

Beyond its technical achievements, the Waitaki Dam played a crucial role in the development of New Zealand’s social welfare system. The construction site served as a living laboratory for social policy, most notably through the establishment of the Waitaki Hydro Medical Association. This initiative functioned as a trial for medical welfare, providing comprehensive healthcare services to workers and their families. The success of this model influenced key political figures, including Gervan McMillan and Arnold Nordmeyer, who were instrumental in shaping national social security policies. The insights gained from the Waitaki experiment directly contributed to the implementation of national social security in 1939, establishing a framework that would define New Zealand’s welfare state for decades. This intersection of infrastructure development and social innovation highlights the dam’s broader impact on New Zealand’s societal structure.

Frequently asked questions

When was Waitaki Dam built and commissioned?

The Waitaki Dam was commissioned in 1935. It stands as the first of three major dams constructed on the Waitaki River, initiating the broader Waitaki hydroelectric scheme in the Canterbury Region of New Zealand. Its construction marked a significant milestone in the country's early hydroelectric development, setting the stage for subsequent infrastructure projects. The dam remains operational today, continuing to contribute to the national energy grid under the management of Meridian Energy. Its 1935 commissioning date places it among the pioneering large-scale hydroelectric installations in the region, reflecting the early 20th-century push to harness the Waitaki River's potential for power generation.

What is the installed capacity of the Waitaki Dam?

The Waitaki Dam has an installed capacity of 105 MW. This output is generated using water from the Waitaki River, which serves as the primary fuel source for this hydroelectric power plant. The facility is one of eight hydroelectric power stations that collectively form the Waitaki hydroelectric scheme. As an operational asset, it continues to deliver consistent power output, contributing to the renewable energy mix in New Zealand. The 105 MW capacity reflects the engineering standards and hydrological assessments conducted during its initial design and subsequent operational adjustments over the decades.

How was the Waitaki Dam constructed without heavy earthmoving machinery?

The construction of the Waitaki Dam was notable for its reliance on manual labor rather than mechanized equipment. This extensive manual excavation occurred before the widespread adoption of heavy earthmoving machinery in New Zealand's hydroelectric projects. The labor-intensive approach required significant workforce coordination and physical effort, distinguishing it from later dam constructions. This historical construction method highlights the engineering challenges and workforce dynamics of the 1930s era.

What is the connection between the Waitaki Dam and New Zealand's social security?

While the Waitaki Dam is a key component of the Waitaki hydroelectric scheme and a landmark in New Zealand's energy infrastructure, the provided grounding information focuses primarily on its technical specifications, construction history, and operational status. The dam was the first of three built on the river, followed by Aviemore Dam and Benmore Dam. The construction involved over half a million cubic metres of excavated material using manual methods. However, specific details regarding the direct connection between the Waitaki Dam and New Zealand's social security systems are not explicitly detailed in the current authoritative snippets. The dam's primary documented impact relates to energy generation and the advancement of dam-building techniques in the region, with its operational status remaining active under Meridian Energy.

Summary

The Waitaki Dam stands as a foundational pillar of New Zealand’s energy infrastructure, serving as the inaugural component of the extensive Waitaki hydroelectric scheme. Located on the Waitaki River within the Canterbury Region of New Zealand, this operational hydroelectric power plant is currently managed by Meridian Energy. With an installed capacity of 105 MW, the facility plays a critical role in the national grid, leveraging the water resources of the Waitaki River to generate renewable electricity. Commissioned in 1935, the dam represents a significant milestone in the country's transition toward hydroelectric dependency, establishing the technical and logistical precedents that would define subsequent developments in the sector.

The construction of the Waitaki Dam was a remarkable engineering feat for its era, characterized by the extensive use of manual labor over mechanized earthmoving. Historical records indicate that over half a million cubic metres of material was excavated to complete the structure, with almost all of this work executed using pick-and-shovel methods. This intensive manual approach not only defined the physical creation of the dam but also established rigorous construction standards that influenced the entire industry. The successful completion of the Waitaki Dam directly paved the way for the development of two other major structures: the Aviemore Dam and the Benmore Dam. These three facilities form the core of the Waitaki hydroelectric scheme, a system that continues to be a vital source of power for the region and the nation.

Beyond its immediate output of 105 MW, the social and technical legacy of the Waitaki Dam is profound. The challenges faced during the 1935 commissioning period provided invaluable insights into geological conditions, water management, and labor organization, effectively serving as a pilot project for the country's broader hydroelectric ambitions. As one of eight hydroelectric power stations within the Waitaki scheme, the dam remains a testament to early 20th-century engineering resilience. Its continued operation under Meridian Energy underscores its enduring relevance in a modern energy landscape, bridging the gap between historic manual construction techniques and contemporary renewable energy demands. The dam’s status as the first of its kind on the Waitaki River cements its place in the historical narrative of New Zealand’s energy infrastructure, marking the beginning of a systematic approach to harnessing the nation's water resources for sustainable power generation.
