Underground power station

Overview

An underground power station is a specific configuration of hydroelectric infrastructure where the major mechanical and electrical components are housed within excavated rock cavities, contrasting with the more prevalent surface-based construction methods. This engineering approach utilizes the surrounding geology as both structural support and thermal insulation, allowing for the efficient conversion of water energy into electricity in varied topographical conditions. The primary fuel source for these facilities is water, which drives turbines to generate power, maintaining an operational status that is integral to modern renewable energy grids.

Structural Components and Excavation

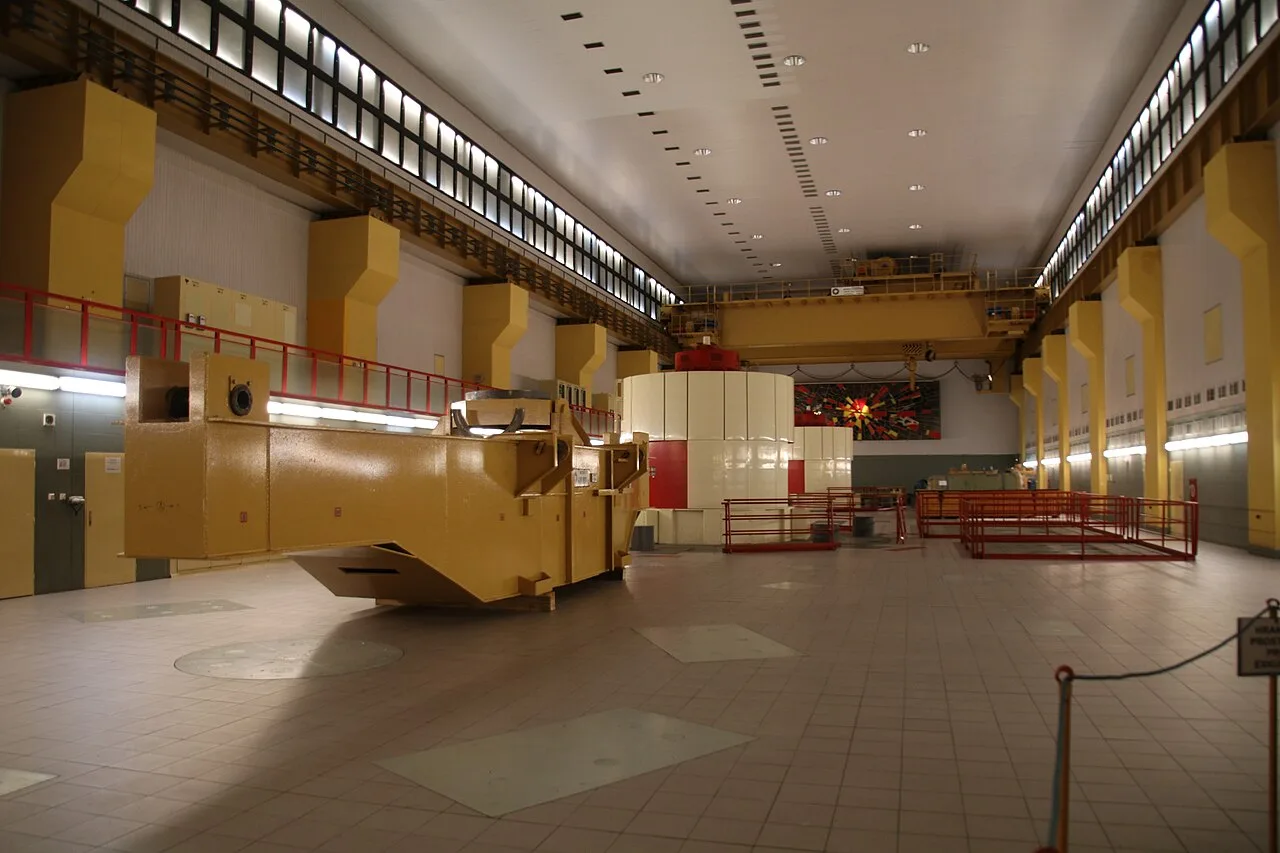

The design of an underground power station relies on the strategic excavation of rock to create a network of interconnected chambers and conduits. The central feature is the machine hall, a large cavernous space that houses the turbine-generator sets, transformers, and switchgear. By embedding these components within the rock mass, engineers can minimize the visual footprint of the facility and protect sensitive equipment from environmental factors such as temperature fluctuations and seismic activity. The stability of the machine hall is critical, often requiring precise rock bolting and concrete lining to manage stress distribution from the overburden.

Connecting the water source to the machine hall are the penstocks, which are large-diameter pipes or tunnels that convey water under high pressure. In underground configurations, these penstocks may be partially or fully encased in rock, reducing the need for extensive surface piping and minimizing head loss due to friction. The tailrace, another essential component, serves as the discharge channel that returns water to the river or reservoir after it has passed through the turbines. Excavating the tailrace from rock allows for a controlled gradient, ensuring efficient water flow and minimizing turbulence that could affect turbine performance.

Engineering Considerations

The decision to construct a power station underground is influenced by geological stability, topography, and the specific hydraulic head available. Rock quality determines the excavation method and the extent of structural reinforcement required. In areas with high overburden pressure, the rock itself acts as a natural confining medium, reducing the need for massive concrete dams or surface structures. This method is particularly advantageous in mountainous regions where surface land is scarce or valuable, allowing for the maximization of hydraulic head while minimizing the surface area occupied by the facility.

The integration of penstocks, machine halls, and tailraces into a cohesive underground system requires careful hydrodynamic and geotechnical analysis. The pressure exerted by the water column must be balanced against the rock's compressive strength to prevent deformation or failure. Additionally, the thermal properties of the rock can help maintain a stable temperature for the electrical equipment, enhancing the efficiency and longevity of the generators. This configuration represents a sophisticated application of civil and mechanical engineering, leveraging natural geological features to optimize energy production from water resources.

Engineering drivers and site selection

Underground power stations are defined by their excavation into rock rather than surface-based construction methods, a distinction that dictates specific engineering drivers and site selection criteria. The primary fuel source for these facilities is water, and they remain operational entities within the global energy infrastructure. The decision to excavate major components from rock is fundamentally tied to terrain and geology. Engineers must evaluate the stability of the bedrock compared to loose soil, as the latter often requires more extensive foundation work or may lack the compressive strength needed to support the overhead mass of the mountain or hill. Rock provides a natural confining pressure, which can enhance the structural integrity of the caverns housing turbines, generators, and transformers. This geological advantage is particularly critical in regions where surface space is at a premium or where the aesthetic impact of a surface plant is a significant consideration.

Geological and Terrain Considerations

The selection of a site for an underground power station requires a detailed analysis of the local geology. Bedrock quality is paramount; fractures, faults, and joints can compromise the stability of the excavated caverns. Loose soil, while sometimes present, is generally less favorable for large-scale underground excavation due to the need for additional lining and support structures. The terrain itself plays a crucial role, with mountainous regions often providing the necessary head for hydroelectric power generation while offering natural cover for the underground components. The excavation process must account for the overburden pressure, which increases with depth, and the rock's ability to withstand this load without excessive deformation. This ensures that the major components of the power station are protected from external environmental factors and mechanical stresses.

Risk Mitigation: Avalanches and Airstrikes

Beyond geological stability, risk mitigation is a key driver for underground construction. In mountainous terrains, avalanche risks can threaten surface structures, potentially causing significant damage to intake towers, penstocks, or the powerhouse itself. By placing the major components underground, engineers can shield them from the direct impact of avalanches, reducing the likelihood of operational disruption. Additionally, historical context, particularly post-World War II, highlights the strategic advantage of underground power stations in terms of airstrike protection. During and after the war, surface power plants were vulnerable to aerial bombardment, which could cripple a region's energy supply. Excavating the powerhouse into rock provided a natural shield, making it more resilient to direct hits and blast waves. This strategic consideration influenced the design and location of many hydroelectric facilities, ensuring that critical energy infrastructure could withstand both natural and man-made threats. The operational status of these stations remains active, demonstrating the long-term viability of this engineering approach.

How do underground pumped storage schemes work?

Underground pumped storage hydroelectricity functions as a large-scale mechanical battery, utilizing the gravitational potential energy of water to balance electrical supply and demand. This technology is particularly effective when integrated into underground caverns, where the natural rock mass provides structural support for the pressure vessels and turbine halls, minimizing surface land use while maximizing head height. The system relies on two distinct water reservoirs: an upper lake and a lower lake, separated by a significant vertical elevation difference.

Pumping Phase: Off-Peak Energy Storage

During periods of low electricity demand, typically at night or during times of high renewable generation (such as midday solar peaks), excess electrical power is drawn from the grid to drive reversible pump-turbine units. These units operate in reverse, acting as pumps to move water from the lower reservoir to the upper reservoir. This process converts electrical energy into gravitational potential energy. The efficiency of this phase is critical, as it determines how much of the input energy is retained for later generation. The work done during pumping can be conceptually represented by the relationship between mass, gravity, and height: Wpump​=m⋅g⋅h, where m is the mass of the water, g is the acceleration due to gravity, and h is the vertical head. In underground schemes, the penstocks (large pipes conveying water) are often tunneled directly through the rock, reducing friction losses and thermal exchange with the environment.

Generation Phase: Peak Power Delivery

When electricity demand surges, such as during early morning or late evening peaks, water is released from the upper reservoir. It flows back down through the penstocks, driving the turbine-generators to produce electricity. This rapid discharge allows for quick response times, making underground pumped storage ideal for frequency regulation and peak shaving. The energy recovered during generation is given by Egen​=η⋅m⋅g⋅h, where η represents the round-trip efficiency of the system, typically ranging between 70% and 85% for modern underground installations. The underground location helps maintain consistent water temperatures, which can improve turbine efficiency and reduce cavitation risks compared to surface stations.

Level Loading and Grid Stability

One of the primary advantages of underground pumped storage is its ability to facilitate level loading. By absorbing excess power during off-peak hours and releasing it during peak hours, these stations flatten the load curve of the power grid. This reduces the need for rapid-start thermal plants and enhances the integration of variable renewable energy sources. The rock enclosure provides natural insulation and stability, allowing for larger turbine units and higher heads than many surface counterparts. The operational flexibility of these systems ensures that the grid remains balanced, with minimal energy loss during the conversion processes. The structural integrity of the underground caverns also allows for deeper excavation, further increasing the potential head h and thus the energy density of the stored water.

Worked examples: Global infrastructure profiles

The following table summarizes key technical parameters for notable underground hydroelectric installations globally.

These facilities demonstrate the application of rock excavation for major hydroelectric components. Underground construction allows for the utilization of significant hydraulic heads and the integration of pumped-storage capabilities, as seen in the Cruachan and Dinorwig stations. The specific geometric and operational parameters for each site vary based on local geology and hydrological conditions.

What distinguishes underground stations from surface plants?

Underground power stations represent a distinct engineering paradigm within hydroelectric generation, defined by the excavation of major components from rock rather than the more common surface-based construction methods. This fundamental difference in construction methodology drives significant variations in spatial requirements, geological dependencies, and operational characteristics compared to conventional surface plants.

Construction Methodology and Spatial Efficiency

The primary distinction lies in the physical arrangement of the plant's components. In a surface-based hydroelectric station, the powerhouse is typically built as a masonry or concrete structure on the ground, requiring substantial land acquisition and often involving significant topographical modification. In contrast, an underground station is created by excavating caverns and tunnels directly into the bedrock. This approach allows the major components—such as turbines, generators, and transformers—to be housed within the rock mass itself.

This excavation-based method offers notable spatial advantages. By moving the powerhouse underground, the surface footprint is significantly reduced, which is particularly valuable in mountainous terrains or areas where land use is contested. The rock mass serves as a natural enclosure, reducing the need for extensive surface masonry. However, this comes at the cost of more complex excavation works, including drilling, blasting, and rock bolting, to create stable caverns capable of withstanding the dynamic loads of rotating machinery.

Geological Dependencies

While surface plants are primarily constrained by hydraulic head and flow rate, underground stations are heavily dependent on geological conditions. The stability of the rock mass is critical; engineers must assess factors such as rock type, fracture patterns, groundwater levels, and stress fields. Poor geological conditions can lead to increased excavation costs, the need for extensive rock support systems, and potential long-term maintenance challenges. In contrast, surface plants are less sensitive to subsurface geology, as the foundation requirements are generally less demanding than those for large underground caverns.

The choice between underground and surface construction is therefore a trade-off between geological suitability and spatial efficiency. Underground stations are often preferred in regions with strong, stable rock formations and limited surface space, while surface plants may be more economical in areas with softer ground or abundant land. This decision is influenced by the specific hydraulic and geological characteristics of each site, ensuring that the chosen construction method optimizes both performance and cost.

Historical development and milestones

The concept of the underground power station emerged as a distinct engineering solution to hydroelectric development, defined by the excavation of major components from rock rather than reliance on surface-based construction methods. This approach allows for the utilization of water as the primary energy source while minimizing the surface footprint of the facility. The historical development of this technology is marked by a progression from early experimental installations to large-scale, modern projects that optimize head and tailrace configurations.

Early Pioneers: The Snoqualmie Falls Era

The earliest significant milestone in the history of underground hydroelectric power is associated with the Snoqualmie Falls project, initiated in 1899. This early installation demonstrated the viability of excavating powerhouse structures directly into the rock face to harness the potential energy of falling water. The Snoqualmie Falls development served as a proof of concept for integrating mechanical and electrical components within a subterranean environment, setting a precedent for future projects seeking to balance structural integrity with hydraulic efficiency. During this initial period, the technology was primarily driven by the need to maximize the vertical drop, or head, of the water source, which is a critical variable in determining the power output of a hydroelectric facility.

Post-WWII Expansion and Modern Trends

Following World War II, the construction of underground power stations accelerated, driven by advances in rock mechanics, tunneling techniques, and concrete technology. This era saw the shift from small, localized installations to major infrastructure projects capable of feeding national grids. The post-war period emphasized the operational status of these facilities as long-term, durable assets. Modern large-scale projects continue to build upon these foundations, utilizing advanced excavation methods to create caverns for turbines, generators, and transformers. The design principles established in the late 19th century remain relevant, with contemporary engineers focusing on optimizing the layout of the underground components to reduce friction losses and improve maintenance access. The historical trajectory from the 1899 Snoqualmie Falls project to current installations illustrates a continuous refinement of the underground hydroelectric model, solidifying its role in global energy infrastructure.

Applications in global energy infrastructure

Underground power stations serve critical functions in global energy infrastructure, particularly in regions where surface land is at a premium or where geological formations offer natural stability. By excavating major components from rock, these facilities minimize the visual and spatial footprint compared to surface-based construction methods, allowing for integration into dense urban environments or sensitive ecological zones. This structural approach is not merely aesthetic; it provides inherent thermal stability, which can improve the efficiency of turbine operations by maintaining consistent ambient temperatures within the generator halls.

Grid Integration and Load Leveling

These stations are frequently paired with pumped-storage hydroelectricity systems, which are essential for load leveling in modern grids. During periods of low electricity demand, excess power is used to pump water from a lower reservoir to an upper one, effectively storing energy as gravitational potential energy. When demand peaks, the water is released back through turbines to generate electricity. The power output P of such a system can be approximated by the formula P=η⋅ρ⋅g⋅Q⋅H, where η is the overall efficiency, ρ is the density of water, g is the acceleration due to gravity, Q is the volumetric flow rate, and H is the net head. Underground construction is particularly advantageous for pumped-storage facilities because the rock mass provides natural insulation and structural support for the high-pressure penstocks and large generator units.

Geographic Adaptations

The choice of underground construction is often dictated by specific geographic and geological conditions. In mountainous regions such as the Southern Alps, the steep topography allows for significant head heights, making it efficient to tunnel through the rock to connect upper and lower reservoirs. Similarly, along major river systems like the Zambezi River, underground stations can be integrated into dam structures to house turbines and generators, protecting them from sedimentation and fluctuating water levels. These adaptations allow hydroelectric power to remain a flexible and reliable source of renewable energy, contributing to grid stability through rapid response times and long-term storage capabilities. The operational status of these facilities remains robust, with many continuing to serve as backbone assets in national power grids.
