Overview
The turbosail, also known as the French turbovoile, is a marine propulsion system that utilizes wind as its primary energy source. This concept represents a significant evolution in sail technology, combining a sail-like vertical surface with a powered boundary layer control system. The integration of these elements allows for improved lift across a wide angle of attack, enhancing the efficiency and versatility of wind-powered marine vessels. Unlike traditional sailing mechanisms, the turbosail offers a more streamlined approach to harnessing wind energy, making it a proposed solution for modern maritime propulsion needs.
Core Mechanism and Boundary Layer Control
The core mechanism of the turbosail relies on the interaction between the vertical sail surface and the boundary layer control system. This system actively manages the airflow over the sail, optimizing lift and reducing drag. By controlling the boundary layer, the turbosail can maintain efficient performance even when the wind direction changes. This capability is crucial for marine environments where wind conditions can be highly variable. The powered boundary layer control system ensures that the sail remains effective across a broad range of angles of attack, providing consistent propulsion regardless of the relative wind direction.
Distinction from Conventional Sails
Conventional sails require continuous adjustment to react to changes in the relative wind, a process that can be labor-intensive and less efficient. In contrast, the turbosail simplifies this process by using a single flap at the back of the sail. This flap can be moved to adjust the sail's performance, allowing the boat to power in any direction with minimal intervention. This distinction highlights the turbosail's advantage in terms of operational simplicity and efficiency. The ability to maintain optimal performance with a single adjustable component sets the turbosail apart from traditional sailing methods, offering a more user-friendly and effective solution for wind-powered marine propulsion.
The turbosail's design and functionality represent a proposed advancement in marine technology, aiming to enhance the efficiency and ease of use of wind-powered vessels. Its unique combination of a vertical sail surface and powered boundary layer control system offers a promising solution for modern maritime applications, distinguishing it from conventional sailing mechanisms through its streamlined operation and adaptability to varying wind conditions.
How does the turbosail work?
The turbosail, also known as the French turbovoile, functions as a marine propulsion system that integrates a vertical sail-like surface with a powered boundary layer control mechanism. This design enhances aerodynamic lift across a wide range of angles of attack. Unlike conventional sails that require continuous adjustment to respond to changes in relative wind direction, the turbosail allows the vessel to be powered from any direction by manipulating a single flap located at the rear of the sail.Aerodynamic Principles and Components
The system relies on airfoil design principles similar to those used in aviation. The vertical surface acts as an airfoil, generating lift through pressure differences between the windward and leeward sides. The key innovation is the boundary layer control system, which uses aspiration to manage airflow over the sail’s surface. This helps maintain attached flow even at high angles of attack, reducing stall and increasing efficiency.
The mobile flap at the trailing edge of the sail plays a critical role in adjusting the camber and angle of attack dynamically. By moving this single flap, the sail can optimize lift and thrust vectors without the need for complex rigging or multiple adjustment points typical of conventional sails.
Thrust is generated by converting the aerodynamic lift force into forward motion. The lift vector is resolved into components parallel and perpendicular to the boat’s heading. The component aligned with the direction of travel provides thrust, while the perpendicular component contributes to heeling moment, which is managed by the hull design and keel.
| Component | Turbosail | Conventional Sail |
|---|---|---|
| Sail Surface | Vertical airfoil with boundary layer control | Cloth or membrane surface |
| Adjustment Mechanism | Single mobile flap at trailing edge | Multiple lines, sheets, and battens |
| Angle of Attack Range | Wide, due to aspiration system | Limited, prone to stalling |
| Wind Direction Flexibility | Can power boat from any direction | Requires tacking or jibing for certain angles |
| Lift Generation | Enhanced by powered boundary layer control | Dependent on sail shape and wind speed |
The aspiration system draws air through slots or porous sections of the sail, energizing the boundary layer and delaying flow separation. This allows the turbosail to maintain efficient lift generation even when the wind direction changes significantly relative to the sail’s orientation. The result is a more consistent and controllable propulsion system that simplifies sailing operations and improves performance across diverse wind conditions.
History and development
The concept of the turbosail, also known as the French turbovoile, originated from the vision of Jacques Cousteau in 1980. Cousteau sought a marine propulsion system that could harness wind power more efficiently than traditional sailing methods. The core innovation lay in using a sail-like vertical surface combined with a powered boundary layer control system. This system improves lift across a wide angle of attack, allowing the vessel to generate power in any direction by simply adjusting a single flap at the back of the sail, rather than continually repositioning the entire sail to react to relative wind changes.
Following Cousteau’s initial vision, the first practical prototype, named the Moulin à Vent, was developed between 1981 and 1982. This early stage of development focused on validating the boundary layer control theory in a marine environment. The Moulin à Vent demonstrated the feasibility of using a rotating cylinder or vertical surface with air blown along its surface to generate significant aerodynamic lift, a principle derived from the Magnus effect. This prototype served as the critical proof-of-concept for the technology, establishing the foundational engineering parameters for future iterations.
The success of the Moulin à Vent prototype led to the transition to the Alcyone, a more advanced vessel designed to further test and refine the turbosail system. The Alcyone represented the next evolutionary step in the technology's development, aiming to demonstrate the practical application of the turbosail for marine propulsion. The system's ability to maintain efficiency across varying wind angles marked a significant departure from conventional sail adjustments. The development timeline culminated in the commissioning of the system in 1985, marking the formal introduction of the turbosail as a proposed operational status for marine energy infrastructure. The French origin of the technology is reflected in its alternative name, the turbovoile, highlighting its national development roots.
The Alcyone: First large-scale application

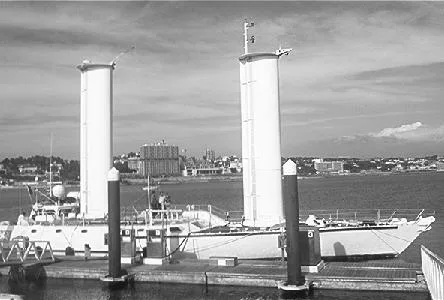

The Alcyone vessel, launched in 1985, represents the first large-scale application of the turbosail concept. This project demonstrated the practical viability of the French turbovoile system on a marine platform, moving the technology from theoretical models to operational reality. The Alcyone featured an aluminum hull design, a material choice that offered a favorable strength-to-weight ratio essential for optimizing the vessel's overall performance and fuel efficiency. The use of aluminum also allowed for structural flexibility, accommodating the dynamic loads generated by the sail system during varying wind conditions.
Central to the Alcyone's propulsion were two turbosails, each equipped with axial turbines. These turbines powered the boundary layer control system, which was critical for enhancing lift across a wide angle of attack. By actively managing the airflow over the sail's surface, the system maintained aerodynamic efficiency even when the relative wind direction changed significantly. This capability allowed the sail to power the boat in any direction simply by adjusting a single flap at the back of the sail, a significant simplification compared to conventional sails that require continual adjustment.
The operation of the Alcyone relied heavily on computer-optimized controls to manage the complex interactions between the wind, the sail, and the vessel's trajectory. These controls processed real-time data to determine the optimal position of the trailing flap, ensuring maximum thrust generation. The integration of these automated systems reduced the manual workload on the crew and improved the consistency of propulsion. The Alcyone's success in 1985 provided valuable insights into the engineering requirements for scaling turbosail technology for future marine applications.
What are the efficiency claims?
The Cousteau Society has advanced specific quantitative claims regarding the performance advantages of the turbosail system compared to conventional marine propulsion. According to their analysis, the turbosail demonstrates thrust coefficients that are significantly higher than those of traditional sails. Specifically, the claims indicate that the system is 3.5 to 4 times superior in terms of thrust generation. This substantial increase in efficiency is attributed to the unique design of the vertical surface and the integration of a powered boundary layer control system. Unlike conventional sails that require constant adjustment to react to changes in relative wind, the turbosail maintains high lift across a wide angle of attack. This allows for consistent power generation in various wind directions by simply moving a single flap at the back of the sail.
The engineering research supporting these claims focuses on the aerodynamic principles of the vertical surface. The boundary layer control system plays a critical role in enhancing lift. By actively managing the airflow over the sail, the system reduces drag and increases the overall efficiency of the propulsion mechanism. This technological approach represents a significant departure from traditional sailing methods, which rely heavily on manual adjustments and are often less efficient in variable wind conditions. The turbosail's ability to maintain high performance across a wide range of wind angles makes it a promising solution for modern marine transportation.
Despite these promising claims, the current state of engineering research and data availability remains limited. The turbosail is still considered a proposed concept, with ongoing efforts to validate its performance through empirical data. The lack of extensive field testing and long-term operational data means that the full potential of the turbosail is yet to be fully realized. Researchers continue to explore the technical specifications and operational parameters to ensure that the claimed efficiency gains are consistent and reliable. The integration of the turbosail into existing marine vessels also presents challenges, including the need for compatible power systems and structural adaptations.
The potential impact of the turbosail on the marine industry is significant. If the claimed efficiency gains are validated, the turbosail could revolutionize marine propulsion by reducing fuel consumption and emissions. This would be particularly beneficial for long-distance shipping routes, where fuel efficiency is a critical factor. However, the widespread adoption of the turbosail will depend on further research and development to address the current limitations and ensure that the system is robust and reliable under various operating conditions.
Future applications and the Calypso II
The turbosail concept, originally commissioned in 1985, holds significant potential for broader adoption in maritime transport, particularly for large vessels such as tankers. The primary driver for this potential expansion is the ability to decrease fuel consumption by leveraging wind energy through a powered boundary layer control system. Unlike conventional sails that require continuous adjustment to react to changes in relative wind, the turbosail utilizes a sail-like vertical surface that can power the boat in any direction simply by moving a single flap at the back of the sail. This operational simplicity and efficiency make it a compelling option for reducing the energy infrastructure footprint of global shipping.
Calypso II Design Status
The Calypso II represents a specific application of the French turbovoile design. As a proposed marine propulsion system, the Calypso II aims to demonstrate the practical viability of turbosail technology in modern maritime contexts. The design focuses on integrating the vertical surface and boundary layer control system into a vessel configuration that can effectively harness wind power. While the original turbosail was commissioned in 1985, the Calypso II reflects ongoing efforts to refine and adapt the technology for contemporary use. The status of the Calypso II remains within the realm of proposed applications, indicating that further development and testing are required to fully realize its potential.
The adoption of turbosail technology in tankers and large vessels could lead to substantial reductions in fuel consumption. By utilizing wind energy, these vessels can decrease their reliance on traditional fuel sources, thereby lowering operational costs and environmental impact. The ability to power the boat in any direction with a single flap adjustment offers a significant advantage over conventional sailing methods, which often require complex and continuous adjustments. This efficiency is particularly valuable for large vessels that operate over long distances and variable wind conditions.
Further research and development are necessary to optimize the turbosail system for different vessel types and operational environments. The Calypso II design serves as a key example of these efforts, highlighting the potential for innovation in marine propulsion. As the maritime industry continues to seek sustainable solutions, the turbosail concept offers a promising avenue for reducing fuel consumption and enhancing operational efficiency. The proposed status of the Calypso II underscores the ongoing nature of this technological evolution, with future applications likely to build upon the foundational principles established in 1985.
Why it matters
The turbosail concept represents a significant convergence of renewable energy utilization and mechanical engineering in the maritime sector. By harnessing wind power through a vertical surface equipped with a powered boundary layer control system, this technology offers a pathway to reduce fossil fuel dependency in marine propulsion. The system's ability to generate lift across a wide angle of attack allows vessels to utilize wind energy more efficiently than traditional sail configurations, which require constant adjustment to optimize performance relative to wind direction. This efficiency is achieved by manipulating airflow over the sail surface, effectively extending the operational envelope of wind-assisted propulsion.
Technological Significance
The core innovation of the turbosail lies in its use of boundary layer control to enhance aerodynamic performance. This approach enables the sail to function effectively in varying wind conditions, providing consistent thrust without the need for complex rigging or frequent manual adjustments. The technology was pioneered by Jacques-Yves Cousteau, who recognized the potential of combining wind energy with mechanical assistance to create a more versatile and efficient marine propulsion system. This hybrid approach addresses key challenges in marine sustainability, including fuel consumption and emissions reduction, by leveraging a renewable energy source that is abundant and widely available across global waterways.
The turbosail's design allows for a single flap at the rear of the sail to control lift, simplifying operation and reducing the mechanical complexity associated with conventional sailing systems. This simplicity contributes to the technology's potential for broader adoption in both commercial and recreational maritime applications. By reducing reliance on engine power, the turbosail can significantly lower fuel consumption, thereby decreasing operational costs and environmental impact. The system's ability to maintain performance across a wide range of wind angles makes it particularly valuable for vessels operating in variable wind conditions, where traditional sails may struggle to maintain optimal efficiency.
Impact on Marine Sustainability
The integration of wind energy into marine propulsion through the turbosail concept aligns with broader sustainability goals in the maritime industry. As global efforts intensify to reduce carbon emissions from shipping, technologies that can effectively harness renewable energy sources become increasingly important. The turbosail offers a practical solution by providing a reliable means of wind-assisted propulsion that can complement or partially replace engine power. This reduction in engine usage directly translates to lower fuel consumption and reduced greenhouse gas emissions, contributing to the overall sustainability of maritime operations.
The technology's potential to reduce fuel consumption is particularly significant in the context of rising fuel prices and increasing environmental regulations. By utilizing wind energy, vessels equipped with turbosails can achieve greater energy efficiency, leading to cost savings and a smaller carbon footprint. The system's ability to operate effectively in a wide range of wind conditions ensures that wind energy can be utilized consistently, maximizing the benefits of this renewable resource. As the maritime industry continues to seek innovative solutions to address sustainability challenges, the turbosail concept represents a promising approach that combines proven aerodynamic principles with modern mechanical control systems.
The pioneering work of Jacques-Yves Cousteau in developing the turbosail has laid the groundwork for further advancements in wind-assisted marine propulsion. His recognition of the potential to combine wind energy with mechanical assistance has inspired continued research and development in this field. The turbosail's ability to provide efficient and reliable propulsion using renewable energy sources positions it as a valuable technology in the ongoing effort to make maritime transport more sustainable. As the industry evolves, the principles embodied in the turbosail concept are likely to influence the design and operation of future marine vessels, contributing to a more energy-efficient and environmentally friendly maritime sector.
