TRIGA reactor: Design, history, and global deployment

Overview

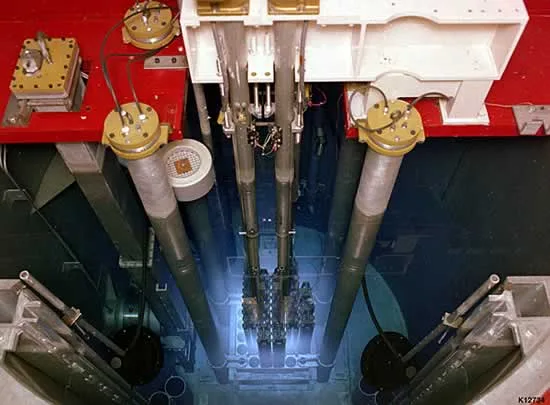

TRIGA represents a distinct class of nuclear research reactors designed and manufactured by the energy infrastructure firm General Atomics. The acronym stands for Training, Research, Isotopes, and General Atomics, reflecting the multifaceted utility of the reactor design in scientific and industrial applications. As a conceptual framework for nuclear power generation, TRIGA reactors utilize uranium as their primary fuel source, distinguishing them from other reactor classes that may rely on mixed-oxide fuels or heavy water moderation. The operational status of the TRIGA design remains active, with numerous units continuing to serve as critical infrastructure for neutron physics, materials testing, and isotope production globally.

Design Origins and Leadership

The development of the TRIGA reactor was spearheaded by a prominent design team led by the physicist Freeman Dyson. This team included Edward Teller, a key figure in nuclear physics, contributing to the robust theoretical foundation of the reactor’s inherent stability. The design philosophy emphasized passive safety features, allowing the reactor to maintain criticality under a wide range of operating conditions without immediate reliance on active control systems. This innovation was central to the reactor’s adoption in research institutions where operational simplicity and safety were paramount. The collaboration between Dyson, Teller, and General Atomics engineers resulted in a versatile reactor architecture that could be scaled for various thermal power outputs.

Technical Specifications and Global Deployment

TRIGA reactors are characterized by their flexible power output capabilities. These units provide constant thermal power outputs ranging from 0.1 MW to 16 MW, making them suitable for continuous research operations. Additionally, the reactors can be pulsed to reach peak thermal powers of up to 22,000 MW, enabling transient studies and neutron flux experiments that require high-intensity bursts of energy. This pulsing capability is a defining feature of the TRIGA design, allowing researchers to simulate reactor behavior under extreme conditions. The design has seen widespread international adoption, with a total of 66 reactors installed across 24 different countries. This global distribution underscores the reactor’s adaptability to diverse geographic and scientific environments, serving as a cornerstone of nuclear research infrastructure in both developed and emerging energy markets. The manufacturer, General Atomics, continues to oversee the operational lifecycle of these units, ensuring their sustained performance in research and training roles.

History and development

The TRIGA reactor concept originated in 1956 as a collaborative engineering effort aimed at creating a versatile nuclear research tool. The design team was led by physicist Freeman Dyson and included Edward Teller, a key figure in nuclear physics. General Atomics served as the primary manufacturer and operator of the technology, which was first commissioned in 1958. The project focused on developing a reactor class that could serve multiple research needs while maintaining high operational safety standards.

The Safe Reactor Concept

The core innovation of the TRIGA design was the introduction of the "Safe Reactor" concept. This approach prioritized inherent safety features over complex mechanical control systems. The design team worked to create a reactor that could handle varying power outputs while maintaining stability under different operational conditions. The concept emphasized the use of uranium as the primary fuel source, allowing for flexible research applications across different scientific fields.

Design and Performance Characteristics

The TRIGA reactor class features constant thermal power outputs ranging from 0.1 to 16 MW. These reactors are also capable of being pulsed to reach up to 22,000 MW for specific research applications. The design allows for multiple variants to be built, with a total of 66 reactors installed across 24 different countries. This widespread adoption demonstrates the versatility and reliability of the TRIGA design for various research environments.

The development of the TRIGA reactor represented a significant advancement in nuclear research technology. The collaboration between Freeman Dyson, Edward Teller, and the General Atomics team resulted in a reactor class that has remained operational since its initial commissioning in 1958. The focus on safety and flexibility has made the TRIGA design a standard choice for nuclear research facilities worldwide.

How does the TRIGA reactor achieve inherent safety?

The TRIGA reactor design achieves inherent safety primarily through the unique physical and thermodynamic properties of its fuel element: uranium zirconium hydride (U-ZrH). This specific fuel composition serves a dual purpose, acting simultaneously as the nuclear fuel and the primary neutron moderator within the core. The presence of hydrogen atoms within the zirconium hydride lattice provides a high degree of flexibility in neutron energy spectra, allowing the reactor to adapt its behavior rapidly in response to changes in core temperature and neutron flux.

Negative Temperature Coefficient of Reactivity

A critical safety feature of the TRIGA design is its strong negative temperature coefficient of reactivity. This means that as the temperature of the fuel increases, the reactivity of the core decreases, naturally driving the reactor toward a lower power state without immediate mechanical intervention. This phenomenon is largely driven by the "warm neutron" effect, a distinctive characteristic of the U-ZrH fuel matrix. As the fuel heats up, the hydrogen nuclei (protons) vibrate more vigorously, causing neutrons to scatter and lose energy more efficiently. This shifts the neutron energy spectrum toward higher energies, where the fission cross-section for uranium-235 is generally lower, thereby reducing the overall fission rate.

The relationship between reactivity (ρ) and temperature (T) can be conceptually represented by a negative derivative, where an increase in T results in a decrease in ρ. This negative feedback loop is exceptionally fast, occurring on the timescale of the fuel's thermal inertia, which is significantly quicker than the response time of control rods or coolant circulation systems. Consequently, if a transient event causes a sudden spike in power, the fuel temperature rises almost instantaneously, introducing negative reactivity that curbs the power increase before it can reach critical levels.

Thermal Inertia and Pulsed Power

The thermal inertia of the U-ZrH fuel further enhances this safety mechanism. Because the hydrogen content in the zirconium hydride lattice has a relatively high specific heat capacity, the fuel can absorb a significant amount of thermal energy before its temperature rises substantially. This allows the TRIGA reactor to withstand large power pulses, with thermal power outputs ranging from 0.1 MW up to 22,000 MW during pulsed operations, without exceeding safe temperature limits. The combination of the negative temperature coefficient and the thermal inertia ensures that the reactor remains stable and self-regulating under a wide variety of operational conditions, reducing the reliance on active control systems for critical safety margins.

What are the technical specifications of TRIGA reactors?

TRIGA reactors are defined by their flexible power output capabilities, designed for both steady-state research and high-intensity pulsing. The thermal power range spans from 0.1 MW to 16 MW for constant operation (General Atomics). For experimental purposes, the core can be pulsed to a peak thermal power of 22,000 MW. This pulsing capability is achieved through a unique negative temperature coefficient of reactivity, allowing the reactor to self-regulate rapidly without immediate control rod insertion.

Fuel and Design Variants

The core fuel consists of uranium dispersed in a zirconium hydride (ZrH) matrix. This compound serves a dual role as both the fuel and the primary neutron moderator. The fuel elements are typically arranged in a hexagonal lattice within the core. General Atomics has produced multiple variants of the TRIGA design to suit different research needs, including the TRIGA Mark I, Mark II, and Mark III. These variants differ primarily in core geometry, cooling systems, and control mechanisms. The design team, led by physicist Freeman Dyson and including Edward Teller, focused on inherent safety features. The negative temperature coefficient ensures that as the fuel temperature rises, reactivity decreases, providing a natural feedback loop for stability (General Atomics).

With 66 reactors installed across 24 countries, the TRIGA class has become a standard for university and industrial research facilities. The modular design allows for customization of the core size and power output to match specific experimental requirements. The use of uranium fuel in the ZrH matrix provides a compact core with high neutron flux, ideal for isotope production, materials testing, and neutron scattering experiments. The operational status of these reactors remains active, with many units commissioned since 1958 continuing to serve as key research assets (General Atomics).

Global deployment and applications

TRIGA reactors have achieved significant global penetration, with a total of 66 units installed across 24 different countries (General Atomics). This widespread deployment reflects the design's versatility and reliability in diverse operational environments. The reactor class played a notable role in the "Atoms for Peace" initiative, helping to democratize nuclear technology for research and education purposes beyond major power-generating nations. General Atomics has maintained the operational status of these facilities, with the original design commissioned in 1958.

Geographic Distribution

The 24 countries hosting TRIGA reactors span multiple continents, demonstrating the design's adaptability to various climatic and infrastructural conditions. While specific national inventories vary, the geographic spread includes established nuclear research hubs and emerging programs. The total count of 66 installed units indicates a sustained manufacturing and deployment history over several decades. Each installation is tailored to local research needs, ranging from basic physics education to advanced materials testing.

Applications in Education and Isotope Production

TRIGA reactors are extensively used in educational settings, providing hands-on experience for students in nuclear engineering and physics. The design's inherent stability and simplicity make it ideal for teaching reactor kinetics and control. In isotope production, these reactors generate critical medical and industrial isotopes. The constant thermal power outputs range from 0.1 to 16 MW, allowing for precise control during production cycles. Additionally, the ability to pulse power up to 22,000 MW enables specialized research applications, such as neutron radiography and materials testing, which benefit from high instantaneous neutron fluxes. These capabilities support a wide array of scientific and medical advancements globally.

Worked examples

The TRIGA Mark I prototype, commissioned in 1958, serves as the foundational worked example for understanding the operational principles of the TRIGA reactor class. This section details the step-by-step operational logic derived from its design specifications and historical performance data.

Example 1: Determining Thermal Power Output Range

To understand the operational flexibility of the TRIGA Mark I, we analyze its thermal power output capabilities. The design specifies a constant thermal power output range of 0.1 to 16 MW. This range allows for precise control during research phases. The calculation of operational margins involves identifying the minimum and maximum steady-state values. The minimum output is 0.1 MW, suitable for low-flux experiments. The maximum constant output is 16 MW, providing higher neutron flux for extended studies. This wide range demonstrates the reactor's versatility in handling diverse research requirements without requiring significant mechanical adjustments to the core configuration.

Example 2: Analyzing Pulsed Power Capability

A critical feature of the TRIGA design is its ability to pulse power for transient analysis. To contextualize this capability, we compare the pulsed peak to the constant output. The pulsed power of 22,000 MW significantly exceeds the maximum constant thermal output of 16 MW. This ratio highlights the reactor's inherent stability and the effectiveness of its delayed neutron fraction. The step-by-step analysis involves recognizing that the pulse is a transient event, not a steady state. The ability to reach 22,000 MW allows researchers to simulate accident conditions and test fuel behavior under extreme thermal stress. This feature was central to the Mark I's success in validating the TRIGA concept.

Example 3: Operational Longevity Calculation

The operational history of the TRIGA Mark I provides a case study in reactor longevity. The prototype was commissioned in 1958 and operated until 1997. To determine the total operational duration, we identify the start and end years. The commissioning year is 1958. The final year of operation is 1997. The duration of operation is the difference between these two dates. This period of operation demonstrates the robustness of the General Atomics design. The Mark I's long service life contributed to the widespread adoption of TRIGA reactors, with a total of 66 units installed across 24 countries. The operational data from the Mark I informed subsequent variants, ensuring reliability in diverse global environments. The design team, led by Freeman Dyson and including Edward Teller, prioritized simplicity and safety, which are reflected in the Mark I's extended operational timeline.

Why it matters

The TRIGA reactor design represents a foundational advancement in nuclear safety engineering, establishing a benchmark for passive safety mechanisms that continues to influence reactor physics and educational curricula globally. Developed under the leadership of physicist Freeman Dyson and including contributions from Edward Teller, the design prioritized inherent stability, allowing for a wide deployment across 24 countries with 66 units installed. This extensive global footprint underscores its role not merely as a power source, but as a critical tool for nuclear education and research.

Passive Safety and Negative Temperature Coefficient

A defining characteristic of the TRIGA class is its robust negative temperature coefficient of reactivity. This physical property ensures that as the reactor core heats up, its reactivity naturally decreases, providing a self-regulating mechanism that mitigates the risk of runaway reactions. This inherent safety feature is particularly significant for research and educational environments where operator intervention may be delayed or where pulsed operations are required. The ability to pulse to 22,000 MW while maintaining structural integrity demonstrates the design's capacity to handle extreme thermal transients without relying solely on active control systems. Such capabilities allow students and researchers to observe real-time reactor kinetics and thermal-hydraulic responses in a controlled setting.

Educational Impact and Operational Flexibility

The TRIGA reactor's versatility, with thermal power outputs ranging from 0.1 to 16 MW, makes it adaptable to various educational and research needs. Institutions utilize these reactors to train the next generation of nuclear engineers, providing hands-on experience with core loading, control rod insertion, and neutron flux monitoring. The design's simplicity and reliability reduce operational complexity, allowing academic programs to focus on fundamental nuclear physics principles rather than complex auxiliary systems. This educational utility has been sustained since the first commissioning in 1958, demonstrating the design's longevity and continued relevance in nuclear science education. The reactor's ability to operate in both steady-state and pulsed modes offers a unique platform for studying neutron behavior and material properties under varying conditions.

Comparison with Other Research Reactors

Compared to other research reactor types, the TRIGA design offers a distinct balance of safety, cost-effectiveness, and operational flexibility. While some research reactors require more complex cooling systems or higher enrichment fuels, the TRIGA's use of uranium-based fuel elements and its inherent safety features reduce operational barriers. This makes it accessible to a broader range of institutions, including universities and national laboratories. The design's emphasis on passive safety contrasts with reactors that rely heavily on active safety systems, providing a different perspective on nuclear risk management. This distinction is crucial for understanding the evolution of nuclear safety standards and the integration of passive safety concepts in modern reactor designs.
