Overview

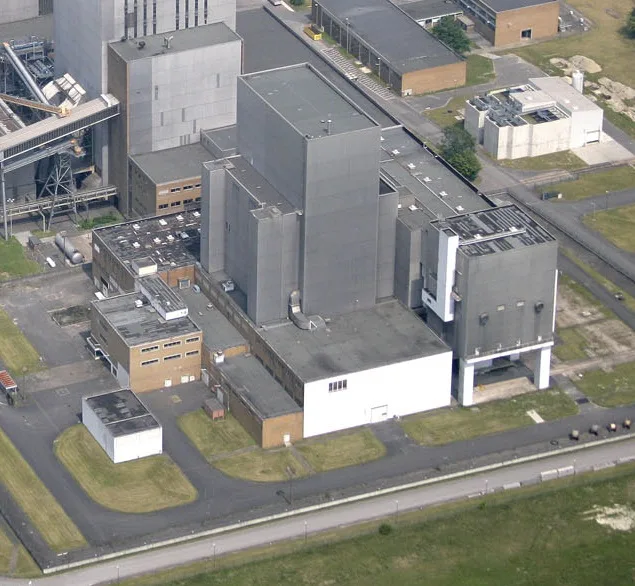

The THTR-300 was a thorium cycle high-temperature nuclear reactor located in Hamm-Uentrop, West Germany. Rated at 300 MW electric, this facility operated as a prototype high-temperature reactor (HTR) designed to utilize TRISO pebble fuel produced by the AVR, an experimental pebble bed reactor operated by VEW. The plant was commissioned in 1985, following initial operations that began in 1983 and grid synchronization in 1985. It reached full power status in February 1987 before being shut down on 1 September 1989. The THTR-300 is currently classified as decommissioned.
Technical Design and Fuel Cycle
The THTR-300 served as a key demonstration project for the thorium fuel cycle within the high-temperature reactor technology class. Its design focused on the utilization of TRISO (Tristructural Isotropic) pebble fuel, a technology previously tested at the AVR experimental pebble bed reactor. This fuel type was central to the reactor's operational strategy, aiming to validate the scalability and efficiency of thorium-based nuclear energy production. The plant's 300 MW electric capacity was achieved through this specific high-temperature reactor configuration, distinguishing it from other nuclear power plant designs of the era.
Financial Structure and Ownership
The construction and operation of the THTR-300 involved significant financial investment from multiple stakeholders. The project was financed by the German state of North Rhine Westphalia, the Federal Republic of Germany, and Hochtemperatur-Kernkraftwerk GmbH (HKG), which served as the operator. The total construction cost reached €2.05 billion. Additionally, the plant was predicted to incur an extra €425 million in decommissioning and associated costs through December 2009. These financial figures highlight the substantial economic commitment required to develop and retire this prototype nuclear facility.
History and Construction
The development of the THTR-300 began with the establishment of Hochtemperatur-Kernkraftwerk GmbH (HKG) in 1974, serving as the primary operator and managing entity for the project. The construction phase spanned from 1970 to 1983, involving significant financial contributions from the German state of North Rhine Westphalia, the Federal Republic of Germany, and HKG itself.
| Year | Event |
|---|---|
| 1974 | Establishment of Hochtemperatur-Kernkraftwerk GmbH (HKG) |
| 1970–1983 | Construction period |
| 1983 | Initial operation started |
| 1985 | Synchronized with the grid |
| February 1987 | Operated at full power |
| 1 September 1989 | Shutdown |
The THTR-300 achieved initial operation in 1983 and was synchronized with the grid in 1985, marking its formal commissioning. It reached full power status in February 1987, demonstrating the capabilities of the thorium cycle high-temperature nuclear reactor technology rated at 300 MW electric. However, the operational life was relatively short, with the plant shutting down on 1 September 1989. The total construction cost amounted to €2.05 billion, with additional decommissioning costs predicted to reach €425 million through December 2009. The project served as a critical testbed for high-temperature reactor designs, specifically focusing on the integration of TRISO pebble fuel technology derived from earlier experimental reactors.
How does the THTR-300 reactor design work?
The THTR-300 utilized a high-temperature reactor (HTR) design, serving as a prototype for the thorium fuel cycle. The core technology relied on TRISO pebble fuel, a type of fuel previously produced and tested by the AVR experimental pebble bed reactor operated by VEW. This design choice allowed the plant to demonstrate the viability of using thorium-based TRISO particles in a commercial-scale setting.
Core and Cooling System
The reactor core was cooled by helium gas, a hallmark of high-temperature reactor technology. The helium circulated through the pebble bed, absorbing heat from the fission process within the TRISO fuel particles. This helium-cooled system was designed to achieve higher thermal efficiencies compared to traditional light water reactors, leveraging the inert properties of helium to minimize neutron absorption and allow for higher outlet temperatures.
Pressure Vessel and Structure
A distinctive feature of the THTR-300 was its prestressed concrete pressure vessel. Unlike the steel pressure vessels common in pressurized water reactors, this concrete structure housed the helium-cooled core. The prestressed concrete provided the necessary containment and structural integrity to withstand the operating pressures and temperatures of the high-temperature reactor environment.
Power Conversion
The thermal energy extracted by the helium coolant was converted into electricity using a Rankine cycle. The heated helium passed through steam generators, transferring heat to water to produce steam. This steam then drove turbines connected to generators, producing the plant's rated 300 MW electric output. This power conversion system was integral to the plant's operation from its grid synchronization in 1985 until its shutdown in 1989.
Technical Specifications
| Parameter | Value |
|---|---|
| Reactor Type | High-Temperature Reactor (HTR) |
| Fuel Type | TRISO pebble fuel (Thorium cycle) |
| Coolant | Helium |
| Pressure Vessel | Prestressed concrete |
| Power Conversion | Rankine cycle |
| Electric Capacity | 300 MW |
| Prototype Basis | AVR experimental pebble bed |
What caused the operational incidents and shutdown?
The operational history of the THTR-300 was significantly influenced by technical anomalies and shifting public sentiment. A notable incident occurred in 1986 involving the fuel pebbles, which contributed to growing scrutiny of the plant's performance. The reactor utilized TRISO pebble fuel, a technology inherited from the experimental AVR pebble bed reactor operated by VEW. While the THTR-300 was designed to demonstrate the viability of this thorium cycle high-temperature reactor technology, the 1986 incident highlighted challenges in maintaining consistent operational stability. This event, combined with broader concerns about radiation release and potential operator errors, eroded confidence in the project among stakeholders and the local population.
Impact of the Chernobyl Disaster
The catastrophic failure of the Chernobyl Nuclear Power Plant in 1986 had a profound impact on the THTR-300's operational timeline. Although the THTR-300 was a different reactor type, the public perception of nuclear energy in West Germany shifted dramatically following the disaster. Regulatory scrutiny intensified, and public opposition to nuclear expansion grew stronger. The THTR-300, which had already faced cost overruns and technical hurdles, found itself under increased pressure. The plant had been commissioned in 1983 and synchronized with the grid in 1985, reaching full power in February 1987. However, the changing political and social landscape made continued operation increasingly difficult.
The combination of the 1986 fuel pebble incident and the aftermath of Chernobyl led to accelerated plans for the plant's closure. The THTR-300 was shut down on 1 September 1989, just a few years after reaching full power. The decommissioning process was projected to be lengthy and expensive, with an estimated additional cost of €425 million through December 2009. The total cost of the THTR-300, including construction and decommissioning, reached €2.05 billion. The early shutdown marked the end of the THTR-300's role as a prototype for high-temperature reactor technology in Germany.
Why it matters
The THTR-300 represented a critical technological bridge in the evolution of high-temperature reactor (HTR) technology, specifically validating the thorium fuel cycle for commercial-scale electricity generation. As a prototype facility, its primary engineering significance lay in demonstrating the viability of TRISO pebble fuel, a technology initially developed and tested at the smaller AVR experimental pebble bed reactor operated by VEW. The successful integration of this fuel type into a 300 MW electric capacity plant provided empirical data on thermal efficiency and fuel behavior under high-temperature conditions, which was essential for scaling up thorium-based nuclear power.
Role in German Nuclear History
Located in Hamm-Uentrop, West Germany, the THTR-300 was a major capital investment reflecting the Federal Republic of Germany’s strategic interest in diversifying its nuclear fuel sources and reducing uranium dependency. With a construction cost of €2.05 billion, it stood as one of the most significant nuclear infrastructure projects in the region during the 1980s. Its operational timeline, starting in 1983 and synchronizing with the grid in 1985, placed it at the heart of Germany’s nuclear expansion phase before the subsequent political shifts toward decommissioning.
Influence on Future Proposals and Phase-out
The operational data from the THTR-300 directly informed the design and economic projections for the subsequent HTR-500 proposal, which aimed to further scale the high-temperature reactor technology. However, the plant’s relatively short operational life—shutting down on 1 September 1989—highlighted the economic and technical challenges associated with prototype nuclear facilities. The projected additional decommissioning costs of €425 million through December 2009 underscored the financial burden of early-generation HTR technology. These factors, combined with the broader political climate in Germany, contributed to the nuanced debate surrounding nuclear energy’s future, influencing the parameters of the German nuclear phase-out and the eventual decision to prioritize other energy sources in the long-term mix.
Decommissioning and Current Status
The THTR-300 nuclear power plant ceased active operations on 1 September 1989, marking the end of its brief commercial service life in Hamm-Uentrop, West Germany. The facility had previously reached full power status in February 1987, but operational challenges and economic factors led to its relatively early shutdown. Following the cessation of grid synchronization, the plant entered a prolonged decommissioning phase that has extended well beyond the initial operational timeline.
Early Decommissioning and Fuel Unloading
One of the most visible early steps in the decommissioning process was the demolition of the plant’s cooling tower, which took place in 1991. This structural removal helped clear the site and reduce the visual footprint of the facility. A critical technical phase involved the unloading of the reactor’s fuel. The fuel elements were transported to the Ahaus storage facility, a key step in managing the radiological inventory of the high-temperature reactor.
Financial Burden and Current Status
The financial implications of the THTR-300 project were substantial. Decommissioning expenses were projected to add an additional €425 million through December 2009, reflecting the complex nature of dismantling a prototype high-temperature reactor. As of the current operational status, the plant is classified as decommissioned. The site is currently maintained in a 'safe enclosure' status, a phase where the reactor core and primary components are stabilized and monitored to minimize radiological and structural risks. Full dismantling of the facility is expected to commence after 2027, indicating a long-term strategic approach to the final retirement of the THTR-300 infrastructure.
Future Developments and Legacy
The operational history of the THTR-300 concluded with its shutdown on 1 September 1989, marking the end of an era for high-temperature reactor research in West Germany. The facility, which had started operating in 1983 and synchronized with the grid in 1985, served as a critical prototype for the thorium cycle and TRISO pebble fuel technology. Its decommissioning process was projected to incur significant financial burdens, with costs predicted to reach an additional €425 million through December 2009, on top of the initial €2.05 billion construction cost financed by the German state of North Rhine Westphalia, the Federal Republic of Germany, and the operator Hochtemperatur-Kernkraftwerk GmbH (HKG).
Successor Projects and the HTR-500
Following the THTR-300's performance, industry and researchers looked toward the proposed HTR-500 as a potential successor. The HTR-500 was designed to build upon the lessons learned from the 300 MW electric unit, aiming to scale the high-temperature reactor technology for broader commercial application. The THTR-300 operated at full power in February 1987, providing valuable data on the behavior of TRISO pebble fuel, which had previously been produced by the AVR experimental pebble bed operated by VEW. This technological lineage was central to the argument for continuing high-temperature reactor development in Germany.
Impact of the German Nuclear Phase-Out
The trajectory of high-temperature reactor research in Germany was significantly altered by the national nuclear phase-out policy. The decision to decommission reactors and the shifting political landscape in the Federal Republic of Germany reduced the immediate commercial viability of new HTR projects. The THTR-300, located in Hamm-Uentrop, became a symbol of the challenges faced by advanced nuclear technologies in a market increasingly skeptical of long-term nuclear investment. The merger with the AVR consortium further consolidated the remaining assets and research efforts, but the momentum for widespread adoption of the high-temperature reactor design in Germany diminished.
Legacy and Technological Influence
Despite its relatively short operational life, the THTR-300 left a lasting legacy in the field of nuclear engineering. It demonstrated the feasibility of using thorium in a high-temperature reactor cycle and provided extensive data on TRISO fuel performance. The facility's role as a prototype for the AVR's fuel production highlighted the interconnected nature of German nuclear research during the 1980s. The decommissioning of the plant, completed over several decades, served as a case study for managing the end-of-life costs of advanced nuclear facilities. The THTR-300 remains a key reference point for understanding the development and challenges of high-temperature reactor technology in Europe.
