SuperGrid (hydrogen)

Overview

The SuperGrid (hydrogen) is a proposed energy infrastructure concept that integrates very long-distance electric power transmission with the distribution of liquid hydrogen. This system leverages liquid hydrogen to serve a dual function: it acts as a distributed fuel source and as a cryogenic coolant for power lines, thereby inducing superconductivity in the cables. By combining these elements, the concept aims to achieve lossless power transmission over extended distances. The operational status of this system is currently classified as proposed, with hydrogen identified as the primary fuel and source material driving the technological framework.

Advocates of the SuperGrid (hydrogen) describe the concept as being in a "visionary" stage. While proponents argue that no new scientific breakthroughs are required to realize the underlying principles, the transition to a practical system demands major technological innovations. The integration of liquid hydrogen distribution with electrical infrastructure represents a significant engineering challenge, requiring advancements in cryogenics, materials science, and grid management to maintain superconducting states over vast geographical scales.

Projections for the implementation of such a system, particularly within the context of the United States, indicate a lengthy development timeline. It is estimated that several decades will be required before a fully implemented SuperGrid (hydrogen) network could become operational. This extended timeframe reflects the scale of the technological innovations needed to move the concept from theoretical viability to widespread practical application. The system remains a forward-looking proposal within the broader landscape of energy infrastructure planning, focusing on the synergy between hydrogen fuel distribution and superconducting power transmission.

How does hydrogen enable superconducting power lines?

The SuperGrid hydrogen concept relies on the dual utility of hydrogen as both an energy carrier and a thermal management agent. In this proposed system, liquid hydrogen serves as the cryogenic coolant required to maintain the temperature of power transmission cables below their critical threshold, thereby inducing a state of superconductivity. Simultaneously, the hydrogen functions as a distributed fuel source, allowing the medium to be consumed or utilized at various points along the grid rather than merely circulating as a passive coolant. This integration aims to achieve lossless power transmission by leveraging the superconducting properties of the cables, which are sustained by the continuous presence of the liquid hydrogen.

Visionary Stage and Technological Requirements

Advocates of the hydrogen supergrid classify the concept as being in a "visionary" stage of development. This designation indicates that while the fundamental scientific principles underpinning the system are established and do not require new scientific breakthroughs, the engineering and technological innovations needed to realize a practical system are substantial. The transition from theoretical viability to operational reality involves significant technological advancements in materials science, cryogenic engineering, and grid integration.

The implementation timeline for such a system is projected to be extensive. For a system designed for the United States, full implementation is estimated to require "several decades." This prolonged timeframe reflects the complexity of scaling up hydrogen production, distribution, and the integration of superconducting cable technology across vast geographic distances. The concept represents a long-term infrastructure strategy rather than an immediate solution, focusing on the synergy between liquid hydrogen distribution and electric power transmission to create a highly efficient, lossless energy network.

Technical specifications of proposed superconducting cables

The proposed supergrid concept relies on a specific cable architecture designed to leverage the dual role of hydrogen as both a fuel source and a cryogenic coolant. The technical specifications for this system involve bipolar direct current (DC) lines operating at a voltage of 50 kV and a current of 50 kA. These parameters result in a transmission capacity of 2.5 GW per line. The core innovation lies in using liquid hydrogen to cool the conductors to superconducting temperatures, thereby minimizing electrical resistance. This approach contrasts with conventional high-voltage direct current (HVDC) systems, which typically operate at much higher voltages (e.g., 400–800 kV) but rely on standard metallic conductors with inherent resistive losses.

The relationship between power, voltage, and current in this bipolar DC configuration is expressed as:

P=2×V×I where P is the total power (2.5 GW), V is the voltage per pole (50 kV), and I is the current per pole (50 kA). This equation demonstrates how the system achieves significant power transmission through high current rather than the high voltage typical of traditional HVDC. The use of liquid hydrogen as a coolant is critical because it maintains the conductors below their critical temperature, allowing them to exhibit superconductivity. This reduces energy losses to near-zero levels, a significant advantage over conventional systems where resistive heating accounts for a notable portion of transmitted power.

However, the implementation of such a system requires major technological innovations. The integration of liquid hydrogen distribution with power transmission infrastructure presents unique engineering challenges. The hydrogen must be continuously circulated to maintain the cryogenic environment, which adds complexity to the system design. Additionally, the materials used for the superconducting cables must withstand the mechanical and thermal stresses associated with the cryogenic temperatures. The concept remains in a "visionary" stage, meaning that while the underlying physics are well-understood, the practical engineering solutions are still under development. A full implementation in a large-scale setting, such as the United States, is projected to take several decades, highlighting the long-term nature of this technological endeavor.

What are the challenges of overhead versus subterranean installation?

The implementation of a hydrogen-based supergrid faces significant physical and engineering constraints, particularly regarding the choice between overhead and subterranean installation methods. The core of this challenge lies in the material properties of superconducting cables when subjected to cryogenic temperatures. Supercooled materials, while offering near-zero electrical resistance, often exhibit increased weight and mechanical brittleness. These characteristics make the structural support required for long-distance overhead lines substantially more complex and costly than for conventional transmission infrastructure.

Material Constraints and Mechanical Stress

Superconducting cables must be maintained at extremely low temperatures to function effectively. In the context of a hydrogen supergrid, liquid hydrogen serves a dual role: it acts as the distributed fuel source and as the cryogenic coolant for the power lines. This dual functionality introduces unique mechanical challenges. The brittleness of superconducting materials at cryogenic temperatures means that they are less tolerant of thermal expansion and contraction cycles, wind-induced vibrations, and mechanical stress compared to traditional copper or aluminum conductors. Overhead installations, therefore, require robust support structures to mitigate these stresses, adding to the overall weight and complexity of the system.

Capacitive Losses and Installation Depth

For distances exceeding 60 km, the necessity of subterranean installation becomes more pronounced due to the management of capacitive losses. In overhead lines, capacitive losses can become significant over long distances, affecting the efficiency of power transmission. Subterranean installation helps to mitigate these losses by providing a more controlled environment for the cables, reducing exposure to external factors that can exacerbate capacitive effects. The formula for capacitive reactance, XC=2πfC1, highlights the relationship between frequency (f) and capacitance (C) in determining the reactive power loss. By burying the cables, the capacitance can be better managed, ensuring more efficient power transmission over long distances.

However, subterranean installation also introduces its own set of challenges. The weight and brittleness of the supercooled materials must be accounted for in the design of the underground conduits and support structures. Additionally, the need for continuous cooling and the potential for thermal expansion and contraction must be carefully managed to prevent mechanical failure. These factors contribute to the "visionary" stage of the hydrogen supergrid concept, indicating that while no new scientific breakthroughs are required, major technological innovations are necessary to transition from concept to practical implementation.

Losses in conventional grids versus superconducting systems

Conventional electrical grids experience energy losses primarily due to resistive heating in conductors, capacitive effects in long-distance alternating current (AC) lines, and transformer inefficiencies. In the British AC Supergrid, total transmission losses are reported at approximately 1.5%, with resistive (DC) heating accounting for about 1% of the total energy loss. The remaining losses stem from capacitive currents and transformer hysteresis, which become more significant as voltage levels and line lengths increase. These losses represent a substantial energy cost, particularly in high-voltage direct current (HVDC) and high-voltage alternating current (HVAC) systems where long-distance transmission is critical.

Superconducting systems and residual losses

In a superconducting supergrid, the introduction of liquid hydrogen as both a fuel and a cryogenic coolant aims to reduce resistive losses to near zero. Superconductivity occurs when electrical resistance drops to zero below a critical temperature, which for many superconducting materials is achieved through the cryogenic cooling provided by liquid hydrogen. In such systems, the primary source of energy loss shifts from resistive heating to other factors, including capacitive losses, dielectric losses in insulation, and the mechanical energy required to maintain the cryogenic state of the hydrogen coolant.

Capacitive losses in superconducting systems remain a concern, particularly in AC supergrids where the alternating electric field causes continuous charging and discharging of the line capacitance. These losses are proportional to the square of the voltage and the frequency of the AC signal, following the formula Pcapacitive=V2ωC, where V is the voltage, ω is the angular frequency, and C is the line capacitance. In DC superconducting systems, capacitive losses are minimized but not entirely eliminated, as the superconducting cables still exhibit some dielectric properties.

Transformer losses in superconducting systems are also reduced but not entirely eliminated. Superconducting transformers can achieve higher efficiencies than conventional transformers due to the near-zero resistance of the superconducting windings. However, core losses (hysteresis and eddy current losses) remain, particularly in the magnetic core materials. Additionally, the cryogenic cooling system itself requires energy to maintain the low temperatures necessary for superconductivity, which adds to the overall energy balance of the system. The efficiency of the cryogenic plant, the thermal insulation of the cables, and the specific heat capacity of the hydrogen coolant all play critical roles in determining the net energy savings of a superconducting supergrid.

While superconducting systems offer the potential for significantly reduced transmission losses, the technological challenges of maintaining cryogenic conditions over long distances and integrating liquid hydrogen distribution networks mean that these systems remain in a "visionary" stage. Major innovations in materials science, cryogenic engineering, and hydrogen infrastructure are required before superconducting supergrids can transition from concept to practical implementation. The projected timeline for a full-scale deployment, particularly in large national grids like that of the United States, is estimated to span several decades, reflecting the complexity of the technological and infrastructural changes needed.

Proposed continental scale implementations

Proposals for continental-scale implementations of the hydrogen supergrid concept have focused on large geographic areas where long-distance transmission losses are significant. A prominent example is the proposal for a United States Continental SuperGrid. This conceptual system aims to integrate very long-distance electric power transmission with the distribution of liquid hydrogen, leveraging the dual role of hydrogen as both an energy carrier and a cryogenic coolant. The design envisions using the liquid hydrogen to maintain superconductivity in the power cables, thereby achieving near-lossless transmission across vast distances. This approach seeks to combine the benefits of high-voltage direct current (HVDC) or superconducting alternating current (AC) systems with the flexibility of hydrogen fuel distribution. The concept remains in a "visionary" stage, requiring major technological innovations rather than new scientific breakthroughs to become practical. Implementation timelines for such a large-scale system are projected to span "several decades," reflecting the complexity of integrating new infrastructure with existing energy networks.

Technical Specifications and Infrastructure Integration

The US Continental SuperGrid proposal outlines ambitious technical specifications designed to maximize efficiency and capacity. The system is projected to feature a total length of approximately 4000 km, connecting major energy production hubs with consumption centers across the continent. The estimated power transmission capacity ranges from 40,000 MW to 80,000 MW, depending on the specific configuration and superconducting materials used. This capacity would allow for the integration of diverse renewable energy sources, such as wind and solar, from remote locations to urban centers. A key feature of the proposal is the shared infrastructure with magnetic levitation (maglev) train systems. The power lines would be housed in tunnels that also accommodate maglev trains, optimizing land use and reducing the overall footprint of the energy infrastructure. This integration aims to create a multi-modal transport and energy corridor, enhancing the economic viability of the project. The use of superconducting cables requires precise temperature control, which is achieved through the continuous circulation of liquid hydrogen. This process not only cools the cables but also provides a distributed fuel source for various applications, including transportation and industrial use. The system's design emphasizes modularity and scalability, allowing for phased implementation over the projected timeline. However, the technical challenges are significant, including the need for advanced materials, efficient cooling systems, and robust maintenance protocols. The proposal highlights the potential for hydrogen supergrids to transform continental energy systems, but acknowledges that substantial engineering and economic hurdles must be overcome. The integration of maglev trains adds another layer of complexity, requiring coordinated planning between energy and transportation sectors. Despite these challenges, the concept offers a promising pathway toward a more efficient and integrated energy infrastructure. The projected capacity of 40,000 to 80,000 MW would represent a significant addition to the continental grid, potentially reducing reliance on fossil fuels and enhancing energy security. The shared tunnel design is intended to minimize environmental impact and reduce construction costs. However, the long implementation timeline of "several decades" underscores the need for sustained investment and technological development. The proposal serves as a visionary framework for future energy infrastructure, inspiring further research and innovation in the field of hydrogen-based power transmission.

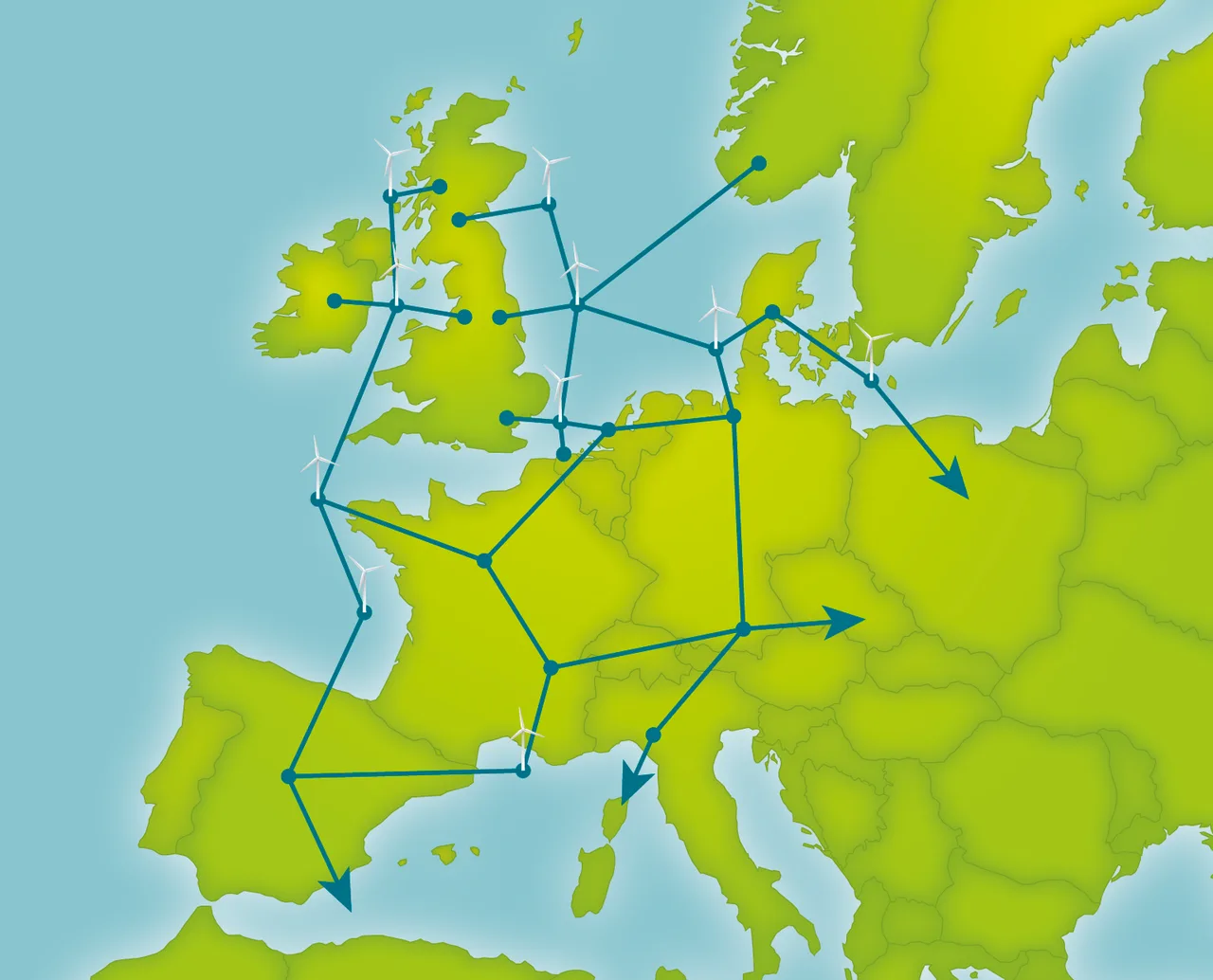

Applications in regional grid interconnection

The concept of a hydrogen-cooled supergrid includes applications for regional grid interconnection, serving as an intermediate step before the realization of comprehensive continental backbones. In this configuration, very long distance electric power transmission is combined with liquid hydrogen distribution. The hydrogen functions simultaneously as a distributed fuel and a cryogenic coolant for the power lines, rendering them superconducting. This dual role allows for lossless power transmission, where the electrical resistance of the cables is significantly reduced or eliminated due to the superconductivity achieved through the cryogenic environment provided by the liquid hydrogen.

Regional interconnection using this technology addresses the need to link distinct power grids over significant distances without the substantial energy losses typical of conventional high-voltage direct current (HVDC) or alternating current (AC) systems. By utilizing hydrogen as both the coolant and a fuel source, the system integrates energy storage and transmission infrastructure. The liquid hydrogen circulates through the superconducting cables, maintaining the low temperatures necessary for superconductivity while also being available for distribution as a fuel. This integration supports the vision of a more resilient and efficient regional energy network, where power can be moved across borders or between major regional hubs with minimal loss.

The implementation of such regional interconnections is described as being in a "visionary" stage. Advocates of the concept note that while no new scientific breakthrough is required, major technological innovations are necessary before the system can progress to a practical, widespread deployment. These innovations include advancements in superconducting cable manufacturing, cryogenic engineering for large-scale hydrogen distribution, and the integration of hydrogen production and storage facilities along the transmission routes. The technological challenges involve maintaining the superconducting state over long distances and ensuring the reliability of the hydrogen cooling system under varying load conditions.

For a system applied to a region such as the United States, projections indicate that several decades are required before full implementation can be achieved. This timeline reflects the need for substantial infrastructure development, including the expansion of hydrogen production capacity, the construction of liquid hydrogen distribution networks, and the deployment of superconducting cables across regional grids. The regional interconnection approach allows for phased deployment, where key corridors can be upgraded to superconducting technology, providing immediate benefits in transmission efficiency and grid stability while the broader continental backbone is developed. This staged approach helps mitigate the initial capital expenditure and technological risks associated with the transition to a hydrogen-cooled supergrid.
