Overview
Solar water heating (SWH) is the process of heating water by sunlight, utilizing a solar thermal collector as the primary technology. This system converts solar radiation into thermal energy to raise the temperature of water, serving as a foundational technology in the broader field of solar thermal energy. The operational status of this concept is active and widely deployed globally, with systems designed to provide solutions across different climates and latitudes.
The basic working principle involves capturing solar energy through collectors, which then transfer heat to a fluid or directly to the water storage tank. A variety of configurations are available, allowing for cost-effective implementations tailored to specific environmental conditions. These systems are extensively used for residential applications and are increasingly adopted in industrial sectors to reduce energy consumption and operational costs.
Global market statistics indicate a significant installed capacity for solar water heating. The total capacity is reported as 560 MW. This figure reflects the cumulative output of numerous installations worldwide, contributing to the decentralization of thermal energy production. The technology has been in operation since its early commissioning in 1896, marking a long history of development and refinement in solar thermal applications.
The widespread adoption of SWH systems is driven by their efficiency in converting solar energy into usable heat, making them a key component in sustainable energy strategies. Leading countries in the SWH market have leveraged this technology to meet residential and industrial heating demands, reducing reliance on conventional fuel sources. The versatility of solar thermal collectors allows for integration into various building designs, enhancing their appeal in both new constructions and retrofits.
History of solar water heating
Solar water heating (SWH) systems have evolved significantly since their early adoption in the early 20th century. The technology relies on solar thermal collectors to heat water, utilizing sunlight as the primary energy source. Early implementations included batch heaters, which served as foundational designs for residential applications. These early systems demonstrated the viability of solar thermal energy for domestic use, establishing a precedent for future technological advancements in the sector.
A significant milestone in the historical development of solar water heating occurred with Frank Shuman’s power station. Shuman’s work in the early 1900s showcased the potential of solar thermal energy beyond simple water heating, extending into power generation. His innovations provided critical insights into the efficiency and scalability of solar thermal systems, influencing subsequent engineering approaches. The operational status of early SWH systems was primarily experimental, yet they laid the groundwork for widespread residential and industrial adoption.
Regulatory milestones in various countries have played a crucial role in the expansion of solar water heating. In Israel, early government incentives and building codes mandated the use of SWH systems in residential buildings, driving significant market penetration. Similarly, Spain implemented policies to promote solar thermal energy, particularly in the Mediterranean climate where solar irradiance is high. These regulatory frameworks helped standardize technology and reduce costs through economies of scale.
In Japan, solar water heating gained popularity due to government subsidies and the need for efficient energy use in urban areas. The country’s regulatory environment encouraged the integration of SWH systems into both residential and commercial buildings. Australia also saw substantial growth in solar water heating, driven by favorable climatic conditions and policy support. The Australian government introduced various incentives to accelerate adoption, making SWH a common feature in new constructions.
China has emerged as a major player in the solar water heating sector, with extensive deployment in both urban and rural areas. Regulatory measures and government initiatives have supported the rapid expansion of SWH systems, contributing to the country’s overall energy diversity. The capacity of solar water heating installations globally has grown significantly, reflecting the technology’s increasing importance in the renewable energy landscape. As of the latest data, the operational capacity of solar water heating systems reaches 560 MW, underscoring its role in meeting thermal energy demands.
How do solar water heating systems work?
Solar water heating systems function by capturing solar radiation and converting it into thermal energy to heat water. The core component is the solar thermal collector, which absorbs sunlight and transfers the heat to a working fluid. These systems are designed for various climates and latitudes, utilizing configurations that balance cost and efficiency for residential and industrial applications.System Components
A functional solar water heating system integrates several key components to manage heat capture, transfer, and storage.| Component | Function |
|---|---|
| Solar Collector | Absorbs solar radiation and converts it into heat. Types vary by climate and cost. |
| Storage Tank | Holds the heated water for later use, minimizing heat loss through insulation. |
| Heat Transfer Fluid | |
| Pumps | Moves the fluid through the system in active configurations. |
| Controllers | Regulates pump operation based on temperature differentials between the collector and tank. |
| Insulation | Reduces thermal losses in pipes and the storage tank. |
Operational Principles
The system operates by circulating a heat transfer fluid through the collector. As the fluid absorbs heat from the sun, its temperature rises. In active systems, a pump moves the fluid from the collector to the storage tank. The controller activates the pump when the collector temperature exceeds the tank temperature by a set differential. The heat is transferred from the fluid to the water in the storage tank, often via a heat exchanger. The basic energy balance for the collector can be expressed as:Q = A * F_R * (S - U_L * (T_i - T_a))
Where Q is the useful energy gain, A is the collector area, F_R is the heat removal factor, S is the solar flux, U_L is the overall loss coefficient, T_i is the inlet fluid temperature, and T_a is the ambient temperature.
Insulation plays a critical role in maintaining water temperature in the storage tank. Properly insulated tanks minimize conductive and convective heat losses, ensuring that the heated water remains at a usable temperature for extended periods. The efficiency of the system depends on the configuration, which varies based on local climate conditions and specific application requirements.
What are the main types of solar collectors?
Solar water heating systems rely on solar thermal collectors to convert sunlight into heat. The three primary collector technologies are flat plate collectors, evacuated tube collectors (ETC), and unglazed (formed) collectors. Each type offers distinct performance characteristics suited to specific climates and applications.Flat Plate Collectors
Flat plate collectors consist of a dark absorber plate enclosed in a glazed box with insulation. They are the most common type for residential use. These collectors are durable and perform well in moderate climates. The efficiency of a flat plate collector can be approximated by the equation η=η0−a1GTi−Ta−a2G(Ti−Ta)2, where η is efficiency, Ti is inlet temperature, Ta is ambient temperature, and G is solar irradiance. They are robust but can suffer from heat loss in very cold or very hot conditions.
Evacuated Tube Collectors
Evacuated tube collectors use parallel glass tubes with a vacuum layer to minimize heat loss. This design provides superior insulation compared to flat plates, making them highly efficient in colder climates and for higher temperature requirements. The vacuum acts as a thermal break, reducing convection and conduction losses. ETCs are generally more expensive but offer better performance per unit area in variable weather conditions. They are also more resistant to freeze damage due to the individual tube structure.
Unglazed Collectors
Unglazed collectors, often made of black rubber or plastic, lack glass coverings. They are the simplest and most cost-effective option, ideal for heating swimming pools or domestic water in warm climates. Because they are unglazed, they are highly susceptible to convective heat loss, making them less efficient when the temperature difference between the water and the ambient air is large. They are not suitable for high-temperature industrial applications or cold climates without supplementary heating.
| Collector Type | Efficiency | Durability | Freeze Tolerance | Best Application |
|---|---|---|---|---|
| Flat Plate | Moderate to High | High | Moderate | Residential, Moderate Climates |
| Evacuated Tube | High | Moderate | High | Cold Climates, High Temp Needs |
| Unglazed | Low to Moderate | Moderate | Low | Swimming Pools, Warm Climates |
System configurations and heat transfer methods
Solar water heating systems utilize solar thermal collectors to convert sunlight into heat, with configurations varying by climate and application. These systems are broadly categorized by their fluid circulation methods and heat transfer mechanisms. Direct systems, often called open-loop systems, circulate the water to be heated directly through the collector. This configuration is efficient but susceptible to freezing, making it suitable for mild climates where the water supply is relatively free of minerals.

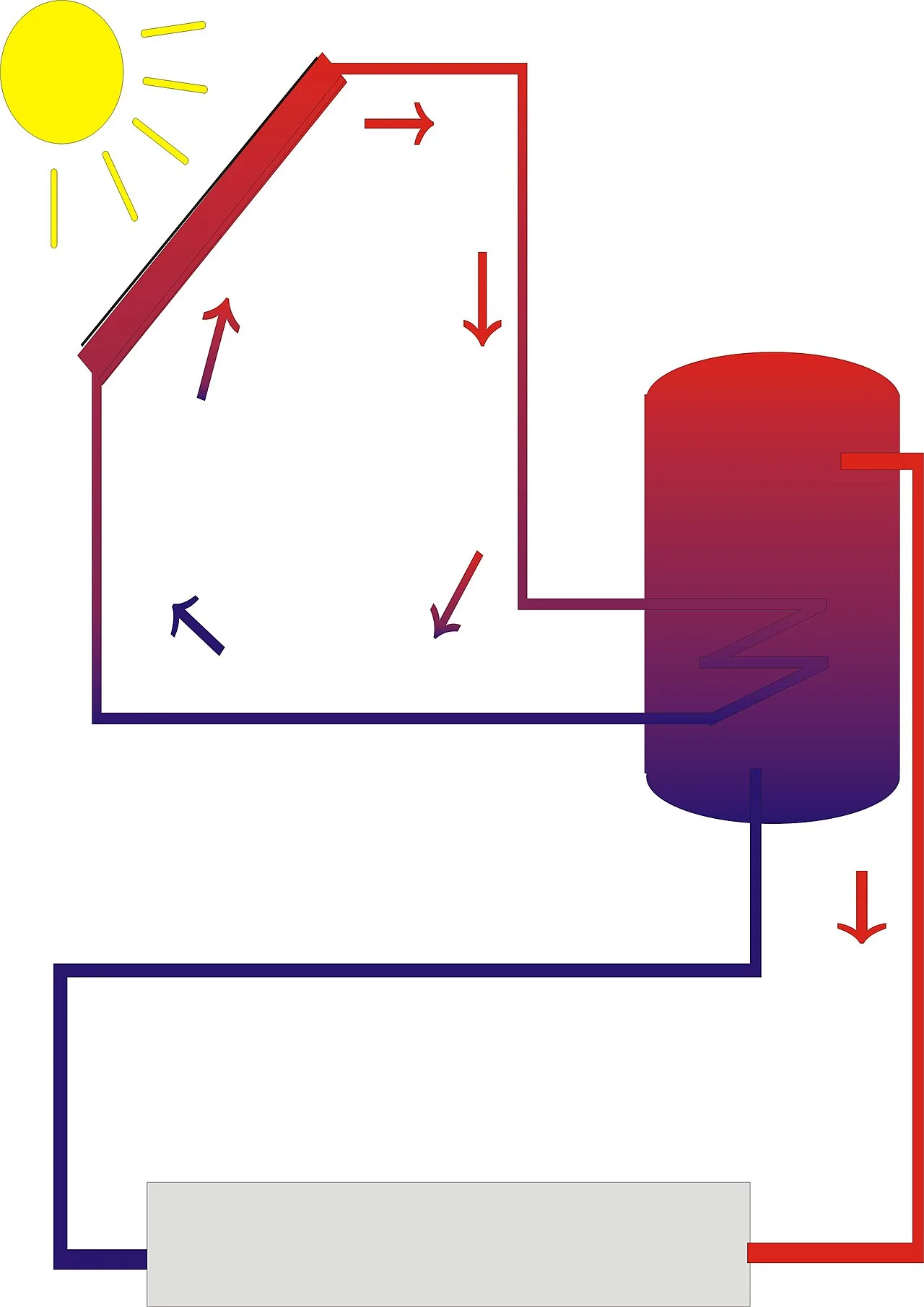

Indirect systems, or closed-loop systems, use a heat transfer fluid, typically a glycol-water mixture, which circulates through the collector and transfers heat to the domestic water via a heat exchanger. This method provides superior freeze protection and is ideal for colder latitudes. The heat transfer process can be described by the equation Q=m˙cpΔT, where Q is the heat energy, m˙ is the mass flow rate, cp is the specific heat capacity, and ΔT is the temperature difference between the inlet and outlet.
Circulation Methods
Passive systems rely on natural convection, where heated fluid rises due to density differences, eliminating the need for pumps. These systems are mechanically simple and cost-effective but require the storage tank to be positioned above the collector. Active systems use electric pumps to circulate the fluid, allowing for greater flexibility in placement and higher efficiency, particularly in larger residential and industrial applications.
Protection Mechanisms
Freeze protection is critical in temperate and cold climates. Methods include drainback systems, where the fluid drains from the collector into a storage tank when the pump stops, and heat-trace cables that wrap around pipes to maintain temperature. Overheat protection prevents stagnation temperatures from damaging the collector or fluid. Common strategies include dumping excess heat into a swimming pool, using a radiator with a fan, or employing a bypass valve to circulate fluid through a secondary heat exchanger. These mechanisms ensure the longevity and efficiency of the solar water heating system.
Applications and energy production
Solar water heating (SWH) systems are deployed across a diverse range of applications, primarily serving residential hot water needs and swimming pool temperature regulation. These configurations are selected based on local climate conditions and latitude to optimize thermal collection efficiency. In residential settings, SWH provides a significant portion of domestic hot water demand, reducing reliance on conventional fuel sources. For swimming pools, the lower temperature requirements allow for simpler, often unglazed collector arrays, making solar heating a cost-effective solution for extending the swimming season in various latitudes.
Beyond residential use, SWH technology is utilized in industrial processes and district heating networks. Industrial applications often leverage higher temperature outputs to preheat feedwater or support specific manufacturing processes, thereby integrating solar thermal energy into broader energy mixes. District heating systems can incorporate large-scale solar thermal collectors to supply heat to multiple buildings, enhancing the renewable energy share in urban thermal grids. The operational status of these systems is generally characterized by long-term reliability, with many installations remaining operational for decades.
Energy output from SWH systems varies significantly between tropical and temperate climates. In tropical regions, higher solar irradiance allows for greater annual energy yield, often covering a larger percentage of the total hot water demand. Temperate climates may require supplementary heating or larger collector areas to achieve similar coverage, particularly during winter months. The total installed capacity of such systems globally reaches significant scales, with specific large-scale installations contributing to overall energy production metrics. For instance, aggregated capacity figures can reach 560 MW in certain regional assessments, reflecting the substantial role of SWH in the broader solar thermal landscape.
The energy production can be estimated using basic thermal equations. The useful energy gain Qu from a collector is often calculated as:
Qu=Ac×[GT×η0−UL×(Ti−Ta)]Where Ac is the collector area, GT is the total solar irradiance, η0 is the optical efficiency, UL is the heat loss coefficient, Ti is the inlet fluid temperature, and Ta is the ambient temperature. This formula helps engineers design systems tailored to specific climatic conditions, ensuring optimal performance whether in high-irradiance tropical zones or variable temperate environments.
Costs, subsidies and life cycle assessment
Financial viability of solar water heating (SWH) systems depends on several cost factors, including the type of collector, installation complexity, and local climate conditions. The payback period for SWH systems varies significantly depending on these factors, with residential systems typically recovering their initial investment within 5 to 15 years. In regions with high solar irradiance and moderate to high energy prices, the return on investment is more favorable.
Government Subsidies
Government subsidies play a crucial role in enhancing the economic attractiveness of SWH systems. In Australia, various state and federal programs have provided incentives such as Small-scale Technology Certificates (STCs) and rebates to reduce the upfront costs for homeowners. These subsidies have been instrumental in driving the adoption of SWH systems across the country.
In Canada, provincial governments offer different forms of financial support, including tax credits and grants. For instance, Ontario’s Solar Heat Tax Credit program has allowed homeowners to claim a portion of the installation costs, making SWH systems more accessible to a broader demographic. Such initiatives help mitigate the initial financial burden and accelerate the market penetration of solar thermal technology.
Environmental Impact
The environmental benefits of SWH systems are substantial, primarily due to the reduction in CO2 emissions compared to conventional water heating methods. The energy payback time, which is the duration required for a system to generate the same amount of energy that was used to produce, install, and maintain it, is typically between 1 to 4 years. This short payback period underscores the efficiency of SWH systems in harnessing solar energy.
The lifecycle assessment of SWH systems reveals that they contribute significantly to lowering the carbon footprint of residential and industrial water heating. By utilizing sunlight, a renewable resource, these systems reduce reliance on fossil fuels, thereby decreasing greenhouse gas emissions. The overall environmental impact is further enhanced by the durability and low maintenance requirements of modern SWH technologies.
Standards and installation requirements
Regulatory frameworks for solar water heating (SWH) systems vary significantly across major markets, reflecting differences in climate, housing stock, and energy policy priorities. In the European Union, the Solar Keymark certification provides a unified quality label for solar thermal products, ensuring interoperability and performance transparency for consumers and installers. National building codes, such as the German DIN 4709 standard, mandate specific efficiency classes and installation practices to maximize seasonal yield. These standards often require rigorous hydraulic testing and insulation verification to prevent thermal losses in temperate and continental climates.
North American Standards
In the United States, the Solar Rating and Certification Corporation (SRCC) administers the primary certification program, evaluating collectors for thermal performance and durability under ASTM standards. Installation requirements are frequently governed by local plumbing and mechanical codes, which dictate pressure relief valve placement, expansion tank sizing, and freeze-protection strategies. In Canada, the Solar Heating and Cooling Certification Council (SHCCC) aligns with ASTM standards but places greater emphasis on freeze protection and snow-load capacity due to harsher winter conditions. Canadian installations often require glycol-based closed-loop systems or drain-back configurations to mitigate thermal stress.
Australian Regulations
Australia enforces strict energy efficiency labeling through the Star Rating System, which evaluates SWH systems based on seasonal performance and heat loss. The Australian Standard AS/NZS 2620 provides comprehensive guidelines for the design, installation, and commissioning of solar hot water systems. These regulations emphasize corrosion resistance and pressure management, critical factors in the country’s diverse climatic zones ranging from tropical north to temperate south.
Installation Considerations
Effective SWH installation requires careful integration with existing plumbing and backup heating sources. Most systems incorporate electric or gas backup heaters to ensure consistent water temperature during prolonged cloudy periods. Proper insulation of piping and storage tanks is essential to minimize standby heat losses, directly impacting the system’s overall coefficient of performance. The thermal energy gained by the collector can be approximated by the equation Q=A⋅FR⋅(S−UL⋅(Ti−Ta)), where A is the collector area, FR is the heat removal factor, S is the solar irradiance, UL is the overall heat loss coefficient, Ti is the inlet fluid temperature, and Ta is the ambient temperature. Installers must also consider orientation and tilt angles to optimize annual solar gain, balancing winter and summer performance based on local latitude and usage patterns.
