Smoke grenade discharger: vehicle-mounted defense systems

History of grenade launching systems

The concept of the grenade launcher has evolved significantly from early mechanical aids to modern dedicated firearms. Historically, the need to project explosive or smoke payloads beyond the effective range of a rifle led to the development of various launching mechanisms. Early systems were often simple, relying on gravity or basic spring mechanisms, but they lacked the precision and range required for modern tactical engagement.

World War I marked a pivotal moment in the evolution of grenade launching systems. The introduction of the French Sauterelle, or "grasshopper," represented one of the first dedicated devices designed to fire hand grenades with greater accuracy than a simple throw. This system utilized a simple rail and spring mechanism to propel the grenade, allowing infantry units to engage targets at distances of up to 150 meters with improved consistency. The Sauterelle was widely used by French and British forces, demonstrating the tactical advantage of mechanized grenade delivery.

Simultaneously, other nations developed their own solutions. The Japanese Type 89 grenade discharger, often referred to as the "Knee Mortar," was another significant early system. Designed for infantry use, it was a simple, lightweight device that could be mounted on a rifle or used independently. The Type 89 allowed soldiers to fire standard hand grenades with a relatively flat trajectory, making it effective in trench warfare and open field engagements. These early systems laid the groundwork for the development of more sophisticated grenade launchers in subsequent conflicts.

The evolution continued through World War II and the Korean War, with the introduction of under-barrel grenade launchers and dedicated shoulder-fired systems. These advancements increased the versatility and firepower of infantry units, allowing for more flexible engagement of both point and area targets. The development of standardized ammunition, such as the 40mm grenade cartridge, further enhanced the interoperability and effectiveness of these systems.

Today, grenade launchers are classified into two main categories: man-portable, shoulder-fired weapons issued to individual soldiers, and larger crew-served launchers used at higher levels of military organization. The modern 40mm grenade launcher, for example, is a widely used system that fires unitary grenade cartridges containing explosive, smoke, or gas warheads. These systems continue to evolve, incorporating advanced optics, firing mechanisms, and ammunition types to meet the changing demands of modern warfare.

What are the main types of grenade launchers?

Grenade launchers are categorized by their mounting configuration and operational mode, ranging from individual shoulder-fired systems to complex fixed arrays. The primary distinction lies in whether the launcher is a dedicated firearm or an accessory to another weapon system. Stand-alone launchers function as primary weapons, offering greater range and versatility for individual soldiers or small units. These systems typically fire unitary grenade cartridges, such as the widely used 40mm type, allowing for precise engagement with explosive, smoke, or gas warheads. Their portability makes them ideal for infantry tactics where flexibility is required.

Underbarrel and Mounted Systems

Underbarrel grenade launchers are attached to the barrel of a primary rifle, integrating firepower without adding significant bulk to the soldier's loadout. This configuration allows for rapid switching between direct rifle fire and indirect grenade fire. While convenient, underbarrel systems often have a shorter effective range and a more limited selection of ammunition compared to their stand-alone counterparts. They are issued to individuals within military forces to enhance squad-level firepower, providing a balance between mobility and versatility.

Automatic and Fixed Array Systems

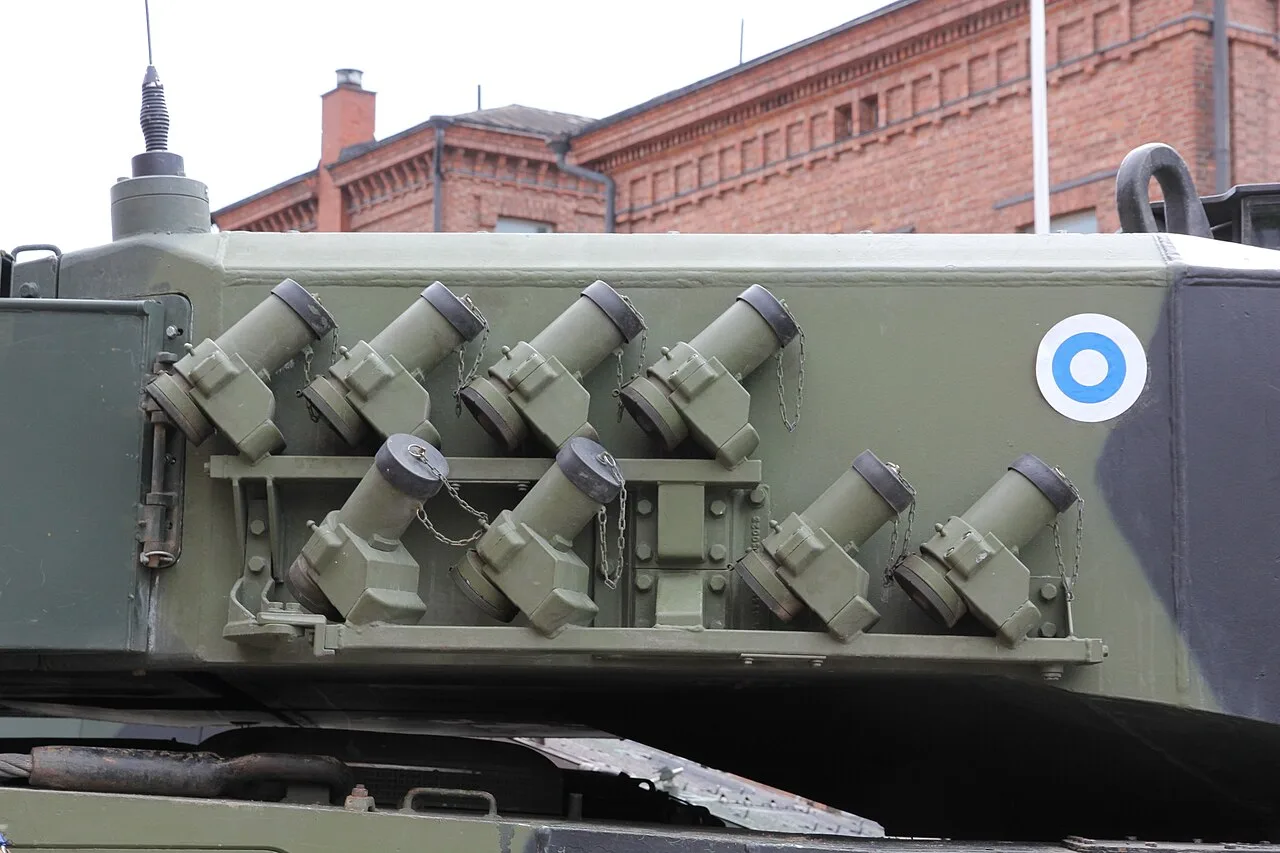

For higher levels of organization, military forces utilize automatic and fixed array systems. Automatic grenade launchers provide sustained fire, covering larger areas with explosive or smoke projectiles. These crew-served weapons are often mounted on vehicles, tripods, or aircraft, offering greater stability and range. Fixed array systems, commonly found on naval vessels or armored vehicles, consist of multiple launchers arranged in a cluster. These arrays can fire multiple grenades simultaneously, creating dense smoke screens or explosive barrages to suppress enemy positions. The choice of system depends on the tactical requirements, ranging from individual precision to area denial.

Ammunition types and calibers

Grenade launchers are designed to fire specially crafted projectiles that serve diverse tactical roles on the battlefield. These unitary cartridges typically house warheads filled with explosives, smoke, or gas, allowing infantry units to engage targets beyond the effective range of small arms while providing versatile area-denial and communication capabilities. The ammunition is engineered to be robust, capable of withstanding the recoil of shoulder-fired weapons or the higher velocities of automatic and crew-served launchers.

Standard Calibers

The 40mm cartridge is the most widely used standard for modern grenade launchers, offering a balance between weight and payload capacity. This caliber dominates military inventories globally, serving as the primary armament for both individual shoulder-fired weapons and vehicle-mounted systems. The 37mm caliber is also prevalent, often utilized in specific regional standards or older weapon systems, providing slightly different ballistics and fragmentation patterns compared to the 40mm round. Other specialized calibers exist for niche applications, ranging from compact 20mm rounds for close-quarters combat to heavy 60mm projectiles for crew-served automatic grenade launchers.

Warhead Variants

Ammunition types are categorized by their primary effect. High-explosive (HE) rounds deliver fragmentation damage, ideal for engaging light vehicles, fortifications, and grouped infantry. Smoke cartridges generate dense clouds of colored or white smoke, used for screening troop movements, signaling, or obscuring vision. Gas rounds, often filled with tear gas or other irritants, are effective for clearing buildings and non-lethal crowd control. Advanced smart ammunition, such as High-Explosive Air-Burst (HEAB) rounds, uses programmable fuses to detonate at a specific distance or time, allowing the projectile to explode over or behind cover, maximizing lethality against entrenched enemies.
