Overview
Shams Solar Power Station is a concentrating solar power (CSP) facility located near Madinat Zayed in the Emirate of Abu Dhabi, United Arab Emirates. The plant represents a significant milestone in the region's energy infrastructure, having been recognized as the world's largest CSP facility upon its commissioning in 2013. It is operated by the Shams Power Company and utilizes parabolic trough technology to generate electricity, distinguishing it from the more common photovoltaic solar farms prevalent in the region.
Location and Geography
The power station is situated approximately 120 kilometres (75 mi) southwest of the city of Abu Dhabi. It is positioned just 6 kilometres (4 mi) from Madinat Zayed, located on the main road connecting Tarif to the Liwa Oasis. This strategic placement in the western region of Abu Dhabi provides the facility with high solar irradiance, a critical factor for the efficiency of parabolic trough systems. The site is part of the broader solar energy development strategy in the United Arab Emirates, leveraging the extensive desert landscape for large-scale renewable energy generation.
Technical Specifications and Capacity
Shams 1 has an installed capacity of 100 MW, making it a major contributor to the local grid. The facility employs parabolic trough collectors, which use curved mirrors to focus sunlight onto a receiver tube containing a heat transfer fluid. This fluid is then used to generate steam, which drives a conventional steam turbine generator. The operational status of the plant is currently active, having been commissioned in 2013. The choice of CSP technology allows for thermal energy storage capabilities, enabling the plant to continue generating power even after sunset, although the specific storage duration is defined by the plant's design parameters.
Why it matters
Shams Solar Power Station holds a distinct position in the global renewable energy sector as the largest concentrated solar power (CSP) facility in the world at the time of its commissioning in 2013. This distinction is technically significant because CSP technology, which uses mirrors to focus sunlight to generate heat and drive steam turbines, differs fundamentally from the more common photovoltaic (PV) panels that convert light directly into electricity. The scale of Shams 1 demonstrated the viability of large-scale thermal solar generation in the Gulf region, providing a model for integrating solar thermal storage and hybridization with natural gas, which is critical for grid stability in desert environments.
Role in the UAE Energy Landscape
Operated by the Shams Power Company, the facility plays a strategic role in the United Arab Emirates' broader energy diversification efforts. With a capacity of 100 MW, the station contributes to reducing the UAE's heavy reliance on hydrocarbon reserves for domestic power generation. The project is situated near Madinat Zayed, approximately 120 kilometres southwest of Abu Dhabi, placing it within the Emirate's key infrastructure corridor. This location allows for efficient transmission to the growing population centers of Abu Dhabi and the surrounding Liwa Oasis region.
Environmental Impact and CO2 Displacement
The environmental significance of Shams 1 is quantified by its ability to displace approximately 175,000 tons of CO2 annually. This metric is crucial for the UAE's climate strategy, offering a tangible reduction in greenhouse gas emissions from the power sector. By offsetting this volume of carbon dioxide, the station helps mitigate the environmental footprint of the region's rapid urban and industrial expansion. The displacement figure underscores the effectiveness of CSP technology in high-irradiance zones, where the solar resource is abundant and consistent.
Comparative Context
While photovoltaic projects have since surpassed CSP in total installed capacity globally, Shams 1 remains a benchmark for thermal solar technology. Its 100 MW capacity was a pioneering scale for CSP, proving that the technology could compete with traditional thermal plants in terms of output and reliability. The station's success has influenced subsequent solar investments in the Middle East, highlighting the importance of technology diversity in renewable energy portfolios. The facility's operational status as a key asset in the UAE's grid reflects its enduring relevance in the region's energy transition.
Technical specifications
The Shams Solar Power Station employs concentrating solar power (CSP) technology, specifically utilizing parabolic trough collectors to generate thermal energy. The facility is operated by the Shams Power Company and has a total installed capacity of 100 MW. The solar field is composed of 258,048 parabolic trough mirrors arranged into 192 loops. These loops are further divided into 768 solar collector assemblies (SCAs). Each SCA measures 150 m in length. The system incorporates 27,648 absorber pipes that capture solar radiation and transfer heat to the working fluid. The total solar-field aperture area is 627,840 m².
Thermal and Mechanical Parameters
The thermal performance of the parabolic trough system is defined by the temperature profile of the heat transfer fluid. The fluid enters the absorber pipes at an inlet temperature of 300°C. After traversing the solar field, the outlet temperature reaches 400°C. This temperature differential drives the thermodynamic cycle that generates electricity. The technical specifications of the station are detailed in the table below.
| Parameter | Value |
|---|---|
| Technology | Concentrating Solar Power (Parabolic Trough) |
| Operator | Shams Power Company |
| Capacity | 100 MW |
| Parabolic Trough Mirrors | 258,048 |
| Solar Collector Assemblies (SCAs) | 768 |
| Loops | 192 |
| Absorber Pipes | 27,648 |
| SCA Length | 150 m |
| Solar-Field Aperture Area | 627,840 m² |
| Inlet Temperature | 300°C |
| Outlet Temperature | 400°C |
How does parabolic trough technology work?

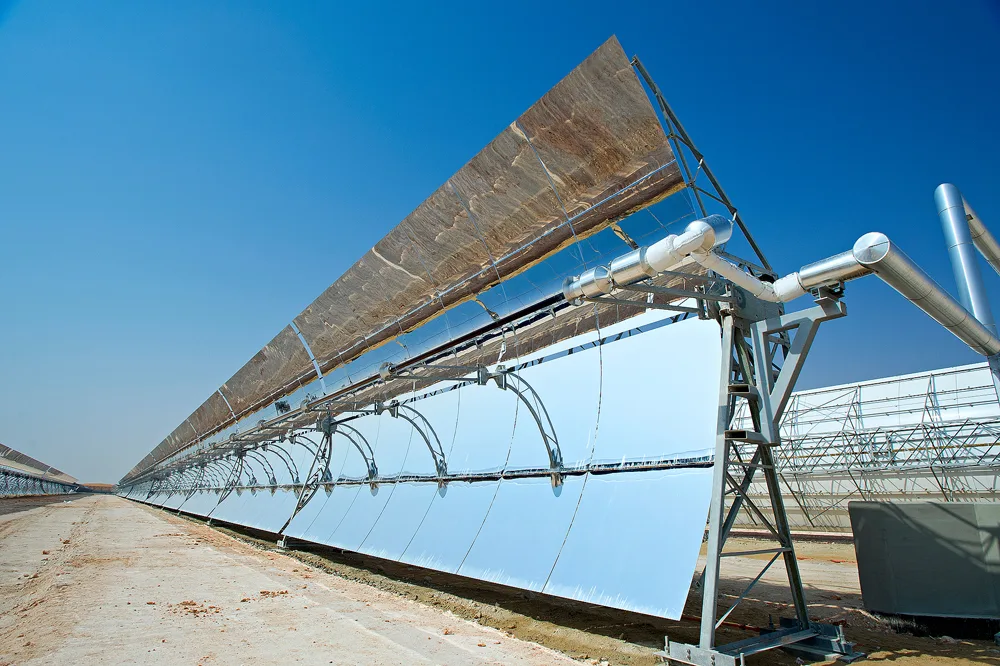

Shams 1 employs parabolic trough concentrating solar power (CSP) technology to convert direct normal irradiance into electricity. The system relies on a linear array of curved mirrors that focus sunlight onto a receiver tube positioned along the focal line. This configuration allows for continuous tracking of the sun, maximizing thermal energy collection throughout the day.
Collector Components and Heat Transfer
The station utilizes ASTRO collector technology developed by Abengoa Solar. These collectors feature precision glass mirrors manufactured by Flabeg, which reflect solar radiation onto the central absorber tubes. The absorber tubes are Schott PTR 70 units, consisting of a glass envelope surrounding a selective-coated metal tube. This design minimizes radiative and convective heat losses, ensuring efficient thermal capture.
Circulating through the absorber tubes is Therminol VP-1, a synthetic organic heat transfer fluid. As the fluid absorbs concentrated solar energy, its temperature rises significantly. The heated fluid is then pumped from the collector field to the power block, where it transfers its thermal energy to water in a heat exchanger. This process generates high-pressure steam, driving the turbine-generator set.
Power Generation and Cooling
The steam generated in the heat exchanger expands through a turbine, converting thermal energy into mechanical energy, which is then transformed into electricity via a generator. This follows a standard Rankine cycle, a thermodynamic process commonly used in thermal power plants. After passing through the turbine, the steam condenses back into water and returns to the heat exchanger, completing the cycle.
To optimize water usage in the arid Abu Dhabi environment, Shams 1 employs a dry cooling method. Unlike traditional wet cooling towers that evaporate large volumes of water, dry cooling uses air to condense the steam. Fans force ambient air over finned heat exchangers, transferring heat from the steam to the atmosphere. This approach significantly reduces water consumption, a critical factor for solar farms located in desert regions.
Development and financing
Shams Solar Power Station was developed through a joint venture known as the Shams Power Company. This entity was formed to manage the project's development, financing, and ongoing operations. The ownership structure of the Shams Power Company is divided among three major energy players. Masdar holds the largest stake at 60%, making it the primary shareholder. Abengoa Solar and Total S.A. each hold a 20% share in the venture. This distribution of equity reflects the collaborative effort between the Abu Dhabi Future Energy Company, a Spanish engineering firm, and a French multinational energy corporation.
| Shareholder | Ownership Percentage |
|---|---|
| Masdar | 60% |
| Abengoa Solar | 20% |
| Total S.A. | 20% |
The project was structured under a 25-year build, own, and operate contract. This agreement outlined the responsibilities of the Shams Power Company regarding the construction and long-term management of the facility. The total construction cost for the 100 MW plant was US$600 million. This investment covered the engineering, procurement, and construction phases required to bring the concentrating solar power station online. The financing for this significant capital expenditure was secured through a consortium of lenders. Key financial institutions involved in the lending process included BNP Paribas, the National Bank of Abu Dhabi, and Société Générale. These lenders provided the necessary debt capital to support the project's development timeline and cash flow requirements. The involvement of these major banks underscores the financial confidence in the project's viability and the strategic importance of the Shams Solar Power Station within the United Arab Emirates' energy infrastructure. The financing structure allowed the Shams Power Company to leverage both local and international capital markets to fund the construction of the facility near Madinat Zayed.
What challenges did the project face?
Environmental conditions in the United Arab Emirates presented significant engineering hurdles for the Shams Solar Power Station, particularly regarding atmospheric dust. An October 2010 report highlighted that dust accumulation could substantially reduce solar radiation reaching the collector surfaces, a critical factor for a concentrating solar power (CSP) facility. This environmental challenge directly impacted the design requirements for the collector arrays, necessitating robust cleaning mechanisms and optical precision to maintain efficiency under arid conditions. The engineering and design phases involved a collaborative effort among specialized firms to address these site-specific variables. AG Ingeniería, Fichtner Consulting Engineers, and Foster Wheeler played key roles in translating these environmental constraints into technical specifications. Their work ensured that the station’s infrastructure could withstand the local climate while optimizing energy capture. The integration of these engineering solutions was essential for the project’s viability, balancing technological innovation with the practical realities of the Abu Dhabi desert environment.
