Overview
The Scaled Wind Farm Technology (SWiFT) Facility operates as a specialized, collaborative research infrastructure dedicated to advancing wind energy technology in the United States. Located at the Reese Technology Center in Lubbock, Texas, this facility serves as a critical user facility for the Wind Energy Technologies Office of the United States Department of Energy. It holds the distinction of being the first public facility designed to utilize multiple wind turbines to measure and analyze turbine performance within a true wind farm environment, rather than in isolation.
Commissioned in the summer of 2013, the SWiFT Facility was established to bridge the gap between theoretical modeling and real-world operational data for wind energy systems. By providing a controlled yet realistic setting, the facility allows researchers, manufacturers, and academic institutions to conduct rigorous testing on turbine behavior, wake effects, and overall farm efficiency. This collaborative model supports the broader goals of the U.S. Department of Energy to enhance the competitiveness and reliability of wind power as a primary energy source.
Operated by Sandia National Laboratories, the facility leverages advanced instrumentation and data acquisition systems to capture high-resolution performance metrics. The strategic placement at the Reese Technology Center in Lubbock provides access to consistent wind resources, making it an ideal location for long-term studies and comparative analyses. The operational status of the facility remains active, continuing to serve as a hub for innovation in wind energy technology and contributing valuable data to the global energy infrastructure sector.
History and Development
The Scaled Wind Farm Technology (SWiFT) Facility was established as a collaborative research initiative to advance wind energy infrastructure in the United States. Located at the Reese Technology Center in Lubbock, Texas, the facility serves as a critical asset for the Wind Energy Technologies Office of the United States Department of Energy.
The development of the facility involved key research partnerships formed prior to its physical commissioning. Notably, Group NIRE was established in 2010 as a foundational partner in the research ecosystem surrounding the project. This early formation helped structure the collaborative framework necessary for the facility’s operational goals.
The project reached a major milestone when it was formally commissioned in the summer of 2013. This commissioning marked the transition from construction and initial setup to active research operations. The SWiFT Facility became the first public facility to utilize multiple wind turbines to measure turbine performance within a wind farm environment, functioning as a user facility for the Department of Energy’s Wind Energy Technologies Office.
Facility Infrastructure and Equipment

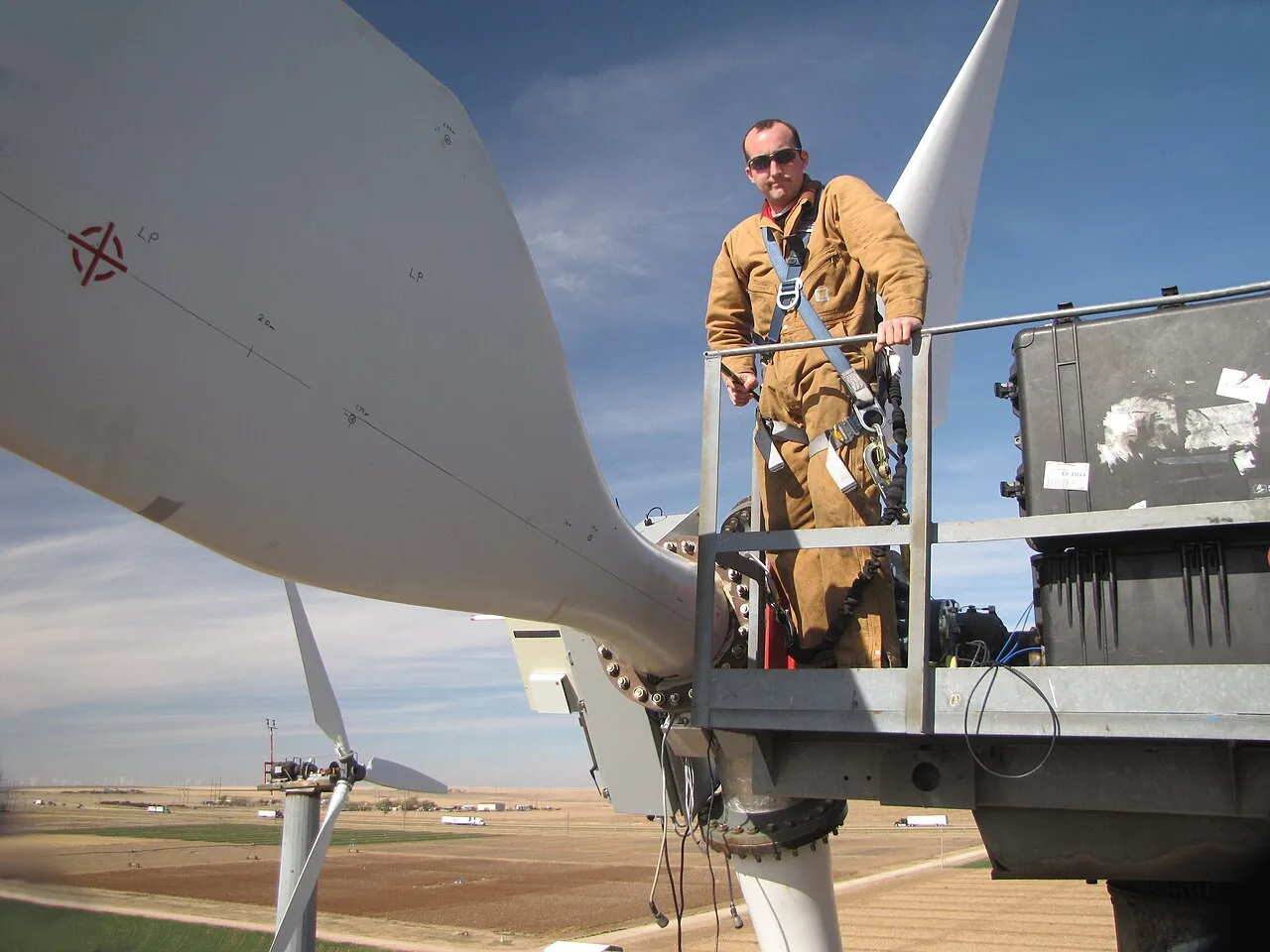

The SWiFT Facility’s infrastructure is designed to support high-fidelity aerodynamic and structural testing of wind turbine components within a controlled farm environment. The core of the facility consists of three modified Vestas V27 wind turbines, which serve as the primary testbeds for evaluating performance metrics under varying wind conditions. These turbines are strategically positioned to capture data on wake effects and turbine-to-turbine interactions, providing critical insights for the Wind Energy Technologies Office of the United States Department of Energy.
Supporting the turbine array are two 60-meter-tall meteorological towers. These structures house an extensive suite of sensors, including anemometers, wind vanes, and temperature probes, which continuously monitor atmospheric stability and wind shear profiles. The data collected from these towers allows researchers to correlate local meteorological conditions with turbine output, enhancing the accuracy of performance models.
The facility also includes two key buildings that house the operational and logistical functions of the research site. A 640 square foot control building serves as the central hub for real-time data acquisition and turbine monitoring. This structure contains the necessary instrumentation and computing resources to process the high-volume data streams generated by the turbines and meteorological sensors. Adjacent to this is a 5,500 square foot assembly building, which provides ample space for the storage, maintenance, and assembly of turbine components and experimental hardware. This building facilitates efficient workflow for engineers and technicians conducting field tests.
Facility Components
| Component | Specification | Function |
|---|---|---|
| Wind Turbines | 3x Modified Vestas V27 | Primary testbeds for aerodynamic and structural performance evaluation |
| Meteorological Towers | 2x 60-meter-tall structures | Monitoring wind speed, direction, and atmospheric stability |
| Control Building | 640 square feet | Houses data acquisition systems and monitoring instrumentation |
| Assembly Building | 5,500 square feet | Storage, maintenance, and assembly of turbine components |
The integration of these components allows for comprehensive testing protocols that simulate real-world wind farm operations. The facility’s design emphasizes modularity and scalability, enabling researchers to adapt the testbed for emerging technologies and experimental configurations. This infrastructure supports the facility’s mission to accelerate the development of cost-effective and reliable wind energy solutions.
Research Partnerships and Collaboration
The Scaled Wind Farm Technology (SWiFT) Facility operates as a collaborative research hub, leveraging partnerships between academic institutions, national laboratories, and industry leaders to advance wind energy technology. The facility is situated at the Reese Technology Center in Lubbock, Texas, serving as a user facility for the Wind Energy Technologies Office of the United States Department of Energy. This strategic location enables the integration of diverse expertise to measure turbine performance in a realistic wind farm environment.
Academic and National Laboratory Roles
Sandia National Laboratories serves as the primary operator of the SWiFT Facility, managing the day-to-day operations and technical oversight of the research site. The laboratory’s involvement ensures that the facility meets rigorous scientific standards, facilitating precise measurements of turbine interactions and performance metrics. Texas Tech University plays a significant role in the collaborative network, providing academic resources and research capabilities that complement the facility’s technical objectives. The National Wind Institute, affiliated with Texas Tech University, contributes specialized knowledge in wind energy systems, enhancing the facility’s capacity to conduct advanced studies on wind farm dynamics.
Industry Partnerships
Industry partners such as Vestas and Group NIRE are integral to the SWiFT Facility’s research initiatives. Vestas, a leading wind turbine manufacturer, provides technical expertise and turbine models that are essential for evaluating performance under various wind conditions. Group NIRE contributes additional industry insights, supporting the facility’s goal of optimizing wind farm efficiency and reliability. These partnerships enable the integration of cutting-edge technology and practical applications, bridging the gap between theoretical research and real-world implementation.
The collaborative network involving these entities fosters a multidisciplinary approach to wind energy research. By combining the strengths of Sandia National Laboratories, Texas Tech University, the National Wind Institute, Vestas, and Group NIRE, the SWiFT Facility achieves comprehensive insights into turbine performance and wind farm optimization. This synergy supports the United States Department of Energy’s mission to advance wind energy technologies, driving innovation and sustainability in the renewable energy sector.
How does the SWiFT Facility measure turbine performance?
The SWiFT Facility operates as a user facility for the Wind Energy Technologies Office of the United States Department of Energy, designed specifically to measure turbine performance in a wind farm environment (per the ). As the first public facility to utilize multiple wind turbines for this purpose, it provides critical data on how individual turbines interact within a larger array, a phenomenon known as wake effects. The facility is located at the Reese Technology Center in Lubbock, Texas, and is operated by Sandia National Laboratories. It was formally commissioned in the summer of 2013.
Methodology for Performance Measurement
The core methodology at SWiFT involves the simultaneous operation of multiple wind turbines to capture real-world performance data. Unlike single-turbine test sites, SWiFT allows researchers to analyze how the output of one turbine affects the performance of its neighbors. This is achieved by measuring power output, rotational speed, and other operational parameters across the turbine array under varying wind conditions.
Meteorological data is collected using anemometer towers strategically placed around the turbine layout. These towers measure wind speed, direction, and turbulence intensity at various heights, providing a detailed profile of the wind resource. The data from these towers is correlated with the performance data from the turbines to quantify efficiency losses and gains due to wake interactions.
While specific formulas for wake modeling are complex and often involve computational fluid dynamics (CFD), the fundamental relationship between wind speed and power output is governed by the equation P=21ρAv3Cp, where P is power, ρ is air density, A is the swept area, v is wind speed, and Cp is the power coefficient. SWiFT data helps refine the Cp value for turbines in a farm setting, accounting for the reduced wind speed and increased turbulence in the wake of upstream turbines.
The facility's layout allows for the study of different turbine configurations and spacings. By adjusting the operational parameters of individual turbines, researchers can optimize the overall energy yield of the wind farm. This collaborative research environment enables both academic and industry partners to access high-quality data, accelerating the development of more efficient wind energy technologies.
Significance
The Scaled Wind Farm Technology (SWiFT) Facility holds a distinct position in the United States energy infrastructure landscape as the first public facility designed to utilize multiple wind turbines for comprehensive performance measurement within a wind farm environment. This pioneering status addresses a critical gap in wind energy research, transitioning from single-turbine analysis to complex, multi-turbine interactions that characterize actual operational wind farms. The facility serves as a dedicated user facility for the Wind Energy Technologies Office of the United States Department of Energy, providing engineers, researchers, and industry analysts with access to empirical data that is often difficult to capture in field conditions or through computational modeling alone.
Located at the Reese Technology Center in Lubbock, Texas, the SWiFT Facility enables the study of wake effects, turbulence, and power output variations that occur when turbines operate in close proximity. By commissioning the project in the summer of 2013, Sandia National Laboratories established a robust platform for collaborative research, allowing external users to test new technologies and validate performance metrics under controlled yet realistic conditions. This capability is essential for optimizing wind farm layouts and improving the overall efficiency of wind energy generation across the US grid.
The facility's role extends beyond immediate technical measurements; it supports the broader strategic goals of the Department of Energy by accelerating the deployment of wind energy technologies. As a public resource, SWiFT reduces barriers to entry for research institutions and private companies seeking to innovate in wind turbine design and farm management. The integration of multiple turbines allows for the examination of cumulative impacts on energy yield, which is a key factor in the economic viability of large-scale wind projects. This focus on multi-turbine dynamics ensures that the data generated is directly applicable to the scaling of wind energy infrastructure, contributing to the reliability and growth of the US wind sector.
Applications in Wind Energy Research
The Scaled Wind Farm Technology (SWiFT) Facility serves as a critical user facility for the Wind Energy Technologies Office of the United States Department of Energy. Its primary function is to measure turbine performance in a wind farm environment using multiple wind turbines, providing empirical data that supports broader wind energy technology advancements. As the first public facility dedicated to this specific type of collaborative research, SWiFT enables industry partners and researchers to evaluate how individual turbines interact within a larger array, a factor that significantly influences overall farm efficiency and energy yield.
Data-Driven Performance Analysis
Research conducted at SWiFT generates insights that help optimize turbine placement, control strategies, and aerodynamic performance. By analyzing data from multiple turbines operating simultaneously, researchers can study wake effects, turbulence, and power output variations under real-world conditions. These findings are essential for refining computational models and improving the design of future wind farms. The facility’s operational status, maintained by Sandia National Laboratories, ensures continuous data collection and analysis, supporting ongoing efforts to enhance the competitiveness of wind energy technology.
Collaborative Industry Impact
SWiFT’s role as a collaborative research platform allows industry partners to test new technologies and validate performance metrics in a controlled yet realistic environment. This access to high-quality data helps reduce uncertainty in project development and supports informed decision-making for investors and engineers. The facility’s contributions align with the Wind Energy Technologies Office’s goals to accelerate innovation and reduce the levelized cost of energy for wind power. Through its commissioned operations since 2013, SWiFT has become a cornerstone for advancing wind energy research and fostering partnerships between academia, industry, and government agencies.
Worked examples
The Scaled Wind Farm Technology (SWiFT) Facility operates as a user facility for the Wind Energy Technologies Office of the United States Department of Energy, enabling collaborative research on turbine performance in a wind farm environment. While the facility is designed for empirical measurement rather than theoretical calculation, researchers utilize the infrastructure to validate aerodynamic models and structural loads. The following examples illustrate the types of data collection and analysis scenarios conducted at the Reese Technology Center in Lubbock, Texas.
Example 1: Wake Effect Quantification
Researchers aim to measure the velocity deficit caused by upstream turbines on downstream units. Step 1: Install anemometers on the nacelles of multiple turbines within the SWiFT array. Step 2: Record wind speed data over a 24-hour period with a consistent wind direction. Step 3: Calculate the average wind speed at the rotor plane of the upstream turbine (T1) and the downstream turbine (T2). Step 4: Determine the velocity deficit using the formula: Deficit = (Speed_T1 - Speed_T2) / Speed_T1. This data helps quantify energy loss due to wake interference, a key metric for wind farm layout optimization.
Example 2: Structural Load Analysis
Engineers evaluate the mechanical stress on turbine components under varying wind conditions. Step 1: Attach strain gauges to the main shaft and tower base of a test turbine. Step 2: Operate the turbine at different rotational speeds while recording wind speed and power output. Step 3: Correlate the strain gauge readings with the instantaneous wind speed to identify peak load moments. Step 4: Compare the empirical load data with finite element analysis (FEA) models to validate structural integrity predictions. This process ensures that turbine designs can withstand operational stresses in a farm environment.
Example 3: Power Curve Validation
Technicians verify the power output performance of a turbine against its rated power curve. Step 1: Calibrate the turbine’s power meter and anemometer. Step 2: Record the power output and corresponding wind speed at 1 m/s intervals over several weeks. Step 3: Plot the data points on a graph with wind speed on the x-axis and power output on the y-axis. Step 4: Compare the empirical power curve with the manufacturer’s rated curve to identify deviations. This validation helps assess the turbine’s efficiency and performance consistency in the SWiFT facility’s specific wind regime.
