Overview

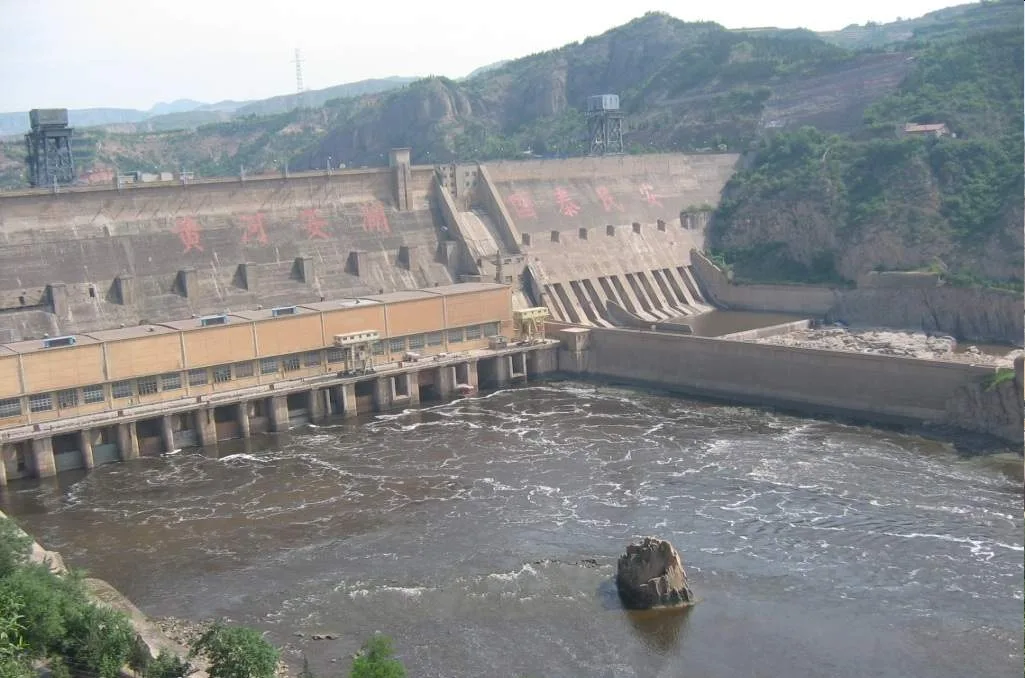

The Sanmenxia Dam is a concrete gravity dam located on the middle reaches of the Yellow River, situated near the Sanmenxia Gorge on the border between Shanxi province and Henan Province in China. This structure represents a significant piece of energy and water infrastructure in the region, serving as a multi-purpose facility designed to manage the complex hydrological characteristics of the Yellow River. The dam was constructed to address several critical needs, including flood control, ice management, irrigation support, hydroelectric power generation, and navigation enhancement. As the first major water control project on the Yellow River, the Sanmenxia Dam holds considerable historical importance for the People's Republic of China, having been viewed as a major national achievement during its initial construction phase. Construction of the dam began in 1957 and was completed in 1960, marking a pivotal moment in the country's post-war infrastructure development. The project's significance was such that its image was subsequently printed on the country's bank notes, symbolizing its role in the modernization efforts of the new republic.

Technical Specifications and Operational Status

The Sanmenxia Dam operates as a hydroelectric powerplant with an installed capacity of 400 MW, utilizing water as its primary fuel source. The facility remains operational, continuing to contribute to the regional power grid while managing water flow through the Sanmenxia Gorge. The dam's design as a concrete gravity structure allows it to withstand the significant hydraulic pressures exerted by the Yellow River, which is known for its variable flow rates and high sediment load. The multi-purpose nature of the dam means that its operational parameters must balance several competing objectives: maintaining sufficient water levels for irrigation and navigation while ensuring adequate storage capacity for flood control and consistent flow for power generation. The integration of ice control functions is particularly relevant given the climatic conditions of the middle reaches of the Yellow River, where winter freezing can impact water flow and structural integrity.

Historical Context and Engineering Challenges

While the Sanmenxia Dam was initially celebrated as a triumph of engineering and national progress, its long-term operation has been marked by significant challenges, particularly related to sediment accumulation in the reservoir. The Yellow River is renowned for its high sediment load, which has led to substantial siltation in the Sanmenxia reservoir over the decades. This sediment buildup has had profound effects on the dam's performance, including increased flooding risks upstream and altered hydrological patterns. Consequently, the dam had to undergo re-engineering and renovation efforts to mitigate these issues and adapt to the changing conditions of the river. The effects of sediment accumulation have placed the Sanmenxia Dam at the center of controversy and criticism, with various stakeholders raising concerns about its long-term sustainability and impact on the surrounding regions. In some cases, the controversy surrounding the dam has even led to criticism-related arrests by the Chinese government, highlighting the political and social dimensions of this major infrastructure project. Despite these challenges, the Sanmenxia Dam remains a key component of the Yellow River's water management system, continuing to serve its multi-purpose functions while adapting to the ongoing engineering and environmental demands of the region.

Why it matters

The Sanmenxia Dam holds a unique position in the history of Chinese energy and water infrastructure as the first major water control project constructed on the Yellow River. Its completion in 1960 marked a significant milestone for the newly established People's Republic of China, serving as a tangible symbol of national modernization and engineering ambition. The project was designed as a multi-purpose facility, integrating flood and ice control with irrigation, navigation, and hydroelectric power generation. This comprehensive approach reflected the early strategic priorities of the Chinese government, which sought to harness the often-turbulent Yellow River to support agricultural productivity and industrial growth in the region bordering Shanxi and Henan provinces.

Symbolic Importance

The dam’s significance extended beyond its technical specifications. It was widely viewed as a major achievement of the new state, embodying the collective effort and technological progress of the era. This symbolic weight was so profound that the dam’s image was selected for printing on the country’s banknotes, embedding the structure into the daily economic life of Chinese citizens. The presence of the Sanmenxia Dam on currency underscored its status as a national icon, representing the triumph of human engineering over natural forces. This visual representation reinforced the narrative of progress and stability that the People's Republic of China aimed to project both domestically and internationally during the 1960s.

Controversial Legacy

Despite its initial acclaim, the Sanmenxia Dam’s operational history has been marked by significant controversy, primarily driven by sediment accumulation in the reservoir. The Yellow River is known for its high sediment load, and the dam’s construction led to substantial silt buildup, which altered the hydrological dynamics of the river system. These sediment effects resulted in flooding upstream and necessitated extensive re-engineering and renovation efforts to maintain the dam’s functionality. The challenges posed by sediment management have placed the dam at the center of ongoing criticism and debate. The situation became so contentious that it led to criticism-related arrests by the Chinese government, highlighting the political sensitivity surrounding the project’s performance. This legacy of technical and political complexity continues to influence discussions on large-scale hydroelectric projects in sediment-heavy river systems.

Aspect Detail
Historic Status First major water control project on the Yellow River
Symbolic Role Image printed on Chinese banknotes
Primary Challenge Sediment accumulation causing upstream flooding
Political Impact Criticism-related arrests by the Chinese government

History of planning and construction

The Sanmenxia Dam holds the distinction of being the first major water control project on the Yellow River, serving as a symbol of engineering achievement for the new People's Republic of China. Its image was subsequently printed on the country's bank notes, reflecting its national significance at the time of completion.

Construction Timeline

Construction of the concrete gravity dam began in 1957. The project was completed in 1960, establishing the dam as a critical infrastructure asset on the middle-reaches of the Yellow River, located near Sanmenxia Gorge on the border between Shanxi province and Henan Province. The rapid construction phase reflected the urgency and scale of the national effort to harness the river's resources.

Year Event
1957 Construction began
1960 Construction completed

Following its initial completion, the dam faced significant operational challenges. Sediment accumulation in the reservoir became a primary concern, leading to the need for re-engineering and renovation. These sediment effects contributed to flooding upstream and placed the dam at the center of controversy. The situation was severe enough to result in criticism-related arrests by the Chinese government, highlighting the complex interplay between engineering design, environmental factors, and political oversight during the dam's early operational years.

How did sediment accumulation affect the dam?

Sediment accumulation has been the defining technical and operational challenge for the Sanmenxia Dam since its commissioning in 1960. The Yellow River is renowned for its high sediment load, and the reservoir behind the dam became a primary site for this accumulation. Within the first 18 months of operation, the reservoir captured approximately 1.8 billion metric tons of sediment. This rapid influx of silt drastically reduced the effective storage capacity of the reservoir, undermining the dam’s original design parameters for flood control and hydroelectric power generation. The loss of reservoir volume meant that the water level rose faster during flood seasons, increasing the risk of overflow and structural stress on the concrete gravity dam.

The sediment crisis extended beyond the reservoir itself, creating significant upstream impacts. As the reservoir filled with silt, the water level upstream of the dam rose, leading to increased flooding in adjacent farmlands and settlements. This phenomenon, known as "backwater effect," submerged agricultural land and disrupted local ecosystems. The rising water levels also threatened navigation routes, as the shifting riverbed and reduced depth made passage more difficult for vessels. These environmental and economic disruptions placed the dam at the center of controversy, with criticism mounting against the initial engineering decisions. The Chinese government faced public scrutiny, and the situation became so contentious that it led to related arrests of critics who questioned the project’s management.

In response to these challenges, the Sanmenxia Dam underwent significant re-engineering and renovation efforts. The need to address sediment accumulation required innovative solutions to restore the dam’s functionality. Engineers implemented measures to manage the silt, including adjustments to the dam’s spillways and the introduction of flushing techniques to clear sediment from the reservoir. These renovations aimed to mitigate the loss of storage capacity and reduce the upstream flooding risks. The re-engineering process was complex and highlighted the difficulties of managing large-scale hydroelectric projects on sediment-heavy rivers. The Sanmenxia Dam’s experience served as a critical case study for future water control projects on the Yellow River, emphasizing the importance of sediment management in long-term dam operations.

What engineering solutions were implemented?

The initial operational phase of the Sanmenxia Dam revealed significant engineering challenges, primarily driven by rapid sediment accumulation in the reservoir. This sedimentation threatened the dam's flood control capacity and caused upstream flooding, prompting a major re-engineering effort. The Chinese government initiated a comprehensive renovation program to address these issues, focusing on optimizing water and silt discharge mechanisms.

First Stage Renovation (1964–1971)

The decision to undertake the first major renovation was made in 1964. This phase aimed to improve the dam's ability to flush out accumulated silt. Between 1966 and 1968, engineers installed a series of tunnels and flushing pipes to enhance sediment transport through the reservoir. Following this, from 1970 to 1971, bottom sluices were added to allow for more effective drainage of water and sediment from the lower layers of the reservoir. These modifications were critical in achieving a silt balance in 1970, marking a significant milestone in managing the Yellow River's sediment load.

Second Stage Renovation (1990–2000)

Despite the successes of the first stage, further adjustments were necessary to maintain optimal performance. The second stage of renovation took place from 1990 to 2000. This phase involved the addition of more bottom sluices to refine the sediment management system. These enhancements allowed for better control over water levels and sediment distribution, ensuring the dam's continued effectiveness in flood control, irrigation, and hydroelectric power generation.

Renovation Stage Years Key Improvements
First Stage 1964–1971 Decision in 1964; installation of tunnels and flushing pipes (1966–1968); addition of bottom sluices (1970–1971); silt balance achieved in 1970.
Second Stage 1990–2000 Addition of more bottom sluices to refine sediment management.

These engineering solutions have been instrumental in mitigating the impacts of sediment accumulation, allowing the Sanmenxia Dam to remain a vital component of China's water management infrastructure. The continuous adaptation and improvement of the dam's design reflect the ongoing efforts to balance the competing demands of flood control, irrigation, and power generation on the Yellow River.

Technical specifications and design

The dam serves multiple purposes, including flood and ice control, irrigation, navigation, and hydroelectric power generation. Construction of the facility began in 1957 and was completed in 1960. The project's prominence was such that its image was printed on the country's bank notes. However, the dam has also been the center of controversy and criticism, particularly regarding sediment accumulation in the reservoir, which has led to flooding upstream and subsequent re-engineering and renovation efforts. The effects of sediment have even resulted in criticism-related arrests by the Chinese government.

Power Station Details

The hydroelectric power station at Sanmenxia has a total installed capacity of 400 MW. The power generation system consists of seven installed turbines. These include Francis turbines with capacities of 50 MW and 75 MW. The power station is a key component of the dam's multi-purpose functionality, contributing to the regional energy supply. The operational status of the dam is currently operational, continuing to provide hydroelectric power generation since its commissioning in 1960.

Controversy and political impact

The Sanmenxia Dam project became a focal point of technical and political controversy due to significant sediment accumulation in its reservoir. The engineering challenges associated with the Yellow River's silt load led to substantial criticism from prominent Chinese engineers. Zhang Guangdou and Huang Wanli were among the notable figures who voiced concerns regarding the dam's design and operational outcomes. Their critiques highlighted the discrepancies between the projected performance and the actual hydrological behavior of the reservoir. The political climate of the era meant that dissenting technical opinions often carried significant professional risks. The criticism leveled by engineers like Zhang and Huang contributed to a broader debate about the management of China's major water control projects. The dam's issues, including upstream flooding caused by sediment buildup, placed the project at the center of ongoing scrutiny. This scrutiny extended beyond technical circles and entered the realm of political accountability. In 2010, the political impact of the dam's legacy resurfaced through specific legal actions against critics. Journalist Xie Chaoping and printer Zhao Shun were arrested for their work criticizing the Sanmenxia Dam. Their arrests were directly linked to their publication of materials that highlighted the dam's controversies and the government's handling of the project. This event underscored the continued sensitivity of the Sanmenxia Dam as a symbol of both achievement and mismanagement in China's infrastructure history. The cases of Xie and Zhao demonstrated that criticism of the dam could still trigger significant governmental reprisals decades after its initial construction. The controversy surrounding the Sanmenxia Dam reflects the complex interplay between engineering decisions, environmental factors, and political oversight. The dam's re-engineering and renovation efforts were responses to the sediment problems that had plagued its operation. However, the political repercussions for those who pointed out these flaws remained a significant aspect of the project's history. The arrests in 2010 served as a reminder of the high stakes involved in evaluating one of China's first major water control projects.
