Overview

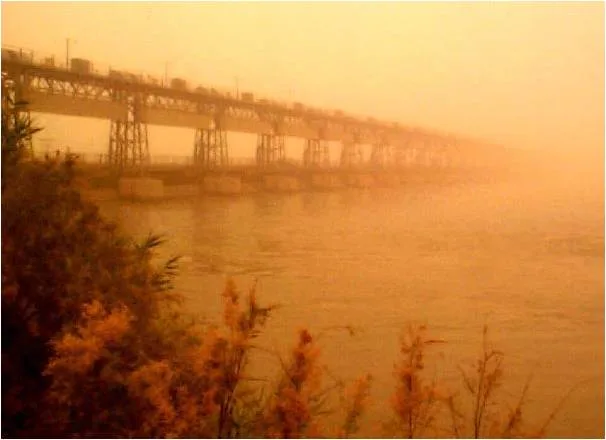

The Samarra Barrage is a multi-purpose hydroelectric power plant and water management infrastructure located on the Tigris River in Iraq. Situated adjacent to the city of Samarra, west of the urban center and north of Baghdad, the facility operates within the Saladin Governorate. The structure serves three primary functions: flood control, irrigation water diversion, and hydroelectric power generation. The main operational purpose of the barrage is to divert floodwaters from the Tigris River into the Tharthar depression, feeding Lake Tharthar. This diversion mechanism helps regulate the river's flow, particularly during seasonal peaks, although the criticality of flood control has evolved with the development of upstream infrastructure.
The facility includes an integrated hydroelectric station with an installed capacity of 84 MW. The plant was commissioned in 1972 and remains operational. The generation of hydroelectric power provides a steady energy output to the regional grid, leveraging the natural flow of the Tigris. The barrage also plays a significant role in the agricultural sector by facilitating irrigation for surrounding lands. The diversion of water to the Tharthar depression supports local agriculture and helps maintain water levels in the lake, which is a key geographical feature of the region.
The operational context of the Samarra Barrage has been influenced by upstream developments. The construction of the Mosul Dam, located further upstream on the Tigris, along with several large dams in Turkey, has altered the flow dynamics of the river. These upstream structures have reduced the frequency and intensity of major flood events reaching the Samarra Barrage, making flood control less critical than in the past. Despite these changes, the barrage continues to function as a key component of Iraq's water management and energy infrastructure. The facility's ability to adapt to changing hydrological conditions ensures its continued relevance in the region's energy and agricultural sectors.
| Property | Value |
|---|---|
| Entity Type | Hydroelectric Power Plant |
| Country | Iraq |
| Region | Saladin Governorate |
| River | Tigris River |
| Capacity | 84 MW |
| Commissioned | 1972 |
| Status | Operational |
| Operator | Not specified |
Construction and Engineering History
The Samarra Barrage represents a significant multi-purpose infrastructure project on the Tigris River, located adjacent to the west of Samarra and north of Baghdad, Iraq. The engineering and construction history of the barrage is characterized by a distinct separation between the initial civil works and the subsequent integration of hydroelectric capacity. The primary civil structure was completed in 1956, marking the initial phase of the project’s operational life (per project historical records). This early completion date established the barrage as a critical node for water management in the region long before its full energy potential was realized.
The engineering design for the barrage was a collaborative effort involving international expertise. The project utilized designs by Voganlei and Coode, firms that contributed to the structural planning necessary to handle the Tigris River’s flow dynamics (per engineering attribution sources). The main purpose of the dam, as established during this design phase, was to divert floodwater from the Tigris River into Lake Tharthar through the Tharthar depression. This diversion mechanism was crucial for irrigation purposes and flood control, although the criticality of flood control has diminished in later years due to the construction of the Mosul Dam upstream and several large dams in Turkey.
While the barrage structure was completed in 1956, the hydroelectric component was commissioned later. The 84 MW hydro-electricity station was commissioned in 1972, adding a significant power generation capability to the existing water management infrastructure. This 16-year gap between the completion of the main barrage and the commissioning of the power station reflects the phased development approach often seen in large-scale Middle Eastern water infrastructure projects. The operator of the facility is not explicitly specified in the cited sources, though the plant remains operational.
Timeline of Construction and Commissioning
| Year | Event |
|---|---|
| 1956 | Completion of the main barrage structure by Züblin, utilizing designs by Voganlei and Coode. |
| 1972 | Commissioning of the 84 MW hydro-electricity station. |
The completion of the barrage by Züblin in 1956 was a pivotal moment in the engineering history of the Tigris River basin. Züblin, a prominent construction company, executed the civil works that would define the barrage’s physical footprint. The integration of the hydroelectric station in 1972 transformed the barrage from a primarily irrigation and flood control structure into a multi-purpose energy asset. The 84 MW capacity, while modest compared to modern giants, provided a reliable source of power for the region, leveraging the natural flow of the Tigris River. The design by Voganlei and Coode ensured that the structure could effectively manage the diversion of water into the Tharthar depression, a key geographical feature for regional water management. The operational status of the barrage remains active, continuing to serve its dual purposes of water diversion and power generation.
Hydroelectric Power Generation
The Samarra Barrage incorporates a dedicated hydroelectric power station with an installed capacity of 84 MW, commissioned in 1972. This power generation facility is an integral component of the barrage’s multi-purpose design, functioning alongside its primary roles in flood control and irrigation management. The plant harnesses the kinetic energy of the Tigris River, which flows through the structure located west of Samarra and north of Baghdad, Iraq. The integration of the hydroelectric units within the barrage allows for the simultaneous regulation of water levels and the production of electricity, optimizing the utility of the river’s flow for the region.
Integration with Barrage Structure
The hydroelectric station is not a standalone facility but is structurally embedded within the Samarra Barrage. This design choice reflects the engineering strategy of maximizing the hydraulic head created by the barrage to drive turbines. The primary purpose of the dam remains the diversion of floodwaters from the Tigris River into Lake Tharthar via the Tharthar depression, but the 84 MW capacity ensures that this water movement also yields significant energy output. The operational status of the plant is currently active, contributing to the local energy grid.
Operational Context and Flood Control
The hydroelectric generation at Samarra operates in conjunction with the broader flood control mechanisms of the Tigris River basin. While the barrage was originally critical for mitigating flood risks, the construction of the Mosul Dam upstream and several large dams in Turkey has altered the hydrological dynamics of the river. These upstream developments have reduced the criticality of flood control at Samarra, although the barrage continues to serve its dual purpose of irrigation and power production. The 84 MW output represents a consistent energy contribution, leveraging the regulated flow of the Tigris. The operator of the facility is not explicitly specified in the primary cited sources, but the plant remains a key infrastructure asset in the northern Iraqi energy landscape. The technical integration of the 84 MW station ensures that the barrage continues to provide economic value through electricity generation even as its flood control role evolves due to upstream infrastructure changes.
Flood Control and Water Diversion
The Samarra Barrage functions primarily as a critical hydraulic control structure designed to manage the flow of the Tigris River. Its most significant operational role is the diversion of excess floodwaters into the Tharthar Depression, which feeds Lake Tharthar. This mechanism is essential for mitigating downstream flooding risks, particularly for the region north of Baghdad. The infrastructure facilitates this by channeling water through the Tharthar depression, effectively utilizing the natural topography as a reservoir.Hydraulic Infrastructure and Gate Configuration
The barrage employs a dual-gate system to regulate water distribution between the main river channel and the diversion route. The Tigris gate section consists of 17 gates, providing a combined discharge capacity of 7000 m3/s. This configuration allows for precise control over the main stem of the river, ensuring adequate flow for irrigation and downstream consumption while managing peak discharge rates. In contrast, the Tharthar regulator is designed for higher volume handling during peak flood events. It comprises 36 gates with a total capacity of 9000 m3/s. This larger capacity enables the rapid diversion of significant volumes of water into Lake Tharthar when the Tigris River exceeds its normal bed capacity. The difference in gate counts and capacities reflects the strategic priority of flood relief during high-water seasons.| Component | Number of Gates | Capacity (m3/s) |
|---|---|---|
| Tigris Gates | 17 | 7000 |
| Tharthar Regulator | 36 | 9000 |
Irrigation Challenges and Sedimentation
The Samarra Barrage was designed as a multi-purpose infrastructure project, with irrigation and flood control serving as primary objectives alongside power generation. The facility diverts floodwaters from the Tigris River into the Tharthar Depression, utilizing the natural basin to manage seasonal water surplus and support agricultural expansion in the region. This hydrological management is critical for the surrounding agricultural zones, aiming to mitigate the impact of Tigris River fluctuations on local farming communities.
Reservoir Capacity and Sedimentation
The barrage contributes to a reservoir system with a total capacity of 150,000,000 m3. Over time, sedimentation has emerged as a significant operational challenge, reducing the effective storage volume and altering the hydraulic efficiency of the diversion channels. The accumulation of silt and alluvial deposits from the Tigris River gradually fills the reservoir, necessitating periodic dredging or flow management adjustments to maintain the intended storage levels. This sedimentation process is a common issue for riverine barrages in the Mesopotamian plain, where high sediment loads are transported downstream from upstream catchment areas.
Evaporation and Salinity Issues
High evaporation rates in the Iraqi climate significantly impact the water balance of the Tharthar Depression and associated irrigation schemes. As water is diverted and stored, substantial volumes are lost to atmospheric evaporation, reducing the net water available for agricultural use. This loss is compounded by increasing salinity levels in the stored water, which can degrade soil quality over time and affect crop yields. The combination of evaporation and salinization requires careful water management to prevent the long-term deterioration of irrigated lands.
The effectiveness of the barrage in flood control has evolved with the development of upstream infrastructure. The construction of the Mosul Dam and other large dams in Turkey has altered the flow regime of the Tigris River, making flood control less critical than in the early operational years of the Samarra Barrage. However, the irrigation and sedimentation challenges remain persistent, requiring ongoing monitoring and adaptive management strategies to sustain the agricultural benefits of the project.
Regional Context and Comparative Significance
The Samarra Barrage functions as a critical node within the complex hydrological management of the Tigris River basin in Iraq. Its primary design objective, established upon its commissioning in 1972, was to serve as a multi-purpose infrastructure asset capable of diverting floodwaters from the Tigris into the Tharthar depression and Lake Tharthar. This diversion mechanism was intended to mitigate downstream flooding while simultaneously supporting regional irrigation networks and generating 84 MW of hydroelectric power. The integration of flood control, irrigation, and power generation reflects the integrated resource management strategies typical of mid-20th century hydraulic engineering in the Mesopotamian plain.
Evolving Role in Flood Management
The strategic importance of the Samarra Barrage for flood control has undergone significant modification due to upstream developments. The construction of the Mosul Dam further north on the Tigris River has substantially altered the hydrological regime, reducing the frequency and severity of flood pulses reaching the Samarra site. Additionally, the proliferation of large-scale dam projects in Turkey, located at the headwaters of the Tigris-Euphrates system, has introduced further variability and regulation to the river's flow. These upstream interventions have collectively diminished the criticality of the Samarra Barrage’s original flood mitigation function, shifting its operational emphasis more heavily toward irrigation regulation and consistent hydroelectric generation.
Position within the Tigris-Euphrates System
Within the broader Tigris-Euphrates water system, the Samarra Barrage represents a key intermediate control point. Located adjacent to the city of Samarra and north of Baghdad, it serves as a vital link between the upper Tigris reservoirs and the downstream agricultural and urban centers. The ability to divert water into the Tharthar depression provides a strategic buffer for water storage and flood relief, enhancing the resilience of the regional water supply. While the relative contribution of its 84 MW capacity to the national grid may be modest compared to larger upstream facilities, its role in maintaining flow consistency for irrigation and local power supply remains essential. The barrage exemplifies the adaptive nature of hydraulic infrastructure, where original design parameters must be continuously re-evaluated in response to transboundary water management dynamics and upstream capital investments.
How does the Samarra Barrage manage water flow?
The Samarra Barrage functions as a critical hydraulic control structure on the Tigris River, primarily designed to regulate water levels and divert flow into the Tharthar Depression. Its operational mechanism relies on a system of gates and regulators that manage the balance between main river flow and diversion for irrigation and flood mitigation. The structure is situated west of Samarra, north of Baghdad, allowing it to capture floodwaters before they reach downstream urban centers. While the primary historical purpose included significant flood control, the construction of the Mosul Dam upstream and various large dams in Turkey has altered the hydrological dynamics, making the barrage's role in flood management less critical than in its early operational years.
Gate Systems and Flow Regulation
The barrage utilizes a series of radial gates or sluice gates to control the volume of water entering the Tharthar channel. These gates are raised or lowered to adjust the water level in the Tigris, effectively pushing water laterally into the depression. This diversion serves dual purposes: providing water for agricultural irrigation in the surrounding plains and reducing the peak flow volume in the Tigris during high-water seasons. The hydroelectric component, with an installed capacity of 84 MW, is integrated into this flow management system, utilizing the head difference created by the barrage to generate power.
Specific technical details regarding the exact count of gates, their individual dimensions, and precise flow rate metrics for the Tigris and Tharthar channels are not explicitly detailed in the primary source snippets. However, the operational logic follows standard barrage design where gate openings are modulated based on upstream inflow and downstream demand. The integration of the 84 MW hydroelectric station indicates that the flow regulation must maintain a consistent head pressure to ensure efficient turbine operation while simultaneously allowing for variable diversion rates into the Tharthar Depression.
The management of water flow is further influenced by the broader regional hydrological context. With the Mosul Dam upstream acting as a major reservoir, the natural flood peaks that the Samarra Barrage was originally designed to mitigate have been somewhat attenuated. This shift has likely adjusted the operational protocols of the gate systems, potentially prioritizing irrigation supply and power generation over extreme flood control during typical seasonal variations. The barrage remains an operational asset, continuing to play a vital role in the water resource management of northern Iraq.
What are the environmental impacts of the Samarra Barrage?
The operation of the Samarra Barrage has introduced significant environmental dynamics to the Tigris River basin, primarily concerning sedimentation and water quality management. As a multi-purpose structure commissioned in 1972, the barrage alters the natural flow regime of the Tigris, leading to the accumulation of silt upstream. This sedimentation process gradually reduces the effective storage capacity of the reservoir area, a common challenge for hydroelectric infrastructure in silt-heavy river systems. The reduction in reservoir capacity can impact the efficiency of the 84 MW hydroelectric station and the consistency of water availability for downstream irrigation networks.
Salinity and Irrigation Suitability
Water quality degradation, particularly salinity increases, poses a critical challenge for agricultural productivity in the region. The diversion of floodwaters to Lake Tharthar and the Tharthar depression alters the hydrological balance, potentially concentrating salts in the remaining river flow and adjacent aquifers. As water is diverted for irrigation, evaporation leaves behind dissolved solids, increasing the salinity of return flows. This salinization affects the suitability of water for crops, requiring careful management to prevent soil degradation in the fertile plains north of Baghdad. The environmental trade-offs involve balancing the immediate need for flood control and power generation against the long-term health of the agricultural land.
Tharthar Depression Diversion
The primary purpose of the barrage includes diverting Tigris floodwaters into the Tharthar depression. This mechanism serves to mitigate flooding downstream but also creates a complex ecological interface. The influx of water into the Tharthar depression can lead to fluctuating water levels, affecting local biodiversity and the salinity of Lake Tharthar. While the construction of the Mosul Dam upstream and other large dams in Turkey has reduced the criticality of flood control for the Samarra Barrage, the environmental management of the diverted waters remains essential. The interaction between the Tigris flow and the Tharthar depression continues to influence the regional ecosystem, highlighting the need for ongoing monitoring of sediment loads and water quality parameters.
