Overview
Salamonde Dam is a concrete arch dam situated on the Cávado River in northern Portugal. The structure is located within the municipality of Vieira do Minho, in the Braga District, where the river serves as the natural border line between the districts of Braga and Vila Real. As a key component of the region's hydroelectric infrastructure, the dam plays a significant role in the energy mix of the Minho region. The facility is currently operational and has been a consistent source of power generation since its initial commissioning in 1953. The dam's strategic location allows for the effective harnessing of the Cávado River's flow, contributing to the stability of the local power grid.
Ownership and Operational History
The ownership of the Salamonde Dam is held by the Companhia Portuguesa de Produção de Electricidade (CPPE). This entity manages the asset as part of the broader portfolio of hydroelectric resources in Portugal. The day-to-day operation of the dam is conducted by Energias de Portugal, a major energy company in the country. The collaboration between the owning entity and the operating company ensures the efficient management of the dam's infrastructure and power output. The dam has remained in continuous service since its completion, reflecting the durability of its concrete arch design and the consistent hydrological conditions of the Cávado River.
Technical Specifications
The Salamonde Dam is classified as a hydroelectric power plant with a primary fuel source of water. The facility has an installed capacity of 249 MW, making it a substantial contributor to the regional energy supply. The concrete arch design of the dam is particularly suited to the valley topography of the Cávado River, allowing for efficient water retention and pressure management. The dam's operational status remains active, indicating its ongoing relevance in the Portuguese energy sector. The combination of its strategic location, robust construction, and consistent operation has allowed the Salamonde Dam to maintain its position as a vital energy infrastructure asset in the Braga District.
History and Development
The Salamonde Dam was commissioned in 1953, marking the initial establishment of hydroelectric infrastructure on the Cávado River. This concrete arch dam was designed by the engineering firm Coyne et Bellier, establishing the structural foundation for the site’s energy generation capabilities.
Expansion and Pumped-Storage Development
Decades after its initial completion, the site underwent significant expansion to enhance its energy storage and generation capacity. In 2011, a contract was awarded to Alstom for the development of the Salamonde 2 pumped-storage plant. This project represented a major modernization effort for the facility, integrating new technology to optimize the hydroelectric output of the existing infrastructure. The Salamonde 2 plant was expected to become operational in 2015, adding to the site’s total capacity of 249 MW under the operation of Energias de Portugal.
| Year | Event |
|---|---|
| 1953 | Initial commissioning of the Salamonde Dam |
| 2011 | Contract awarded to Alstom for Salamonde 2 pumped-storage plant |
| 2015 | Expected operational start of Salamonde 2 plant |
The development of the Salamonde Dam reflects the evolving strategies in Portugal’s hydroelectric sector, moving from basic arch dam construction to integrated pumped-storage solutions. The involvement of international engineering firms like Coyne et Bellier and Alstom highlights the technical complexity and strategic importance of the Cávado River basin for energy production in the Braga and Vila Real districts.

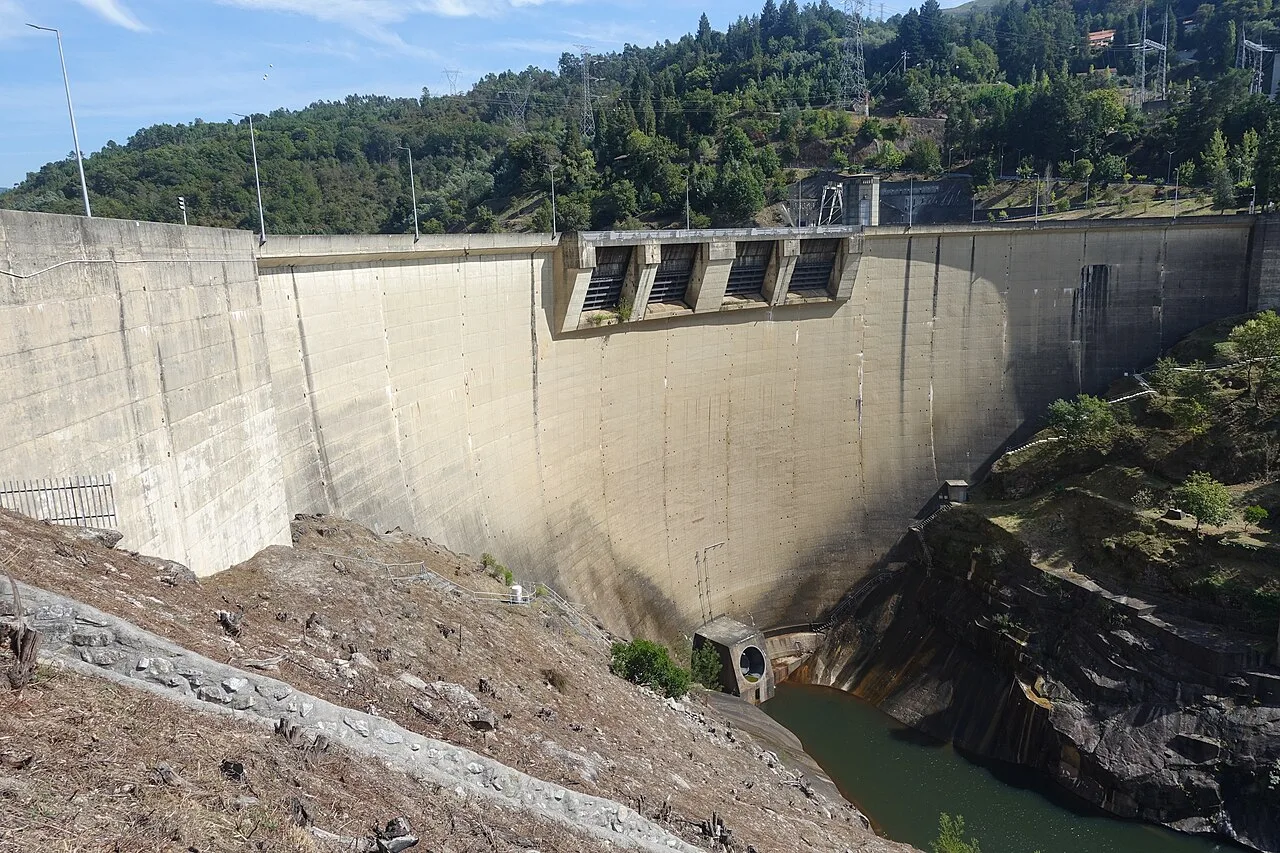

Dam Structure and Reservoir Characteristics
Salamonde Dam is a concrete arch structure situated on the Cávado River, marking the boundary between the districts of Braga and Vila Real in Portugal. The dam is located within the municipality of Vieira do Minho. As a key component of the hydroelectric infrastructure operated by Energias de Portugal, the structure was commissioned in 1953 and remains operational, contributing 249 MW to the regional power grid.
Structural Specifications
The dam features a concrete arch design, optimized for the topography of the Cávado River valley. The structure reaches a height of 75 m and spans a length of 284 m. The crest of the dam sits at an altitude of 281 m above sea level. The total volume of concrete used in the construction is 281,000 m³, providing the necessary mass and curvature to withstand hydrostatic pressure from the reservoir.
| Parameter | Value |
|---|---|
| Height | 75 m |
| Length | 284 m |
| Crest Altitude | 281 m |
| Concrete Volume | 281,000 m³ |
Flow Control and Reservoir Capacity
Water management at Salamonde is handled through a combination of a gated spillway and a bottom outlet. The spillway consists of 4 gates, capable of discharging up to 1,700 m³/s to regulate water levels during peak flow periods. Additionally, a bottom outlet provides a discharge capacity of 130 m³/s, allowing for finer control of downstream flow and sediment management.
The reservoir created by the dam has a total capacity of 65 million m³. Of this total, 56.3 million m³ is considered active capacity, available for hydroelectric generation and seasonal storage. The surface area of the reservoir covers 2.42 km², providing significant storage volume relative to its footprint. These characteristics support the plant's operational status and its role in the energy mix of northern Portugal.
| Reservoir Parameter | Value |
|---|---|
| Total Capacity | 65 million m³ |
| Active Capacity | 56.3 million m³ |
| Surface Area | 2.42 km² |
| Spillway Discharge | 1,700 m³/s (4 gates) |
| Bottom Outlet Discharge | 130 m³/s |
Power Plant Configuration and Capacity
The Salamonde hydroelectric facility comprises two distinct generation units, Salamonde I and Salamonde II, which together provide a total installed capacity of 249 MW (per Enipedia structured data). The plant utilizes the water resources of the Cávado River, operating with a head range between 78 and 125 meters.
Salamonde I
The original Salamonde I station has an installed capacity of 42 MW. It is equipped with two Francis turbines, each rated at 21.8 MW. The turbine equipment is manufactured by Voith and operates at a rotational speed of 428 rpm. This configuration allows for efficient power generation across the specified head range.
Salamonde II
Salamonde II is a reversible pump-storage unit with a generation capacity of 207 MW. The unit features a 244 MVA motor-generator set, with equipment supplied by Alstom. This reversible capability enhances the flexibility of the hydroelectric system, allowing for energy storage and peak load management.
| Parameter | Value |
|---|---|
| Total Installed Capacity | 249 MW |
| Salamonde I Capacity | 42 MW |
| Salamonde I Turbines | 2 × Francis (21.8 MW each) |
| Salamonde I Manufacturer | Voith |
| Salamonde I Speed | 428 rpm |
| Salamonde II Capacity | 207 MW |
| Salamonde II Motor-Generator | 244 MVA |
| Salamonde II Manufacturer | Alstom |
| Head Range | 78–125 m |
What is the energy output of Salamonde Dam?
The Salamonde Dam serves as a significant hydroelectric asset within the Portuguese energy infrastructure, primarily operated by Energias de Portugal. The energy generation capabilities of the Salamonde complex are divided into two distinct operational phases: the original Salamonde I and the expanded Salamonde II.
Salamonde I Generation Profile
The initial phase, known as Salamonde I, has a documented history of variable annual energy output. The average annual generation for Salamonde I is recorded at 231.2 GWh. However, hydroelectric production at this site is subject to significant fluctuation based on water availability and operational demands. Historical data indicates that annual generation has varied considerably, with recorded outputs ranging from a low of 175 GWh to a high of 244 GWh in different years. Another specific recorded annual figure for Salamonde I is 232 GWh, further illustrating the variability inherent in the hydroelectric resource on the Cávado River. These variations reflect the natural hydrological cycles and the operational strategies employed by the operator to maximize energy capture.
Salamonde II Expansion and Potential
The expansion of the facility to include Salamonde II significantly enhanced the overall energy production potential of the dam complex. The estimated annual generation for Salamonde II is 386 GWh. This substantial increase in capacity demonstrates the strategic value of the dam's location and the engineering improvements made during the expansion phase. The combined output of both phases contributes to the regional grid stability and energy supply in northern Portugal.
Water Volume and Energy Conversion
The energy production at Salamonde is directly linked to the volume of water managed by the dam. Analysis of the hydroelectric potential indicates that a water volume of 55 million cubic meters (55 mio. m³) yields an energy production potential of 26.9 GWh. This metric provides insight into the efficiency of the conversion process at the Salamonde facility, linking the physical resource of water directly to the electrical output. The concrete arch design of the dam plays a crucial role in managing these water volumes effectively, ensuring consistent flow for turbine operation.
Significance
The Salamonde Dam serves as a critical node in the energy infrastructure of northern Portugal, specifically within the Braga and Vila Real districts. As a concrete arch dam situated on the Cávado River, the structure not only manages water resources along the border line between these two administrative regions but also functions as a primary hydroelectric asset for the region. The facility is operated by Energias de Portugal and has maintained an operational status since its commissioning in 1953. Its strategic location in the municipality of Vieira do Minho allows for efficient energy generation that contributes significantly to the local grid stability.
Regional Energy Integration
With an installed capacity of 249 MW, the Salamonde Dam represents a substantial hydroelectric resource for the Braga and Vila Real districts. The dam's role extends beyond simple power generation; it acts as a stabilizing force for the regional energy mix. The Cávado River, which forms the natural boundary between the districts, provides the necessary hydraulic head and flow consistency required for sustained energy production. This integration ensures that the hydroelectric output from Salamonde is a reliable component of the broader Portuguese energy network, particularly for the northern interior regions.
Pumped-Storage Technology and Grid Flexibility
The significance of the Salamonde complex is further enhanced by the integration of pumped-storage technology, notably through the Salamonde 2 development. This technological addition transforms the facility from a conventional run-of-the-river or reservoir-based hydro plant into a more dynamic energy storage solution. Pumped-storage hydroelectricity allows for the enhancement of grid flexibility by storing excess energy during periods of low demand and releasing it during peak usage times. This capability is crucial for balancing the increasing variability in the energy supply, particularly as the regional grid integrates more renewable sources. The Salamonde 2 project underscores the dam's evolving role in modern energy infrastructure, providing essential ancillary services that support grid reliability and efficiency in the Braga and Vila Real areas.
Geographic Context and Location
The Salamonde Dam is situated within the municipality of Vieira do Minho, located in the Braga District of northern Portugal. This geographic positioning places the hydroelectric infrastructure in a region characterized by significant topographical variation, which is essential for the operation of a concrete arch dam. The specific coordinates of the facility are 41.6918° N, 8.09125° W, anchoring it firmly within the Minho-Lima subregion of the Norte administrative area. The dam's location is not merely municipal but also serves as a key hydrological and administrative boundary marker in the region.
River System and District Boundary
A defining geographic feature of the Salamonde Dam is its position on the Cávado River. The river at this specific point acts as the natural border line between two distinct Portuguese districts: Braga and Vila Real. This dual-district interface means that the water resource managed by the dam is shared across these administrative jurisdictions, influencing regional water rights and hydrological monitoring. The Cávado River is one of the major waterways in northern Portugal, flowing from the Serra do Gerês mountains to the Atlantic Ocean near Esposende. The dam's construction on this river allows for the regulation of flow that impacts both the upper and middle basins of the Cávado system.
The municipality of Vieira do Minho, where the dam is physically located, is known for its hilly terrain and forested landscapes, which contribute to the catchment area feeding the Cávado. The dam's placement in this municipality reflects historical engineering choices to maximize the head difference required for hydroelectric generation. The surrounding area remains largely rural, with the infrastructure integrated into the natural valley formed by the river. This integration is critical for the structural stability of the concrete arch design, which relies on the valley walls to support the hydrostatic pressure of the reservoir.
Understanding the location of the Salamonde Dam requires recognizing its role in the broader energy infrastructure of the Braga District. As an operational facility with a capacity of 249 MW, operated by Energias de Portugal, its geographic context is tied to the transmission lines that carry power from this northern hub to the rest of the Portuguese grid. The proximity to the Vila Real district also suggests potential for cross-district energy distribution, leveraging the natural water flow that defines the border. The dam's continued operation since 1953 underscores the long-term strategic importance of this specific geographic point on the Cávado River for Portugal's energy security.
