Overview
SAL electrolytic capacitors represent a specialized class of passive electronic components engineered to deliver high capacitance values within compact physical packages while maintaining a long and robust service life. The acronym SAL stands for Solid Aluminum, reflecting the core technological innovation that distinguishes these components from conventional liquid-aluminum electrolytic capacitors. Developed for applications requiring enhanced reliability and stability, SAL capacitors combine the high volumetric efficiency of aluminum anodes with the dielectric and electrolytic properties typically associated with solid tantalum capacitors. This hybrid approach results in a component that offers superior leakage current characteristics and a more stable capacitance value over time compared to their liquid-electrolyte counterparts.
Basic Composition and Structure
The fundamental construction of a SAL capacitor relies on an anodic oxidized aluminum oxide layer serving as the dielectric material. This dielectric is formed on etched and formed aluminum anodes, which provide the necessary surface area to achieve high capacitance. The anodes are processed into specific geometries depending on the desired package style. For dipped pearl types, the aluminum anodes are folded, while for axial styles, they are wound into a compact roll. This structural arrangement is critical for maximizing the effective surface area of the dielectric layer within the constrained volume of the capacitor package.
A defining feature of SAL capacitors is the use of semiconducting solid manganese dioxide as the electrolyte. Unlike traditional aluminum electrolytic capacitors that utilize a liquid or gel electrolyte, SAL capacitors employ a solid electrolyte formed directly onto the aluminum anode roll. This formation occurs through a pyrolytic process, which is similar to the manufacturing technique used for solid tantalum capacitors. The pyrolytic deposition of manganese dioxide ensures intimate contact with the aluminum oxide dielectric, reducing equivalent series resistance (ESR) and improving thermal stability. The solid nature of the manganese dioxide electrolyte also contributes to the long service life of the component, as it is less prone to evaporation or drying out compared to liquid electrolytes.
The combination of the etched aluminum anode, the aluminum oxide dielectric, and the solid manganese dioxide electrolyte creates a capacitor with unique electrical characteristics. The semiconducting property of the manganese dioxide electrolyte allows for efficient charge transport, while the solid state provides mechanical stability and resistance to vibration. These attributes make SAL capacitors suitable for a wide range of electronic applications where space constraints and reliability are critical factors. The manufacturing process, involving precise etching, forming, and pyrolytic deposition, ensures consistent performance and quality across production batches.
How are SAL capacitors constructed?
SAL capacitors are constructed using aluminum electrolytic technology, featuring an anodic oxidized aluminum oxide dielectric and a semiconducting solid manganese dioxide electrolyte. The manufacturing process begins with aluminum anodes that are etched and formed to optimize surface area and electrical properties. These anodes are then prepared for assembly, either folded for dipped pearl types or wound into a roll for axial style configurations.
Anode Preparation and Assembly

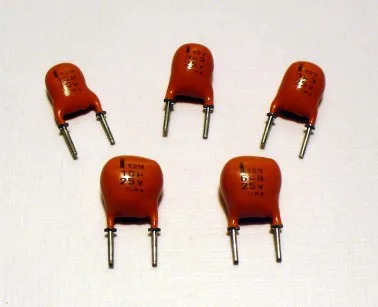

The aluminum anodes undergo etching to increase surface area, followed by forming to create the aluminum oxide dielectric layer. For dipped pearl types, the anodes are folded, while axial style capacitors utilize a wound roll configuration. This structural difference affects the final form factor and application suitability of the capacitor.
Electrolyte Formation
The solid manganese dioxide electrolyte is applied to the anode roll through a pyrolytic process, similar to the method used for solid tantalum capacitors. This process ensures a robust and long-lasting electrolyte layer, contributing to the capacitor's high capacitance and small package size. The pyrolytic formation involves chemical reactions that convert manganese salts into manganese dioxide, creating a semiconducting layer essential for the capacitor's performance.
| Process Step | Description |
|---|---|
| Etching | Increases surface area of aluminum anode |
| Forming | Creates aluminum oxide dielectric layer |
| Pyrolysis | Forms solid manganese dioxide electrolyte |
Final Layers
After the electrolyte formation, additional layers such as graphite and silver may be applied to enhance conductivity and ensure reliable electrical connections. These layers are critical for the capacitor's performance, providing a stable interface between the solid electrolyte and the external circuit. The precise application of these layers contributes to the capacitor's robust service life and high capacitance in a compact package.
What distinguishes SAL capacitors from other types?
SAL electrolytic capacitors occupy a distinct niche in passive component engineering by combining the high capacitance density of aluminum electrolytics with the reliability characteristics of solid-state electrolytes. Unlike conventional aluminum electrolytic capacitors that utilize a liquid electrolyte, SAL capacitors employ semiconducting solid manganese dioxide (MnO2) as the electrolyte. This structural difference fundamentally alters their performance profile, particularly regarding leakage current, equivalent series resistance (ESR), and long-term stability. The dielectric remains anodic oxidized aluminum oxide, but the formation of the solid manganese dioxide electrolyte occurs through a pyrolytic process similar to that used for solid tantalum capacitors.
Comparison with Liquid and Polymer Electrolytics
The primary distinction lies in the electrolyte state. Liquid aluminum electrolytics are prone to drying out over time, leading to increased ESR and potential failure. SAL capacitors mitigate this by using a solid electrolyte, which offers superior sealing and thermal stability. However, they differ significantly from polymer aluminum electrolytic capacitors. Polymer capacitors typically offer lower ESR and higher ripple current capabilities but often at a higher cost and with different temperature coefficient behaviors. SAL capacitors provide a robust middle ground, offering better stability than liquid types and often lower cost than polymer types for specific high-reliability applications.
| Feature | SAL Capacitor | Liquid Al. Electrolytic | Polymer Al. Electrolytic |
|---|---|---|---|
| Electrolyte Type | Solid Manganese Dioxide | Liquid (Gelled) | Solid Polymer |
| ESR | Low to Moderate | High | Very Low |
| Leakage Current | Low | Moderate to High | Low |
| Service Life | Long and Robust | Moderate (Drying Out) | Long |
| Manufacturing Process | Pyrolytic Formation | Impregnation | Electrodeposition/Impregnation |
The construction method further differentiates SAL capacitors. They are made of etched and formed aluminum anodes, which are either folded for dipped pearl types or wound into a roll for the axial style. This flexibility in form factor allows for optimization in space-constrained environments, such as surface-mount technology (SMT) applications where the "dipped pearl" style is prevalent. The pyrolytic process ensures that the manganese dioxide electrolyte is uniformly formed onto the aluminum oxide dielectric, enhancing the semiconducting properties and reducing variability between units.
From an electrical perspective, the capacitance C of an SAL capacitor can be approximated by the formula C=dεrε0A, where εr is the relative permittivity of the aluminum oxide, ε0 is the vacuum permittivity, A is the surface area of the anode, and d is the thickness of the dielectric. The high surface area achieved through etching allows for significant capacitance values in small packages, a key advantage over ceramic capacitors of similar size. However, the voltage coefficient of capacitance is more pronounced than in ceramics, requiring careful selection for precision analog circuits.
History and market status
The SAL electrolytic capacitor represents a specialized evolution in passive component technology, engineered to deliver high capacitance within compact physical footprints while maintaining robust service life characteristics. This device category utilizes aluminum electrolytic construction featuring anodic oxidized aluminum oxide as the dielectric layer and semiconducting solid manganese dioxide as the electrolyte material. The manufacturing process involves etched and formed aluminum anodes, which are either folded for dipped pearl configurations or wound into rolls for axial styles. The solid manganese dioxide electrolyte is applied through a pyrolytic process, a methodologically similar approach to that employed in solid tantalum capacitor production.
Development and Manufacturing
Philips initiated the development of SAL capacitors during the 1960s, establishing the foundational technology for this niche component class. The design addressed specific engineering requirements where traditional liquid electrolyte capacitors offered insufficient stability or size efficiency for certain high-reliability applications. The pyrolytic formation of the manganese dioxide layer provided enhanced thermal stability and reduced leakage current compared to conventional electrolytic solutions, making these components particularly valuable in precision analog circuits and compact electronic assemblies.
Manufacturing of SAL capacitors became highly consolidated over time, with Vishay emerging as the primary, and effectively single-source, manufacturer for this technology. This concentration of production meant that supply chain dynamics for SAL components were closely tied to Vishay's operational strategies and production volumes. Engineers specifying SAL capacitors often had to account for this single-source dependency when designing for long-term product lifecycles, particularly in industries such as automotive electronics, industrial control systems, and telecommunications infrastructure where component availability over decades is critical.
Market Status and Decommissioning
The market presence of SAL capacitors experienced significant contraction in the mid-2010s. By 2015, the technology reached a notable end-of-life status, with Vishay adjusting its production lines and inventory strategies to reflect diminishing demand. The decommissioning of SAL capacitors from active production reflected broader industry shifts toward alternative capacitor technologies that offered competitive performance metrics with potentially lower manufacturing costs or improved availability. Solid tantalum capacitors and advanced polymer aluminum electrolytic capacitors increasingly captured market share in applications previously dominated by SAL technology.
The transition away from SAL capacitors required engineers to re-evaluate component selections in existing designs, particularly for legacy products requiring long-term maintenance or for new designs where the specific characteristics of the manganese dioxide solid electrolyte were not strictly necessary. The consolidation of manufacturing under Vishay and the subsequent reduction in production volume meant that remaining inventory became increasingly valuable for maintenance and repair operations, particularly in sectors with extended product lifecycle requirements. The technology remains a notable example of specialized capacitor engineering that addressed specific performance needs before being gradually superseded by more broadly available alternatives.
Applications
SAL electrolytic capacitors are engineered to deliver high capacitance within a compact physical footprint, a characteristic that makes them indispensable in space-constrained electronic assemblies. Their construction utilizes etched and formed aluminum anodes, which are processed into either dipped pearl or axial roll configurations. The dielectric layer consists of anodically oxidized aluminum oxide, while the electrolyte is a semiconducting solid manganese dioxide formed via a pyrolytic process. This specific material combination results in a component with a long and robust service life, distinguishing it from conventional liquid-electrolyte aluminum capacitors.
Industrial and Automotive Environments
In industrial applications, the robust nature of the solid manganese dioxide electrolyte provides stability under varying thermal and mechanical stresses. The axial style, where the anodes are wound into a roll, is particularly suited for through-hole mounting in printed circuit boards found in motor drives, power supplies, and sensor interfaces. The dipped pearl types, with their folded anodes, offer a low-profile solution for surface-mount or specialized industrial modules. These capacitors maintain performance in environments where liquid electrolytes might evaporate or leak, ensuring long-term reliability in factory automation and control systems.
Medical Device Integration
Medical electronics demand components with high reliability and minimal leakage current over extended operational periods. The solid electrolyte structure of SAL capacitors reduces the risk of electrolyte leakage, which is critical for maintaining the hermetic or semi-hermetic integrity of medical devices such as pacemakers, infusion pumps, and diagnostic imaging equipment. The long service life inherent to the pyrolytic manganese dioxide formation process aligns with the stringent lifecycle requirements of medical instrumentation, where component failure can directly impact patient monitoring and treatment delivery.
High-Temperature Military Applications
Military and aerospace systems often operate in extreme thermal environments where standard capacitors may degrade rapidly. The solid manganese dioxide electrolyte exhibits superior thermal stability compared to liquid alternatives, allowing SAL capacitors to function reliably at elevated temperatures. This makes them suitable for high-temperature military applications, including avionics, radar systems, and satellite communications equipment. The robust construction and long service life ensure that these components can withstand the vibration, shock, and thermal cycling characteristic of defense-grade electronic assemblies.
Standardization
The standardization of SAL electrolytic capacitors is primarily governed by the International Electrotechnical Commission (IEC), which provides the technical framework for their classification, testing, and application. The foundational document for these components is IEC 60384-1, which establishes the general specifications for fixed capacitors for use in electronic equipment. This standard defines the basic characteristics, test methods, and marking requirements that apply to all capacitor types within the IEC 60384 series, ensuring that SAL capacitors meet baseline quality and performance metrics consistent with other aluminum and tantalum electrolytic technologies.
For more specific technical parameters, IEC 60384-4 details the particular specifications for fixed aluminum electrolytic capacitors. This standard covers the construction, electrical characteristics, and environmental testing procedures relevant to the aluminum anode and solid manganese dioxide electrolyte structure of SAL capacitors. It addresses the unique requirements of the anodic oxidized aluminum oxide dielectric and the pyrolytic formation process, ensuring that the components can withstand the thermal and electrical stresses typical of high-capacitance applications. Compliance with IEC 60384-4 is critical for verifying the long service life and robustness that define the SAL capacitor technology.
Additionally, IEC 60384-18 provides the particular specifications for fixed aluminum electrolytic capacitors with solid electrolyte, which directly encompasses the SAL capacitor design. This standard focuses on the specific properties of the solid manganese dioxide electrolyte, distinguishing SAL capacitors from those with liquid or gel electrolytes. It outlines the performance criteria for the semiconducting solid electrolyte, including leakage current, equivalent series resistance, and temperature stability. These standards collectively ensure that SAL capacitors, whether in dipped pearl or axial roll configurations, meet rigorous international benchmarks for reliability and performance in electronic circuits.
