Overview
Radio frequency power transmission is defined as the transmission of the output power of a transmitter to an antenna. This process is a fundamental aspect of radio engineering and telecommunications infrastructure. The primary objective is to move electrical energy, modulated with information or signals, from the source—typically a radio frequency generator or amplifier—to the radiating element. The efficiency and integrity of this transmission are critical for the performance of the entire communication or power delivery system.
In many configurations, the antenna is situated in close proximity to the transmitter. In such cases, the connection may be relatively straightforward, often involving short runs of coaxial cable or simple waveguide sections. However, when the antenna is not situated close to the transmitter, special transmission lines are required. This spatial separation introduces several engineering challenges that must be addressed to minimize signal loss and impedance mismatches.
The necessity for special transmission lines arises from the behavior of alternating current at high frequencies. As frequency increases, the skin effect causes current to flow primarily near the surface of the conductor, increasing effective resistance. Additionally, dielectric losses within the insulating materials of the transmission line become more pronounced. To mitigate these losses, engineers select specific types of transmission lines based on the power level and frequency range. Common examples include coaxial cables, twin-lead lines, microstrip lines, and waveguides. Each type offers different trade-offs in terms of cost, weight, bandwidth, and power handling capacity.
Impedance matching is another critical factor in radio frequency power transmission. The characteristic impedance of the transmission line must be matched to the output impedance of the transmitter and the input impedance of the antenna. Mismatches result in reflected power, which can reduce the effective radiated power and potentially cause overheating in the transmitter's final amplifier stage. The voltage standing wave ratio (VSWR) is a common metric used to quantify the quality of this match. A lower VSWR indicates a better match and more efficient power transfer.
The design of these transmission systems requires careful consideration of the operating frequency, the power level, and the physical environment. For high-power applications, such as those found in broadcasting or radar systems, waveguides are often preferred due to their low loss and high power handling capabilities. In contrast, lower power applications, such as those in mobile communications, may utilize coaxial cables or printed circuit board traces. The choice of materials, such as copper or silver plating, also plays a role in minimizing resistive losses. Overall, the effective transmission of radio frequency power is essential for the reliable operation of modern communication networks.
What are the main types of RF transmission lines?
Radio frequency power transmission relies on specialized transmission lines to convey output power from a transmitter to an antenna, particularly when the antenna is not situated in close proximity to the source. The selection of the transmission line is critical and depends heavily on the operating frequency and the power level being transmitted. Different structural configurations minimize losses and manage impedance matching for various RF applications.
Classification of RF Transmission Lines
Several distinct types of transmission lines are employed in RF engineering, each offering unique advantages regarding power handling, frequency range, and physical form factor. Large-diameter coaxial cables are widely used for their shielding properties and consistent impedance. Cage lines, which consist of multiple parallel conductors, are often utilized in high-power applications to reduce skin effect losses. Goubau lines, or surface waveguides, allow for flexible routing of surface waves. Waveguides, typically hollow metallic pipes, are essential for high-frequency, high-power transmission where dielectric losses must be minimized.
| Type | Description | Key Characteristic |
|---|---|---|
| Large-diameter coaxial cables | Concentric conductors with a dielectric spacer | Good shielding, moderate power handling |
| Cage lines | Multiple parallel wires forming a cylindrical cage | High power handling, reduced skin effect |
| Goubau lines | Single conductor with a dielectric coating | Flexible, surface wave propagation |
| Waveguides | Hollow metallic tubes | High frequency, low loss, high power |
The performance of these lines is governed by electromagnetic field distributions and impedance characteristics. For instance, the characteristic impedance Z0 is a critical parameter that determines how efficiently power is transferred from the transmitter to the antenna. In coaxial cables, Z0 depends on the ratio of the outer to inner conductor diameters and the dielectric constant of the insulating material. In waveguides, the dominant mode of propagation is typically the TE10 mode, where the electric field is transverse to the direction of propagation. Proper selection ensures minimal reflection and maximum power transfer efficiency.
Cage lines: construction and high-power applications
Cage lines represent a specialized class of overhead transmission lines designed to connect high-power radio frequency transmitters to their antennas when proximity is not feasible. Structurally, these lines function as an open-wire analog to coaxial cables, providing a controlled impedance path for signal delivery while minimizing radiation loss and external interference. The construction typically involves an interior conductor suspended by insulators, often supported by a circular device or frame to maintain geometric precision. Additional wires are deployed to form the return path or the second pole of the transmission system, ensuring balanced current flow and efficient power transfer from the transmitter output.
European Applications in Broadcast Transmission

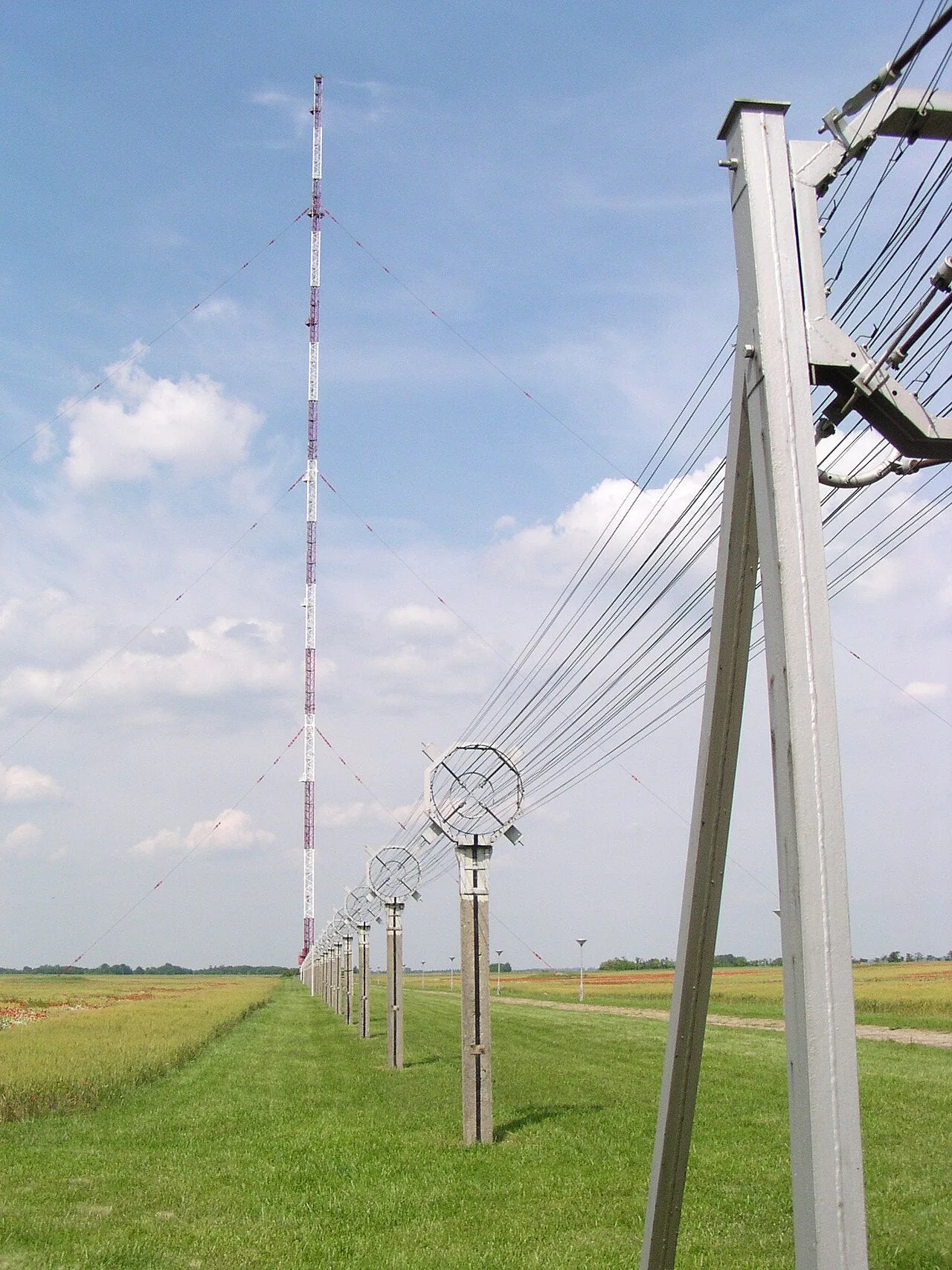

In Europe, cage lines have been extensively utilized for longwave, medium-wave, and shortwave broadcast transmitters. These frequency bands require robust transmission infrastructure to handle the high voltages and currents associated with large-scale broadcasting. The overhead nature of cage lines allows for flexible deployment across varied terrains, making them suitable for connecting remote antenna arrays to central transmitter halls. The design accommodates the specific impedance requirements of different wave bands, ensuring minimal signal attenuation over long distances. This technology remains operational in many legacy and modern broadcast facilities, demonstrating the enduring effectiveness of well-engineered RF transmission solutions.
The performance of cage lines depends on maintaining consistent spacing between conductors and minimizing parasitic capacitance and inductance. Engineers must account for environmental factors such as wind loading, temperature variations, and atmospheric pressure, which can affect the physical dimensions and electrical characteristics of the line. Proper maintenance of insulators and support structures is critical to prevent signal degradation and potential short circuits. The use of cage lines in European broadcasting infrastructure highlights the importance of tailored transmission solutions for different frequency ranges and power levels.
Notable high-power transmitter sites
High-power radio frequency transmission systems often utilize specialized transmission lines to connect transmitters to distant antenna structures. In Europe, longwave broadcasting stations have historically employed cage lines—also known as cage feeders or twin-lead transmission lines—to minimize signal loss over long distances before the signal reaches the antenna array. These systems are critical for maintaining efficiency in high-power applications where the transmitter is not situated immediately adjacent to the antenna.
Longwave Transmitter Topolna
The Longwave Transmitter Topolna is a notable example of such infrastructure. Located in the Czech Republic, this facility utilizes high-power transmitters connected to its antenna system via specialized transmission lines. The design of the Topolna site reflects the engineering requirements for longwave broadcasting, where the output power of the transmitter must be efficiently transmitted to the antenna structure. The use of cage lines at Topolna helps to manage the impedance matching and reduce attenuation of the radio frequency power over the distance between the transmitter hall and the antenna mast.
Longwave Transmitter Solec Kujawski
Another significant European site is the Longwave Transmitter Solec Kujawski in Poland. This station also employs high-power transmission technology to deliver radio frequency power to its antenna. The Solec Kujawski facility is known for its robust transmission infrastructure, which includes the use of cage lines to connect the transmitter equipment to the antenna system. These transmission lines are essential for maintaining the integrity of the signal and ensuring that the power is effectively radiated by the antenna. The operational status of these sites remains active, demonstrating the continued relevance of high-power radio frequency transmission techniques in modern broadcasting.
The engineering principles governing these systems involve careful consideration of the transmission line characteristics, including impedance, capacitance, and inductance. The efficiency of the transmission is crucial for maximizing the effective radiated power of the antenna. Both Topolna and Solec Kujawski exemplify the application of these principles in real-world high-power transmitter sites in Europe.
How do Goubau lines work for UHF and VHF?
Goubau lines represent a specialized class of transmission lines designed for efficient power delivery at Very High Frequency (VHF) and Ultra High Frequency (UHF) bands. The fundamental structure consists of a single, straight conductor that is electrically insulated from the ground. This wire is mounted on a series of insulators, which maintain a consistent height above a conducting plane, typically the earth or a metallic ground plane. This configuration creates a quasi-TEM (Transverse Electromagnetic) waveguide. The insulation prevents the direct flow of current into the ground, forcing the signal to propagate along the wire while maintaining a defined electric field distribution. The wave propagation mechanism in a Goubau line is distinct from standard two-wire or coaxial systems. It relies on longitudinal currents flowing along the single wire. These currents are surrounded by transverse electromagnetic fields that extend from the wire to the ground plane. The insulating sheath or the air gap acts as the dielectric medium. The electromagnetic energy is confined in the space between the conductor and the ground, minimizing radiation losses that would otherwise occur with an uninsulated wire. This confinement is critical for maintaining signal integrity over longer distances at higher frequencies. The characteristic impedance of a Goubau line is determined by the geometry of the conductor and its height above the ground. For a cylindrical wire of radiusr at a height h above a ground plane, the impedance Z can be approximated by the formula Z = (60 / sqrt(ε_r)) * ln(2h/r), where ε_r is the relative permittivity of the insulating medium. This formula highlights the sensitivity of the line's performance to the physical dimensions. The logarithmic relationship means that small changes in height or radius can significantly affect the impedance matching, which is essential for minimizing reflections at the transmitter and antenna interfaces.
The use of Goubau lines is particularly advantageous when the antenna is not situated close to the transmitter. In such scenarios, standard coaxial cables may suffer from excessive dielectric losses, especially at UHF frequencies. The Goubau line offers a lower loss alternative due to the larger conductor diameter and the air or low-loss dielectric insulation. This makes it suitable for applications requiring high power handling capabilities and reduced attenuation. The simplicity of the single-wire design also facilitates easier installation and maintenance compared to multi-conductor systems.
However, the Goubau line is susceptible to external electromagnetic interference due to its open structure. The transverse fields are not fully shielded, unlike in coaxial cables. Therefore, careful placement and grounding of the insulators are necessary to mitigate noise pickup. The line must be kept away from other conductive objects that could distort the field distribution. Despite these considerations, the Goubau line remains a viable solution for specific VHF and UHF transmission needs where low loss and high power capacity are prioritized over complete shielding.
Waveguides for microwave transmission
Waveguides serve as the standard transmission medium for microwave frequencies, addressing the limitations of conventional two-wire transmission lines and coaxial cables. In radio frequency power transmission, when the antenna is not situated close to the transmitter, special transmission lines are required to minimize signal loss and handle higher power levels. Waveguides are hollow metallic structures that guide electromagnetic waves, typically operating above a specific cutoff frequency where the wavelength is comparable to the physical dimensions of the guide. This configuration allows for efficient power transfer with lower dielectric and conductor losses compared to coaxial cables, making them indispensable in high-power microwave applications such as radar systems, satellite communications, and microwave ovens.
Operational Principles and Cutoff Frequency
The operation of a waveguide is governed by the boundary conditions imposed by its metallic walls. Electromagnetic waves propagate through the guide in distinct modes, primarily classified as Transverse Electric (TE) and Transverse Magnetic (TM) modes. The dominant mode in a rectangular waveguide is typically the TE10 mode, where the electric field is perpendicular to the direction of propagation and has one half-wave variation across the broader dimension of the guide. Propagation occurs only when the operating frequency exceeds the cutoff frequency (fc) of the specific mode. Below this frequency, the wave attenuates exponentially, effectively acting as a high-pass filter. The cutoff frequency is determined by the geometry of the waveguide and the permittivity of the medium filling it.
For a rectangular waveguide with width a and height b, the cutoff frequency for the TEmn mode is given by:
fc=2c(am)2+(bn)2
where c is the speed of light in the medium, and m and n are the mode indices. This relationship highlights the critical dependence of waveguide performance on its physical dimensions. Engineers must carefully select the waveguide size to ensure the desired frequency band propagates efficiently while suppressing higher-order modes that can cause signal distortion. The use of waveguides ensures that the output power of a transmitter is transmitted to an antenna with minimal attenuation, maintaining signal integrity over the transmission path.
Worked examples
The selection of a transmission line is dictated by the frequency of the radio frequency power transmission and the distance between the transmitter and the antenna. Different frequencies exhibit distinct propagation characteristics, necessitating specific line types to minimize loss and impedance mismatch.
Longwave Example: Cage Line
Consider a longwave transmitter operating at [?] MHz. At this low frequency, the wavelength is long, and the antenna is situated far from the transmitter. A cage line is selected. This transmission line consists of two parallel tubes or rods. The large diameter reduces skin effect losses. The impedance is typically [?] ohms. The cage line handles the high voltage and current of the longwave band effectively.
UHF Example: Goubau Line
The wavelength is shorter. The antenna is not close to the transmitter. This is a surface wave transmission line. It consists of a central wire surrounded by a dielectric rod. The Goubau line is flexible and has low loss at UHF frequencies. It is suitable for situations where a rigid waveguide is too bulky.
Microwave Example: Waveguide
Consider a microwave transmitter operating at [?] GHz. The wavelength is very short. A waveguide is selected. This is a hollow metallic pipe. It has low attenuation at high frequencies. The dominant mode is TE10. The waveguide handles high power levels. It is the standard choice for microwave power transmission.
Applications in broadcasting infrastructure
Radio frequency power transmission is fundamental to the architecture of broadcasting infrastructure, serving as the critical link between the transmitter’s output stage and the radiating antenna. In broadcasting systems, the antenna is frequently situated at a significant distance from the transmitter, often atop a tower or mast to optimize line-of-sight propagation or ground-wave coverage. This spatial separation necessitates the use of specialized transmission lines to convey the radio frequency (RF) power with minimal loss. The efficiency of this transmission directly impacts the effective radiated power (ERP) and, consequently, the coverage area of the broadcast service.
Longwave, Mediumwave, and Shortwave Services
In longwave (LW) and mediumwave (MW) broadcasting, which operate primarily via ground-wave propagation, transmission lines must handle relatively high currents and moderate voltages. These services often utilize long transmission lines, sometimes functioning as part of the antenna system itself, or rigid coaxial lines to connect the transmitter room at the base of the tower to the elevated antenna elements. The impedance matching between the transmitter and the transmission line is critical to minimize standing wave ratio (SWR), ensuring that power is effectively delivered rather than reflected back to the transmitter.
Shortwave (SW) broadcasting, which relies on sky-wave propagation for long-distance coverage, involves higher frequencies and thus different transmission line characteristics. Coaxial cables and twin-lead lines are commonly used to transmit power to dipole or Yagi-Uda antenna arrays. The design of these lines must account for the specific frequency bands used in shortwave broadcasting to reduce dielectric and conductor losses, which become more pronounced as frequency increases.
VHF and UHF Broadcasting
Very High Frequency (VHF) and Ultra High Frequency (UHF) services, including FM radio and television broadcasting, demand even more precise transmission line engineering. At these higher frequencies, waveguides and rigid coaxial lines are often employed for high-power applications due to their lower loss characteristics compared to flexible coaxial cables. The transmission of RF power in VHF and UHF bands requires careful attention to phase stability and impedance continuity to maintain signal integrity. Any discontinuity in the transmission line can result in signal reflection and loss, reducing the overall efficiency of the broadcast system.
The selection of transmission line type—whether coaxial, twin-lead, or waveguide—depends on the power level, frequency, and physical constraints of the broadcasting infrastructure. Proper design and maintenance of these transmission lines ensure that the output power of the transmitter is efficiently converted into electromagnetic waves, providing reliable coverage for listeners and viewers across the service area.
