Overview
A quasi-isodynamic (QI) stellarator represents a specialized class of magnetic confinement fusion reactors designed to optimize plasma performance through precise geometric configuration. As a type of stellarator, it operates on the principle of omnigeneity, a property that ensures the drift trajectories of charged particles in the magnetic field are symmetric with respect to the midplane of the device. This symmetry is critical for minimizing neoclassical transport, which refers to the particle and heat losses that occur in the collisionless regime of the plasma. By satisfying the condition of omnigeneity, the quasi-isodynamic stellarator effectively reduces the dependence of particle drifts on the specific starting position along the magnetic field line, leading to a more uniform distribution of plasma properties.
One of the most significant advantages of the quasi-isodynamic configuration is its ability to avoid the potentially hazardous toroidal bootstrap current. In many fusion devices, particularly tokamaks, the bootstrap current arises from the collisional drifts of particles and can lead to instabilities if not carefully controlled. In contrast, the quasi-isodynamic stellarator minimizes this current, thereby enhancing the stability of the plasma and reducing the risk of disruptions. This characteristic makes the quasi-isodynamic stellarator an attractive option for achieving sustained fusion reactions with improved operational flexibility.
The design of a quasi-isodynamic stellarator involves complex magnetic field structures that are carefully tailored to meet the criteria for omnigeneity and minimal neoclassical transport. These structures are typically generated by a combination of toroidal and poloidal field coils, which create a three-dimensional magnetic field that confines the plasma. The precise arrangement of these coils is determined through advanced computational modeling and optimization techniques, ensuring that the magnetic field lines follow the desired trajectories to achieve the quasi-isodynamic condition.
Research into quasi-isodynamic stellarators has been driven by the need to overcome some of the limitations of traditional fusion concepts. By minimizing neoclassical transport and avoiding the bootstrap current, these devices offer a promising pathway to achieving high-performance plasma confinement. Ongoing studies and experimental prototypes aim to validate the theoretical predictions and demonstrate the practical viability of quasi-isodynamic stellarators as a leading candidate for future fusion energy production.
How does a quasi-isodynamic stellarator work?
Quasi-isodynamic stellarators achieve high confinement performance by engineering the magnetic field geometry to satisfy specific symmetry conditions. The fundamental principle relies on the property of omnigeneity, which ensures that the drift orbits of trapped particles are symmetric with respect to the magnetic field strength. In a quasi-isodynamic configuration, the magnetic field strength level curves close poloidally rather than toroidally. This geometric arrangement creates a series of linked magnetic mirrors along the particle trajectories.

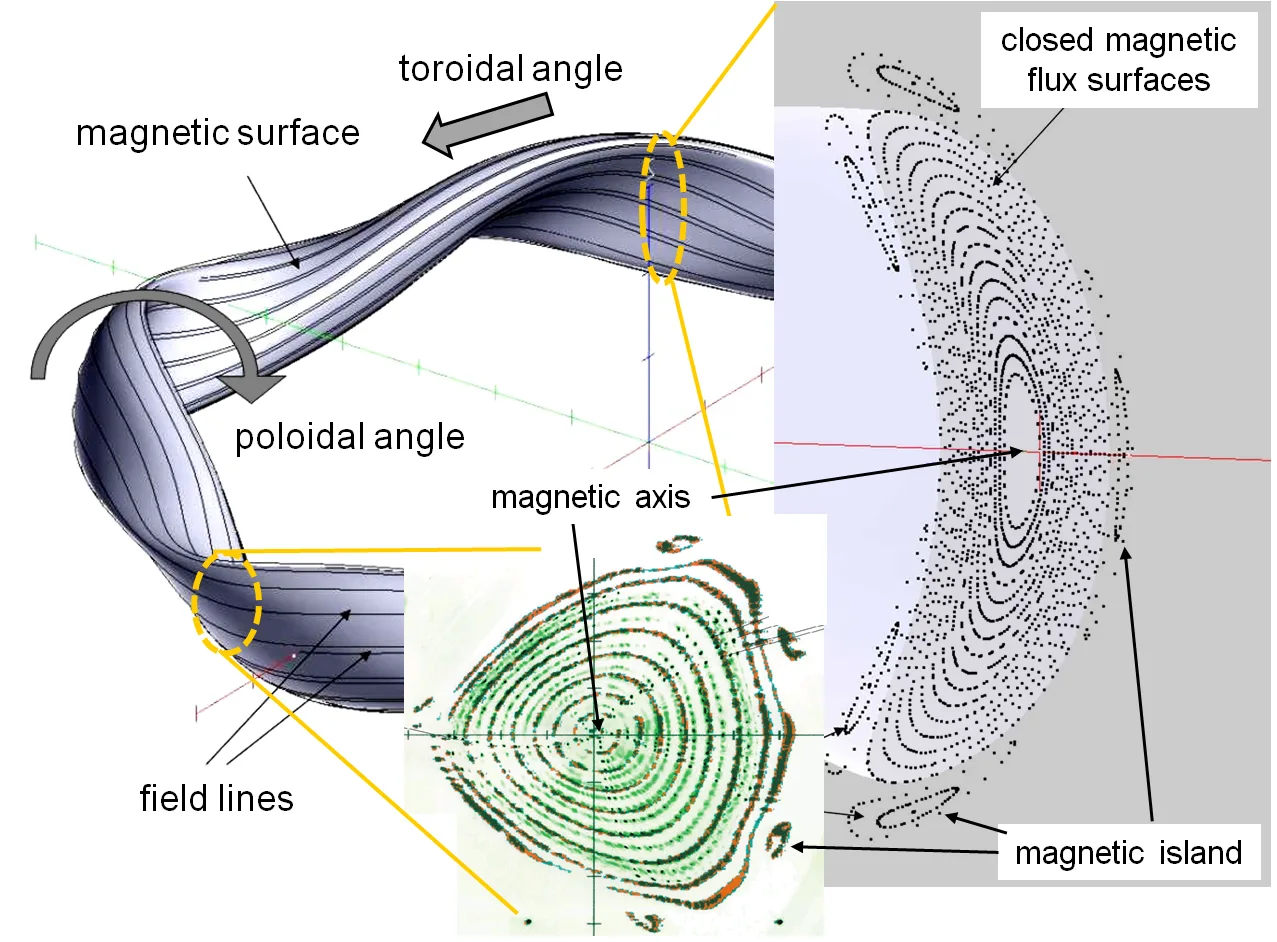

Magnetic Field Geometry and Linked Mirrors
In conventional stellarators, the magnetic field strength varies along the field lines in a complex manner, leading to significant neoclassical transport. Quasi-isodynamic designs optimize this field structure so that the magnetic well is deep and the field strength minima form closed contours. This creates linked magnetic mirrors that trap particles effectively. The poloidal closure of the field strength contours means that particles experience a restoring force that minimizes their radial drift. This configuration avoids the potentially hazardous toroidal bootstrap current that can destabilize the plasma in other stellarator types.
Neoclassical Transport Reduction
The primary advantage of the quasi-isodynamic property is the minimization of neoclassical transport in the collisionless regime. Neoclassical transport arises from the interaction of particle orbits with the magnetic field gradients and curvature. By satisfying the quasi-isodynamic condition, the stellarator reduces the sensitivity of particle orbits to these gradients. This leads to improved confinement of heat and particles, which is crucial for achieving the high temperatures required for fusion reactions. The reduction in neoclassical transport allows the plasma to maintain a more stable and efficient state, enhancing the overall performance of the stellarator.
The mathematical description of this property involves the relationship between the magnetic field strength B and the particle's position in the magnetic surface. The condition for quasi-isodynamicity ensures that the second adiabatic invariant of the particle motion is conserved more effectively. This conservation leads to a more uniform distribution of particles across the magnetic surface, reducing the radial flux of heat and particles. The linked magnetic mirrors created by the poloidal closure of the field strength contours play a key role in this process, providing a robust mechanism for particle confinement.
What distinguishes quasi-isodynamic fields from quasi-symmetric fields?
Quasi-isodynamic (QI) stellarators differ fundamentally from quasi-symmetric (QS) stellarators in their mathematical structure and the resulting complexity of their design optimization. While both concepts aim to simplify particle orbits to reduce neoclassical transport, they achieve this through distinct geometric constraints. Quasi-symmetry requires that the magnitude of the magnetic field, ∣B∣, remains constant along a specific field line direction. This condition imposes a single scalar constraint on the magnetic field geometry, which significantly simplifies the analytical expressibility of the field. In contrast, quasi-isodynamicity is a more restrictive condition. It requires not only that the magnetic field satisfies omnigeneity but also that the bounce-averaged drift of trapped particles vanishes. This imposes additional constraints on the magnetic well and the field strength profile, making QI fields mathematically more complex to express analytically than QS fields.
Mathematical Optimization Requirements
The increased complexity of quasi-isodynamicity translates directly into more demanding optimization requirements. Designing a QS stellarator involves satisfying one primary constraint on the magnetic field symmetry. However, achieving quasi-isodynamicity requires satisfying multiple simultaneous conditions. Specifically, the QI condition demands that the magnetic field strength B satisfies a specific relationship with the magnetic well depth and the particle energy. This results in a higher-dimensional optimization problem. The optimization must balance the magnetic field symmetry with the need to minimize the toroidal bootstrap current, which is a key advantage of QI configurations. In QS stellarators, the bootstrap current can be significant and potentially hazardous to plasma stability, whereas QI configurations naturally suppress this current.
From an analytical perspective, the expressibility of QI fields is more limited. While QS fields can often be described by relatively simple analytical models, QI fields require more complex parameterizations. This complexity arises because the QI condition couples the magnetic field geometry with the particle dynamics in a more intricate way. The optimization process must therefore account for the interplay between the magnetic field structure and the neoclassical transport properties. This makes the design of QI stellarators more computationally intensive. However, the payoff is a configuration with minimal neoclassical transport in the collisionless regime, which is crucial for high-performance stellarator operation. The trade-off between mathematical simplicity and physical performance is a central consideration in stellarator design.
Key design properties
Quasi-isodynamic (QI) stellarators are defined by three critical design properties that distinguish them from other stellarator configurations: omnigeneity, the minimization of neoclassical transport in the collisionless regime, and the avoidance of hazardous toroidal bootstrap current. These properties work in concert to enhance plasma confinement and operational stability, addressing key challenges in magnetic confinement fusion.
Omnigeneity
In a quasi-isodynamic stellarator, the magnetic field strength |B| is arranged such that the first adiabatic invariant of the particle motion remains constant along the field line, leading to a simplified description of particle drifts. This symmetry reduces the dependence of the confinement quality on the particle's magnetic moment, thereby minimizing the scattering of particles across flux surfaces.
Minimal Neoclassical Transport
In the collisionless regime, neoclassical transport in stellarators is typically dominated by the drift of trapped particles. Quasi-isodynamic stellarators are designed to minimize this transport by ensuring that the magnetic field strength has a specific functional form that reduces the radial drift of these particles. The neoclassical transport coefficient, often denoted as D_neclass, is significantly reduced in QI configurations compared to standard stellarators. This reduction is achieved by optimizing the magnetic well and the field line geometry to create a more isotropic distribution of particle velocities.
Avoidance of Toroidal Bootstrap Current
The toroidal bootstrap current in stellarators can lead to instabilities and complications in the magnetic field structure. Quasi-isodynamic stellarators are designed to avoid this current by carefully shaping the magnetic field to ensure that the pressure gradient and the magnetic shear are balanced in such a way that the bootstrap current is minimized or eliminated. This property is crucial for maintaining the stability of the plasma and reducing the complexity of the magnetic field configuration required for confinement.
Wendelstein 7-X: The largest quasi-isodynamic stellarator
Wendelstein 7-X stands as the most significant experimental realization of the quasi-isodynamic stellarator concept, representing a major milestone in magnetic confinement fusion research. Located at the Max Planck Institute for Plasma Physics in Greifswald, Germany, this device is designed to validate the theoretical advantages of quasi-isodynamicity, specifically the reduction of neoclassical transport and the management of bootstrap current in a collisionless plasma regime.
The stellarator’s magnetic configuration is optimized to satisfy the property of omnigeneity, ensuring that the drift of charged particles is primarily determined by their energy and magnetic moment rather than their specific position in the torus. This optimization minimizes the loss of high-energy particles, which is critical for maintaining plasma temperature and density. The design avoids the potentially hazardous toroidal bootstrap current that can complicate stability in traditional stellarators, allowing for more predictable plasma behavior.
As the world’s largest stellarator, Wendelstein 7-X features a complex set of non-planar magnetic coils that generate a twisted magnetic field. This configuration is essential for confining the plasma without relying on the large plasma current found in tokamaks, thereby reducing the risk of disruptions. The device aims to demonstrate that a stellarator can achieve high performance and operational flexibility, making it a viable candidate for future fusion power plants.
The experimental program at Wendelstein 7-X focuses on measuring neoclassical transport in the collisionless regime, where particle collisions are less frequent. By comparing these measurements with theoretical predictions, researchers can verify the effectiveness of the quasi-isodynamic optimization. The data collected will help refine models of plasma behavior and guide the design of subsequent stellarator reactors.
Wendelstein 7-X also serves as a testbed for advanced plasma diagnostics and control systems. The intricate geometry of the magnetic field requires precise measurement techniques to map the plasma’s properties. These diagnostics provide insights into the spatial distribution of temperature, density, and flow velocity, which are crucial for understanding the overall performance of the quasi-isodynamic configuration.
Mathematical optimization of QI fields
The design of quasi-isodynamic (QI) stellarators relies heavily on mathematical optimization because exact analytical expressions for QI fields are generally unavailable. While the concept of omnigeneity provides a geometric framework for minimizing neoclassical transport, achieving the precise conditions required for quasi-isodynamicity—specifically the avoidance of hazardous toroidal bootstrap currents and the minimization of transport in the collisionless regime—requires sophisticated numerical methods. Since closed-form solutions are rare, researchers employ optimization algorithms to approximate these fields, adjusting magnetic coil configurations to satisfy the necessary constraints.
Optimization Constraints and Objectives
The optimization process involves defining an objective function that quantifies the deviation from ideal quasi-isodynamic properties. Key constraints include maintaining omnigeneity, which ensures that the drift of trapped particles is independent of their position along the field line. This property is critical for reducing neoclassical transport. Additionally, the optimization must minimize the toroidal bootstrap current, which can introduce instabilities in stellarator configurations. The collisionless regime is particularly important, as it dictates the behavior of particles when collisions are infrequent, affecting the overall confinement quality.
Mathematical formulations often involve minimizing a cost function that includes terms for magnetic well depth, rotational transform, and field line curvature. These parameters are adjusted iteratively using gradient-based methods or evolutionary algorithms. The goal is to find a magnetic field configuration that balances these competing requirements, resulting in a stellarator design that closely approximates the ideal QI state. This approach allows for the exploration of a vast design space, enabling the identification of configurations that might not be apparent through analytical means alone.
Challenges in Approximation
One of the primary challenges in optimizing QI fields is the high dimensionality of the parameter space. The magnetic coils must be precisely shaped and positioned to achieve the desired field properties, leading to complex optimization landscapes. Small changes in coil geometry can have significant effects on the magnetic field, making the convergence of optimization algorithms difficult. Furthermore, the need to maintain omnigeneity while minimizing neoclassical transport often results in trade-offs that must be carefully managed.
Another challenge is the computational cost associated with evaluating the objective function. Each iteration of the optimization process requires solving the magnetic field equations and calculating the resulting transport properties, which can be computationally intensive. Advanced numerical techniques, such as spectral methods and finite element analysis, are often employed to improve efficiency and accuracy. Despite these challenges, mathematical optimization remains a powerful tool for designing quasi-isodynamic stellarators, enabling the realization of configurations that offer improved confinement and reduced transport compared to traditional stellarator designs.
Applications in fusion energy research
Quasi-isodynamic (QI) stellarators represent a specialized class of magnetic confinement devices designed to optimize plasma performance for future fusion reactors. Their primary application lies in mitigating the complex transport phenomena that have historically limited stellarator efficiency. By satisfying the property of omnigeneity, QI stellarators ensure that the drift orbits of plasma particles are symmetric with respect to the magnetic field strength, significantly reducing neoclassical transport in the collisionless regime. This reduction is critical for maintaining high plasma pressure and temperature gradients, which are essential for achieving the ignition conditions required for net energy gain.
Mitigation of Bootstrap Current
A key advantage of the quasi-isodynamic configuration is its ability to minimize the toroidal bootstrap current. In conventional tokamaks, the bootstrap current is a self-generated plasma current that provides part of the total magnetic field required for confinement. However, in stellarators, an uncontrolled bootstrap current can lead to magnetic island formation and potential disruptions. QI stellarators are engineered to keep this current relatively small and stable, thereby reducing the risk of tearing modes and enhancing the overall stability of the plasma. This characteristic simplifies the operational scenario for reactor design, as it reduces the reliance on external current drive systems, such as electron cyclotron resonance heating (ECRH) or neutral beam injection (NBI), which can be energy-intensive.
Reactor Design Implications
The reduced neoclassical transport and controlled bootstrap current make QI stellarators attractive candidates for compact fusion reactors. The improved confinement properties allow for higher beta values (the ratio of plasma pressure to magnetic pressure), which can lead to more compact and cost-effective reactor designs. Additionally, the flexibility of the stellarator coil geometry allows for optimization of the magnetic well and the shaping of the plasma boundary, further enhancing stability and confinement. These features contribute to the development of robust fusion energy systems that can operate in a steady-state mode, offering a continuous power output compared to the pulsed operation of many tokamak designs.
Frequently asked questions
What is a quasi-isodynamic stellarator?
A quasi-isodynamic (QI) stellarator is a specialized magnetic confinement device designed for nuclear fusion energy. It is a subtype of the stellarator family that satisfies the property of omnigeneity. This design specifically aims to minimize neoclassical transport in the collisionless regime, which is a critical factor for plasma efficiency. Additionally, the QI stellarator avoids the potentially hazardous toroidal bootstrap current, offering enhanced stability compared to other configurations.
How does a quasi-isodynamic stellarator differ from a tokamak?
Unlike tokamaks, which rely heavily on a toroidal magnetic field generated by plasma current, quasi-isodynamic stellarators use externally generated magnetic fields to confine the plasma. This eliminates the need for a large toroidal bootstrap current, which can lead to instabilities in tokamaks. The QI stellarator achieves this through a carefully shaped magnetic field that satisfies omnigeneity, ensuring that particles drift in a way that minimizes energy loss. This makes it a promising candidate for steady-state fusion power.
What is omnigeneity in the context of stellarators?
In quasi-isodynamic stellarators, this property ensures that neoclassical transport is minimized, particularly in the collisionless regime. This leads to more efficient confinement of plasma particles, reducing heat loss and improving overall fusion performance.
Why is minimizing neoclassical transport important?
Neoclassical transport refers to the movement of particles across magnetic field lines due to collisions and drifts. In the collisionless regime, this transport can significantly affect plasma confinement. By minimizing neoclassical transport, quasi-isodynamic stellarators can maintain higher plasma temperatures and densities, which are essential for achieving the high fusion reaction rates needed for efficient energy production. This reduction in transport losses is a key advantage of the QI design.
What are the main advantages of quasi-isodynamic stellarators?
The main advantages of quasi-isodynamic stellarators include reduced neoclassical transport, avoidance of hazardous toroidal bootstrap currents, and enhanced plasma stability. These features make them suitable for steady-state operation, which is crucial for continuous power generation. The design also allows for greater flexibility in shaping the magnetic field, enabling optimization for specific fusion fuels and operational conditions. This makes QI stellarators a compelling option for future fusion reactors.
Summary
The quasi-isodynamic (QI) stellarator represents a specialized configuration within the broader class of stellarator fusion devices, engineered to optimize plasma confinement and stability through precise magnetic field geometry. This concept is defined by its adherence to the property of omnigeneity, a critical symmetry condition that minimizes the drift of trapped particles across magnetic flux surfaces. By satisfying omnigeneity, the quasi-isodynamic stellarator significantly reduces neoclassical transport, particularly in the collisionless regime where particle collisions are less frequent. This reduction in transport is essential for maintaining high plasma temperatures and densities, which are prerequisites for achieving efficient fusion reactions.
In contrast, the quasi-isodynamic configuration is designed such that the bootstrap current remains minimal or negligible, thereby enhancing the inherent stability of the plasma. This feature simplifies the operational requirements for maintaining steady-state fusion, reducing the complexity of external current drive systems.
The optimization of the magnetic field in a quasi-isodynamic stellarator involves careful tuning of the coil arrangements to create a magnetic well that traps particles effectively. This geometric precision allows for the minimization of neoclassical losses, which are typically more significant in stellarators than in tokamaks due to the lack of rotational symmetry. The collisionless regime, where the mean free path of particles is large compared to the system size, is particularly well-suited for quasi-isodynamic optimization, leading to improved confinement times and overall performance.
By combining omnigeneity with the suppression of the toroidal bootstrap current, the quasi-isodynamic stellarator offers a promising pathway toward practical fusion energy. The reduced neoclassical transport and enhanced stability contribute to a more robust and efficient plasma environment, making this configuration a key area of research in advanced stellarator design. These attributes distinguish the quasi-isodynamic stellarator from other fusion concepts, highlighting its potential to overcome some of the traditional challenges associated with stellarator-based fusion reactors.
