Overview

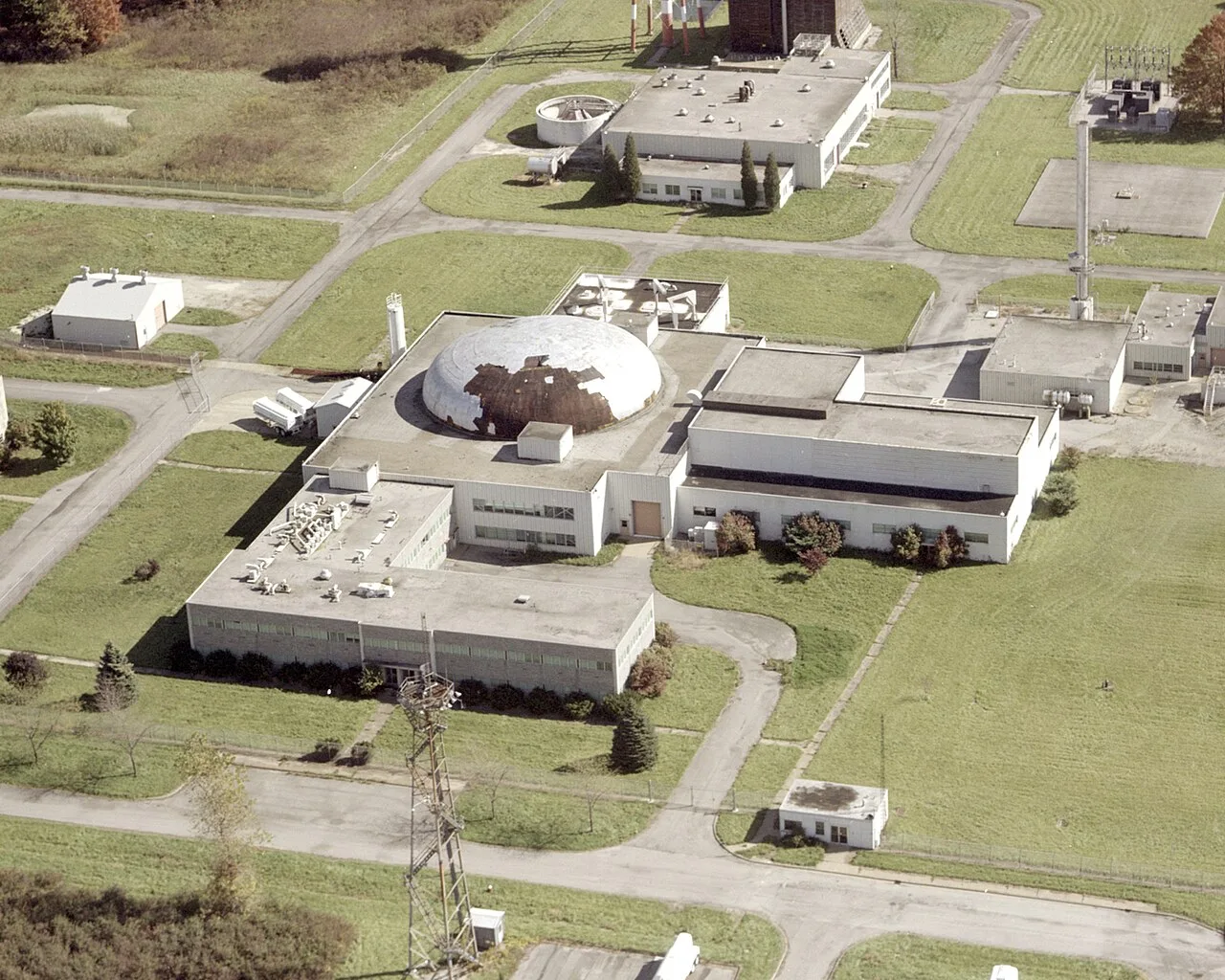

The Plum Brook Reactor was a significant nuclear research facility operated by the National Aeronautics and Space Administration (NASA). Located in Sandusky, Ohio, the plant served as a key component of NASA’s space-related nuclear energy research infrastructure. The reactor was commissioned in 1961 and operated with a thermal capacity of 60 MW, utilizing uranium as its primary fuel source. It was designed as a water-cooled and water-moderated research nuclear reactor, a configuration that provided stable thermal conditions for various experimental setups required for space exploration technologies. The facility was organizationally part of the NASA Glenn Research Center, although it was geographically situated 50 mi west of the main center located in Cleveland. This separation allowed for dedicated site-specific operations while maintaining administrative and technical integration with the broader Glenn Research Center activities.
As a decommissioned nuclear powerplant, the Plum Brook Reactor played a crucial role in the mid-20th century advancements in nuclear propulsion and materials testing for space applications. The 60 MW capacity enabled researchers to simulate reactor conditions relevant to space missions, providing valuable data on fuel performance, cooling systems, and structural integrity under various thermal and neutron flux conditions. The water-cooled and moderated design was particularly suited for research purposes, offering a balance between thermal efficiency and operational flexibility. The facility's location in Sandusky, Ohio, provided a strategic environment for these operations, leveraging the regional infrastructure and proximity to Cleveland-based research teams. The reactor's operational history, spanning from its commissioning in 1961 until its decommissioning, reflects the evolving needs of NASA's nuclear research programs during a critical period in space exploration.
History and Origins
The Plum Brook Reactor originated within the National Advisory Committee for Aeronautics (NACA) as part of the ambitious nuclear airplane project. This initiative sought to develop nuclear-powered aircraft capable of long-range flight, requiring a compact yet powerful reactor core. The facility was constructed in Sandusky, Ohio, situated 50 mi west of the NASA Glenn Research Center in Cleveland, serving as an organizational extension of the latter. The reactor was designed as a 60 MW water-cooled and moderated research unit, utilizing uranium as its primary fuel source.
Project Cancellation and Transition
The nuclear airplane project faced significant technical and logistical challenges, leading to its official cancellation in 1961. Despite the project's termination, the Plum Brook facility remained a strategic asset for the newly formed National Aeronautics and Space Administration (NASA). The reactor was repurposed to become the primary NASA facility for space nuclear energy research and development (R&D). This transition allowed NASA to leverage the reactor's capabilities for testing materials and components intended for space missions, shifting focus from aviation to aerospace applications.
Operational Timeline
The reactor achieved criticality on 14 June 1961, marking the beginning of its operational life. It served as a vital research tool for nearly twelve years, supporting various NASA initiatives. The reactor was officially shut down on 5 January 1973, concluding its primary operational phase.
| Year | Event |
|---|---|
| 1961 | Project cancellation; reactor commissioned and achieves criticality on 14 June |
| 1973 | Reactor shutdown on 5 January |
Technical Specifications and Design
As a light-water reactor, it employed ordinary water to serve dual functions: acting as a neutron moderator to slow down neutrons for efficient fission and as a primary coolant to transfer thermal energy from the core. This design choice was critical for its role as a versatile research facility under the National Aeronautics and Space Administration (NASA).
Reactor Core and Thermal Parameters
The reactor's core was engineered to provide precise thermal and neutron flux profiles necessary for aerospace materials testing. The 60 MW thermal output was distributed through a water circulation system that maintained the core at optimal operating temperatures. The water moderation process involved the interaction of neutrons with hydrogen atoms in the water molecules, reducing their kinetic energy. The fundamental moderation ratio can be conceptualized through the relationship between neutron flux ϕ and the macroscopic scattering cross-section Σs of the water moderator. The reactor's layout allowed for multiple irradiation positions, enabling simultaneous testing of various fuel elements and structural materials exposed to high neutron fluxes.
| Parameter | Value |
|---|---|
| Reactor Type | Light-Water Reactor (Research) |
| Fuel Source | Uranium |
| Thermal Capacity | 60 MW |
| Coolant/Moderator | Water |
| Operator | National Aeronautics and Space Administration |
| Commissioning Year | 1961 |
| Status | Decommissioned |
Facility Layout and Centaur Testing
Beyond the reactor core, the Plum Brook facility included specialized infrastructure to support NASA's aerospace research objectives. The site featured liquid hydrogen facilities essential for testing the Centaur upper stage rocket booster. The Centaur stage utilized liquid hydrogen and liquid oxygen as propellants, requiring precise thermal management and cryogenic testing environments. The proximity of the reactor to these testing areas allowed researchers to evaluate the performance of rocket components under combined thermal and neutron radiation stresses. This integrated layout at the Sandusky, Ohio site, located 50 mi west of the NASA Glenn Research Center in Cleveland, facilitated comprehensive evaluation of aerospace materials and propulsion systems. The facility's organizational structure as part of the NASA Glenn Research Center ensured seamless data integration between reactor experiments and broader aerospace engineering efforts.
Research Applications and Space Propulsion
The Plum Brook Reactor served as a critical infrastructure asset for NASA's exploration of nuclear energy applications in spaceflight. As a 60 MW water-cooled and moderated research reactor, it provided the thermal and neutron flux environments necessary to test materials and power systems destined for the harsh conditions of space. The facility's organizational integration with the NASA Glenn Research Center allowed for seamless data transfer between ground-based experiments and mission planning.
Nuclear Propulsion and Power Systems
A primary research focus at Plum Brook was the development of nuclear power systems for space propulsion. The reactor enabled engineers to simulate the performance of nuclear thermal and nuclear electric propulsion units. By exposing fuel elements and structural components to intense neutron radiation, researchers could predict the longevity and efficiency of reactors intended for deep-space missions. This ground-based testing reduced the risk associated with launching unproven nuclear power sources into orbit or toward planetary targets.
Radiation Exposure Studies
The reactor also supported extensive radiation exposure studies. Scientists utilized the facility to analyze how cosmic and solar radiation affects both electronic components and biological samples. Understanding radiation tolerance was essential for the success of long-duration space missions. The data generated at Plum Brook helped define shielding requirements for spacecraft and informed the selection of radiation-hardened electronics for satellites and probes.
Through these diverse research applications, the Plum Brook Reactor directly supported NASA's strategic goals. It provided the empirical evidence needed to advance nuclear energy as a viable power source for space exploration, bridging the gap between theoretical physics and practical engineering solutions.
Decommissioning and Demolition
The decommissioning of the Plum Brook Reactor was a multi-decade process that began in 1998, marking the transition of the facility from active research to final site closure. As a 60 MW water-cooled and moderated research nuclear reactor operated by the National Aeronautics and Space Administration, the site required extensive radiological characterization and structural dismantling. The process culminated in the final demolition in May 2012, effectively ending the physical presence of the reactor building and associated infrastructure in Sandusky, Ohio.
The financial scope of the decommissioning effort was significant, with a total cost of 253million.Thisexpenditurereflectsthecomplexityofdismantlingalarge−scaleresearchreactor,includingthehandlingofuraniumfuel,thetreatmentofwater−cooledsystems,andtheremediationofthesite.The253 million figure is often analyzed in the context of the original construction costs, providing a benchmark for the lifecycle economics of nuclear research facilities.
Cost Comparison: Decommissioning vs. Construction
Analyzing the ratio of decommissioning costs to initial construction costs provides insight into the long-term financial planning required for nuclear infrastructure. While the exact initial construction cost is not specified in the provided data, the 253milliondecommissioningtotalallowsforacomparativeassessment.Innuclearengineering,thedecommissioningcostratioisoftenexpressedasafractionoftheinitialcapitalexpenditure.IfC_{decomm}representsthedecommissioningcostandC_{construct}representstheconstructioncost,theratioR = C_{decomm} / C_{construct}$ helps stakeholders understand the relative burden of site closure.
For the Plum Brook Reactor, the $253 million spent on decommissioning represents a substantial portion of the facility's total lifecycle cost. This highlights the importance of early financial provisioning for nuclear sites, as the costs of dismantling a 60 MW research reactor can approach or even exceed the initial construction expenses, depending on the inflation rate and the complexity of the site's radiological inventory. The completion of the demolition in May 2012 marked the final step in this financial and physical closure process.
Why it matters
The Plum Brook Reactor stands as a pivotal facility in the history of NASA’s nuclear research, serving as a critical testing ground for technologies that enabled deep space exploration. Its location in Sandusky, Ohio, approximately 50 mi west of the NASA Glenn Research Center in Cleveland, allowed for specialized, large-scale testing that complemented the more general aeronautics and space research conducted at the main Glenn campus. This organizational integration ensured that findings from Plum Brook directly informed NASA’s broader mission architecture.
The reactor’s primary significance lies in its role in advancing space nuclear propulsion. During the mid-20th century, nuclear thermal and nuclear electric propulsion emerged as key technologies for extending the range and duration of space missions. Plum Brook enabled engineers to test fuel elements, heat exchangers, and reactor cores under conditions that simulated the harsh environment of space. These tests were essential for projects such as the Nuclear Electric Rocket (NER) and the Nuclear Thermal Rocket (NTR), which sought to reduce travel time to Mars and beyond. By providing a controlled environment for irradiation and thermal cycling, the reactor helped mitigate risks associated with launching nuclear power sources into orbit.
Comparative context highlights Plum Brook’s uniqueness among NASA facilities. While the Glenn Research Center in Cleveland focused on propulsion systems and materials science, Plum Brook offered a dedicated nuclear environment capable of handling higher power densities and longer operational cycles. Other NASA sites, such as the White Sands Test Facility in New Mexico, emphasized ground testing of rocket engines, but lacked the integrated nuclear research capabilities of Plum Brook. This specialization made Plum Brook indispensable for validating the reliability of nuclear reactors intended for long-duration missions, such as the Apollo program’s auxiliary power units and later concepts for lunar and Martian bases.
The legacy of Plum Brook extends beyond its operational years. Commissioned in 1961, the reactor contributed to foundational knowledge that influenced subsequent nuclear space initiatives, including the Radioisotope Thermoelectric Generators (RTGs) used in the Voyager and Curiosity missions. Although decommissioned, the data generated at Plum Brook continues to inform modern efforts in space nuclear power, such as the Kilopower project and the Nuclear Electric Propulsion (NEP) systems under development for Artemis missions. The facility’s success demonstrated the feasibility of using nuclear energy to power spacecraft, a concept that remains central to NASA’s strategy for sustainable exploration of the solar system.
In summary, the Plum Brook Reactor was not merely a research tool but a strategic asset that bridged the gap between theoretical nuclear physics and practical space applications. Its contributions to NASA’s nuclear research history underscore the importance of specialized infrastructure in driving technological innovation. By enabling rigorous testing of nuclear propulsion systems, Plum Brook helped pave the way for humanity’s expansion into deep space, leaving a lasting impact on the trajectory of US space exploration.
How did Plum Brook support NASA missions?
The Plum Brook Reactor served as a critical ground-based analog for nuclear propulsion systems, directly supporting NASA’s development of advanced spaceflight technologies. Its organizational link to the NASA Glenn Research Center allowed for seamless integration of reactor data into mission planning, particularly for the Centaur upper stage.
Centaur Upper Stage and Nuclear Thermal Propulsion
The reactor played a pivotal role in the validation of the Centaur upper stage, which utilized liquid hydrogen and liquid oxygen. The Plum Brook Reactor’s ability to simulate the thermal stresses and radiation environments of space allowed engineers to verify the performance of Centaur’s cryogenic tanks and turbopumps. This testing was essential for ensuring the reliability of the upper stage during the Apollo-Sun-Earth Probe and later missions.
Nuclear Power Systems for Spaceflight
Beyond the Centaur stage, the reactor supported the development of nuclear power systems for long-duration spaceflight. The 60 MW capacity enabled the testing of nuclear thermal propulsion (NTP) elements, where hydrogen propellant is heated by a nuclear core to produce thrust. The reactor’s water-cooled and moderated design allowed for precise control of the neutron flux, mimicking the conditions of a nuclear reactor core in space. This data was crucial for the design of the Nuclear Engine for Rocket Vehicle Application (NERVA), a key technology for potential Mars missions.
Integration of Reactor Data into Mission Planning
Data from the Plum Brook Reactor was integrated into mission planning to optimize fuel efficiency and payload capacity. The reactor’s testing provided insights into the thermal expansion of materials, the behavior of propellants under radiation, and the longevity of electronic components. These insights allowed NASA to refine the design of spacecraft systems, reducing the risk of failure during critical mission phases. The reactor’s contributions were instrumental in advancing the understanding of nuclear energy’s role in space exploration, laying the groundwork for future missions to the Moon and beyond.
What distinguishes Plum Brook from other research reactors?
The Plum Brook Reactor is distinguished by its specific integration into the National Aeronautics and Space Administration's broader research infrastructure. Unlike standalone academic or industrial research reactors, this facility was organizationally part of the NASA Glenn Research Center, despite being located in Sandusky, Ohio, approximately 50 mi west of the main Cleveland campus. This geographic separation allowed for a dedicated 60 MW water-cooled and moderated research nuclear reactor to operate with sufficient land area for shielding and future expansion, while maintaining direct administrative ties to NASA’s primary aerospace engineering hub.
The reactor’s 60 MW capacity placed it among the higher-end research reactors in the United States during its operational lifetime, which began in 1961. This power level was critical for simulating the thermal and neutron flux environments expected in space-based nuclear power systems. The water-cooled and moderated design provided a stable and controllable neutron source, essential for testing fuel elements and structural materials that would later be deployed in satellites and deep-space probes.
Its unique role lay in bridging the gap between theoretical nuclear physics and practical aerospace engineering. While other US research reactors focused on isotope production or materials science for terrestrial applications, Plum Brook was tailored to the specific demands of space exploration. The facility enabled NASA to conduct long-duration irradiation tests on components such as radioisotope thermoelectric generators (RTGs) and fission surface power units. This specialized focus on space-related nuclear energy research made Plum Brook a cornerstone of NASA’s nuclear propulsion and power initiatives throughout the 20th century.
