Overview

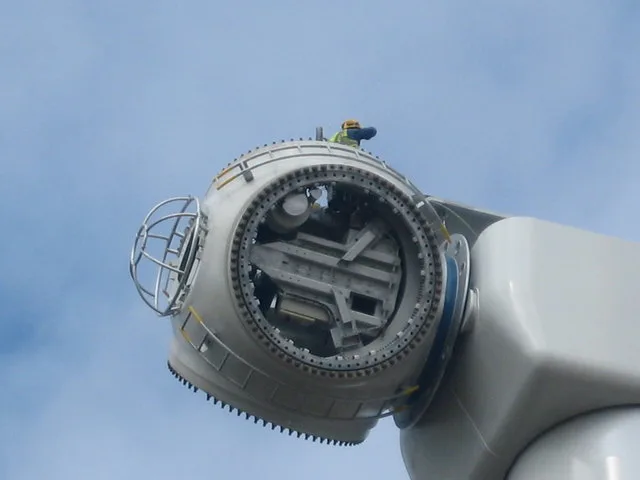

The pitch bearing, frequently referred to as the blade bearing, is a critical mechanical component in modern wind turbines that physically connects a rotor blade to the central hub. This interface is essential for the structural integrity and aerodynamic efficiency of the entire rotor assembly. By facilitating precise adjustments to the blade pitch, the bearing enables the turbine to optimize power output and manage mechanical loads under varying wind conditions. The system operates by altering the aerodynamic angle of attack of the blade, allowing the turbine to capture optimal energy from the wind stream while minimizing stress on the drivetrain and tower structure.
Beyond routine operational control, the pitch bearing plays a vital role in the emergency braking mechanism of the turbine system. In critical scenarios, the pitch system can rapidly rotate the blades to a specific feathered position to reduce aerodynamic lift and slow or stop the rotor. This capability ensures the safety of the turbine components and the overall stability of the wind energy conversion system during high-wind events or mechanical failures. The design of the pitch bearing must accommodate significant radial, axial, and tilting moments, making it one of the most heavily loaded bearings in the wind turbine architecture.
Functional Role in Power Control
The primary function of the pitch bearing is to allow the rotation of the blade around its longitudinal axis. This rotation changes the pitch angle, which directly influences the angle of attack of the airfoil. By adjusting this angle, the turbine can regulate the amount of wind energy converted into mechanical power. In low wind speeds, the blades are pitched to maximize lift, while in high wind speeds, they are pitched to reduce lift and prevent over-speeding of the rotor. This dynamic adjustment is crucial for maintaining consistent power output and extending the service life of the turbine components.
Structural and Operational Significance
As the connection point between the blade and the hub, the pitch bearing must withstand complex loading conditions throughout the turbine's operational life. These loads include centrifugal forces, gravitational loads, and aerodynamic pressures. The bearing's ability to maintain precision under these stresses is essential for the reliability of the pitch system. Any failure in the pitch bearing can lead to misalignment of the blade, resulting in increased vibration, reduced efficiency, and potential catastrophic failure of the rotor assembly. Therefore, the design and maintenance of the pitch bearing are critical aspects of wind turbine engineering and operational management.
What are the main types of pitch bearing designs?
Rolling-Element Bearing Architectures
Modern wind turbine pitch systems predominantly utilize large rolling-element bearings to connect the rotor blade to the hub. These components are critical for enabling the adjustment of the blade pitch, a mechanism that controls the aerodynamic angle of attack to manage turbine loads and power output. The bearing design must accommodate significant radial, axial, and moment loads while allowing for precise rotational movement.
Four-Point Contact Ball Bearings
A common configuration in contemporary wind turbines is the double-rowed four-point contact ball bearing. In this arrangement, each raceway carries the load on two distinct points, resulting in a total of four carrying points for the entire bearing assembly. This design provides high stiffness and compactness, making it suitable for the complex loading conditions experienced by turbine blades. The four-point contact allows the bearing to handle combined radial and axial forces efficiently, which is essential for maintaining the desired blade position during operation and for executing emergency braking maneuvers.
Multirow Cylindrical Roller Bearings
An alternative option for pitch bearing design is the multirow cylindrical roller bearing. These bearings utilize cylindrical rollers instead of balls, which can offer different load distribution characteristics. The multirow configuration enhances the bearing's ability to support heavy radial loads and moments, providing a robust solution for larger turbine models. The choice between ball and roller bearings often depends on specific design requirements, including space constraints, load profiles, and maintenance considerations.
Scale and Dimensions
The scale of modern pitch bearings is substantial, reflecting the increasing size of wind turbine rotors. Contemporary pitch bearings can reach diameters of more than 4 meters. This large scale necessitates precise manufacturing and installation processes to ensure optimal performance and longevity. The size of the bearing directly influences the overall dimensions of the turbine hub and the structural integrity of the blade connection.
| Bearing Type | Key Characteristics | Typical Application |
|---|---|---|
| Double-rowed four-point contact ball bearing | Four carrying points, high stiffness, compact design | Standard modern wind turbines |
| Multirow cylindrical roller bearing | Cylindrical rollers, high radial load capacity | Larger turbines, high-load scenarios |
How do load situations affect pitch bearing performance?
Rolling-element pitch bearings operate under highly unfavorable load conditions that challenge conventional bearing design assumptions. The primary mechanical stresses include significant bending moments, combined with radial and axial loads acting in both directions. These multi-axial forces arise from the aerodynamic thrust of the wind, the gravitational weight of the blade, and the gyroscopic effects of the rotor. The load vector is rarely constant; instead, it fluctuates dynamically as the turbine responds to varying wind speeds and directions. This complexity means the bearing must accommodate simultaneous compression, tension, and shear forces across its raceways and rolling elements.
Dynamic Movements and Wear Mechanisms
Beyond static and quasi-static loads, pitch bearings are subjected to small, high-frequency reciprocating movements. These micro-motions result from the continuous adjustments made by the pitch system to optimize the aerodynamic angle of attack and from vibrations induced by the wind profile. Such oscillatory movements are particularly detrimental to the elastohydrodynamic lubrication film. When the amplitude of oscillation is small relative to the diameter of the rolling elements, the lubricant film may not fully reform between reversals. This leads to direct metal-to-metal contact and accelerated wear phenomena.
One critical failure mode is false brinelling, a form of wear that occurs when the bearing is subjected to small oscillatory motions under load. Unlike traditional brinelling, which is caused by static overload, false brinelling results from the repetitive sliding of rolling elements over the raceway surface. This process generates wear debris, which can further abrade the surface and disrupt the lubrication layer. Fretting corrosion is another significant concern, arising from the microscopic relative motion between the rolling elements and the raceways. This motion shears the protective oxide layers on the steel surface, exposing fresh metal to the lubricant and atmospheric oxygen, leading to the formation of iron oxide debris. Additionally, the contact ellipse between the rolling element and the raceway can become truncated due to edge loading or misalignment. Truncation increases the contact stress at the edges of the raceway, potentially leading to spalling and premature fatigue failure.
Limitations of Standard Calculation Methods
Traditional calculation methods for bearing service life and friction torque are often unsuitable for pitch bearings due to the unique combination of high bending moments and oscillatory loads. Standard life calculations, such as the ISO 281 standard, typically assume pure rolling or simple combined loads with a constant direction. They often fail to account for the complex stress distributions caused by bending moments, which can induce significant variations in the load zone and contact stresses. Furthermore, standard friction torque calculations may not accurately reflect the dynamic friction behavior under oscillatory motion, where the lubrication regime shifts between boundary, mixed, and elastohydrodynamic states. This can lead to underestimating the heat generation and wear rates, resulting in unexpected failures. The interaction between the mechanical loads and the tribological conditions requires more sophisticated modeling that integrates structural mechanics with lubrication theory.
Impact of Individual Pitch Control
Newer controlling concepts, such as individual pitch control (IPC), introduce additional complexities for pitch bearing performance. In conventional collective pitch control, all three blades rotate to the same angle simultaneously. In contrast, IPC allows each blade to adjust its pitch angle independently to minimize cyclic loads on the drivetrain and tower. While this can reduce overall structural fatigue, it subjects each pitch bearing to more frequent and varied angular adjustments. The bearings must respond to rapid, independent commands, increasing the frequency of reciprocating movements and the complexity of the load spectrum. This can exacerbate wear mechanisms like false brinelling and fretting corrosion, requiring careful consideration in the bearing selection and lubrication strategy. The dynamic response of the pitch actuator system also plays a crucial role, as the inertia and friction of the bearing directly influence the control accuracy and stability of the IPC system.
What are the lubrication challenges for pitch bearings?
The lubrication of pitch bearings presents significant engineering challenges due to the unique kinematic and environmental conditions within a wind turbine's rotor hub. Unlike standard industrial bearings, pitch bearings are subjected to a complex combination of rotational movement from the hub's constant rotation and oscillating motion from the blade's pitch adjustments. This dual motion creates a challenging environment where lubricant retention is critical. Because the hub is in near-constant rotation, the centrifugal forces act upon the grease, potentially causing it to migrate or separate from the critical contact surfaces of the rolling elements and raceways. Consequently, the lubricant must possess high thixotropic properties and structural stability to remain in place under dynamic loading, preventing the exposure of metal surfaces to direct contact and subsequent wear.
The operational lifespan of a modern wind turbine, often extending to [?] years, demands that the grease maintain its protective qualities over decades of service. Industrial greases face difficulties in preventing wear over this extended period due to the wide range of operating conditions. Temperature fluctuations are extreme; the hub can experience significant heating during operation and cooling during idle periods or at higher altitudes, leading to thermal cycling that can cause grease softening or hardening. Additionally, the pitch bearing is exposed to varying levels of contamination, including moisture ingress and particulate matter, which can degrade the lubricant's viscosity and film strength.
Changing the lubricant is a costly and logistically difficult maintenance activity. Accessing the pitch bearing typically requires lifting the entire rotor assembly or utilizing specialized access platforms, leading to significant downtime for the turbine. The process involves purging the old grease, which may be partially oxidized or contaminated, and repacking the bearing with fresh lubricant. Due to the constant rotation of the hub, ensuring uniform distribution of the new grease is challenging. Inadequate lubrication can lead to increased friction, heat generation, and ultimately, premature failure of the bearing, which is one of the most expensive components to replace in the drive train. Therefore, selecting a grease that offers long-term stability, resistance to washout, and compatibility with the bearing materials is essential for minimizing life-cycle costs and maximizing the reliability of the wind turbine's pitch system.
Worked examples
The following examples illustrate the mechanical principles of a four-point contact ball bearing within a wind turbine blade root. These calculations demonstrate how the bearing manages the combined radial and axial loads generated by aerodynamic forces, ensuring the blade maintains its pitch angle. Note that while specific numerical values are hypothetical for illustrative purposes, the mechanical relationships reflect standard bearing dynamics.
Example 1: Radial Load Distribution
Consider a scenario where a wind turbine blade experiences a primary radial load of 100 kN due to centrifugal force and gravity. In a four-point contact bearing, the load is distributed across two rows of balls. Assuming an even distribution for simplicity, each row supports approximately 50 kN. The contact angle determines the efficiency of load transfer. A typical contact angle of 35 degrees optimizes the bearing for combined loads. The radial component of the load on each ball is calculated by dividing the row load by the number of active balls. If 16 balls are active per row, each ball carries 3.125 kN radially. This distribution prevents localized stress concentrations that could lead to premature fatigue failure of the raceways.
Example 2: Axial Load and Pitch Control
During pitch adjustment, an axial force is applied to rotate the blade. Suppose the pitch motor generates an axial thrust of 20 kN to overcome aerodynamic drag. In a four-point contact bearing, this axial load is shared by both ball rows, but with different contact angles. The inner row may experience increased pressure while the outer row experiences decreased pressure, depending on the direction of rotation. The effective axial load on each ball is derived from the total axial thrust divided by the number of balls. With 32 total balls, each ball handles approximately 0.625 kN axially. This mechanism allows for precise angular positioning, which is critical for optimizing the angle of attack and controlling turbine power output.
Example 3: Combined Load Analysis
In operational conditions, radial and axial loads often occur simultaneously. Assume a combined load scenario with 80 kN radial and 15 kN axial force. The equivalent dynamic load calculation must account for both components. Using standard bearing factors, the equivalent load is higher than either component alone. For a four-point contact bearing, the factor for radial load might be 1.2 and for axial load 0.4. The equivalent load is calculated as (1.2 * 80 kN) + (0.4 * 15 kN), resulting in 102 kN. This value is used to determine the bearing's service life. The four-point carrying mechanism ensures that the load path remains stable, preventing skidding and reducing heat generation during continuous operation.
Applications in modern wind energy infrastructure
Within the architecture of modern wind energy infrastructure, the pitch bearing serves as a critical mechanical interface that directly influences turbine performance and structural integrity. This component, also referred to as the blade bearing, is responsible for connecting the rotor blade to the turbine hub. Its primary function extends beyond simple structural support; it facilitates the precise adjustment of the blade pitch, a mechanism essential for controlling the aerodynamic loads and power output of the wind turbine system. By enabling these adjustments, the pitch bearing allows the turbine to adapt to varying wind conditions, ensuring efficient energy conversion and minimizing stress on the drivetrain and tower structure.
Aerodynamic Control and Angle of Attack
The operational effectiveness of a wind turbine relies heavily on the ability to optimize the aerodynamic angle of attack of the rotor blades. The pitch system utilizes the pitch bearing to bring the blade to the desired position, thereby adapting this angle in real-time. This adjustment is crucial for maximizing power capture during moderate wind speeds and preventing excessive loading during high-wind events. By modifying the pitch angle, the turbine can regulate the amount of wind energy converted into mechanical rotation, which directly impacts the electrical output and the mechanical stress experienced by the generator. This dynamic control mechanism is a defining feature of modern variable-speed wind turbines, distinguishing them from earlier fixed-pitch designs that relied more heavily on stall characteristics for power regulation.
Emergency Braking and System Protection
In addition to routine aerodynamic control, the pitch bearing plays a vital role in the emergency braking systems of wind turbines. The pitch system is utilized to execute emergency breaks of the turbine system, providing a secondary or primary means of stopping rotor rotation when other braking mechanisms, such as mechanical or electrical brakes, are engaged or fail. By pitching the blades to a feathered position, the aerodynamic drag is minimized, allowing the rotor to slow down smoothly and reducing the inertial loads transmitted through the nacelle and tower. This capability is essential for protecting the turbine from damage during sudden gusts, grid faults, or mechanical failures, thereby enhancing the overall reliability and lifespan of the wind energy infrastructure. The integration of the pitch bearing into both routine control and emergency response systems underscores its importance in the safe and efficient operation of modern wind farms.
How does pitch bearing technology evolve with turbine size?
The evolution of pitch bearing technology is inextricably linked to the scaling of modern wind turbines. As turbine capacity increases, the rotor blades grow significantly in length and mass, imposing greater mechanical demands on the connection point between the blade root and the hub. The pitch bearing, which facilitates the adjustment of the blade’s aerodynamic angle of attack to control power and loads, must therefore scale in diameter and structural complexity. A critical benchmark in this evolution is the four-meter diameter threshold. Bearings exceeding this dimension face distinct engineering challenges that differ from those of smaller, standard-sized counterparts.
Scaling Challenges and Load Dynamics
Larger turbine scales exacerbate load situations within the pitch bearing. The bearing must support not only the static weight of the blade but also dynamic aerodynamic forces, centrifugal loads, and gyroscopic effects. As the diameter increases, the contact area between the rolling elements (typically rollers or balls) and the raceways must expand to distribute these stresses effectively. This scaling is not linear; the relationship between the bearing's outer diameter (D) and its load-carrying capacity often follows a power law, where the dynamic load rating (C) increases with the number of rolling elements (z) and their diameter (d), roughly approximated by C∝z⋅d10/3 for roller bearings. However, simply increasing dimensions introduces new geometric constraints within the blade root, requiring precise machining and material selection to maintain structural integrity without excessive weight penalty.
Lubrication Retention in Large Bearings
One of the most significant technical hurdles for pitch bearings with diameters greater than four meters is lubrication retention. In smaller bearings, grease can be effectively distributed through centrifugal force and simple circulation. In larger units, the increased volume of the bearing cavity and the longer travel distances for the rolling elements create "dead zones" where lubricant can stagnate. Furthermore, the higher operating temperatures and shear rates in large-scale bearings can cause grease to separate or migrate, leading to localized dry running or excessive chafing. Engineers must design specialized lubrication systems, often involving central grease reservoirs and automated injection points, to ensure that the entire contact surface remains adequately lubricated throughout the bearing's operational life. Failure to manage these lubrication dynamics can lead to premature wear, increased friction losses, and ultimately, the emergency braking failure of the turbine system.
