Overview
Picote Dam is a concrete arch dam situated on the Douro River in the municipality of Miranda do Douro, within the Bragança District of Portugal. This facility represents a significant milestone in the country's hydroelectric infrastructure, recognized as the first dam constructed by Portugal on the Douro River. The project was owned by the Companhia Portuguesa de Produção de Electricidade (CPPE) and is operated by EDP, a major energy company in the region. The dam has been operational since its commissioning in 1958, contributing to the energy mix with a capacity of 426 MW. Its strategic location on the Douro allows for effective water management and power generation, leveraging the natural flow of the river to support the regional grid.
History and Construction
Picote Dam holds the distinction of being the first major dam constructed on the Douro River, marking a significant milestone in the hydroelectric development of northern Portugal. The project was initiated to harness the water resources of the Douro, located in the municipality of Miranda do Douro within the Bragança District. The construction of this concrete arch dam began in 1953, reflecting the post-war push for energy infrastructure modernization in the region. The primary structure was completed and commissioned in 1958, establishing a foundational asset for the local energy grid.
Construction Timeline
| Year | Event |
|---|---|
| 1953 | Construction of the original Picote Dam begins. |
| 1958 | Original dam commissioned; becomes the first dam on the Douro River. |
| 2007 | Construction of the expansion project, Picote II, commences. |
| 2011 | Picote II expansion is completed. |
The initial commissioning in 1958 provided a substantial boost to the regional power supply. The dam is operated by EDP, which has managed the facility since its inception. The original structure laid the groundwork for future expansions, demonstrating the long-term strategic value of the site. Decades after the initial construction, the need for increased capacity led to the development of Picote II. This expansion project started in 2007 and was completed in 2011, enhancing the overall efficiency and output of the hydroelectric complex. The total installed capacity of the facility is 426 MW, serving as a key component of Portugal's renewable energy mix. The operational status remains active, with the dam continuing to regulate water flow and generate electricity for the national grid. The historical significance of Picote Dam extends beyond its technical specifications, representing an early commitment to hydroelectric power in the Bragança District. The concrete arch design was chosen to withstand the specific geological conditions of the Douro valley, ensuring durability over several decades of operation. The expansion in the early 21st century reflects the ongoing adaptation of energy infrastructure to meet growing demand. EDP's management of the site has ensured consistent performance, integrating the dam into the broader network of Portuguese hydroelectric plants. The Douro River's flow patterns are critical to the dam's output, influencing seasonal variations in power generation. The completion of Picote II in 2011 marked a new phase in the dam's operational history, adding modern technology to the original 1958 structure. This continuity of development underscores the strategic importance of the Picote site in the energy landscape of northern Portugal.
Dam Structure and Reservoir

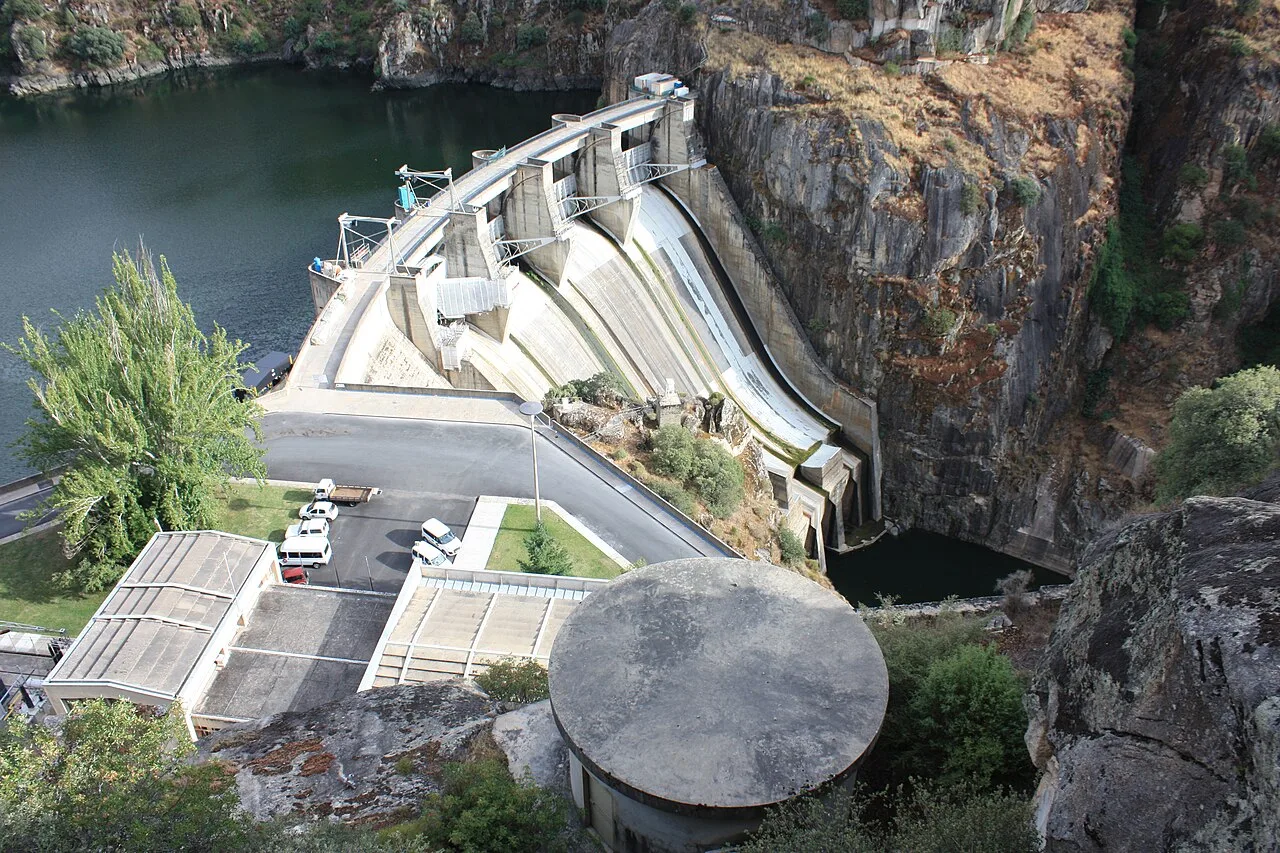

The dam stands 100 m tall and spans 139 m in length, with its crest situated at an altitude of 480 m. The total concrete volume of the structure is 205,000 m3. This robust arch design allows the dam to efficiently transfer the hydrostatic pressure of the reservoir to the abutments of the valley walls, a characteristic feature of dams constructed in narrow, rocky gorges along the Douro.
Spillway and Outlet Systems
The dam’s water management infrastructure includes a dedicated spillway and a bottom outlet system designed to handle varying flow rates. The spillway is equipped with four tainter gates, which provide a maximum discharge capacity of 11,000 m3/s. This capacity is critical for managing flood events and maintaining safe water levels during peak inflow periods. Additionally, the bottom outlet system offers a discharge rate of 600 m3/s, allowing for more precise control of downstream flow and reservoir drawdown during maintenance or seasonal adjustments.
Reservoir Specifications
The reservoir formed by Picote Dam plays a vital role in the hydroelectric generation and water regulation of the upper Douro basin. The full supply level of the reservoir is 471 m, while the maximum flood level reaches 478 m. The surface area of the reservoir at full capacity is 2.44 km2. The total storage capacity of the reservoir is 63 million m3, of which 13.43 million m3 is considered active capacity. This active volume is the primary source of water for power generation, while the remaining storage serves as dead storage or buffer capacity for sediment and flood control.
| Parameter | Value |
|---|---|
| Dam Type | Concrete Arch |
| Height | 100 m |
| Length | 139 m |
| Crest Altitude | 480 m |
| Concrete Volume | 205,000 m3 |
| Spillway Gates | 4 Tainter Gates |
| Max Spillway Discharge | 11,000 m3/s |
| Bottom Outlet Discharge | 600 m3/s |
| Reservoir Full Level | 471 m |
| Reservoir Max Flood Level | 478 m |
| Reservoir Surface Area | 2.44 km2 |
| Total Reservoir Capacity | 63 million m3 |
| Active Reservoir Capacity | 13.43 million m3 |
Picote I Power Plant
The Picote I Power Plant constitutes the original run-of-the-river hydroelectric facility integrated into the Picote Dam complex. Commissioned in 1958, this initial installation established the primary power generation capability for the site on the Douro River in Miranda do Douro, Bragança District, Portugal. The plant is operated by EDP and remains operational, contributing significantly to the region's energy output through its efficient use of the river's flow.
Technical Specifications
The Picote I station is characterized by its underground powerhouse configuration, which houses three Francis turbine-generators. Each unit has an installed capacity of 65 MW, resulting in a total installed capacity of 195 MW for the first phase of the plant. This setup allows for flexible power generation depending on the hydraulic conditions of the Douro River.
| Parameter | Value |
|---|---|
| Total Installed Capacity | 195 MW |
| Number of Units | 3 |
| Unit Capacity | 65 MW each |
| Turbine Type | Francis |
| Powerhouse Location | Underground |
| Minimum Hydraulic Head | 63 m |
| Maximum Hydraulic Head | 74 m |
| Max Flow per Turbine | 117 m³/s |
The operational performance of Picote I is defined by its average annual generation of 868 GWh. However, output varies significantly based on hydrological conditions. Recorded annual generation figures include 838 GWh, 941 GWh, and 1038 GWh, demonstrating the plant's responsiveness to the Douro's flow variations. The hydraulic head ranges from a minimum of 63 m to a maximum of 74 m, with each turbine capable of handling a maximum flow of 117 m³/s. These technical parameters ensure efficient energy conversion in the run-of-the-river configuration.
Picote II Power Plant
The expansion of the Picote hydroelectric complex involved the construction of the Picote II Power Plant, a project designed to enhance the generation capacity of the existing infrastructure on the Douro River. Construction of the Picote II facility began in March 2007 and was completed in December 2011, adding a significant underground powerhouse to the site. This expansion project was integrated with the original Picote I installation, optimizing the hydraulic head and water flow management for the combined facility.
The Picote II powerhouse features a single turbine with an installed capacity of 246 MW. This addition contributes to the overall operational status of the dam, which is operated by EDP. The integration of Picote II with the original structure allows for more flexible power generation, leveraging the concrete arch dam's reservoir capabilities. The average annual generation attributed to the Picote II unit is 244 GWh, reflecting its significant contribution to the regional energy mix in the Bragança District of Portugal.
Technical Specifications
| Parameter | Value |
|---|---|
| Project Name | Picote II Power Plant |
| Construction Start | March 2007 |
| Construction Completion | December 2011 |
| Turbine Count | 1 |
| Installed Capacity | 246 MW |
| Average Annual Generation | 244 GWh |
| Integration | Picote I Power Plant |
Why it matters
The Picote Dam holds a distinct position in the history of Portuguese energy infrastructure as the first major dam constructed on the Douro River within Portugal. Its commissioning in 1958 marked a pivotal moment in the hydrological management of the Bragança District, establishing a precedent for subsequent developments along the river’s course. Located in the municipality of Miranda do Douro, the structure represents the initial phase of a larger strategic effort to harness the kinetic energy of the Douro for national power generation. This pioneering status is not merely chronological; it defined the engineering and operational standards for the region’s hydroelectric sector, influencing how future projects would integrate with the local topography and grid requirements.
Engineering Design and Expansion
The dam is engineered as a concrete arch structure, a design choice that leverages the specific geological characteristics of the Douro valley to maximize stability and efficiency. This architectural approach allows the dam to transfer the water pressure laterally to the abutments, optimizing material usage while maintaining structural integrity under significant hydraulic loads. The initial construction laid the groundwork for a successful expansion known as Picote II, which further enhanced the facility’s output and operational flexibility. This expansion demonstrates the adaptability of the original design, allowing the operator, EDP, to increase the combined capacity to 426 MW without requiring a complete overhaul of the foundational infrastructure. The integration of Picote II into the existing complex highlights a strategic approach to capacity growth, balancing engineering constraints with the evolving energy demands of the region.
Regional Energy Significance
With a total installed capacity of 426 MW, the Picote complex plays a substantial role in the regional energy mix, contributing significantly to the stability of the Portuguese power grid. As an operational hydroelectric powerplant, it provides a reliable source of renewable energy, offering both baseload and peaking capabilities depending on seasonal water flow variations. The dam’s location in the Bragança District also contributes to the economic and infrastructural development of the area, serving as a key asset in the broader network of Portuguese hydroelectric infrastructure. Its continued operation underscores the enduring value of early 20th-century engineering investments in the national energy landscape, providing a sustainable power source that complements other renewable and conventional energy inputs. The facility remains a critical component of EDP’s portfolio, reflecting the long-term viability of hydroelectric solutions in Portugal’s energy strategy.
How does the Picote Dam hydroelectric system work?
The Picote Dam operates as a run-of-the-river hydroelectric system, utilizing the natural flow of the Douro River to generate electricity. This operational model relies on the hydraulic head created by the concrete arch dam structure, which channels water through an underground powerhouse before discharging it back into the river. The system is designed to maximize energy production from the river's continuous flow, leveraging the specific topography of the Miranda do Douro municipality in the Bragança District.
Hydraulic Mechanics and Turbine Operation
Water from the Douro River is directed through the dam structure into the underground powerhouse, where it drives Francis turbines. These turbines are selected for their efficiency in medium-head conditions, which aligns with the Picote Dam's operational parameters. The hydraulic head at Picote ranges from 63 m to 74 m, providing the necessary pressure to rotate the turbine runners and convert kinetic energy into mechanical energy, which is then transformed into electrical energy. The total installed capacity of the plant is 426 MW, operated by EDP since its commissioning in 1958.
The flow management system includes a spillway and a bottom outlet, which play critical roles in regulating water levels and ensuring the structural integrity of the dam. The spillway allows excess water to bypass the turbines during periods of high inflow, preventing overflow and maintaining optimal pressure within the penstocks. The bottom outlet provides additional control, enabling operators to manage sediment deposition and adjust the flow rate for maintenance or seasonal variations.
Operational Parameters
| Parameter | Value |
|---|---|
| Hydraulic Head Range | 63 m to 74 m |
| Installed Capacity | 426 MW |
| Turbine Type | Francis |
| Powerhouse Location | Underground |
| Flow Management | Spillway and Bottom Outlet |
This configuration ensures that the Picote Dam can efficiently harness the energy potential of the Douro River while maintaining flexibility in response to varying hydrological conditions. The integration of the underground powerhouse with the surface-level flow control mechanisms represents a robust engineering solution for long-term hydroelectric generation in the region.
What distinguishes Picote Dam from other Douro dams?
Picote Dam holds a distinct position within the hydroelectric infrastructure of the Douro River basin, primarily because it was the first major dam constructed on the river. This pioneering status established the precedent for subsequent hydroelectric developments along the waterway, marking the beginning of the modern era of energy production in the region. Its operational status remains active, with the facility commissioned in 1958 and operated by EDP. The dam has a total installed capacity of 426 MW, a figure that reflects the combined output of its two distinct power generation phases.
Two-Phase Development
What distinguishes Picote from many other single-structure hydroelectric plants is its unique combination of an older plant, known as Picote I, and a newer, larger single-turbine plant, designated as Picote II. This dual-phase approach allowed for the optimization of the river’s flow over time. The initial phase, Picote I, laid the groundwork for the region’s energy grid, while the later addition of Picote II significantly enhanced the facility’s output. The newer plant features a larger single turbine, which contributes to the overall capacity of 426 MW. This architectural and engineering evolution is not common among the earlier dams on the Douro, making Picote a case study in incremental hydroelectric expansion.
Regional Context and Capacity
When compared to other dams on the Douro River, Picote’s capacity of 426 MW places it as a significant contributor to the regional energy mix. The Douro River hosts several hydroelectric plants, but Picote was the first to harness its potential on such a scale. Its location in Miranda do Douro, in the Bragança District, provides a strategic vantage point for capturing the river’s flow. The dam’s concrete arch design is well-suited to the topography of the area, allowing for efficient water retention and energy generation. The operational history since 1958 demonstrates the longevity and reliability of the infrastructure, which continues to play a vital role in Portugal’s hydroelectric landscape. The facility’s ability to maintain its output over decades highlights the effectiveness of its initial design and subsequent upgrades.
