Overview

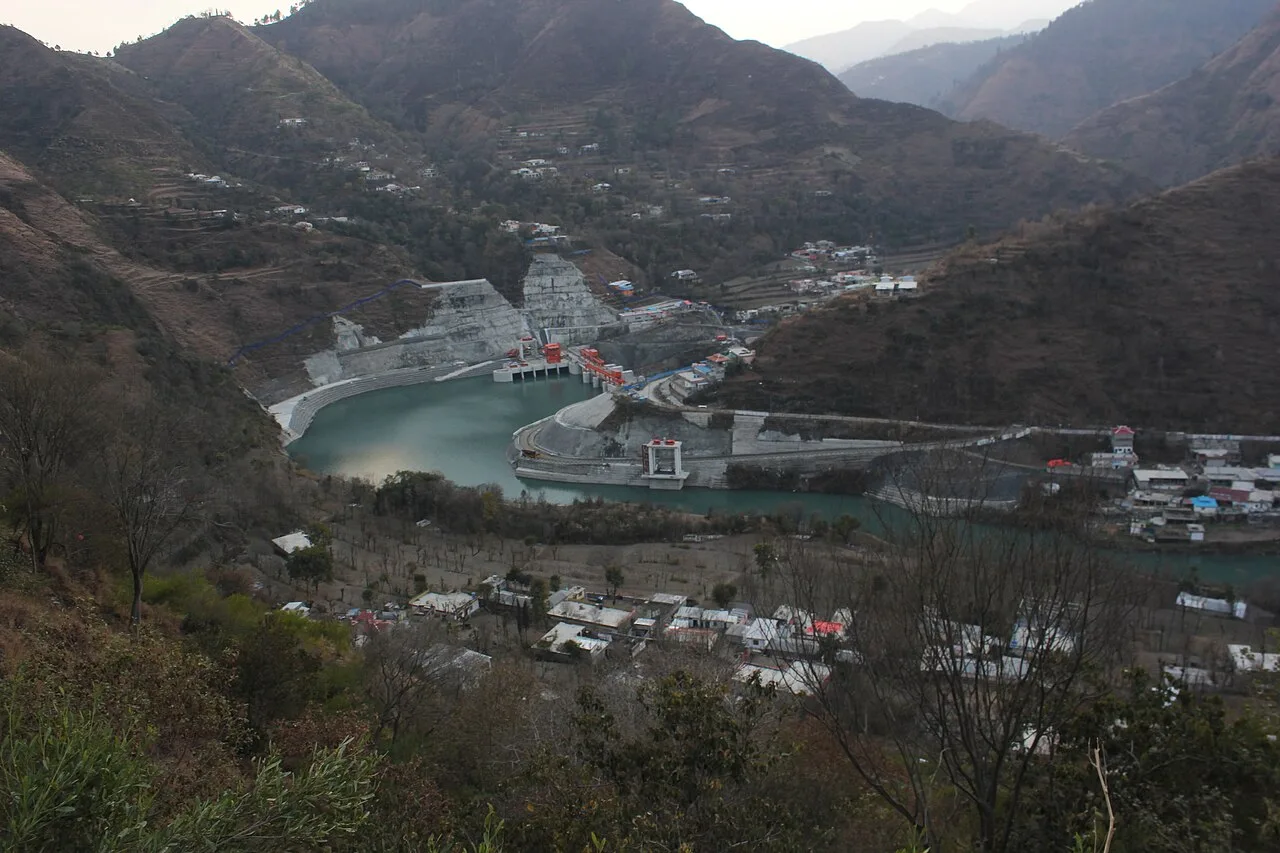

The Patrind Hydropower Plant is an operational hydroelectric facility located in Pakistan, specifically within the Khyber Pakhtunkhwa Province. The plant is situated on the Kunhar River, near Patrind Village in the Mansehra District. Its geographic position is notable for lying directly on the border between Abbottabad District of Khyber Pakhtunkhwa and Muzaffarabad city of Azad Kashmir. This strategic location places the facility approximately 138 kilometres from the major metropolitan centers of Rawalpindi and Islamabad, and about 76 kilometres from Abbottabad city.
Classified as a run-of-the-river, high-head project, the Patrind Hydropower Plant utilizes a significant elevation drop of 110 metres to generate electricity. The plant has an installed capacity of 150 MW and was commissioned in 2017. Star Hydro Power Limited serves as the operator of the facility. As a run-of-the-river scheme, the project relies on the natural flow of the Kunhar River, distinguishing it from reservoir-based hydroelectric plants that require large dams to store water. The high-head characteristic indicates that the water falls through a considerable vertical distance, which is a key factor in the plant’s energy generation efficiency.
The construction and commissioning of the Patrind Hydropower Plant represent a significant addition to Pakistan’s hydroelectric infrastructure. Located in a region known for its rugged terrain and river systems, the plant leverages the natural geography of the Kunhar River to produce renewable energy. The proximity to major urban centers like Islamabad and Rawalpindi facilitates the transmission of generated power to key consumption hubs. The operational status of the plant since 2017 indicates its integration into the national grid, contributing to the energy mix of the region.
Star Hydro Power Limited’s role as the operator underscores the involvement of private sector entities in Pakistan’s hydropower development. The plant’s location on the border of two distinct administrative regions highlights the cross-regional nature of energy infrastructure in the area. The Kunhar River, as the primary water source, is critical to the plant’s continuous operation. The 150 MW capacity provides a substantial output for a run-of-the-river project, reflecting the effective use of the 110-metre head. This facility serves as an example of modern hydroelectric engineering in Pakistan, combining natural geographic advantages with technological implementation to deliver consistent power generation.
Geography and Location
The Patrind Hydropower Plant is strategically situated on the Kunhar River, a key waterway in northern Pakistan. The facility is located near Patrind Village within the Mansehra District. Its precise geographical position places it directly on the administrative border separating the Khyber Pakhtunkhwa Province and Azad Kashmir. Specifically, the site marks the boundary between Abbottabad District in Khyber Pakhtunkhwa and Muzaffarabad city in Azad Kashmir.
This borderland location is significant for regional energy infrastructure, bridging two major administrative regions of Pakistan. The plant operates as a run-of-the-river project, leveraging the natural flow of the Kunhar River. The specific site selection near Patrind Village allows for efficient water intake and power generation while maintaining proximity to major urban centers in the region.
Proximity to Major Cities
The plant's location offers relative accessibility from Pakistan's twin capitals and regional hubs. It is approximately 138 kilometres from both Rawalpindi and Islamabad. These distances make the facility a notable source of power for the National Capital Region. Additionally, the plant is situated about 76 kilometres from Abbottabad city, a major urban center in Khyber Pakhtunkhwa.
| Location Metric | Value |
|---|---|
| Distance from Rawalpindi | 138 km |
| Distance from Islamabad | 138 km |
| Distance from Abbottabad | 76 km |
| Province Border | Khyber Pakhtunkhwa / Azad Kashmir |
The distances to Rawalpindi and Islamabad are identical, reflecting the close geographical proximity of these two capital cities. The shorter distance to Abbottabad highlights the plant's role in supplying power to the Khyber Pakhtunkhwa grid. These location metrics are critical for transmission infrastructure planning and regional load distribution.
Engineering Design and Specifications
The Patrind Hydropower Plant is engineered as a run-of-the-river, high-head project utilizing the hydraulic potential of the Kunhar River. The facility is situated near Patrind Village in Mansehra District, positioned on the border between Abbottabad District in Khyber Pakhtunkhwa Province and Muzaffarabad city in Azad Kashmir, Pakistan. The plant is located approximately 138 kilometres from Rawalpindi and Islamabad, and about 76 kilometres from Abbottabad city.
Hydraulic and Civil Engineering
The project operates with a gross head of 110 metres (360 feet), classifying it as a high-head installation. The civil works include a dam structure with a crest elevation of 757 metres above sea level. The intake system features gates with dimensions of 13 by 10 metres, designed to regulate flow into the penstock system. These structural parameters are critical for managing the variable flow characteristics of the Kunhar River while maintaining the necessary pressure head for turbine efficiency.
Turbomachinery and Powerhouse Layout
The powerhouse houses Vertical Francis turbines, selected for their efficiency in medium-to-high head run-of-the-river schemes. The plant has an installed capacity of 150 MW and is operated by Star Hydro Power Limited. The vertical axis configuration of the Francis turbines allows for a compact powerhouse layout, optimizing the use of the available topography near Patrind Village. The plant has been operational since its commissioning in 2017, contributing to the regional grid stability in northern Pakistan.
| Parameter | Value |
|---|---|
| Project Type | Run-of-the-river, high head |
| Gross Head | 110 metres (360 ft) |
| Dam Crest Elevation | 757 metres |
| Gate Dimensions | 13 by 10 metres |
| Turbine Type | Vertical Francis |
| Installed Capacity | 150 MW |
| Operator | Star Hydro Power Limited |
| Commissioning Year | 2017 |
| Location | Kunhar River, Mansehra District / Abbottabad District border |
| Distance from Rawalpindi/Islamabad | 138 kilometres |
| Distance from Abbottabad | 76 kilometres |
Construction History and Financing
The Patrind Hydropower Plant was developed and constructed by Star Hydro Power Limited, the designated operator for the facility. The project represents a significant infrastructure investment in the region, with a total construction cost of $400 million. This financial scale underscores the complexity of building a run-of-the-river, high-head hydroelectric project in the mountainous terrain of the Kunhar River basin. The engineering challenges associated with the site, which features a head of 110 metres, required substantial capital expenditure to ensure the plant’s operational viability and efficiency.
Project Financing
The $400 million budget for the Patrind Hydropower Plant was secured through a diverse mix of international and domestic financial institutions, reflecting the strategic importance of the energy asset to Pakistan’s power grid. The financing structure included contributions from the International Finance Corporation (IFC), the Asian Development Bank (ADB), and the Kharian-based K-Exim Bank. This blend of funding sources helped mitigate financial risks and provided the necessary liquidity to sustain the construction timeline. The involvement of the IFC and ADB indicates strong international confidence in the project’s technical design and the operational competence of Star Hydro Power Limited.
Construction Timeline
Construction of the Patrind Hydropower Plant was completed in a relatively rapid timeframe of three-and-a-half years. This efficient execution allowed the plant to reach commercial operation status by 2017. The swift completion was critical for integrating the 150 MW capacity into the regional grid, particularly given the plant’s location near the border of Khyber Pakhtunkhwa Province and Azad Kashmir. The project’s location on the Kunhar River, near Patrind Village in Mansehra District, presented logistical challenges that were overcome through coordinated engineering efforts. The plant is situated approximately 138 kilometres from Rawalpindi and Islamabad, and about 76 kilometres from Abbottabad city, making it a key node in the northern energy corridor.
The successful delivery of the project within the three-and-a-half-year schedule highlights the effective project management by Star Hydro Power Limited. The integration of international financing from the IFC and ADB, alongside domestic support from K-Exim Bank, provided a stable financial foundation that supported the rapid construction phase. The completion of the plant in 2017 marked a significant milestone for the region’s hydroelectric capacity, adding a reliable source of renewable energy to the national grid.
How does the power purchase agreement work?
The Patrind Hydropower Plant operates under a structured commercial framework designed to integrate its 150 MW capacity into Pakistan’s national grid. As an Independent Power Producer (IPP), Star Hydro Power Limited holds the primary responsibility for the plant’s operation, maintenance, and revenue generation, distinguishing it from state-owned utility plants. This IPP model allows for private sector efficiency in managing the run-of-the-river, high-head project on the Kunhar River, leveraging the 110-metre head to generate consistent power output.
Power Purchase Agreement with NTDC
The core of the plant’s commercial viability is a 30-year Power Purchase Agreement (PPA) signed with the National Transmission & Dispatch Company (NTDC). This long-term contract secures a stable revenue stream for Star Hydro Power Limited, which is critical for recovering the initial capital expenditure and servicing debt. The PPA outlines the specific tariff rates, payment schedules, and performance guarantees that define the financial relationship between the producer and the off-taker.
Under this agreement, NTDC acts as the primary buyer of the electricity generated at Patrind. The 30-year duration provides long-term certainty for investors, mitigating risks associated with fluctuating energy prices and currency variations. This structure is typical for major hydroelectric projects in Pakistan, where long payback periods require extended contractual security. The agreement ensures that the power generated is purchased consistently, supporting the financial health of the Star Hydro Power Limited entity.
Grid Integration and Operational Role
Grid integration involves the technical and commercial connection of the Patrind plant to the national transmission network managed by NTDC. Located near the border of Khyber Pakhtunkhwa and Azad Kashmir, the plant’s strategic position allows it to feed power into key nodes of the grid, approximately 138 kilometres from the twin capitals of Rawalpindi and Islamabad. This proximity reduces transmission losses and enhances the reliability of power supply to the central region.
Star Hydro Power Limited manages the dispatch of power based on the signals received from NTDC’s system operators. The run-of-the-river nature of the plant means that power generation is closely tied to the flow of the Kunhar River, requiring flexible operational adjustments. The PPA includes provisions for how variable output is handled, ensuring that the grid remains stable while maximizing the utilization of the 150 MW installed capacity. This collaborative process between the IPP and the national dispatcher ensures efficient energy distribution across the region.
Significance
Patrind Hydropower Plant holds a distinct position in Pakistan's energy infrastructure as the second private hydroelectric project commissioned in the country. This milestone underscores the growing role of independent power producers in diversifying the national grid, moving beyond state-dominated utilities. The plant's operational status, achieved in 2017, marks a significant addition to the run-of-the-river hydro capacity in the northern regions of Pakistan. As a private venture operated by Star Hydro Power Limited, the facility demonstrates the viability of high-head hydro projects in the complex terrain of Khyber Pakhtunkhwa and Azad Kashmir.
Comparison with New Bong Escape
The significance of Patrind is often contextualized alongside the New Bong Escape project, another key private hydro initiative. New Bong Escape has an installed capacity of 84 MW, making it a substantial contributor to the regional grid. In comparison, Patrind's 150 MW capacity represents a larger scale of generation, highlighting its potential for greater output. Both projects utilize the Kunhar River and its tributaries, leveraging the high head of approximately 110 metres to drive efficient turbine performance. The coexistence of these two private plants illustrates a strategic clustering of hydro resources in the Mansehra and Abbottabad districts, optimizing infrastructure and transmission lines.
Impact on Local Electricity and Economy
The commissioning of Patrind has had a tangible impact on the electricity supply in Abbottabad and Mansehra. The 150 MW output helps stabilize voltage levels in the region, which is critical for both industrial and residential consumers. By providing a consistent run-of-the-river power source, the plant reduces reliance on diesel generators and imported energy during peak demand periods. This stability supports local economic activity, enabling businesses to operate with fewer interruptions. The proximity of the plant to major urban centers like Rawalpindi, Islamabad, and Abbottabad, located approximately 138 kilometres and 76 kilometres respectively, facilitates efficient power distribution. The economic benefits extend to the local communities near Patrind Village, where the project has contributed to job creation and improved infrastructure access.
What distinguishes Patrind from other regional hydro projects?
Patrind Hydropower Plant is distinguished by its classification as a high-head, run-of-the-river facility, a configuration that contrasts with lower-head or reservoir-dependent projects in the region. The project utilizes a significant hydraulic head of 110 metres (360 ft), which is a defining technical characteristic of its design. This high-head approach allows for efficient energy extraction from the Kunhar River without requiring the extensive surface area inundation typical of large reservoir dams. The plant is situated near Patrind Village in Mansehra District, positioned precisely on the border between the Abbottabad District of Khyber Pakhtunkhwa Province and Muzaffarabad city of Azad Kashmir, Pakistan. This specific geographic placement leverages the natural topography of the region to achieve the necessary elevation drop for power generation.
Technical Configuration and Location
The technical profile of Patrind is defined by its 150 MW installed capacity, which is operational as of 2017. The facility is located approximately 138 kilometres (86 mi) from the twin cities of Rawalpindi and Islamabad, and about 76 kilometres (47 mi) from Abbottabad city. This proximity to major urban centers reduces transmission losses and enhances grid stability for the surrounding regions. The run-of-the-river design means that the water flow is regulated primarily by the natural discharge of the Kunhar River, rather than being stored in a massive upstream lake. This minimizes the environmental footprint compared to traditional dam projects, while the high head ensures consistent power output even during seasonal variations in water volume.
Private Sector Financing Model
A key differentiator for Patrind is its operational model under the private sector. The plant is operated by Star Hydro Power Limited, marking it as a significant private investment in Pakistan's energy infrastructure. This contrasts with state-owned utilities that manage many of the country's larger hydroelectric assets. The involvement of Star Hydro Power Limited highlights the role of private equity and specialized energy companies in developing mid-sized hydro projects. The commissioning in 2017 demonstrates the viability of private financing for high-head run-of-the-river schemes in the Khyber Pakhtunkhwa and Azad Kashmir border region. This model allows for potentially faster development cycles and specialized technical management, contributing to the diversification of Pakistan's hydroelectric portfolio beyond traditional public sector projects.
