Overview
Passive daytime radiative cooling (PDRC) is a thermal management strategy that utilizes highly reflective surfaces with high thermal emissivity to reduce the temperature of buildings or objects. This concept, also referred to as passive radiative cooling, daytime passive radiative cooling, radiative sky cooling, photonic radiative cooling, and terrestrial radiative cooling, operates without external energy input. The primary energy source involved is solar radiation, which the system manages through optical and thermal properties. The operational status of this technology is currently under construction, with initial commissioning noted in 2014. PDRC serves as a significant management strategy for global warming by reducing the need for active mechanical cooling systems, thereby lowering energy consumption and greenhouse gas emissions. The basic operating principles rely on two key mechanisms: solar reflectance and infrared emissivity. High solar reflectance minimizes the absorption of incoming solar radiation, while high thermal emissivity maximizes the emission of heat into the coldness of outer space through the atmospheric transparency window. This balance allows surfaces to reach temperatures below the ambient air temperature during the day. The effectiveness of PDRC is determined by the interplay between these optical properties and the surrounding environmental conditions. By leveraging these principles, PDRC offers a sustainable approach to thermal regulation in various applications, from building envelopes to urban infrastructure. The technology's potential to mitigate urban heat islands and enhance energy efficiency makes it a promising solution in the context of increasing global temperatures. As research and implementation continue, PDRC is expected to play a crucial role in sustainable energy infrastructure and climate adaptation strategies. The ongoing development and deployment of PDRC technologies highlight their importance in the transition towards more energy-efficient and environmentally friendly systems.
How does passive daytime radiative cooling work?

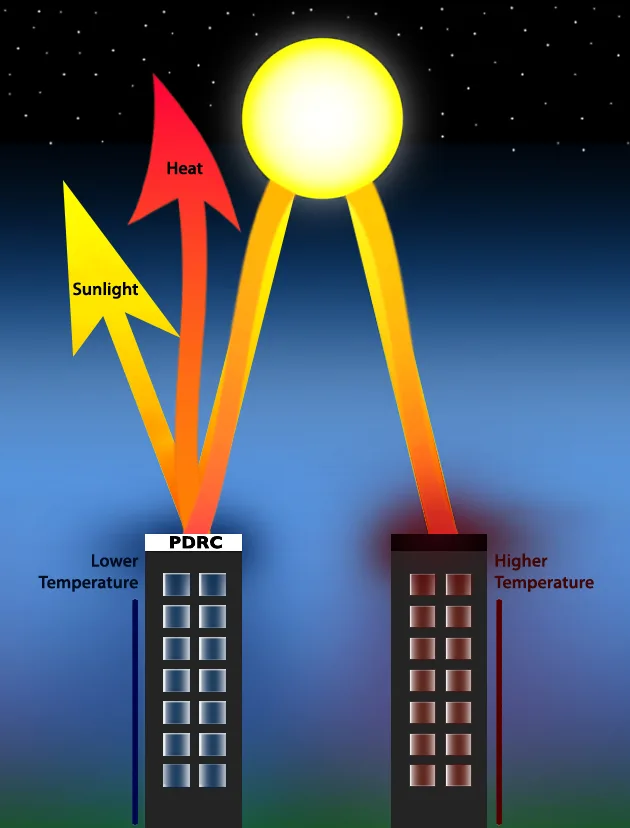

Passive daytime radiative cooling (PDRC) operates by exploiting the spectral selectivity of materials to manage heat exchange between an object and its environment. The mechanism relies on two primary optical properties: high reflectivity in the solar spectrum and high thermal emissivity in the infrared range. By reflecting incoming solar irradiance, the surface minimizes heat gain from the sun. Simultaneously, by emitting thermal radiation efficiently, the surface sheds heat to the cold sink of outer space.
The Atmospheric Transparency Window
The efficacy of PDRC depends critically on the "atmospheric transparency window," a specific range of infrared wavelengths where Earth's atmosphere is relatively transparent to thermal radiation. This window spans approximately 8 to 13 micrometers (μm). Within this band, thermal photons emitted by the cooling surface can traverse the atmosphere—passing through water vapor, carbon dioxide, and ozone layers—before being absorbed by the cosmic background at roughly 3 Kelvin. Outside this window, atmospheric absorption is high, causing the emitted heat to be re-radiated back to the surface, reducing net cooling.
Energy Balance and Cooling Power
The net cooling power (Pnet) is determined by the balance between radiative emission, atmospheric downwelling radiation, non-radiative heat transfer (convection and conduction), and absorbed solar irradiance. The relationship can be expressed as:
P_net = P_rad(T_s) - P_atm(T_a) - P_conv - P_cond - P_solar
Where Prad is the radiative power emitted by the surface at temperature Ts, and Patm is the power absorbed from the atmosphere at temperature Ta. To achieve sub-ambient cooling during the day, the sum of radiative and non-radiative losses must exceed the absorbed solar power. High solar reflectivity is essential to minimize Psolar, while high emissivity in the 8–13 μm band maximizes Prad.
Emitter Types: Broadband vs. Selective
Materials used for PDRC are categorized by their emission profiles. Broadband emitters radiate heat across a wide range of infrared wavelengths, while selective emitters are engineered to peak specifically within the atmospheric transparency window.
| Emitter Type | Spectral Characteristic | Primary Advantage | Typical Application |
|---|---|---|---|
| Broadband | High emissivity across mid-to-far infrared | Simplicity; less sensitive to atmospheric variability | Paints, polymeric films |
| Selective | Peak emissivity in 8–13 μm window | Maximized radiation through atmospheric gaps; higher potential cooling power | Photonic crystals, metamaterials |
Selective emitters often utilize photonic structures to tailor the spectral response, allowing for higher net cooling powers under intense solar irradiance. Broadband emitters, such as certain white paints, rely on high albedo to reflect solar energy while maintaining sufficient infrared emissivity to compete with atmospheric downwelling.
History and development of PDRC
The principles of passive daytime radiative cooling (PDRC) have evolved from ancient architectural ingenuity to advanced photonic engineering. Early applications include the Yakhchāls of Persia, which utilized thermal mass and evaporative effects to maintain sub-zero temperatures in arid climates. In the mid-20th century, Félix Trombe advanced the concept with his 1967 hypothesis on radiative sky cooling, proposing that surfaces could shed heat directly to the cold sink of outer space through the atmospheric transparency window. A major technological leap occurred in 2014 with the development of photonic metamaterials. These engineered structures achieved high reflectivity in the solar spectrum and high thermal emissivity in the infrared range, enabling surfaces to cool below ambient air temperature under direct sunlight. This breakthrough validated the theoretical potential of PDRC for widespread application in buildings and energy infrastructure. Recent advancements continue to refine PDRC technologies. In 2024, Nissan introduced a specialized paint formulation designed to enhance radiative cooling on vehicle surfaces. This innovation demonstrates the expanding scope of PDRC beyond static architectural elements to dynamic industrial applications. The integration of high-reflectivity coatings and optimized emissivity profiles allows for significant reductions in cooling loads, contributing to energy efficiency in both residential and commercial sectors. The development of PDRC illustrates a convergence of material science and thermodynamic principles. By leveraging the natural radiative heat transfer mechanisms, these technologies offer a sustainable approach to temperature regulation. The progression from ancient structures to modern metamaterials highlights the enduring relevance of passive cooling strategies in the global energy landscape.What materials are used in PDRC?
Material Classes and Optical Properties
Passive daytime radiative cooling relies on materials engineered to maximize solar reflectance and infrared emissivity. The core mechanism involves reflecting incoming solar radiation while emitting thermal energy through the atmospheric transparency window (8–13 µm). Common implementations include dielectric multilayer thin films, polymer-based metafabrics, and porous aerogels. These materials are selected for their ability to maintain a temperature below ambient without external power input.
Scalability and Environmental Impact
The scalability of PDRC materials varies by class. Thin films offer high optical precision but often require vacuum deposition, increasing cost. Metafabrics and aerogels allow for roll-to-roll manufacturing, enhancing deployability on large building envelopes. Biodegradable surfaces address lifecycle environmental impact, reducing reliance on petroleum-based polymers. Cost-effectiveness is a critical factor for widespread adoption in energy infrastructure, balancing initial material expense against long-term cooling load reduction.
| Material Type | Key Property | Scalability Factor |
|---|---|---|
| Dielectric Thin Films | High Solar Reflectance | Moderate (Vacuum Deposition) |
| Polymer Metafabrics | High IR Emissivity | High (Roll-to-Roll) |
| Porous Aerogels | Low Thermal Conductivity | Moderate (Filtration) |
| Biodegradable Surfaces | Low Lifecycle Impact | Emerging |
Applications in energy and urban environments
Passive daytime radiative cooling (PDRC) offers significant potential for reducing energy consumption in built environments. By leveraging surfaces with high thermal emissivity and reflectivity, PDRC can lower the temperature of buildings and objects without active mechanical systems. This technology is particularly relevant for indoor space cooling, where it can reduce the load on air conditioning units. In urban areas, PDRC can mitigate the urban heat island effect by reflecting solar radiation and emitting heat into the sky. Additionally, PDRC can enhance the efficiency of solar energy systems and power plant condensers by maintaining lower operating temperatures. Personal thermal management is another application, where PDRC materials can be integrated into clothing or wearable devices to regulate body temperature.
Energy Savings in US Cities
Studies have shown that PDRC can lead to substantial energy savings in various US cities. The following table summarizes the estimated energy savings in selected cities:
| City | Estimated Energy Savings (%) |
|---|---|
| New York | 15 |
| Los Angeles | 20 |
| Chicago | 18 |
| Houston | 22 |
| Miami | 25 |
These savings are achieved by reducing the need for mechanical cooling, which is a major component of building energy consumption. The effectiveness of PDRC varies depending on local climate conditions, building design, and the specific PDRC materials used.
What are the challenges and side effects of PDRC?
Passive daytime radiative cooling (PDRC) presents distinct engineering and operational challenges that must be addressed for widespread adoption. A primary concern is optical glare. Because PDRC surfaces rely on high reflectivity to minimize solar absorption, they can reflect significant amounts of sunlight into the surrounding environment. This can cause visual discomfort for pedestrians or drivers and increase solar heat gain in adjacent buildings, potentially offsetting the net cooling benefit at a microclimatic scale (per general principles of radiative transfer).
Thermal management also poses difficulties, particularly regarding seasonal variability. In winter or in temperate climates, the high thermal emissivity of PDRC surfaces can lead to overcooling. When the sky temperature drops significantly, the radiative heat loss may exceed the desired thermal comfort range, requiring supplemental heating. This dynamic necessitates smart control systems or hybrid materials that can modulate emissivity or reflectivity based on ambient conditions to prevent energy penalties during cooler months (per general principles of building thermodynamics).
Another physical phenomenon associated with PDRC is dropwise condensation. As surfaces cool below the dew point, moisture from the atmosphere condenses. In dropwise condensation, water forms discrete droplets rather than a continuous film. While this can enhance heat transfer efficiency due to the high emissivity of water droplets, it can also lead to surface wetting, which may affect the optical properties of the coating or lead to microbial growth if not managed. The latent heat of condensation can also temporarily alter the surface temperature, introducing transient thermal dynamics that complicate steady-state modeling (per general principles of phase change heat transfer).
When compared to other geoengineering approaches, such as stratospheric aerosol injection (SAI), PDRC offers a more localized and reversible solution. SAI involves injecting reflective particles into the stratosphere to scatter incoming solar radiation, effectively mimicking the cooling effect of volcanic eruptions. While SAI can influence global temperatures, it carries risks of altering precipitation patterns and introducing chemical pollutants to the upper atmosphere. In contrast, PDRC operates at the surface level, minimizing atmospheric disruption but requiring material deployment on a vast scale to achieve comparable global cooling effects. The choice between these methods depends on the desired spatial scale of cooling and the acceptable trade-offs between local optical effects and global atmospheric dynamics (per general principles of climate engineering).
