Name: Nagarjuna Sagar tail pond: Reservoir infrastructure and hydroelectric integration
Address: IN

Overview

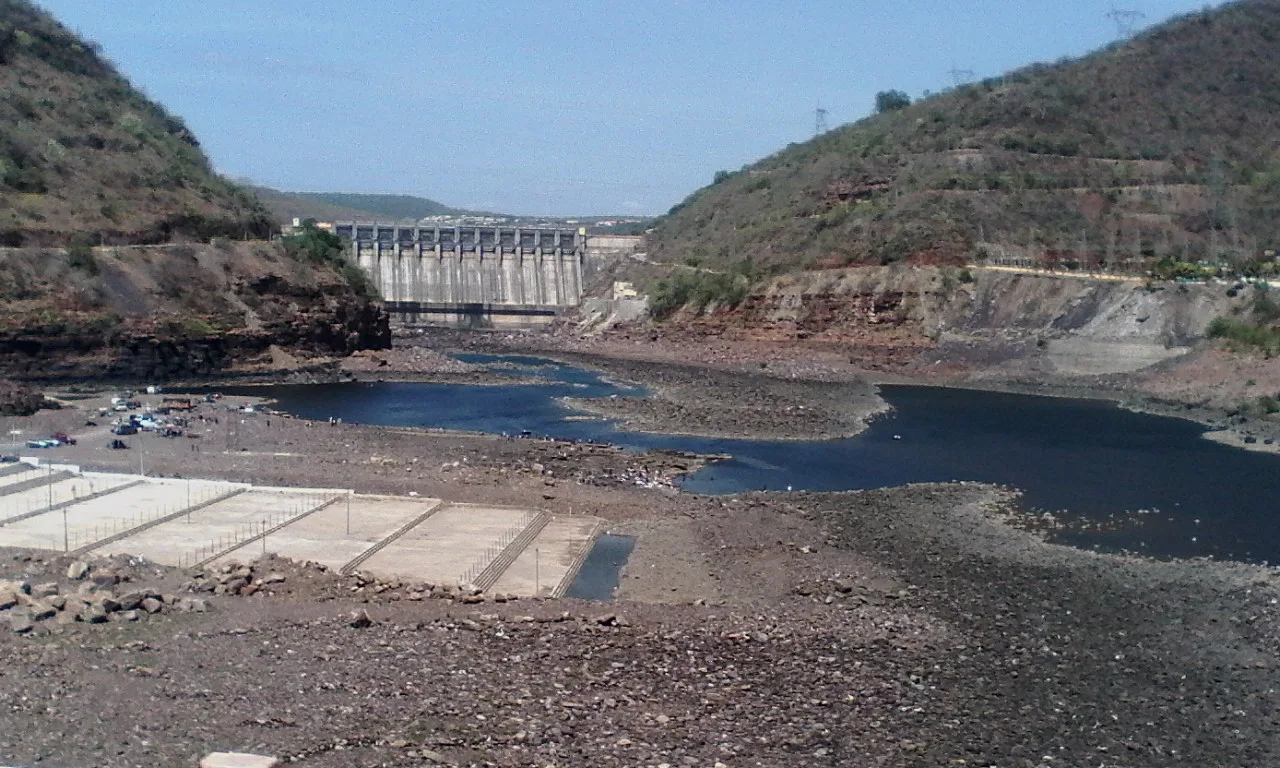

The Nagarjuna Sagar tail pond functions as a critical multipurpose reservoir within the Krishna River basin in India. Located in the Palnadu district, this infrastructure asset is situated approximately 21 km downstream from the main Nagarjuna Sagar Dam. The reservoir plays a strategic role in regional water management and energy infrastructure, extending its water spread area up to the toe of the primary dam structure. This geographic positioning allows for efficient hydraulic control and storage optimization within the broader Nagarjuna Sagar project complex.

The facility holds a gross water storage capacity of 6 Tmcft (thousand million cubic feet). This storage volume supports multiple operational objectives, including irrigation, water supply, and hydroelectric power generation. The reservoir’s design integrates with the existing dam infrastructure to maximize water retention and distribution efficiency. The project reached completion in July 2014, marking a significant milestone in the development of the Krishna River’s downstream hydraulic systems.

Operational status is currently active, with APGENCO (Andhra Pradesh Generation Corporation) serving as the primary operator. The tail pond contributes to a total installed capacity of 700 MW, commissioned in 2014. This capacity enhances the region’s energy output by leveraging the hydraulic head difference between the main dam and the tail pond. The integration of the tail pond into the Nagarjuna Sagar system improves overall power generation efficiency and water resource utilization.

How does the tail pond enable pumped storage?

The Nagarjuna Sagar tail pond functions as the lower reservoir for a pumped-storage hydroelectric system, leveraging the topographical gradient between itself and the main Nagarjuna Sagar Dam. This configuration allows for the utilization of surplus electricity to pump water from the tail pond back up to the upper reservoir, effectively storing energy in the form of gravitational potential. The system's operational efficiency is heavily dependent on the hydraulic head available from river flood waters and regulated releases flowing downstream toward the Prakasam Barrage. This dynamic water management ensures that the 700 MW capacity of the plant can be optimized during peak demand periods, converting the stored potential energy back into electricity.

Hydraulic Mechanism and Head Management

The technical mechanism relies on the 21 km distance between the tail pond and the main dam across the Krishna River. Water stored in the tail pond, which has a gross capacity of 6 Tmcft, is pumped uphill to the main reservoir when electricity costs are low or generation from other sources is high. This process is facilitated by the natural flow of the Krishna River, which continuously feeds the tail pond. The head available for pumping is derived from the elevation difference between the tail pond's water level and the toe of the Nagarjuna Sagar dam. Additionally, releases from the main dam contribute to the tail pond's volume, ensuring a consistent supply of water for the pumping cycle. The proximity to the Prakasam Barrage further influences the water level management, allowing for flexible operation based on downstream hydrological conditions.

Operational Challenges and Turbine Configuration

Despite the strategic location and capacity, the 700 MW turbines at the Nagarjuna Sagar tail pond faced initial challenges in operating efficiently in pumping mode. These turbines were primarily designed for power generation, and adapting them for bidirectional flow required precise engineering adjustments. The complexity arises from the need to handle varying water heads and flow rates, which can fluctuate significantly with seasonal changes in the Krishna River. The operational status, marked as active since its completion in July 2014, reflects ongoing efforts to optimize these turbines for both generation and pumping. The operator, APGENCO, has implemented control systems to manage the transition between modes, ensuring that the plant can respond quickly to grid demands. However, the ability to operate in pumping mode remains a critical factor in maximizing the plant's contribution to the regional energy mix, highlighting the importance of continuous technical refinement.

Why it matters

The Nagarjuna Sagar tail pond serves as a critical infrastructure node for water resource management and energy optimization in the Krishna River basin. As a multipurpose reservoir located 21 km downstream from the Nagarjuna Sagar Dam near Satrasala in Palnadu district, India, it plays a vital role in the region’s hydroelectric and agricultural systems. Its gross water storage capacity of 6 Tmcft provides essential buffering for water flow regulation, enabling more efficient operation of the associated 700 MW hydroelectric units operated by APGENCO.

Enabling Pumped Storage and Energy Optimization

The tail pond facilitates pumped storage capabilities for the Nagarjuna Sagar hydroelectric project. By storing water downstream, the reservoir allows for flexible generation patterns, where water can be pumped back upstream during periods of low energy demand and released during peak hours. This mechanism enhances the operational efficiency of the 700 MW capacity, which has been operational since its completion in July 2014. The ability to modulate water flow between the dam and the tail pond supports grid stability and maximizes the energy output from the Krishna River’s hydrological profile.

Inter-Basin Water Transfers and Irrigation Security

Beyond energy generation, the tail pond is instrumental in facilitating large-scale inter-basin water transfers, particularly from the Godavari to the Krishna basin. This connectivity is crucial for balancing water availability across different regions, ensuring that agricultural demands are met even during variable rainfall patterns. The reservoir’s water spread area, which extends up to the toe of the Nagarjuna Sagar dam, helps optimize water usage across the Krishna basin.

For the Telangana and Rayalaseema regions, the tail pond contributes significantly to irrigation security. By regulating downstream flows, it ensures a more consistent water supply for agricultural lands, supporting crop production and rural economies. The strategic location and capacity of the reservoir allow for better management of water resources, reducing the impact of seasonal fluctuations and enhancing the resilience of the agricultural sector in these key regions of India.
