Overview

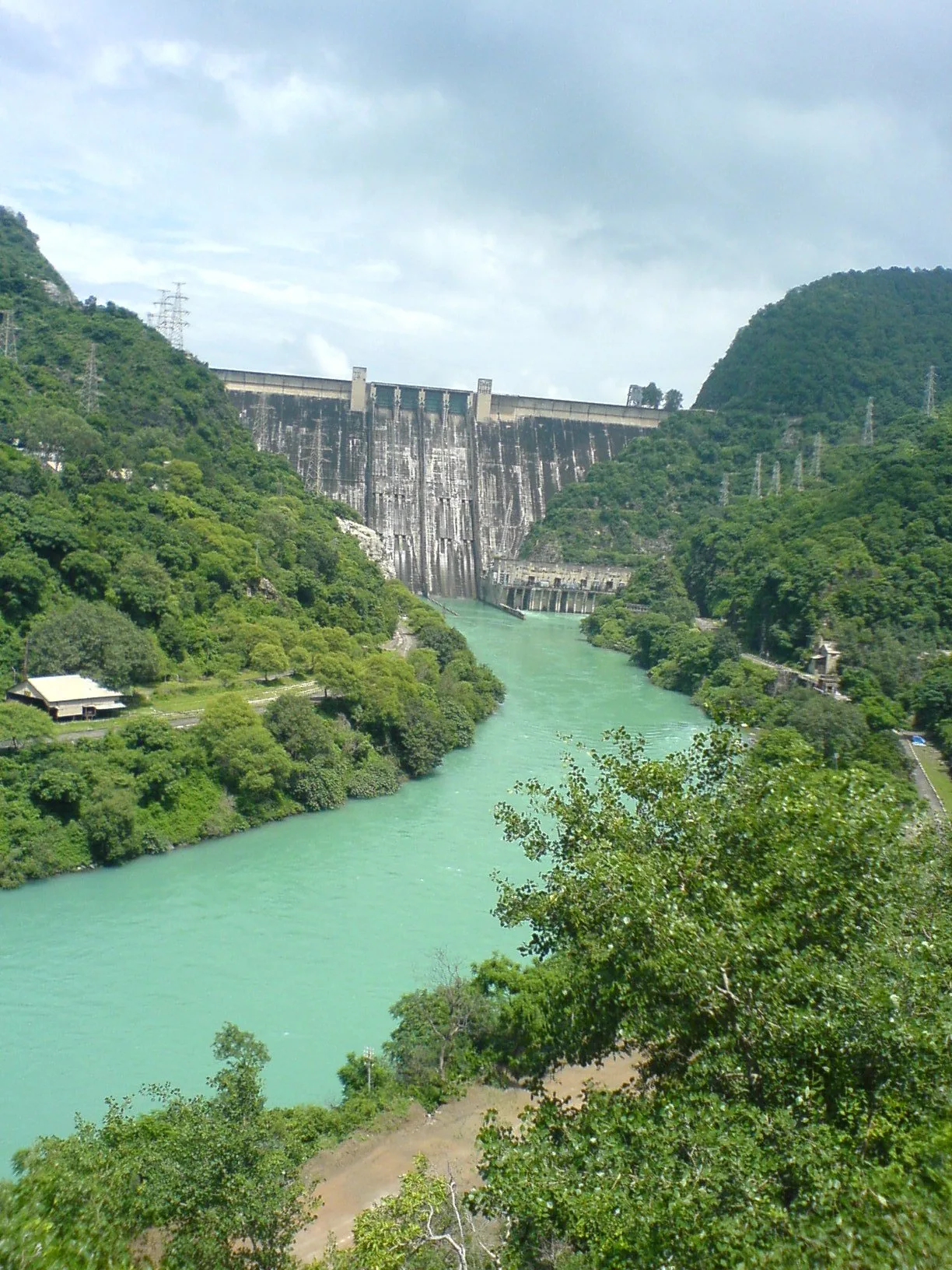

The Bhakra Dam, formally known as the Bhakra Nangal Dam, is a major concrete gravity dam situated on the Satluj River in Bhakra Village, within the Bilaspur district of Himachal Pradesh in northern India. This infrastructure project stands as a cornerstone of the region's hydroelectric power generation and irrigation networks. The facility is currently operational and is managed by the Bhakra Beas Management Board, which oversees its daily functions and maintenance. With an installed capacity of 1379.6 MW, the plant contributes significantly to the energy mix of the northern Indian states. The dam was commissioned in 1963, marking a pivotal moment in the post-independence development of India's energy infrastructure.

The Bhakra Dam is a concrete gravity structure that plays a critical role in the management of the Satluj River's flow. It creates the Gobind Sagar reservoir, a large body of water that serves multiple purposes including hydroelectric power generation, irrigation for agricultural lands, and flood control. The reservoir is named after the Maharaja of Patiala, Gurbaxpal Singh, who was a key figure in the dam's development. The dam's design allows it to withstand the immense pressure of the water held back by the structure, ensuring stability and longevity.

In addition to the Bhakra Dam, there is another dam located at Nangal in the state of Punjab, situated downstream of the Bhakra Dam. While these are two distinct structures, they are often collectively referred to as the Bhakra-Nangal Dam system. This combined system enhances the efficiency of water management and power generation in the region. The Bhakra Dam is recognized as the second tallest dam in Asia, a distinction that highlights its engineering significance and scale. The construction of such a massive structure required extensive planning and execution, involving various engineering feats to ensure its effectiveness.

The operational status of the Bhakra Dam remains active, with the Bhakra Beas Management Board continuing to optimize its performance. The dam's capacity of 1379.6 MW is a testament to its ability to generate substantial amounts of electricity, supporting the energy demands of the surrounding areas. The commissioning of the dam in 1963 was a significant milestone, reflecting the progress made in India's infrastructure development during that period. The Bhakra Dam continues to be a vital component of the region's energy infrastructure, providing reliable power and water resources for millions of people.

History and Construction

The conceptualization of the Bhakra Dam project began in 1923, driven by the vision of Sir Chhotu Ram, who identified the Satluj River as a key resource for northern India's energy and irrigation needs. The project evolved over four decades, transforming from a regional proposal into a national infrastructure priority. Jawaharlal Nehru played a pivotal role in advancing the project, often referring to the dams as the "temples of modern India," emphasizing their symbolic and functional importance to the newly independent nation. The organizational structure of the project was complex, involving multiple engineers and administrators who coordinated efforts across different regions.

Key Figures and Engineering Leadership

Sir Louis Dane served as a principal engineer, overseeing the technical design and construction phases. His expertise in concrete gravity dam engineering was critical to the project's success. Rai Bahadur Kunwar Sen Gupta contributed to the administrative and financial planning, ensuring that resources were allocated efficiently. Harvey Slocum, an American engineer, brought international expertise to the project, particularly in hydroelectric power generation systems. Sir Sobha Singh was instrumental in managing the labor force and local logistics, coordinating with workers from various regions.

International Collaboration and Workforce

The project involved significant international collaboration, with US workers playing a notable role in the construction process. These workers brought specialized skills in concrete pouring and mechanical installation, which were crucial for the dam's rapid completion. The organizational structure included multiple teams working in shifts to maximize efficiency. The involvement of foreign experts helped bridge the gap between local knowledge and advanced engineering techniques, ensuring that the dam met international standards.

Completion and Commissioning

The Bhakra Dam was officially commissioned in 1963, marking the culmination of decades of planning and construction. The project's completion was a significant milestone for India's energy infrastructure, providing a reliable source of hydroelectric power and irrigation water. The dam's construction involved extensive coordination between government agencies, engineering firms, and local communities. The successful completion of the project demonstrated the effectiveness of international collaboration and strategic planning in large-scale infrastructure development.

Engineering Specifications

The Bhakra Dam is a concrete gravity structure situated on the Satluj River in Bhakra Village, Bilaspur district, Himachal Pradesh, northern India. It forms the Gobind Sagar reservoir and is recognized as the second tallest dam in Asia. The facility is part of the Bhakra-Nangal system, which also includes the Nangal Dam located downstream in Punjab, though these are two distinct structures.

Dam Dimensions

The dam stands at a height of 226 m, with a length of 518.25 m and a width of 9.1 m. These dimensions contribute to its status as a major hydroelectric infrastructure project in the region.

Parameter Value
Height 226 m
Length 518.25 m
Width 9.1 m

Reservoir Statistics

The Gobind Sagar reservoir has a capacity of 9.34 billion cubic metres, covering an area of 168.35 km2 and extending for a length of 90 km. These reservoir characteristics are critical for the hydroelectric power generation and water management functions of the Bhakra Beas Management Board.

Parameter Value
Capacity 9.34 billion cubic metres
Area 168.35 km2
Length 90 km

Comparison with Oroville Dam

While the Bhakra Dam is the second tallest in Asia, comparisons with other global structures such as the Oroville Dam highlight its engineering significance. However, specific comparative metrics beyond height are not detailed in the primary source.

Hydroelectric Power Generation

The Bhakra Dam complex generates electricity through multiple power houses and auxiliary plants. The main power house is divided into left and right sections, featuring turbines supplied by international manufacturers. The left bank power house utilizes equipment from Hitachi, Sumitomo, and Andritz, while the right bank power house incorporates technology from the Soviet Union and Russia. The total installed capacity of the main power house is 1325 MW. This capacity is generated by ten turbine-generator sets with specific ratings: three units of 108 MW, two units of 126 MW, and five units of 157 MW.

Auxiliary Power Plants

In addition to the main Bhakra power house, the system includes several downstream and auxiliary power plants that contribute to the total generation capacity. The Ganguwal power plant has an installed capacity of 77.65 MW. The Kotla power plant also has a capacity of 77.65 MW. The Anandpur Sahib power plant contributes 134 MW to the grid. These facilities operate in conjunction with the main Bhakra-Nangal dam structure to optimize water flow and energy output from the Satluj River system.

Power Distribution

The electricity generated by the Bhakra Dam complex is distributed across multiple states and union territories in northern India. The power is supplied to Himachal Pradesh, Punjab, Haryana, and Rajasthan. It also serves the union territories of Chandigarh and Delhi. This wide distribution network supports industrial, commercial, and residential energy demands in the region, leveraging the hydroelectric potential of the Satluj River basin.

Irrigation and Water Management

The Bhakra Dam serves as a critical node for regional water management, functioning primarily as a concrete gravity structure on the Satluj River in Bhakra Village, Bilaspur district, Himachal Pradesh. The dam creates the Gobind Sagar reservoir, which is central to flood control and irrigation across northern India. Downstream, the Nangal Dam in Punjab works in conjunction with the main structure; while they are separate entities, they are frequently referred to collectively as the Bhakra-Nangal Dam system. This integrated infrastructure is the second tallest dam in Asia, providing substantial hydraulic head for water distribution and power generation.

Irrigation Network

The irrigation capacity of the Bhakra system is extensive, with the Bhakra Canal supplying water to approximately 10 million acres (40,000 km2) of agricultural land. This network spans three key states: Punjab, Haryana, and Rajasthan. The reliable water flow from the Satluj River, regulated by the dam, has transformed the agricultural output of these regions, reducing dependency on monsoon variability. The canal system is engineered to distribute water efficiently across varying topographies, ensuring that both upstream and downstream districts receive consistent irrigation during critical growing seasons.

Water Flow and Management

Water management within the system involves coordinated flow from the Bhakra Dam to the downstream Nangal Dam. After passing through the Bhakra structure, water enters the Nangal Hydel Channel, facilitating both irrigation diversion and hydroelectric power generation at the Nangal site. This sequential arrangement optimizes the use of the Satluj River’s flow, allowing for staged energy extraction and precise water allocation. The entire system is managed by the Bhakra Beas Management Board (BBMB), which has overseen operations since its establishment in 1966/1967. The BBMB coordinates maintenance, flow regulation, and inter-state water distribution, ensuring that the operational status of the dam remains robust and that the 1379.6 MW capacity is effectively utilized alongside irrigation needs.

Why it matters

Bhakra Dam holds a distinct place in the national consciousness of India, frequently referred to as the 'New Temple of Resurgent India'. This epithet underscores the structure's symbolic weight in the post-independence era, representing the ambition and engineering prowess of a newly sovereign nation. The dam is a concrete gravity structure located on the Satluj River in Bhakra Village, within the Bilaspur district of Himachal Pradesh in northern India. It forms the Gobind Sagar reservoir and operates in conjunction with the Nangal Dam downstream in Punjab, though they remain two separate dams. Together, these structures are sometimes collectively called the Bhakra-Nangal Dam. The facility is recognized as the second tallest dam in Asia.

The operational significance of the Bhakra Dam is anchored in its capacity of 1379.6 MW, operated by the Bhakra Beas Management Board since its commissioning in 1963. This output has been critical for regional energy security, providing a stable baseload for the northern grid. Beyond electricity, the dam's impact on agriculture has been profound, transforming the arid landscapes of Punjab and Haryana into fertile agricultural hubs through extensive canal networks. This dual role in power generation and irrigation cemented its status as a cornerstone of India's economic development strategy in the mid-20th century.

In the context of Asian infrastructure, Bhakra Dam is often compared with other major projects such as the Tehri Dam. While Bhakra is the second tallest dam in Asia, these comparisons highlight the evolution of hydroelectric engineering in the region over decades. The enduring legacy of Bhakra was formally recognized in 2013, when a commemorative stamp was issued to mark the 50th anniversary of its commissioning. This philatelic tribute reflects the dam's continued relevance as both a functional energy asset and a cultural icon of modern India.

Social and Environmental Impact

The construction of the Bhakra Nangal Dam necessitated the displacement of 371 villages, fundamentally altering the social fabric of the region. This massive resettlement effort created long-term socio-economic challenges for the local population. Even after more than 50 years of operation, issues regarding the resettlement of displaced communities remain a subject of analysis, reflecting the enduring human cost of large-scale hydroelectric infrastructure in northern India.

Ecological Changes and Fisheries

The creation of the Gobind Sagar reservoir transformed the local ecosystem, introducing significant changes to the Satluj River's hydrology. The reservoir has become a critical habitat for various fish species, including the endangered Mahseer. Fishing in the Gobind Sagar reservoir serves as both an ecological indicator and an economic activity for the surrounding communities, though the balance between hydroelectric output and aquatic biodiversity remains a key environmental consideration.

Tourism and Infrastructure

The Bhakra Dam has evolved into a notable tourist destination, attracting visitors interested in engineering and natural scenery. However, access has been subject to regulatory changes; at certain periods, a ban on visitors was implemented for security reasons, restricting public access to the immediate dam area. To facilitate tourism and regional connectivity, a dedicated Bhakra-Nangal Railway line was established. This free railway service features 8 stations, providing a scenic transport link between the Bhakra and Nangal dams, enhancing the visitor experience and integrating the hydroelectric complex into the broader tourism infrastructure of Himachal Pradesh and Punjab.

What distinguishes Bhakra Dam from other Asian dams?

Bhakra Dam holds a distinct position in the landscape of Asian hydroelectric infrastructure, primarily recognized as the second tallest dam in Asia. This specific ranking is a verifiable structural characteristic of the concrete gravity dam located on the Satluj River in Bhakra Village, Bilaspur district, Himachal Pradesh. The distinction of being the second tallest is a key identifier when comparing Bhakra to other major continental structures, setting it apart from numerous smaller or differently engineered reservoirs across the region. The dam forms the Gobind Sagar reservoir, a significant body of water that defines the immediate geographical and operational context of the facility.

The structural identity of Bhakra is often linked with the Nangal Dam, located downstream in Punjab. While these are two separate dams, they are frequently referred to collectively as the Bhakra-Nangal Dam. This dual designation highlights the integrated nature of the hydroelectric system, where the upstream gravity dam in Himachal Pradesh and the downstream structure in Punjab work in concert. The separation of these two entities is important for technical accuracy, as Bhakra serves as the primary retention structure, while Nangal functions as a downstream component of the same broader project.

The historical context of Bhakra Dam involves significant construction efforts that culminated in its commissioning in 1963. This date marks the operational beginning of the facility, which has maintained an operational status since that time. The construction history reflects a period of major infrastructure development in northern India, aiming to harness the water resources of the Satluj River for power generation. The project's scale and the engineering required to build a concrete gravity dam of such magnitude contributed to its status as a landmark achievement in regional energy infrastructure.

The operational parameters of the dam are defined by its capacity of 1379.6 MW. This figure represents the installed power generation capability of the facility, managed by the Bhakra Beas Management Board. The operator is responsible for the ongoing management and maintenance of the dam, ensuring its continued functionality and power output. The combination of its height, capacity, and long-standing operational history since 1963 distinguishes Bhakra Dam from other Asian dams, many of which may have been commissioned later or possess different structural characteristics. The dam remains a critical component of the energy grid in northern India, leveraging the water source of the Satluj River to provide consistent hydroelectric power.
