Overview

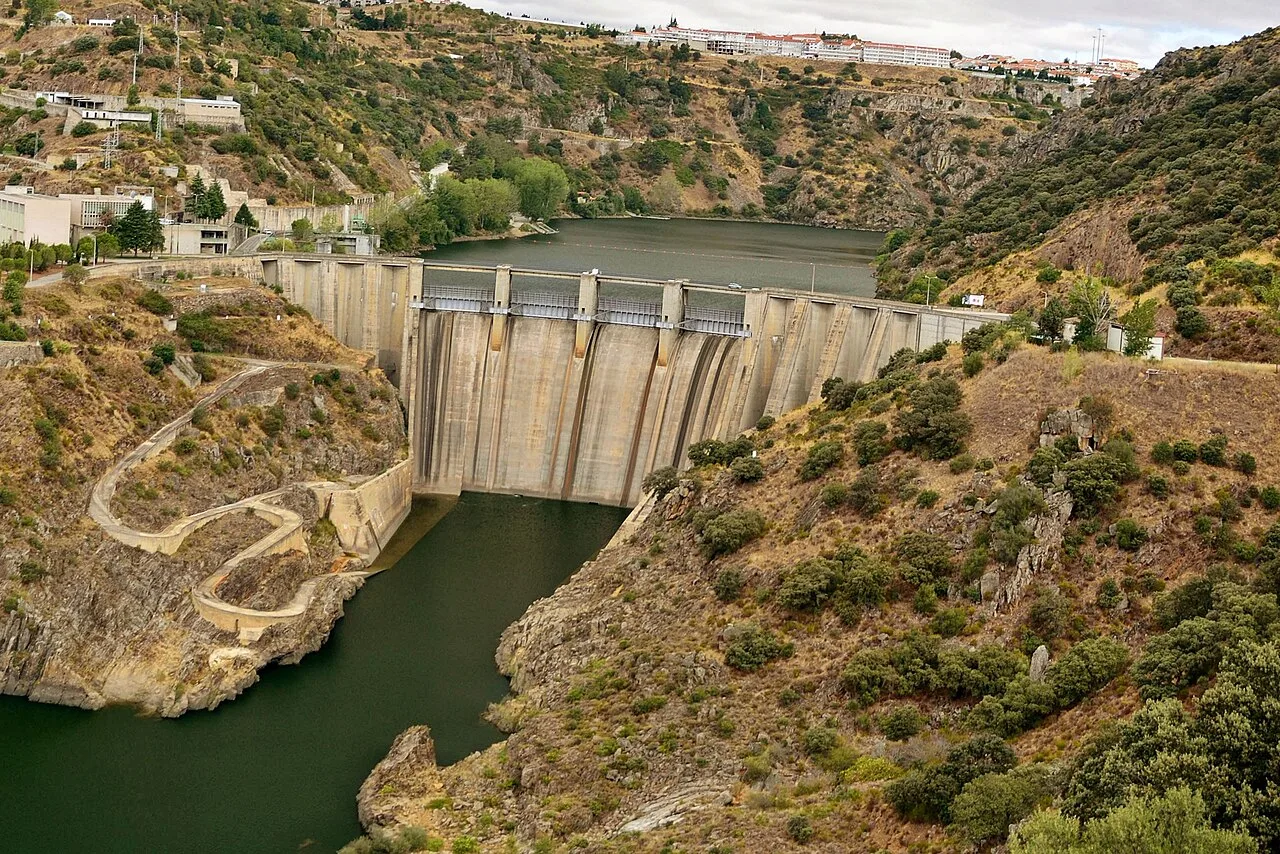

Miranda Dam is a concrete buttress dam situated on the Douro River, a major watercourse that defines the national border between Spain and Portugal in this region. The facility is located within the municipality of Miranda do Douro, in the Bragança District of Portugal. As a hydroelectric powerplant, it harnesses the flow of the Douro to generate electricity, contributing to the regional energy infrastructure. The plant has an installed capacity of 390 MW, making it a significant source of power for the area. It has been operational since its commissioning in 1960, marking over six decades of service in the energy sector.
The dam is owned by CPPE and operated by EDP, a leading energy company in Portugal. This ownership and operational structure ensures the efficient management of the facility and its integration into the national grid. The concrete buttress design of the dam is well-suited to the geographical and hydrological characteristics of the Douro River, providing stability and efficiency in water retention and power generation.
Geographical Context
The location of Miranda Dam on the Douro River is strategically important, as the river serves as a natural boundary between Spain and Portugal. This positioning not only influences the dam's operational dynamics but also highlights its role in regional cooperation and resource management. The municipality of Miranda do Douro, where the dam is located, benefits from the economic and infrastructural advantages brought by the presence of this hydroelectric facility.
Operational History
Since its commissioning in 1960, Miranda Dam has played a crucial role in the energy landscape of the Bragança District and the broader region. The plant's long-standing operation reflects its reliability and the effective management by EDP. The capacity of 390 MW continues to provide a steady supply of electricity, supporting both local communities and the wider national grid. The dam's concrete buttress structure has withstood the test of time, demonstrating the engineering prowess involved in its construction.
Why it matters
Miranda Dam serves as a critical hydroelectric asset on the Douro River, a major waterway that defines the national border between Portugal and Spain. As an operational hydroelectric powerplant with a total capacity of 390 MW, it contributes substantially to Portugal's renewable energy mix. The dam is operated by EDP, a leading energy company in the region, and has been in service since its commissioning in 1960. Its strategic location allows for efficient water management and power generation, leveraging the natural flow of the Douro to meet energy demands in northern Portugal.
Engineering Characteristics
The Miranda Dam is constructed as a concrete buttress dam, a design choice that offers specific engineering advantages. This type of structure uses a series of supports, or buttresses, to hold back the water, allowing for a thinner and more material-efficient wall compared to traditional gravity dams. The concrete construction ensures durability and resistance to the hydraulic pressures exerted by the Douro River. This engineering approach not only optimizes the use of materials but also enhances the structural stability of the dam, making it well-suited for the geographical and hydrological conditions of the region. The buttress design is particularly effective in areas where the foundation can support the distributed load of the water pressure, providing a robust solution for long-term operation.
Miranda I and Miranda II Specifications
The hydroelectric complex includes two main units, Miranda I and Miranda II, which together contribute to the total installed capacity. While specific details for each unit may vary, the combined output of 390 MW highlights the significance of the facility. The following table provides a comparison of the key specifications for Miranda I and Miranda II, based on available data.
| Specification | Miranda I | Miranda II |
|---|---|---|
| Capacity | Part of 390 MW total | Part of 390 MW total |
| Commissioning Year | 1960 | 1960 |
| Operator | EDP | EDP |
| Type | Concrete Buttress | Concrete Buttress |
| Location | Miranda do Douro, Bragança District, Portugal | Miranda do Douro, Bragança District, Portugal |
| River | Douro | Douro |
The Miranda Dam's role extends beyond power generation, influencing water management and ecological balance in the Douro basin. Its continued operation since 1960 underscores the effectiveness of its engineering design and the strategic importance of hydroelectric power in Portugal's energy landscape. The facility remains a testament to the country's commitment to leveraging natural resources for sustainable energy production.
History of construction and expansion
The construction of the Miranda Dam was a significant engineering undertaking in the Douro river basin, initiated in the mid-20th century to harness the hydroelectric potential of the river where it forms the natural border between Spain and Portugal. The project began in 1955, marking the start of extensive civil works in the municipality of Miranda do Douro, within the Bragança District of Portugal. The dam is constructed as a concrete buttress structure, a design choice that provided structural efficiency for the specific topographical and geological conditions of the Douro valley. The construction phase spanned several years, with the main structural works concluding in 1961. This timeline reflects the scale of the infrastructure required to create the reservoir and integrate the initial power generation facilities into the regional grid.
Initial Commissioning and Operational Start
Although the construction was fully completed in 1961, the Miranda Dam began its operational life slightly earlier. The facility was commissioned in 1960, allowing for the initial flow of electricity into the network operated by EDP (Energias de Portugal). This early commissioning date indicates that the primary powerhouse and the essential water conveyance systems were functional before the final touches on the entire dam complex were finished. The operational start in 1960 established the dam as a key component of Portugal's hydroelectric infrastructure, contributing to the energy mix with a capacity that would later be defined as 390 MW. The location on the international border required careful coordination, as the Douro river serves as the demarcation line between the two nations, influencing both the engineering design and the political considerations of the project.
1995 Expansion and Second Powerhouse
Decades after its initial commissioning, the Miranda Dam underwent a major expansion to increase its energy output and modernize its generation capabilities. In 1995, a significant upgrade was implemented with the addition of a second underground powerhouse. This expansion was a strategic move to optimize the use of the existing reservoir and the flow of the Douro river, allowing for greater flexibility in power generation. The second powerhouse was constructed underground, a design feature that helps to minimize the visual impact on the surrounding landscape and protects the mechanical equipment from external environmental factors. This addition was crucial in achieving the dam's total installed capacity of 390 MW, solidifying its role in the regional energy infrastructure. The 1995 expansion demonstrated the long-term viability of the Miranda Dam, extending its operational relevance well into the late 20th and early 21st centuries under the continued operation of EDP.
What are the structural specifications of the dam?
Miranda Dam is constructed as a concrete buttress dam, a structural design chosen to optimize material usage while maintaining stability against the hydrostatic pressure of the Douro River. The structure is situated on the river section that forms the national border between Spain and Portugal, within the municipality of Miranda do Douro in the Bragança District. The engineering specifications reflect a robust design capable of managing significant water volumes and discharge rates, ensuring operational reliability for the 390 MW hydroelectric power plant operated by EDP.
Structural Dimensions and Volume
The dam features a total height of 80 m and spans a length of 263 m along the riverbed. The crest altitude reaches 535 m above sea level, providing the necessary head for power generation and reservoir management. The total concrete volume used in the construction of the dam structure is 240,000 m³. These dimensions are critical for maintaining the structural integrity of the buttress design, which relies on a series of triangular supports to transfer the load from the upstream face to the foundation.
| Parameter | Value |
|---|---|
| Height | 80 m |
| Length | 263 m |
| Crest Altitude | 535 m |
| Concrete Volume | 240,000 m³ |
Spillways and Discharge Capacity
Water management at Miranda Dam is handled through four spillways designed to regulate reservoir levels and manage flood events. The combined maximum discharge capacity of these spillways is 11,000 m³/s. This high discharge rate is essential for handling peak flows on the Douro River, particularly during seasonal variations and flood periods. The spillway design ensures that excess water can be efficiently routed downstream, minimizing pressure on the main dam structure.
Bottom Outlet System
In addition to the primary spillways, the dam is equipped with a bottom outlet system. This feature allows for the controlled release of water from the lower levels of the reservoir, facilitating sediment management and maintaining downstream flow during periods of low inflow. The bottom outlet provides operational flexibility, enabling precise control over the reservoir's volume and water quality, which is crucial for the efficiency of the hydroelectric turbines and the ecological balance of the river section below the dam.
How does the reservoir manage water capacity?
The Miranda Reservoir serves as the primary water storage component of the Miranda Dam hydroelectric scheme, situated on the Douro River where it delineates the international border between Portugal and Spain. The reservoir’s hydrological characteristics are defined by specific elevation markers and volumetric capacities that regulate the flow through the concrete buttress dam structure in the Miranda do Douro municipality.
Reservoir Levels and Surface Area
The operational water level of the reservoir is anchored at a full supply level of 528.05 m above sea level. This elevation represents the standard maximum operating height under normal hydrological conditions. During significant inflow events or flood management phases, the water level can rise to a maximum flood level of 533 m. This additional vertical capacity allows the reservoir to absorb peak discharges from the Douro River, mitigating downstream flooding impacts in the Bragança District.
At its full supply level, the reservoir covers a surface area of 1.22 km². This relatively compact surface area is characteristic of the narrow, canyon-like topography of the Upper Douro region, where the river cuts through steep terrain. The limited surface exposure also influences evaporation rates and sediment deposition patterns within the reservoir basin.
Storage Capacities
The total storage capacity of the Miranda Reservoir is 28.1 million m³. This aggregate volume includes both active storage used for regular power generation and dead storage reserved for sediment accumulation and minimum hydraulic head requirements. The active capacity, which is directly utilized for regulating turbine flow and optimizing energy output, amounts to 6.66 million m³. This active volume represents the portion of the reservoir that is routinely cycled to meet the 390 MW generation capacity of the EDP-operated plant.
The distinction between total and active capacity is critical for long-term reservoir management. The larger total capacity provides a buffer against prolonged droughts and seasonal variations in the Douro’s flow, while the active capacity ensures consistent water supply for the hydroelectric turbines. The reservoir’s design reflects a balance between maximizing energy production and maintaining sufficient storage to handle the variable hydrology of the Iberian Peninsula’s border region.
What is the operational capacity of the power plant?
Miranda Dam functions as a run-of-the-river hydroelectric power plant, utilizing the flow of the Douro River to generate electricity. The facility is operated by EDP and has been operational since its commissioning in 1960. The power plant's total installed capacity is reported as 390 MW, with some technical specifications citing a nameplate capacity of 369 MW. This capacity is derived from the combined output of two distinct generating stations, Miranda I and Miranda II, which leverage the river's head and flow rates to produce an average annual generation ranging between 879 GWh and 1,036.3 GWh, depending on hydrological conditions.
Miranda I Generating Station
The Miranda I station is equipped with three Francis turbines. Each turbine has a capacity of 67 MW, with some sources specifying 58.84 MW per unit. These turbines operate at a rotational speed of 150 rpm. The hydraulic head for Miranda I varies between 51 m and 66 m, with a flow rate of 128 m³/s. This configuration allows for efficient energy extraction from the upper section of the dam's reservoir, contributing significantly to the plant's overall output.
Miranda II Generating Station
Miranda II features a single, larger Francis turbine with a capacity of 193 MW. This turbine operates at a slower rotational speed of 100 rpm, optimized for the specific hydraulic conditions of its section. The head for Miranda II ranges from 40 m to 60 m, and it handles a substantially higher flow rate of 386 m³/s. The combination of Miranda I and Miranda II enables the plant to adapt to varying water levels and flow rates, ensuring consistent power generation along the border between Portugal and Spain.
Ownership and operational management
The operational management of the Miranda Dam hydroelectric facility is vested in the Empresa Portuguesa de Energia, commonly known by its acronym EDP. As the primary operator, EDP oversees the day-to-day technical functioning of the plant, ensuring that the concrete buttress dam and its associated turbine units maintain optimal performance standards. The facility, commissioned in 1960, represents a significant asset within the national energy infrastructure of Portugal, situated strategically on the Douro River where it demarcates the international border between Spain and Portugal. The location within the municipality of Miranda do Douro, in the Bragança District, necessitates precise operational protocols to manage both energy output and hydrological flow across the border region.
Ownership Structure and CPPE
While EDP manages the operational aspects, the ownership structure of the Miranda Dam involves the Companhia Portuguesa de Produção de Electricidade, referred to as CPPE. This entity holds the proprietary rights to the infrastructure, distinguishing the legal ownership from the functional operation. The CPPE structure is a key component in understanding the asset's financial and administrative framework. The separation of ownership and operation allows for specialized management of the 390 MW capacity plant, leveraging EDP’s technical expertise in hydroelectric power generation while maintaining the asset under the CPPE’s ownership portfolio.
The collaboration between the operator and the owner ensures that the Miranda Dam continues to function as a critical source of renewable energy in the region. The concrete buttress design of the dam, a specific engineering choice made during its construction, requires ongoing maintenance and monitoring, which falls under EDP’s operational mandate. This division of roles is typical in large-scale energy infrastructure projects, where technical operation is often handled by a specialized energy company like EDP, while the asset itself may be held by a dedicated production company such as CPPE. The operational status of the plant remains active, contributing to the energy mix of Portugal through the harnessing of water power from the Douro River.
