Overview

A mercury-arc valve, also known as a mercury-vapor rectifier or mercury-arc rectifier, is a type of electrical rectifier used for converting high-voltage or high-current alternating current (AC) into direct current (DC). It is a type of cold cathode gas-filled tube, but is unusual in that the cathode, instead of being solid, is made from a pool of liquid mercury and is therefore self-restoring. As a result mercury-arc valves, when used as intended, are far more robust and durable and can carry much higher currents than most other types of gas discharge tube. Some examples have been in continuous service, rectifying 50-ampere currents, for decades. The technology was commissioned in 1902 and is now considered decommissioned. The mercury-arc valve played a significant role in power electronics before the widespread adoption of semiconductor rectifiers. Its ability to handle high currents and voltages made it a preferred choice for various industrial and power transmission applications. The self-restoring nature of the liquid mercury cathode contributed to its longevity and reliability. Despite its eventual replacement by more modern technologies, the mercury-arc valve remains an important milestone in the history of electrical engineering. The device operates by utilizing the properties of mercury vapor to facilitate the flow of electrons in one direction, effectively converting AC to DC. This process involves the ionization of mercury vapor within the tube, creating a conductive path for the current. The liquid mercury cathode serves as a reservoir of electrons, which are emitted into the vapor space to sustain the arc. The anode, typically made of a metal such as copper or steel, collects these electrons, completing the circuit. The efficiency and durability of mercury-arc valves made them suitable for high-power applications, including traction systems, industrial drives, and high-voltage direct current (HVDC) transmission lines. The technology's robustness allowed it to withstand significant electrical stresses, making it a reliable component in early power grids. However, the introduction of semiconductor devices, such as silicon-controlled rectifiers (SCRs) and diodes, gradually rendered mercury-arc valves obsolete due to their smaller size, lower maintenance requirements, and higher efficiency. The transition from mercury-arc valves to semiconductor rectifiers marked a significant advancement in power electronics, enabling more compact and efficient power conversion systems. Despite their decommissioned status, mercury-arc valves continue to be studied for their historical significance and unique operational characteristics. The technology's impact on the development of modern power systems is undeniable, as it laid the groundwork for subsequent innovations in electrical rectification. The mercury-arc valve's ability to handle high currents and voltages was a key factor in its widespread adoption during the early to mid-20th century. Its self-restoring cathode design was a critical innovation that distinguished it from other gas-filled tubes, allowing for longer operational lifespans and reduced maintenance needs. The technology's robustness and durability made it a preferred choice for applications requiring reliable and continuous power conversion. The mercury-arc valve's role in the history of electrical engineering is well-documented, with numerous examples of its use in various industrial and power transmission contexts. The device's operation relies on the ionization of mercury vapor, which creates a conductive path for the flow of electrons from the cathode to the anode. This process is facilitated by the application of a voltage across the tube, which causes the mercury vapor to ionize and form an arc. The liquid mercury cathode serves as a reservoir of electrons, which are emitted into the vapor space to sustain the arc and maintain the flow of current. The anode, typically made of a metal such as copper or steel, collects these electrons, completing the circuit and allowing for the conversion of AC to DC. The efficiency and durability of mercury-arc valves made them suitable for high-power applications, including traction systems, industrial drives, and high-voltage direct current (HVDC) transmission lines. The technology's robustness allowed it to withstand significant electrical stresses, making it a reliable component in early power grids. However, the introduction of semiconductor devices, such as silicon-controlled rectifiers (SCRs) and diodes, gradually rendered mercury-arc valves obsolete due to their smaller size, lower maintenance requirements, and higher efficiency. The transition from mercury-arc valves to semiconductor rectifiers marked a significant advancement in power electronics, enabling more compact and efficient power conversion systems. Despite their decommissioned status, mercury-arc valves continue to be studied for their historical significance and unique operational characteristics. The technology's impact on the development of modern power systems is undeniable, as it laid the groundwork for subsequent innovations in electrical rectification. The mercury-arc valve's ability to handle high currents and voltages was a key factor in its widespread adoption during the early to mid-20th century. Its self-restoring cathode design was a critical innovation that distinguished it from other gas-filled tubes, allowing for longer operational lifespans and reduced maintenance needs. The technology's robustness and durability made it a preferred choice for applications requiring reliable and continuous power conversion. The mercury-arc valve's role in the history of electrical engineering is well-documented, with numerous examples of its use in various industrial and power transmission contexts.

History of development

The scientific foundations of the mercury-arc valve were established in 1882, when Jules Jamin and G. Maneuvrier first observed the rectifying properties of mercury vapor. Their work identified that the relationship between current and voltage in a mercury arc was not linear, a critical characteristic for converting alternating current to direct current. This phenomenon meant that the arc conducted electricity more easily in one direction than the other, laying the groundwork for a self-restoring cathode system that would distinguish this technology from solid-cathode predecessors.

Commercial Invention and Early Adoption

Building on these observations, Peter Cooper Hewitt invented the first practical mercury-arc valve in 1902. Hewitt’s design utilized a pool of liquid mercury as the cathode, which remained in a cold state until ionized by the anode. This innovation resulted in a device that was far more robust and durable than other gas-filled tubes of the era. Because the mercury cathode was self-restoring, the valve could carry much higher currents with greater reliability. Early applications focused on lighting systems and electroplating, where the ability to handle high amperage was essential. Some of these early installations demonstrated remarkable longevity, with certain valves rectifying 50-ampere currents for decades of continuous service.

Expansion in the 20th Century

During the 1920s and 1930s, the mercury-arc valve became a cornerstone of high-voltage direct current (HVDC) transmission and industrial power conversion. The technology enabled the efficient conversion of high-voltage alternating current into direct current, facilitating long-distance power transmission before the widespread adoption of silicon-based electronics. The durability of the liquid mercury cathode allowed for compact designs that could handle substantial thermal and electrical loads, making them ideal for traction motors, electrolytic processes, and early radio transmission systems. This period marked the peak of the mercury-arc valve’s dominance in electrical engineering, as it provided a reliable solution for power control in an era where mechanical commutators were often bulky and prone to wear.

Decline and Replacement

The dominance of the mercury-arc valve began to wane with the advent of solid-state electronics. Starting around 1975, silicon-based devices such as thyristors and diodes began to replace mercury-arc valves in most applications. These silicon devices offered faster switching speeds, lower maintenance requirements, and improved efficiency, particularly in variable-speed drive systems. While mercury-arc valves were robust, they required careful temperature control to maintain the mercury in its liquid state and were susceptible to surge voltages. The transition to silicon technology marked the end of the mercury-arc valve’s primary operational era, leading to its eventual decommissioning in most industrial and power transmission contexts.

How does a mercury-arc valve work?

A mercury-arc valve functions as a cold cathode gas-filled tube, utilizing the unique properties of liquid mercury to convert alternating current (AC) into direct current (DC). The core mechanism relies on an electrical arc discharge within a sealed environment. Unlike standard gas discharge tubes with solid cathodes, the mercury-arc valve features a pool of liquid mercury that serves as the cathode. This liquid state is critical for the device’s durability and self-restoring capabilities.

Operation begins with the ionization of mercury vapor. The tube is maintained at a specific temperature, typically around 40 °C, to ensure the mercury vapor pressure reaches an optimal level of approximately 7 millipascals. This precise thermal control is essential; if the temperature fluctuates significantly, the vapor pressure changes, affecting the voltage drop across the arc and the efficiency of the rectification process.

When the anode voltage becomes positive relative to the mercury pool, electrons are emitted from the liquid surface. This emission is facilitated by the electric field and the thermal energy of the mercury atoms. The electrons accelerate toward the anode, colliding with neutral mercury atoms in the vapor phase. These collisions cause further ionization, creating a conductive plasma channel between the cathode and anode. This process allows current to flow in one direction, effectively rectifying the AC input.

The self-renewing nature of the liquid mercury cathode is a defining feature. In solid cathode tubes, sputtering and evoration can degrade the surface over time, leading to failure. In contrast, the mercury pool continuously replenishes the emitting surface. As electrons leave the pool, the liquid mercury flows to fill any microscopic depressions, maintaining a smooth and consistent emission area. This self-restoring mechanism allows mercury-arc valves to carry much higher currents and operate for decades with minimal maintenance, far exceeding the robustness of other gas discharge technologies.

The rectification process is governed by the relationship between the anode voltage and the vapor pressure. The voltage drop across the arc remains relatively constant, typically around 15 to 20 volts, regardless of the current magnitude, provided the vapor pressure is stable. This characteristic makes the mercury-arc valve highly efficient for high-voltage and high-current applications, such as early HVDC transmission systems and industrial motor drives. The device effectively blocks current when the anode voltage is negative, as the mercury pool cannot emit electrons efficiently against the reverse field, thus completing the rectification cycle.

What are the main types of mercury-arc valves?

Mercury-arc valves are primarily categorized by their construction materials and thermal management systems, which dictate their current-carrying capacity and application environments. The two main types are glass-bulb valves and steel-tank valves. Glass-bulb valves utilize a sealed glass envelope, making them suitable for lower current applications. In contrast, steel-tank valves employ a robust metallic housing, allowing for higher current ratings and more efficient cooling mechanisms.

Comparison of Mercury-Arc Valve Types

Feature Glass-Bulb Valves Steel-Tank Valves
Construction Material Sealed glass envelope Steel tank
Current Rating Up to 500 A Higher currents (exceeding 500 A)
Cooling Method Air-cooled (natural convection) Water-cooled
Typical Height Up to 600 mm Variable, often larger
Application Context Lower current, compact installations High-current, industrial rectification

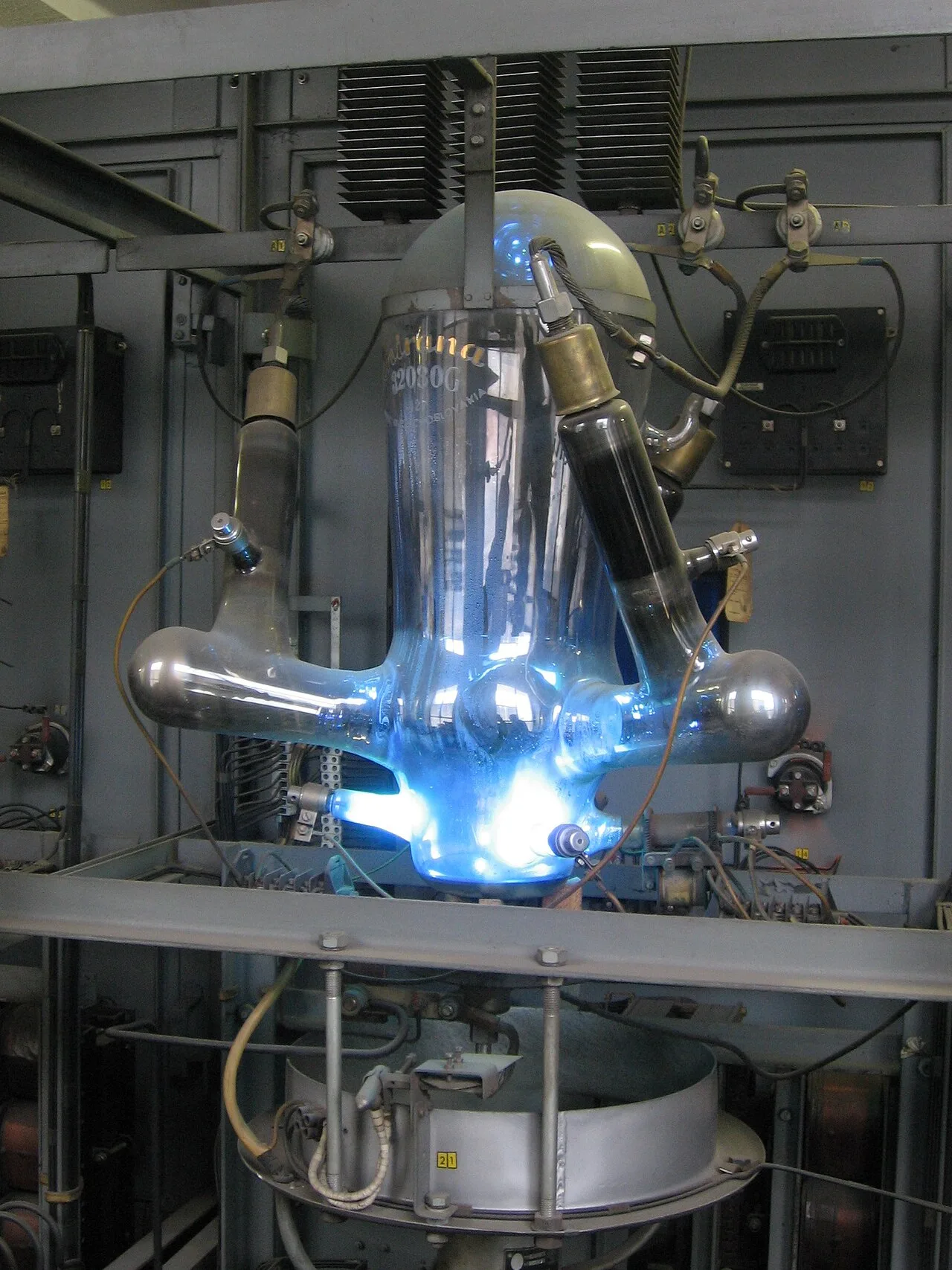

Glass-bulb valves are characterized by their compact size, with heights reaching up to 600 mm. These units are designed for currents up to 500 A. The glass envelope provides electrical insulation and contains the mercury vapor. The cooling relies primarily on natural air convection, making them suitable for environments where space is constrained and the heat load is moderate. The self-restoring liquid mercury cathode remains effective within these thermal limits.

Steel-tank valves are engineered for higher current demands. The steel housing provides greater structural integrity and allows for the integration of water-cooling systems. Water cooling enables the dissipation of higher thermal loads, permitting the valve to handle currents significantly greater than 500 A. This makes steel-tank valves ideal for large-scale industrial applications and high-voltage direct current (HVDC) transmission systems. The robust construction also enhances durability, aligning with the general robustness of mercury-arc technology.

The choice between glass-bulb and steel-tank valves depends on the specific current requirements and thermal management needs of the rectification system. Both types leverage the self-restoring liquid mercury cathode, ensuring long service life and high reliability. The transition from glass to steel construction reflects the scaling of mercury-arc technology to meet the growing demands of electrical power conversion.

Ignition, excitation, and grid control

Mercury-arc valves require specific mechanisms for ignition, sustained excitation, and precise grid control to function effectively as high-voltage rectifiers. The ignition process initiates the conduction path between the liquid mercury cathode and the anode. Various starting methods were employed depending on the valve's design and application. Electromagnetic starters use a magnetic field to depress a small jet of mercury from the pool, creating a conductive bridge to the starting electrode. Magnetostriction starters utilize the physical expansion of a ferromagnetic rod within a magnetic field to mechanically strike the starting electrode against the mercury pool. Bimetallic strip starters rely on the differential thermal expansion of two bonded metals; as the strip heats up, it bends to make contact with the mercury, initiating the initial arc.

Excitation and Keep-Alive Arcs

Once ignited, the arc must be sustained to ensure reliable operation, particularly during periods of low current or when transitioning between anodes. This is achieved through a "keep-alive" arc, typically maintained between the mercury pool cathode and a dedicated excitation anode. The excitation circuit ensures that the cathode remains sufficiently hot and ionized, reducing the delay time for the main arc to establish when the main anode voltage peaks. The self-restoring nature of the liquid mercury cathode means that as mercury droplets evaporate and condense back into the pool, the cathode surface is continuously renewed, maintaining low voltage drop and high current carrying capacity. This robustness allows mercury-arc valves to handle significantly higher currents than solid-cathode gas discharge tubes.

Grid Control and Arc-Back Prevention

Grid control is critical for regulating the output voltage and managing the phase angle at which conduction begins. A control grid, positioned between the cathode and the anode, applies a negative voltage relative to the cathode. By adjusting the grid voltage, the moment of ignition can be precisely timed within the AC cycle. This phase control allows for smooth regulation of the DC output voltage. The grid voltage Vg​ influences the electric field strength, determining when the potential difference is sufficient to overcome the grid's retarding effect and allow electrons to flow from the cathode to the anode.

A critical operational challenge is preventing "arc-back," a phenomenon where the arc fails to extinguish when the anode voltage becomes negative, causing a short circuit between the AC phases. To prevent this, the grid control system ensures that the grid voltage returns to a sufficiently negative potential before the anode voltage crosses zero. This "de-ionization" period allows the mercury vapor to cool and lose its conductivity. If the grid control is delayed or the anode voltage rises too quickly, the arc may reignite in the reverse direction, leading to a short circuit. Proper timing of the grid voltage is therefore essential for stable operation and protection of the valve and the connected electrical system.

Circuit configurations and polyphase rectification

Single-phase mercury-arc valves exhibit inherent limitations in high-voltage direct current (HVDC) applications, primarily due to significant ripple in the output voltage and the requirement for large smoothing inductors to maintain continuous conduction. To mitigate these issues, engineers developed polyphase circuit configurations that utilized two-, three-, or six-phase alternating current supplies. The use of multi-phase systems allowed for overlapping conduction periods among the anodes, thereby reducing the amplitude of the voltage ripple and improving the overall efficiency of the rectification process. In a three-phase system, for instance, the output voltage never drops to zero, ensuring a more stable DC output compared to the pulsating nature of single-phase rectification.

Full-wave rectification became a standard approach in mercury-arc valve installations to maximize the utilization of the AC input cycle. The Graetz-bridge circuit, a prominent configuration for three-phase full-wave rectification, employs six anodes arranged in a bridge topology. This arrangement allows current to flow through the load during both the positive and negative half-cycles of the AC supply, effectively doubling the frequency of the output ripple. The Graetz bridge was particularly favored in early HVDC transmission projects due to its ability to handle high currents and voltages with relatively simple control mechanisms. The robustness of the mercury-pool cathode enabled these valves to withstand the thermal and electrical stresses associated with full-wave operation, contributing to their long service life.

A critical innovation in the development of reliable polyphase mercury-arc valves was the introduction of anode grading electrodes, pioneered by Dr. Uno Lamm. In multi-anode configurations, uneven voltage distribution across the anodes could lead to premature firing or instability, especially under transient conditions. Dr. Lamm’s grading electrodes helped to equalize the voltage drop across each anode, ensuring uniform operation and enhancing the overall stability of the rectifier. This advancement was instrumental in the successful deployment of mercury-arc valves in large-scale HVDC systems, where consistent performance under varying load conditions was essential. The integration of these grading electrodes allowed for higher voltage ratings and improved reliability, solidifying the mercury-arc valve’s role in early power electronics.

Applications in industry and HVDC transmission

Mercury-arc valves found extensive application in industrial power conversion, particularly where high current and voltage stability were required. In electric railways, these rectifiers converted alternating current from overhead lines or third rails into direct current for traction motors, offering robust performance under variable loads. Radio transmitters utilized mercury-arc valves for high-voltage DC supplies, leveraging their ability to handle significant currents with minimal maintenance. DC power grids also benefited from the technology, providing reliable conversion before the widespread adoption of semiconductor devices.

HVDC Transmission Projects

The technology played a pivotal role in early High-Voltage Direct Current (HVDC) transmission systems. The Gotland link, commissioned in 1954, was one of the first major HVDC projects. It operated at 20 MW and 100 kV, demonstrating the viability of mercury-arc valves for long-distance power transmission. This project laid the groundwork for subsequent HVDC developments worldwide.

The Nelson River system in Canada utilized mercury-arc valves for its initial HVDC lines. Operating at 150 kV and 1800 A, the system was decommissioned in 2004. The valves provided reliable performance over decades of service, handling the high currents required for the region's hydroelectric power transmission.

Another notable project was the Inter-Island link, which connected power grids across bodies of water. This system was decommissioned in 2012, marking the end of an era for mercury-arc technology in that specific application. The Kingsnorth link also employed mercury-arc valves, contributing to the DC grid infrastructure in its region.

These projects highlight the durability and efficiency of mercury-arc valves in HVDC applications. Their ability to self-restoring cathodes and handle high currents made them ideal for early transmission systems. While semiconductor devices have largely replaced them, the legacy of mercury-arc valves remains significant in the history of electrical engineering.

Environmental hazards and legacy

Mercury-arc valves present significant environmental and operational hazards primarily due to the toxicity of elemental mercury. The cathode consists of a liquid mercury pool, meaning that any breach in the glass bulb or steel tank releases mercury vapor and liquid droplets into the surrounding environment. Mercury is a potent neurotoxin; exposure can lead to chronic health issues for maintenance crews and local populations if containment fails. The cleanup of mercury spills requires specialized protocols to prevent the formation of amalgams and the volatilization of mercury into the air, often involving vacuum pumps and chemical stabilizers.

The risk of glass bulb breakage is a primary concern in older installations. When the vacuum seal is lost, air rushes in, potentially causing an arc-back or explosion of the bulb. This event can scatter mercury and glass shards over a wide area. Additionally, the vacuum pumps used to maintain the low-pressure environment within the valve can emit mercury vapor if the oil separators fail, leading to cumulative contamination in the engine room or substation. Proper ventilation and mercury vapor monitoring systems are essential in facilities housing these rectifiers.

Despite their decommissioned status in most of the world, mercury-arc valves remain in operational service in specific locations, serving as living legacies of early power electronics. In South African mines, these valves continue to rectify high-current DC for winding engines and conveyors, valued for their robustness and self-restoring cathode. In Kenya, historical installations persist in certain industrial applications. In New Zealand, the Durie Hill Elevator in Wellington utilizes a mercury-arc valve for its DC drive system, while the Museum of Transport and Technology (MOTAT) in Auckland preserves a functional example, demonstrating the technology's durability and historical significance in power conversion.
